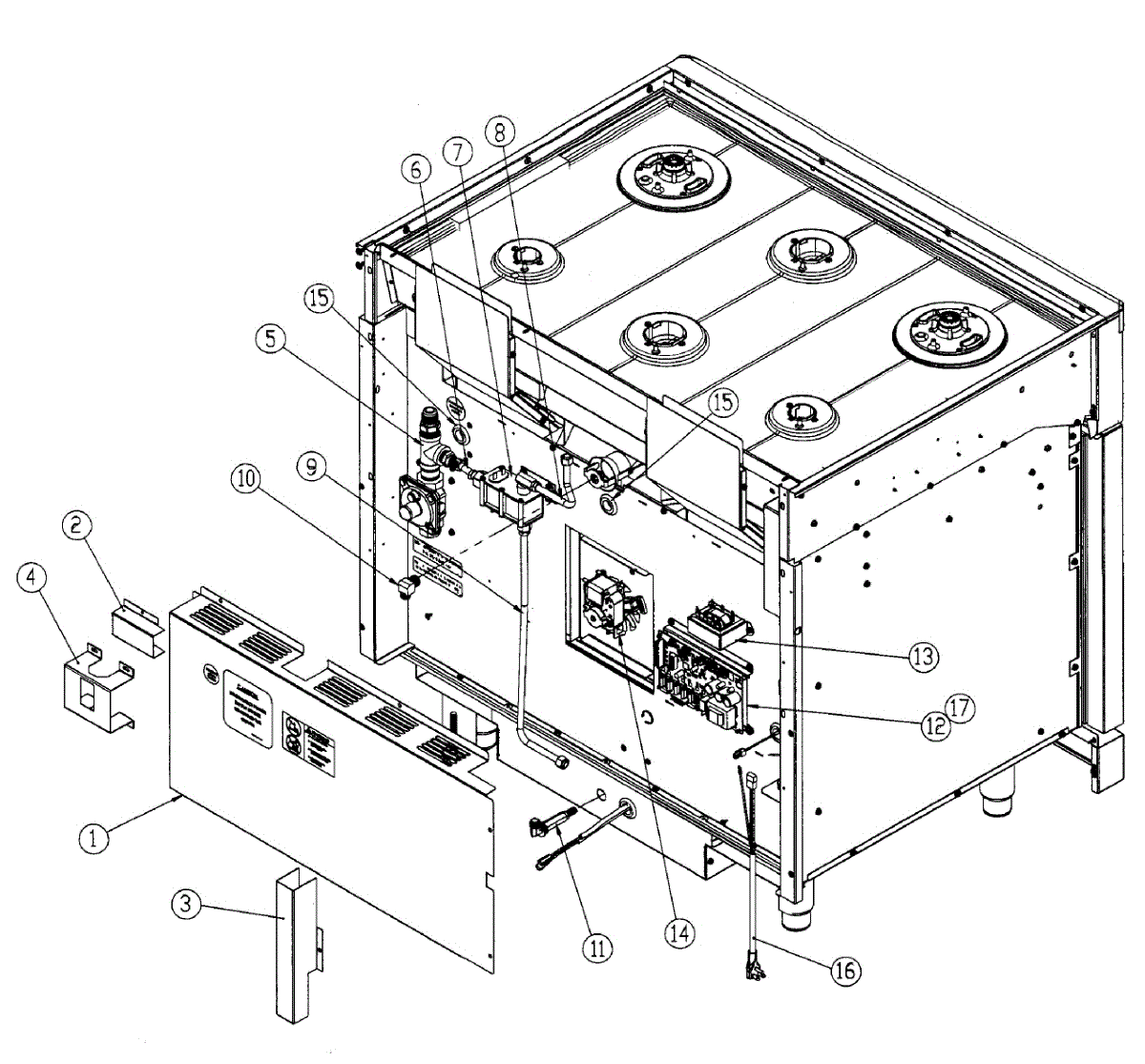

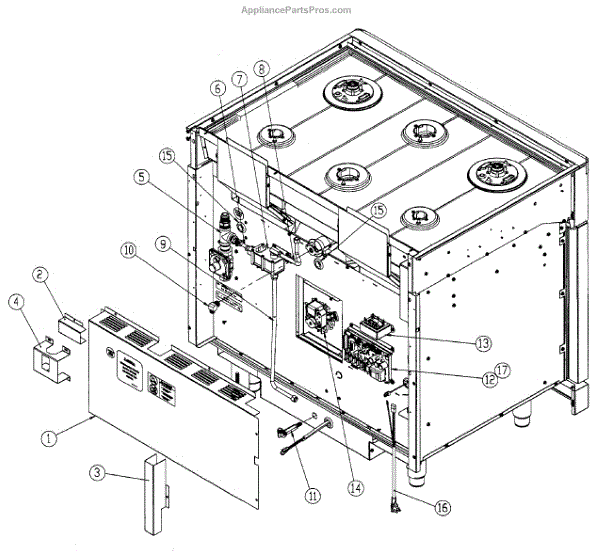

Parts for Dacor ER36GISCHNGH: Rear Assembly Parts

This transformer supplies the correct voltage to power the halogen light inside the appliance. It steps down household voltage to safely operate the halogen bulb. Replace this transformer if the halogen light no longer turns on even with a good bulb, or if the light flickers intermittently.

Replace a convection motor if your oven heats unevenly or takes longer to cook. This motor drives the fan that circulates hot air for even baking.

This replacement service wire harness routes 110 VAC power to oven or laundry appliance components so they can operate safely and reliably. It restores proper electrical connections when the original harness is damaged or worn. What it does:

• Replaces a damaged or burnt 110 VAC wiring harness to restore power to affected components
• Helps stop intermittent power loss, component failures, or operation issues caused by broken wires or connectors
• Provides factory-style connector ends and wiring configuration for a direct-fit repair when compatible
• Prevents arcing and short circuits from frayed wiring when installed correctly

• Always disconnect power at the breaker or unplug the appliance before beginning service
• Route the harness following the original wiring path and secure with clips or ties to avoid pinching
• Inspect connectors for corrosion and ensure secure, fully seated connections before restoring power

This service RTD harness connects a refrigerator/freezer temperature sensor to the main control board, restoring a reliable sensor connection for accurate temperature monitoring and diagnostics. Use it when the original harness is damaged or connector pins are loose. What it does:

• Provides a replacement wiring harness for the RTD/temperature sensor connection to the control board
• Restores secure .156" Molex-style connector seating for consistent sensor signals
• Helps address intermittent temperature readings, sensor communication errors, or connector-related fault codes
• Useful for service/repair when original harness wiring is frayed, broken, or corroded

• One service RTD harness with .156" Molex-style connector

• Always disconnect power to the appliance before starting any repair
• Route the harness away from sharp edges, heating elements, and moving parts to prevent chafing
• Seat connectors fully until they click; inspect mating pins for corrosion or damage before connecting
