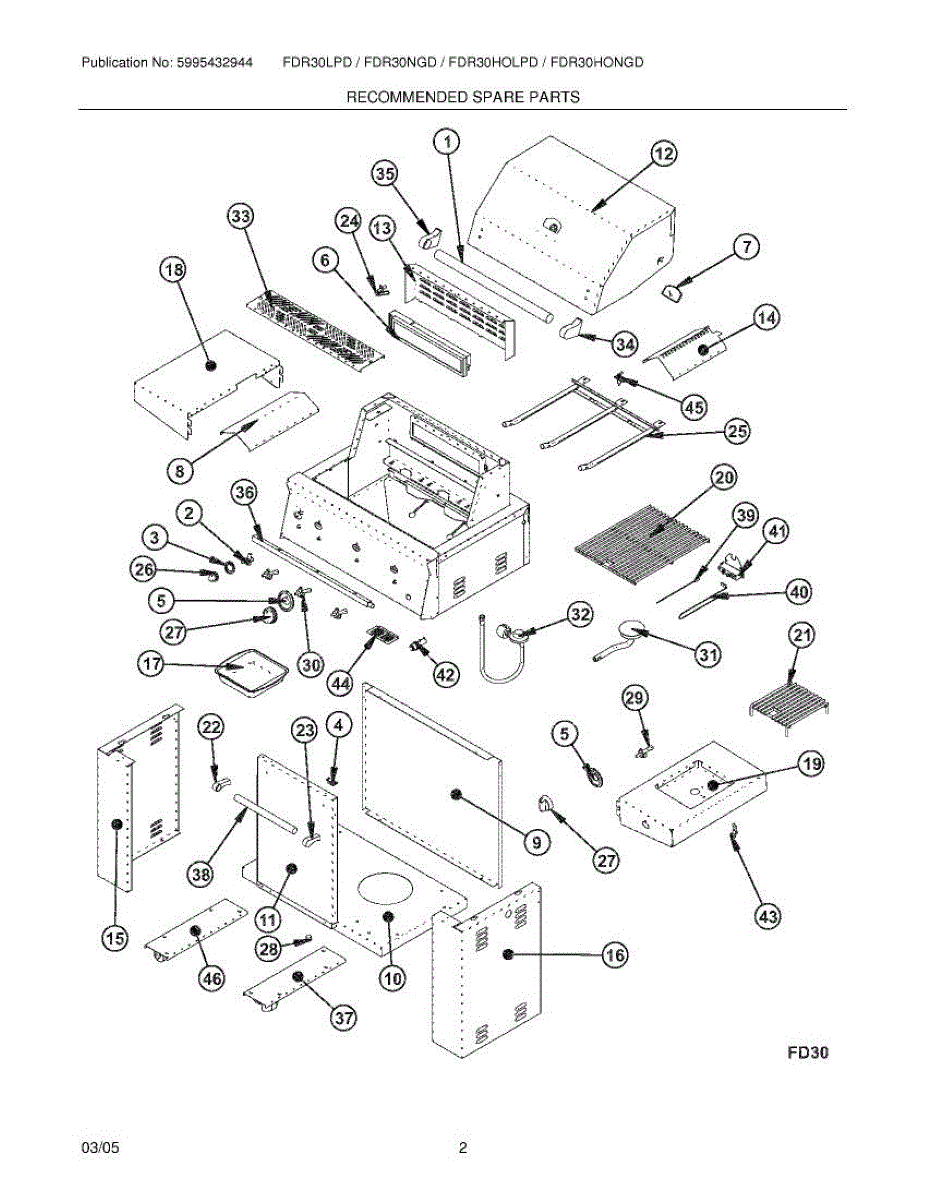

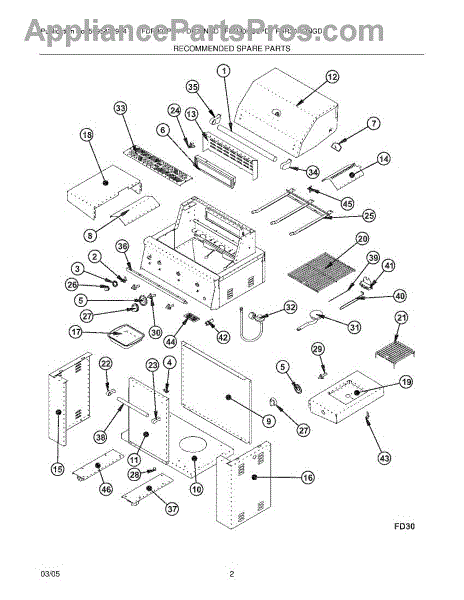

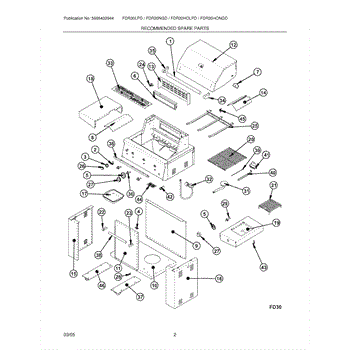

Parts for Frigidaire FDR30LPDC: 03 - Recommended Spare Parts

This genuine control panel replaces a cracked, damaged or worn console surface to restore the appliance's exterior and support the console controls. It provides a direct fit for models that list this exact part number. What it does

• Serves as the front surface for the appliance control console and provides mounting for buttons, displays or switches
• Replaces cracked, warped or cosmetically damaged panels that expose internal components
• Helps protect electronic controls and wiring from spills and debris
• Restores the factory appearance of the console after impact or wear

• Follow the appliance manufacturer's disassembly steps to access and remove the console; disconnect power before starting
• Handle with care to avoid scratching the finish or damaging attached trim or mounting tabs
• Retain any screws, bezels or clips from the original panel for reuse unless replacement hardware is specified
• If electronic components need transfer, ground yourself and follow static-safety practices

This electrode is the spark igniter used on compatible gas ranges and ovens to create the spark that lights the burner for reliable ignition. It restores proper ignition when the stove won't light or sparks weakly. What it does:

• Generates the spark needed to ignite the gas burner for oven or cooktop operation
• Directs spark toward the burner for consistent ignition
• Replaces worn or damaged electrodes that cause delayed or no ignition
• Helps eliminate weak or intermittent sparking that prevents burner lighting

• Turn off gas supply and unplug the appliance before starting any repair
• Handle the ceramic tip and electrode carefully; do not touch the tip with bare hands
• Verify fit and orientation against the old electrode before final assembly
• If mounting hardware or connectors are corroded, replace them to ensure a secure electrical connection

This replacement control knob restores safe, accurate selection of oven or range settings and replaces a cracked, worn, or stripped control knob for a reliable grip and clear pointer feedback. Easy push-on replacement for normal wear. What it does:

• Fits over the appliance control shaft to set oven or burner temperature and mode
• Replaces knobs that are cracked, faded, loose, or no longer grips the control shaft
• Restores clear pointer alignment so settings are visible and selectable
• Simple mechanical part — no wiring or electronics involved

• One control knob

• Disconnect power to the appliance or turn controls off before replacing
• Typically installs by pulling the old knob straight off and pushing the new knob onto the splined shaft
• Align pointer with the desired setting before full seating; do not force or hammer
• If the knob will not seat, inspect shaft and retaining clip for damage and replace damaged parts as needed

This replacement handle end is the small end cap that finishes and secures a refrigerator or freezer door handle for a clean, finished look. It restores a snug fit and hides the handle fastener. What it does:

• Covers and protects the exposed handle fastener or mounting area
• Helps keep the handle snug and prevents wobbling or rotation
• Restores finished appearance to a cracked, chipped, or missing end piece
• Useful when the original end cap is broken, lost, or cosmetically worn

• One handle end (end cap) as pictured

• Usually secures by snapping or sliding onto the handle; may require removing handle or a single screw
• Use basic hand tools; keep screws and brackets for reassembly
• No electrical disconnection required for door-handle end cap replacement

This handle end cap replaces a damaged or missing refrigerator door handle end for a clean, finished look and secure grip. It restores proper handle alignment and keeps the door handle secure during normal use. What it does

• Covers the exposed end of the door handle and provides a finished appearance
• Helps keep the handle securely attached and aligned on the refrigerator door
• Prevents sharp or rough edges from being exposed where the handle terminates
• Commonly used when the original end cap is cracked, broken, or missing

• One handle end cap

• Designed for simple, hardware-free replacement; usually snaps or slides into place
• Power or disconnecting power is not typically required for exterior handle end cap replacement
• Inspect mating handle and fasteners for damage and replace any broken hardware before installing

This ignitor module controls the spark used to light gas burners and the oven on compatible gas ranges. It restores reliable spark generation so burners and the oven can ignite when the cooktop or bake/ignite controls are used. What it does:

• Sends high-voltage spark pulses to burner and oven igniters so gas will light
• Diagnoses: clicking with no ignition, some or all burners fail to light, or intermittent ignition
• Works as the control interface between user valve switches and the spark electrodes
• Replaces a failed or intermittent spark control to restore normal ignition behavior

• One ignitor module

• Disconnect power and shut off gas supply before beginning service
• Handle with care; secure wiring harnesses and mounting fasteners per OEM instructions

This ignition electrode creates the spark needed to light the gas burner in the oven or broil assembly, restoring reliable ignition so your range lights quickly and consistently. What it does:

• Generates the spark at the burner/oven ignition point to ignite gas
• Helps restore normal ignition when the oven/broiler won't light
• Works with the oven's igniter/ignition system to produce a consistent spark

• One ignition electrode

• Disconnect power and turn off the gas supply before servicing
• Replace only when the appliance is cool; handle the ceramic insulator and tip carefully to avoid damage
• Inspect mounting, wiring, and the electrode gap; secure connections and correct alignment per the service manual

This replacement screw secures appliance components and small assemblies so panels, trim, and brackets stay firmly in place. Use when a missing or damaged screw causes loose parts, rattling, or improper fit. What it does

• Fastens panels, trim pieces, brackets, and small assemblies
• Restores proper alignment and prevents vibration or rattling
• Replaces a stripped, corroded, or missing screw to secure components
• Matches the original fastening point for correct fit and function

• One replacement screw

• Unplug the appliance or shut off power before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Install to the original torque—do not overtighten to prevent thread damage
• If threads are damaged, replace the mating fastener

This replacement insulated wire provides a direct electrical connection for compatible appliances, restoring lost continuity and helping resolve intermittent power or component failures. Use it to replace a damaged or corroded lead. What it does:

• Replaces a damaged or frayed wire to restore electrical continuity.
• Helps eliminate intermittent power, shorts, or failed component signals caused by broken wiring.
• Restores a safe, routed connection between appliance components.
• Suitable where the original single conductor wire has been compromised.

• Disconnect power to the appliance before attempting any repair to avoid shock or damage.
• Match wire routing, gauge, and terminal connections to the original for safe operation.
• Use proper crimping or soldering and insulation (heat shrink or wire nut) where applicable.
