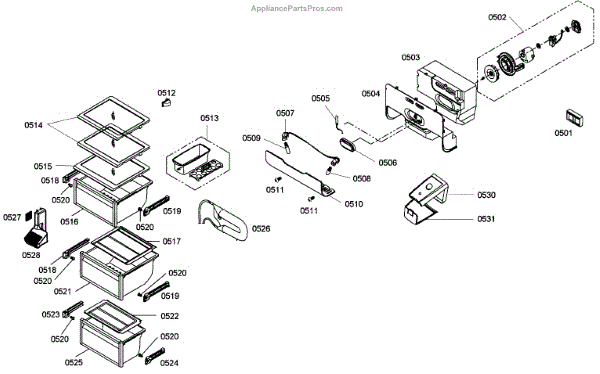

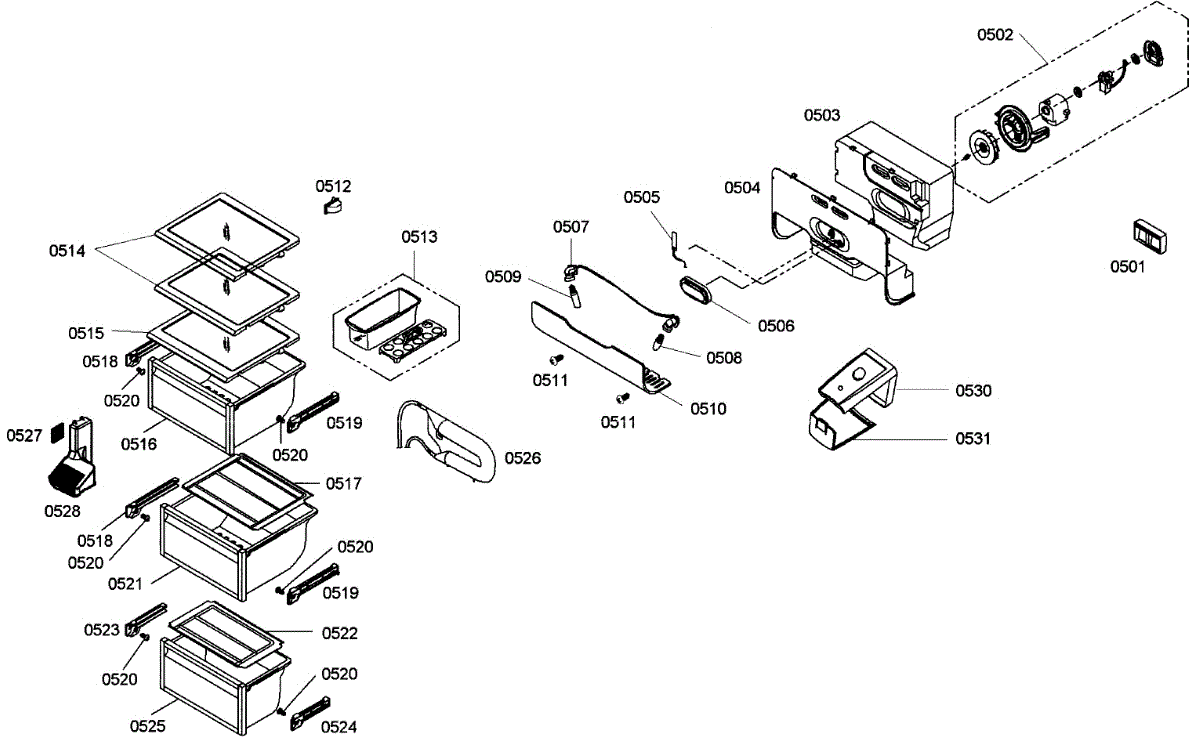

Parts for Bosch B20CS50SNS/01: Refrig Assembly Parts

This Bosch filter has an activated carbon media that is designed to reduce chlorine taste and odor, sediment, lead, mercury, and other impurities from your drinking water. Used on many Bosch refrigerators including the Evolution 500 Series model B20CS50SN, Evolution 800 Series model B20CS80SN, and the EVOLFLTR10 filtration system. For best performance, filter should be changed every 6 months or 400 gallons. Pressure range: 25-125 psi. Temperature range: 33-100 F. Flow Rate: 0.5 gallons per minute.

This replacement screw is a direct-fit fastener used to secure panels and small components. It restores proper attachment and helps eliminate loose or rattling parts for a secure appliance fit. What it does

• Secures panels, brackets, and trim to restore proper alignment and prevent movement
• Helps stop rattling, vibration noise, and parts that shift or come loose
• Matches OEM thread and length for reliable fit when it's the correct screw for the repair
• Used where original mounting hardware is missing, stripped, or damaged

• One replacement screw

• Disconnect power or unplug the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until secure to avoid thread damage or cracked panels
• This screw matches the original part by comparing size, thread, and head style before installation

The Drawer Slide Rail is an OEM component specifically designed for select Bosch refrigerator-freezer combinations. Housing the freezer drawer, its extruded aluminum rails ensure a smooth roll-out. Weighed durability supports maximum ice storage.

Symptoms of faulty freezer drawer rails involve squeaking or binding preventing easy access. Overloading causes deformation requiring timely replacement.

Causes of bad freezer drawer rails commonly include typical wear-reducing friction-fit. Exposure to spills hastens inner-track rust-out necessitating change.

Causes of a bad freezer drawer rail involve:

• Cracks occurring from excess weight imposition
• Separated joining clips compromising alignment
• Worn steel bearings inhibiting silky movement

Note: Left side

This OEM Bosch part is also compatible with some Thermador, Gaggenau, and Dacor refrigerator-freezer models. Replace to retain convenient access through a dependable motion for many seasons of use.

The Rail is an OEM component for Bosch bottom-mount refrigerators. It supports adjustable glass shelves inside the fridge and freezer compartments.

Symptoms of a bad rail can include scratching shelves from misalignment, sagging shelves from loose fits, or complete rail disengagement interrupting functionality.

Causes of a bad rail include:

• Shelves that do not slide smoothly
• Gaps allowing items to fall through
• Loose fittings jeopardizing the stability of stored goods
• Sagging or dislodged shelves prevent access

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This replacement screw is a direct-fit fastener used to secure panels and small components. It restores proper attachment and helps eliminate loose or rattling parts for a secure appliance fit. What it does

• Secures panels, brackets, and trim to restore proper alignment and prevent movement
• Helps stop rattling, vibration noise, and parts that shift or come loose
• Matches OEM thread and length for reliable fit when it's the correct screw for the repair
• Used where original mounting hardware is missing, stripped, or damaged

• One replacement screw

• Disconnect power or unplug the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until secure to avoid thread damage or cracked panels
• This screw matches the original part by comparing size, thread, and head style before installation

A replacement vegetable container that restores storage space and organization in the refrigerator. Fits into the bottom drawer area to hold fruits and vegetables and keep them separated from other food. What it does:

• Replaces a cracked, broken, or missing crisper drawer so produce can be stored safely.
• Provides a dedicated bin for fruits and vegetables to help keep the fridge organized.
• Slides into existing drawer tracks for easy access to stored items.
• Prevents loose items from rolling around on refrigerator shelves.

• Remove all food before removing the old drawer; handle glass/plastic parts carefully to avoid breakage.
• Align drawer rails with cabinet tracks and slide in gently until fully seated; do not force.
• If drawer does not slide smoothly, inspect tracks for debris or damage before proceeding.
• No tools typically required for replacement; your appliance manual for model-specific instructions.

This replacement vegetable container is the clear crisper drawer that stores fresh produce and helps keep the refrigerator organized. It restores a broken, cracked or missing drawer so fruits and vegetables sit securely in the fridge. What it does

• Holds fruits and vegetables in the refrigerator lower compartment for organized storage.
• Replaces cracked, split, warped or otherwise damaged crisper drawers that no longer seal or slide properly.
• Prevents produce from spilling onto shelves and helps contain leaks from spoiled items.
• Slides into existing tracks/drawer guides to restore normal drawer operation.

• Remove all contents from the old drawer before removal; install with the fridge door open for easier access.
• Slide new container into the existing tracks; do not force—ensure it aligns with the guides.
• Handle edges carefully and wear gloves if needed to avoid cuts on broken plastic.
• If drawer does not seat or slide smoothly, check for obstructions or damaged tracks before forcing.

This clear plastic vegetable container is the refrigerator crisper drawer that stores fruits and vegetables while keeping them organized and visible. It restores a secure, easy-to-access storage bin for produce. What it does

• Replaces a cracked, broken, or missing crisper drawer so produce can be stored properly.
• Slides into the lower refrigerator track to create an enclosed storage area that helps contain spills.
• Provides a clear front for easy visibility of contents.
• Helps prevent produce from getting crushed or scattered on the shelf.

• One vegetable container (crisper drawer) as shown.

• Remove all contents from the drawer and slide the old drawer out of the tracks before installing the replacement.
• Align the drawer rails with the cabinet tracks and slide in until it seats securely.
• Clean with mild soap and water; avoid abrasive pads or harsh chemicals that can scratch or damage plastic.
• If the drawer does not seat smoothly, inspect the tracks and rails for obstructions or damage before forcing installation.

The Tank is an OEM component specifically designed for select Bosch bottom-freezer refrigerator models. Containing chilled water for temperature regulation, its sturdy plastic construction withstands years of daily use. Proper functioning helps maintain consistent cooling performance.

Symptoms of a faulty tank involve leaks compromising refrigeration. Mineral deposits impeding circulation or cracking from prolonged interior exposures require replacement.

Causes of a bad tank can involve splits from impact incidents during delivery and installation posing internal damage risks. Regular mineral accumulation also impacts circulation necessitating periodic cleaning.

Causes of a bad tank include:

• Fluctuating interior temperatures and compromised cooling
• Water puddles developing around the refrigerator base
• Ice formations in compartments affecting usability

This OEM Bosch part is also compatible with some Thermador, Blomberg, and Dacor bottom-freezer refrigerator models.


This replacement access cover restores the appliance's exterior finish and protects internal components from dust, debris and accidental contact. It helps keep parts secure while maintaining the original appearance. What it does:

• Shields internal wiring and components from dirt and loose objects
• Prevents accidental contact with moving or electrical parts
• Helps reduce noise by securing loose openings or panels
• Restores a finished look when the original cover is cracked, missing, or damaged

• Disconnect power to the appliance before beginning any work.
• Use basic hand tools to remove mounting screws and install the cover; keep fasteners for reassembly.
• Handle edges carefully to avoid cuts and align tabs before seating the cover.
