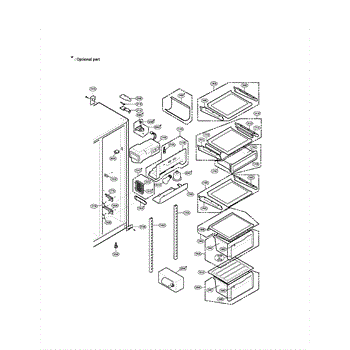

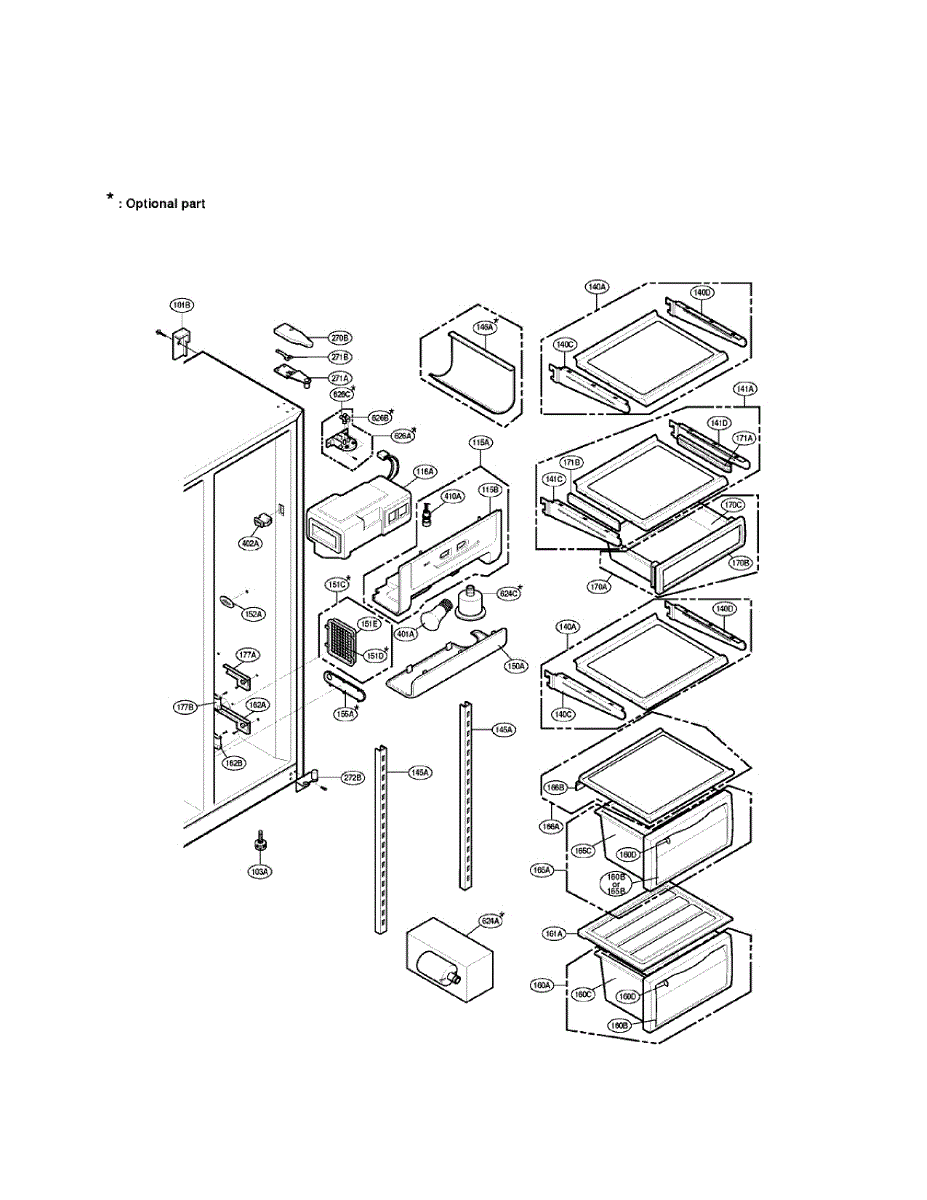

Parts for Lg LRSPC2031BS: Refrigerator Compartment Parts

This hinge lever mounts on the refrigerator door hinge to guide door movement and closure, helping the door seal properly. Replacing a worn or broken lever restores smooth operation and consistent sealing.

• Guides hinge motion so the door opens and closes smoothly
• Helps maintain door alignment for a reliable gasket seal
• Replace if the lever is visibly cracked, worn, or deformed

• Disconnect power and support the door to prevent injury or damage
• Remove the hinge cover and fasteners; note the lever's orientation before removal
• Install the new lever in the same position and reassemble the hinge components
• Adjust hinge per model procedures if needed

The Water Line is an OEM part for LG refrigerators. It is designed to transport water from the home’s supply to the refrigerator, enabling the production of ice and the dispensing of fresh water. This tubing is essential for the refrigerator's water and ice features to function correctly, ensuring clean, clear water is available at all times.

Symptoms of a bad Water Line include:

• Noticeable leaks or dampness along the line's path.
• Decreased water flow to the dispenser or ice maker.
• Unusual noises like buzzing or humming from the line when the dispenser is used.

Causes of a bad water line can include physical damage such as cracks or punctures, blockages from mineral buildup inside the line, or deterioration due to aging or environmental factors such as heat or pressure.

This OEM LG part is also compatible with Sears/Kenmore, ensuring broad compatibility across multiple refrigerator models.

The Water Filter Bypass is an OEM part for LG refrigerators. It provides a way to bypass the installed water filter and allows the water line to pass directly to the ice maker and water dispenser.

Causes of a bad water filter bypass can include mineral or sediment buildup restricting water flow, cracks or leaks in the plastic components, or damage to the bypass valve.

Symptoms of a bad water filter bypass include:

• Slow or declining water pressure at the dispenser
• Sediment or particles in the water
• Inability to bypass a clogged water filter
• Leaks in the water line connections

Replacing the water filter bypass restores optimal water flow and allows the filter to be changed out easily. This OEM LG part is also compatible with Sears/Kenmore models.

The LG Refrigerator Water Filter is an OEM Replacement Part. It is designed to improve the quality of water and protect refrigerators and ice machines from sediment deposits. This NSF-Certified filter effectively reduces iron and particulates. It also preserves beneficial minerals like fluoride. The filter measures 5.6 inches high and 3.3 inches in diameter.

It is installed by removing the top shelf and pulling the old filter downward. Then turn it counter-clockwise, and replace it with the new filter aligned in a horizontal position. To ensure the best performance and the removal of trapped air and contaminants, it's recommended to flush the dispenser with 2.5 gallons of water in alternating cycles. If your model includes a water filter indicator, press and hold the Filter or Reset button for 5 seconds after installation. With a lifespan of 6 months and a 500-gallon capacity, this filter provides both quality and longevity.

Note: 90 degree elbow coupler (Fits 5/16" diameter tubing on each end) For 1/4" elbow connector, order part# 4932JA3009A.

Note: 90 degree elbow coupler (Fits 1/4" diameter tubing on each end) For 5/16" elbow connector, order part# 4932JA3009B.

The Water Line Union is an OEM part for LG refrigerators. This component connects sections of the water line, ensuring a secure and leak-free passage of water to the refrigerator's icemaker and water dispenser. It is an elbow tube union connector, which connects two tubes at a 90-degree angle.

Causes of a bad water line union can include wear and tear from frequent use, damage from high water pressure, or deterioration due to mineral buildup and age. A compromised union can lead to water leaks and disruption in the water supply.

Symptoms of a bad Water Line Union include:

• Water leaks around the connection points
• Reduced water flow to the icemaker or water dispenser
• Puddles or moisture near the refrigerator
• Unusual noises from the water line

This OEM LG part is also compatible with Sears/Kenmore.
