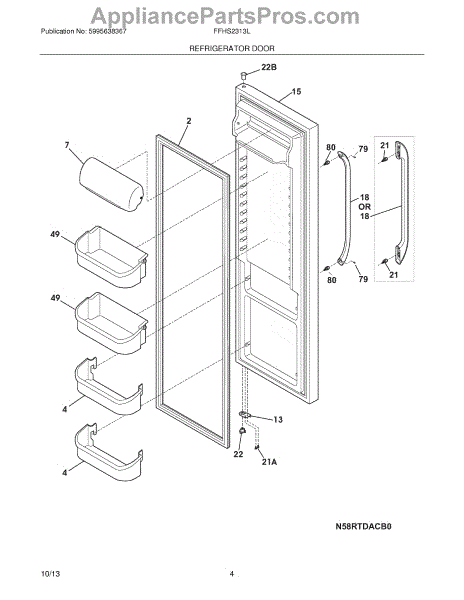

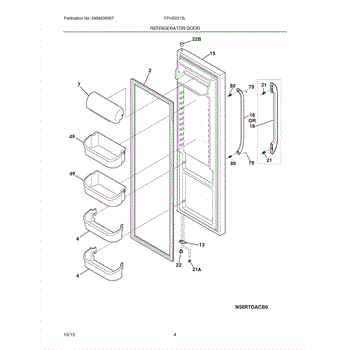

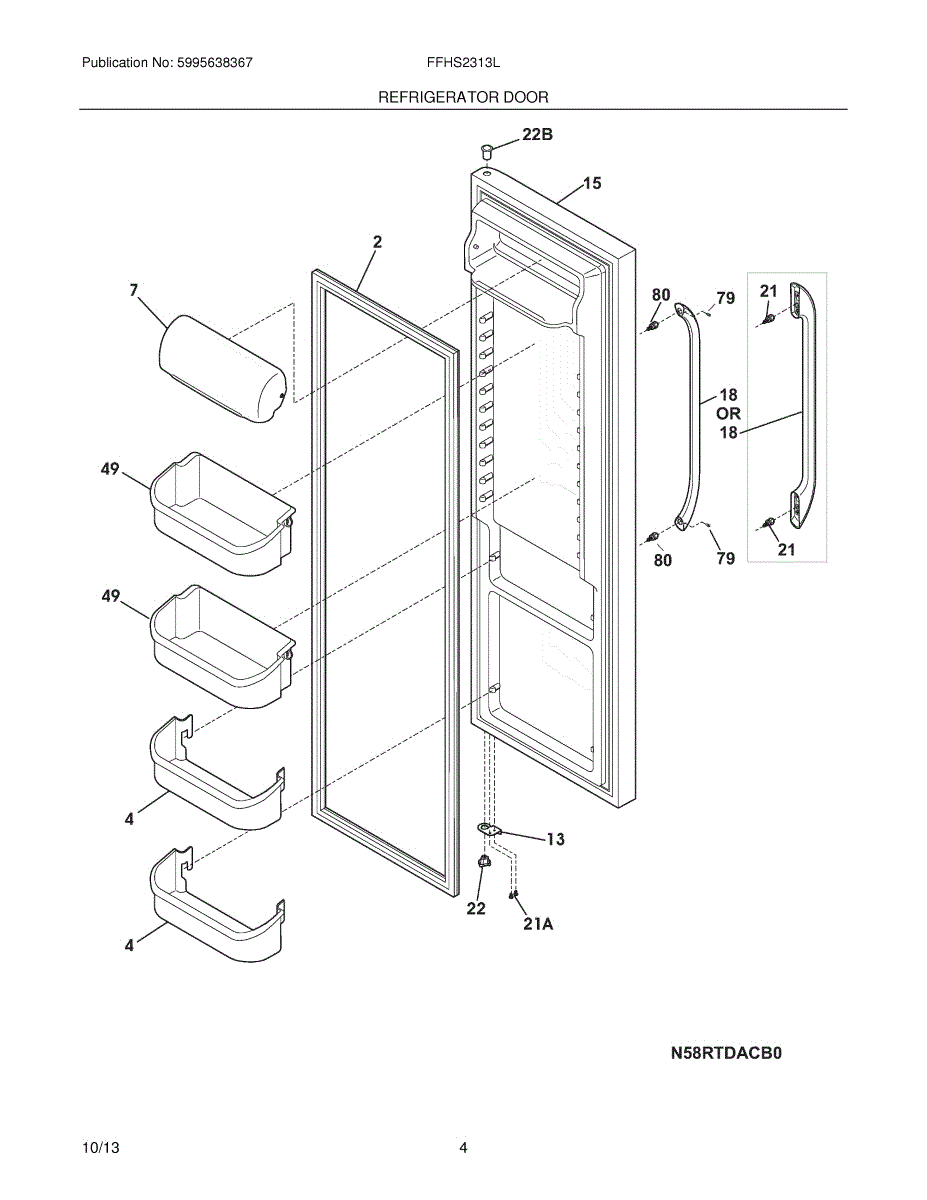

Parts for Frigidaire FFHS2313LSD: 05 - Refrigerator Door Parts

This single-pack Frigidaire PureSource 3 WF3CB Water Filter is an OEM replacement part for Frigidaire refrigerators. It improves the quality and taste of your drinking water. It removes impurities such as lead, cysts, and mercury, as well as reduces chlorine taste and odor. The filter is NSF and WQA certified and is designed to fit specific side-by-side models after 2009 where the filter is located in the back, right top.

Specs:

• Pressure range: 30 - 100 PSIG
• Color: White
• Dimensions: Approximately 2-1/2 inches in diameter by 9-1/2 inches deep.

To ensure optimal performance, filters should be changed every 6 months or 200 gallons, depending on usage.

This door gasket seals the perimeter of the appliance door to keep cold air in and humid air out. Replace a torn, warped, or leaky gasket to restore stable temperatures, reduce frost/condensation, and help the unit run efficiently. What it does:

• Creates an airtight seal between the door and cabinet
• Helps maintain proper temperature and humidity inside the compartment
• Reduces frost buildup and condensation around the door opening
• Common failure signs: tears, gaps, warping, hard or cracked rubber, door not closing flush, warm spots

• 1 door gasket

• Unplug the appliance and clear items from the affected door.
• Condition the new gasket to remove shipping kinks by laying it flat and warming it (soak in warm water or use gentle, low heat).
• Remove the old gasket; on some models you may need to loosen liner-retainer screws to release it.
• Fit the new gasket into the channel, working from the corners; ensure it seats evenly all around and verify a uniform seal.

The Door Bin is an OEM part for Frigidaire refrigerators. This part attaches to the inside of the refrigerator door, offering additional storage space for bottles, jars, and other condiments. Designed for ease of installation and removal, the door bin enhances the refrigerator's storage capacity and organization, allowing for quick access to frequently used items.

Over time, door bins can become cracked, warped, or broken due to overloading, accidental impacts, or general aging. This can compromise their ability to securely hold items, leading to potential spills or damage to stored goods.

Symptoms of a bad Door Bin include:

• Visible cracks or breaks in the bin
• The bin sagging or not attaching securely to the refrigerator door
• Difficulty in sliding the bin in or out, or it not fitting properly
• Reduced effectiveness in holding items securely

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Dairy Door is an OEM replacement part for Frigidaire side-by-side refrigerators. As the access point to the dedicated dairy compartment, the door is designed with precision seals to maintain optimal humidity levels inside. This helps keep dairy and other perishable items fresh longer.

Causes of a bad dairy door can include worn or damaged seals, dents or impacts warping the door frame, or issues with the electronic components that control humidity levels.

Symptoms of a bad dairy door include:

• Excessive frost or ice buildup inside the dairy compartment
• Difficulty opening and closing the door smoothly
• Warm or dried-out dairy products despite a cold refrigerator interior
• Moisture leaks around the door seals

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore side-by-side models.

This black door stop replaces the small bumper that limits a refrigerator/freezer door's travel, protecting the cabinet and hinge from damage. It restores proper door alignment and quiets contact when the door closes. What it does:

• Acts as a physical stop to prevent the door from swinging too far and hitting the cabinet
• Cushions door closure to reduce noise and wear on the hinge
• Helps maintain correct door alignment for a tight seal
• Common symptom: door scraping, slamming, or rubbing against cabinet edge

• Basic hand tools may be required; keep fasteners and mounting surfaces clean
• Turn off or unplug the appliance before performing any repairs that require moving the door
• Handle hardware carefully to avoid damaging surrounding trim or seals

This #10-32 x 3/4-inch machine screw secures appliance components such as panels, brackets, and handles. Using the correct length and thread helps restore a snug, rattle-free hold wherever this screw is specified by the manufacturer.

• Fastens components with a #10-32 machine thread and 3/4-inch length
• Helps keep panels, trim, brackets, or handles secured and aligned
• Replaces missing, stripped, or corroded hardware
• Common signs include loose or wobbly parts, rattling, missing screws, or damaged screw heads/threads

• Disconnect power before servicing; if working near a water connection, shut off the water supply
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping plastic or threads
• Reuse any model-specific washers or spacers if present

This refrigerator dispenser bearing supports the auger shaft so it spins smoothly during ice dispensing. Replacing a worn bearing restores quieter, more reliable ice delivery and helps prevent binding or uneven crushing of cubes. What it does

• Supports and centers the ice auger/crusher shaft inside the ice bucket
• Reduces friction to allow smooth, consistent rotation
• Wear can cause grinding or squealing during dispensing
• Symptoms include slow/no ice dispensing, jamming, or intermittent operation

• 1 bearing

• Disconnect power and turn off the water supply before service
• Remove the ice bucket and disassemble the crusher housing to access the bearing
• Note the bearing's orientation; transfer any spacers or clips as found
• Reassemble carefully and ensure the auger turns freely by hand before restoring power

The Lower Door Closer is an OEM replacement part for Frigidaire refrigerators. It is a vital part that assists in securely shutting the refrigerator door. The door closer contains a calibrated spring mechanism designed to gently guide the door into the closed position without using forceful movements.

Symptoms of a bad door closer include:

• The door not latching fully or popping back open easily
• Difficulty closing the door all the way
• Excessive noise and banging when closing
• Gaps appearing around the door seal

Causes can be regular wear and tear on the spring after prolonged use. Not allowing the door to fully close before reopening may also damage the door closer mechanism over time.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Gallon Door Bin is an OEM replacement part for Frigidaire refrigerators. It is a spacious storage compartment designed to be mounted on the refrigerator door, providing convenient access to frequently used items. This bin measures approximately 13" wide and 7-1/4" deep.

Causes of a faulty gallon door bin can include physical damage, such as cracks or breaks, or issues with the mounting mechanism that secures it to the door.

Symptoms of a need to replace the gallon door bin:

• Cracks, chips, or other visible damage to the bin
• Difficulty in opening or closing the refrigerator door due to the bin's positioning
• Loose or unstable mounting, causing the bin to detach or fall off

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This replacement part is a set screw, and it is intended for use in different types of appliances. This is a genuine replacement part made by Frigidaire. This screw set is compatible in many different areas of the appliance. Screws are typically used for keeping parts of the machinery secure and in place. It is possible that screws can become loose over time and need to be replaced. A new screw set might be needed if the user notices parts of the appliances are becoming loose or are falling off. This can be due to screws becoming stripped over time or if the appliance is bumped during transport. It is typically easy to replace screws. Simply remove the old screw and replace it with a new part. The only tools needed for this repair are a screwdriver and possibly pliers if the damaged screw is stuck in place.Note that this is a genuine OEM replacement part and is sourced from the manufacturer. This set screw is sold individually.

The Door Handle Screw is an OEM part for Frigidaire refrigerators. This screw secures the door handle to the refrigerator door, ensuring a firm and stable grip for opening and closing the door.

Causes of a bad door handle screw can include regular wear and tear from frequent use, corrosion due to exposure to moisture, or damage from over-tightening or stripping. A faulty screw can lead to a loose or wobbly door handle, making it difficult to operate the refrigerator.

Symptoms of a bad door handle screw include:

• The door handle feeling loose or coming off
• Difficulty in securely tightening the handle
• Visible rust or corrosion on the screw
• Stripped threads on the screw or handle

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
