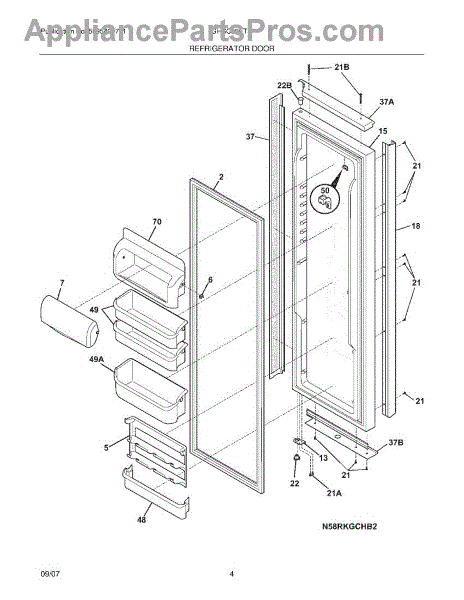

Parts for Frigidaire GHSC39ETHW2: 05 - Refrigerator Door Parts

Frigidaire PureAir® Refrigerator Air Filter combines activated carbon, Zeolite and real baking soda to reduce odors from foods such as onions, garlic, fish, stale milk and over-ripe fruits and vegetables. Recommended air filter replacement is every six months. Dimensions: 4-1/2" x 2-1/2"

This Frigidaire Refrigerator Water Filter is an OEM replacement part for select Frigidaire brand refrigerators with a slide-out cartridge in the front compartment. Your refrigerator water filter reduces the chorine taste and odor from your water. It also effectively helps filter out sediment, including dirt, sand, and rust,

The filter is easy to install without the need for special tools and should be changed every 6 months. With an operating temperature range of 33-100°F and a pressure range of 30-100 PSI, this OEM part offers reliable performance. The filter measures approximately 6-3/4" x 5-1/4" x 2-1/4" and features a high-grade coconut carbon filter media.

For filter bypass order 242227702.

This replacement door gasket fits the refrigerator compartment. It forms a tight seal between the door and cabinet to help keep cold air in, limit moisture at the door, and maintain consistent temperatures. What it does:

• Seals the fresh food door opening to prevent air leaks
• Helps maintain stable interior temperature and humidity
• Reduces condensation and frost around the door perimeter
• Common failure signs: torn, warped, or compressed gasket; door not sealing; persistent condensation; temperature fluctuations; longer run times

• 1 refrigerator fresh food door gasket

• Disconnect power before servicing
• Lay the gasket flat to relax; gently warm with hot water or low heat to remove kinks
• Remove the old gasket; on many models, lift the liner lip or loosen retainer screws to release it
• Press the new gasket fully into the channel; check corners for a uniform seal and adjust door alignment if needed

This dairy door is the flip-up cover for the refrigerator's dairy compartment on the fresh-food door. It keeps butter and cheese covered and contained, restoring a clean, finished look when the original cover is cracked or missing.

• Covers the dairy compartment and hinges open for easy access
• Helps keep small dairy items contained and organized on the door
• Replaces a cracked, warped, discolored, loose, or missing cover
• Closes properly when seated on the original hinge posts

• Disconnect power before servicing
• Remove the old cover by releasing its tabs from the hinge posts
• Align the new cover with the hinge posts and press to snap into place
• Avoid forcing brittle plastic; allow the part to reach room temperature before installation

This door stop is the replacement part that limits a refrigerator door's swing to prevent over-extension and protect the hinge and cabinet. It restores proper door alignment and helps the door close reliably. What it does:

• Stops the door at the correct open position to prevent damage to hinges and adjacent cabinetry
• Helps maintain door alignment so the seal engages fully for consistent cooling
• Reduces slamming and uneven wear that can cause noisy or misaligned doors
• Works at the hinge area to control movement rather than as a latch or gasket

• One door stop

• Designed for straightforward replacement at the hinge; remove power only if working near electrical components
• Keep hardware from the original part; replace only the components shown in the manufacturer diagram
• Inspect hinge and surrounding parts for wear while replacing the stop; tighten loose hinge screws as needed

This complete refrigerator door assembly replaces a damaged or worn outer door to restore appearance and help maintain proper cooling. It ships ready to install for a direct replacement of a failed door. What it does

• Replaces a dented, cracked, or cosmetically damaged refrigerator door to restore the appliance's exterior
• Re-establishes a proper closure surface so the gasket can seal and reduce cold-air loss
• Helps stop or reduce icing and cooling issues caused by a poorly fitting or damaged door
• Restores handle and trim appearance when those components are integrated into the door

• One complete refrigerator door assembly

• Disconnect power to the refrigerator before starting any repair to avoid injury
• Door assemblies are large and heavy—have a helper and protect floor and cabinet surfaces during removal and installation
• Keep hardware and hinge orientation the same as removed; follow model-specific diagram for hinge and wiring routing if present
• If the door contains wiring (sensors, lights, dispensers), disconnect connectors before removing and reconnect them in the same orientation

This factory screw fastens refrigerator components and panels. It replaces missing or damaged hardware so parts stay aligned and secure, reducing looseness and rattles caused by vibration. What it does:

• Secures panels, brackets, and trim per your model's design
• Helps maintain alignment and reduce vibration-related loosening or noise
• Replaces missing, stripped, or corroded hardware
• Restores a snug fit when threads or heads are worn

• One screw

• Disconnect power; turn off the water supply if working near ice or dispenser systems
• Use the correct driver; start threading by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking adjacent plastic
• Refer to your model's diagram to confirm location and quantity used

This replacement screw secures designated components in your appliance to maintain a tight, rattle-free fit. Replacing missing or stripped hardware restores proper attachment and helps keep panels and trim properly aligned.

• Fastens specified parts to the cabinet or frame
• Helps maintain alignment of panels and trim pieces
• Replaces missing, stripped, or corroded screws
• Common symptoms: loose or vibrating parts, panel/trim won't stay secured, visible missing hardware

• Disconnect power to the appliance before servicing
• Hand-start threads to avoid cross-threading; use the correct driver
• Do not overtighten, especially when threading into plastic
• If replacing multiple screws, replace one at a time to maintain alignment

This upper door hinge bearing serves as the low-friction bushing on the top hinge pin so the refrigerator door pivots smoothly. Replacing a worn bearing can stop squeaks and help restore level, easy-opening door operation.

• Provides a low-friction sleeve for the upper hinge pin to reduce wear
• Helps maintain door alignment with the cabinet for a consistent seal
• Common symptoms include squeaking or grinding, door rubbing or sagging, or the door not closing smoothly
• Physical signs include cracks, flattening, or oval-shaped wear in the bushing

• Unplug the refrigerator and remove items from the door
• Support the door; remove the top hinge cover and screws, then lift the door slightly
• Replace the worn upper hinge bearing on the hinge pin or bracket (design varies)
• Reinstall the hinge, align the door, and ensure proper gasket contact

The Door Hinge Bearing is an OEM part for Frigidaire refrigerators. It supports the refrigerator door, allowing it to open and close smoothly. This bearing ensures that the door remains properly aligned and operates without excessive friction, contributing to the overall longevity and functionality of the refrigerator.

Over time, door hinge bearings can wear out due to regular use, exposure to weight stress, or lack of lubrication. When the hinge bearing becomes faulty, the refrigerator door may become misaligned, difficult to open or close, or cause unusual noises.

Symptoms of a bad door hinge bearing include:

• The door sagging or becoming misaligned
• Difficulty opening or closing the door
• Unusual squeaking or grinding noises when the door moves
• The door not sealing properly, leading to temperature fluctuations inside the refrigerator

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Door Bin is an OEM part for Frigidaire refrigerators. This bin attaches to the inside of the refrigerator door, providing convenient storage for smaller items like condiments, beverages, and jars.

Common causes of a bad door bin include regular wear and tear from frequent use, cracking or breaking due to overloading, or impact damage from items being placed in or removed from the bin.

Symptoms of a bad door bin include:

• Cracks or breakage in the plastic
• The bin not staying securely in place
• Difficulty in holding items due to instability
• Discoloration or warping of the bin material

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Door Bin is an OEM replacement part specific to Frigidaire-brand refrigerator doors. As an interior storage component, the door bin provides convenient access to commonly used items.

Symptoms of a damaged or worn door bin include:

• Warping, cracks, or splits develop in the plastic material
• Detached or loose hinges prevent secure attachment
• Items inside shifting or falling out during opening/closing

Causes involve repeated opening/closing stresses over time weakening the plastic. Temperature fluctuations from door openings also affect integrity.

This genuine Frigidaire door bin is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Door Bin is an OEM part for Frigidaire refrigerators. It is designed to provide additional storage space on the refrigerator door, allowing for easy organization and access to items such as bottles, jars, and condiments.

You should replace the door bin if it becomes damaged or worn out. Causes of a bad door bin can include regular wear and tear, overloading with heavy items, or accidental impacts that cause cracks or breaks. A compromised door bin can reduce storage capacity and may not securely hold items.

Symptoms of a bad door bin include:

• Cracks or breaks in the bin
• Difficulty fitting the bin into its designated slot
• The bin not staying in place or wobbling
• Items falling out of the bin or not being securely held

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
