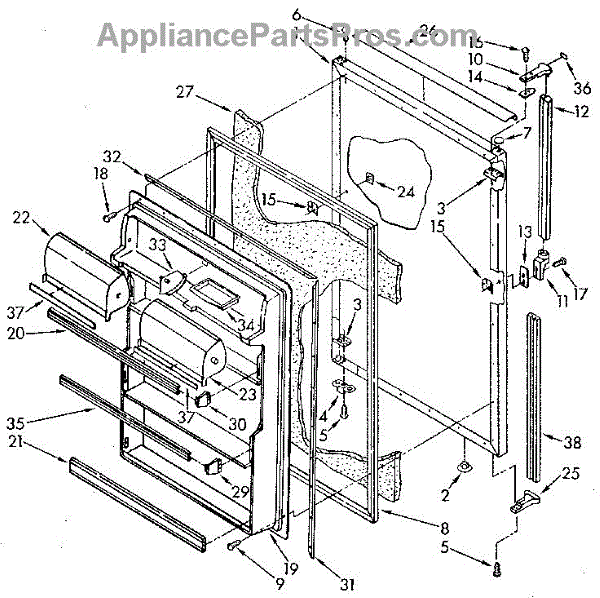

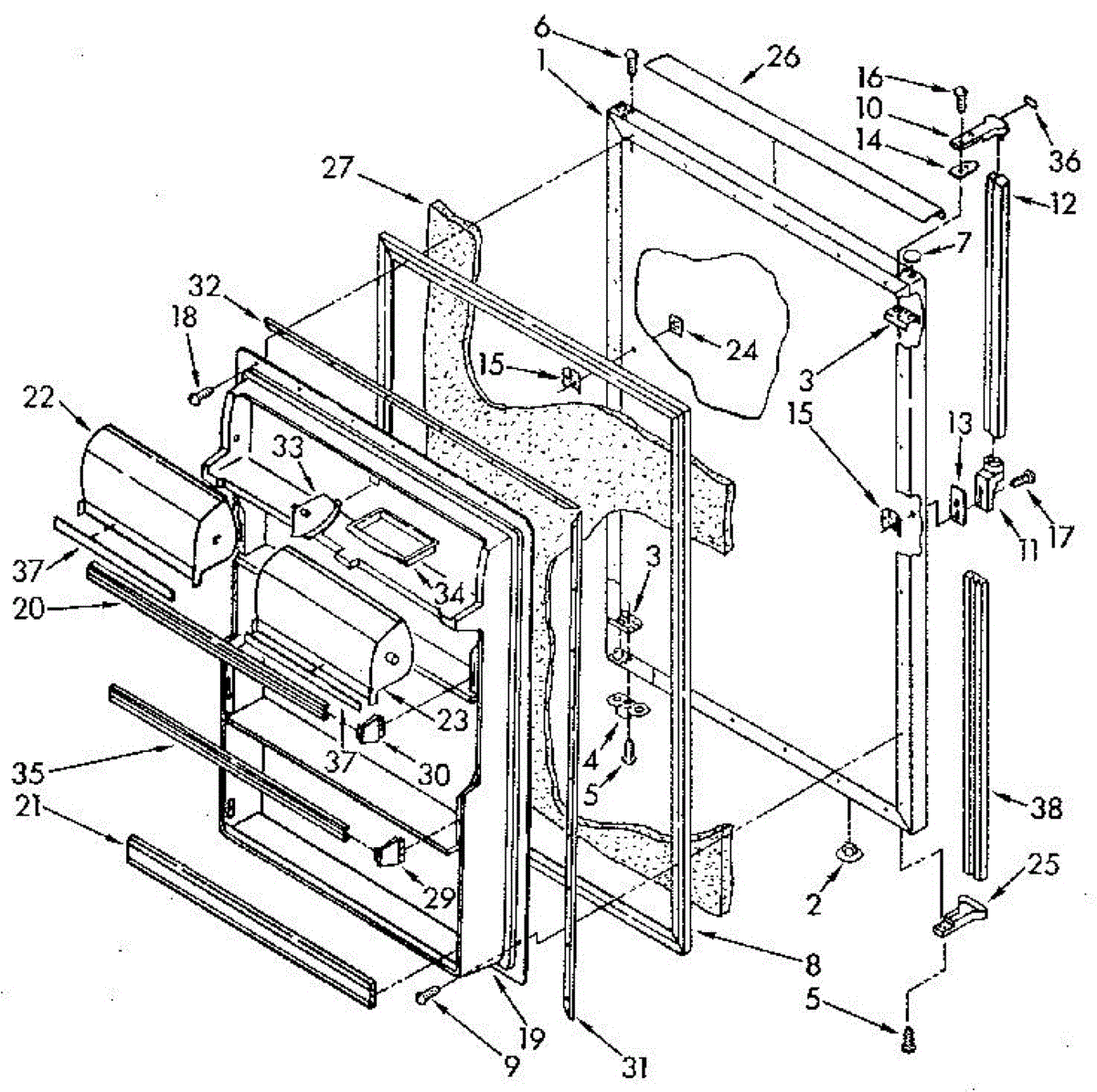

Parts for Kenmore 106.9708714 (1069708714, 106 9708714): Refrigerator Door Parts

The Bracket-Door Stop is an OEM replacement part for Whirlpool appliances. This zinc-finished bracket is designed to prevent the appliance door from opening beyond its intended range, protecting both the door and surrounding components from potential damage. It ensures the door stays secure and functions smoothly during regular use.

Symptoms of a bad Bracket-Door Stop include:

• The door overextending when opened
• Difficulty in maintaining the door's position
• Visible bending, cracking, or damage to the bracket

Causes of a failing Bracket-Door Stop can include repeated stress from excessive force when opening the door, normal wear over time, or accidental impacts. A damaged bracket can compromise the door's alignment and overall functionality.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures panels, brackets, and other components in your appliance so they stay tight and properly aligned. Use it to replace missing, stripped, or rusted hardware and eliminate looseness, rattles, or gaps.

• Fastens parts to the cabinet/frame to maintain structural integrity
• Helps keep panels and assemblies aligned to reduce vibration and noise
• Replaces missing, damaged, or corroded screws during service
• Common fix for loose panels or components that no longer hold securely

• Disconnect power and shut off water or gas before servicing
• Match length and thread to the original screw for proper fit
• Hand-start threads to avoid cross-threading; tighten only until snug—do not overtighten
• Tighten them evenly to ensure proper alignment

This replacement screw secures panels, brackets, or trim within your appliance. Replacing a worn, stripped, or missing screw restores a tight, rattle-free fit so components stay aligned and operate as intended. What it does:

• Fastens components at the original factory locations specified for this part
• Replaces missing, damaged, or stripped screws to restore holding power
• Helps reduce vibration and rattling from loose parts
• Maintains proper alignment of panels, covers, brackets, and trim

• Disconnect power (and gas, if applicable) before servicing
• Match to the original screw and install in the same location and orientation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver or nut-driver; transfer any washers or spacers from the original hardware if present

The Hinge-Sleeve Hole Plug is an OEM part for Whirlpool refrigerators. It is designed to cover the hinge sleeve holes on the refrigerator door, providing a finished look and protecting the internal components from dust and debris.

Common causes of a bad hinge-sleeve hole plug include physical damage during routine maintenance or accidental impacts. A missing or damaged plug can lead to exposure of internal hinge components, potentially causing further damage over time.

Symptoms of a bad hinge-sleeve hole plug include:

• Visible gaps or holes in the refrigerator door hinge area
• Accumulation of dust or debris in the hinge mechanism
• Loose or unstable refrigerator door hinges

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Hinge-Sleeve Hole Plug is an OEM part for Whirlpool refrigerators. It is designed to cover the hinge sleeve holes on the refrigerator door, providing a finished look and protecting the internal components from dust and debris.

Common causes of a bad hinge-sleeve hole plug include physical damage during routine maintenance or accidental impacts. A missing or damaged plug can lead to exposure of internal hinge components, potentially causing further damage over time.

Symptoms of a bad hinge-sleeve hole plug include:

• Visible gaps or holes in the refrigerator door hinge area
• Accumulation of dust or debris in the hinge mechanism
• Loose or unstable refrigerator door hinges

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This part has been discontinued and is no longer available.

Color: White.

The Door Shelf End Cap Kit is an OEM part for Whirlpool refrigerators. This kit includes the end caps that attach to the refrigerator door, securing the shelves in place and providing support for storing various items. These end caps are crucial for maintaining the stability and functionality of the door shelves.

Causes of bad end caps can include regular wear and tear, impact from heavy items, or repeated removal and replacement of the shelves.

Symptoms of bad door shelf end caps include:

• Shelves sagging or not staying in place
• Cracks or visible damage to the end caps
• Difficulty in securing the shelves to the door
• Shelves falling out when the door is opened

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The center hinge pin is the pivot for the refrigerator door at the middle hinge. Replacing a worn or broken pin restores smooth door swing and proper alignment so the door closes and seals as designed. What it does:

• Acts as the pivot point for the door on the center hinge
• Helps maintain correct door alignment for consistent gasket contact
• Common symptoms: door sags or drags, uneven gaps, popping open, or squeaking/grinding at the hinge

• 1 center hinge pin

• Disconnect power; remove items from the door and support the door before starting
• Remove the center hinge cover and fasteners, then lift the door off the hinge
• Transfer any spacers/washers in their original order and install the new pin on the hinge bracket
• Reinstall and align the door; tighten fasteners and verify gasket seal
