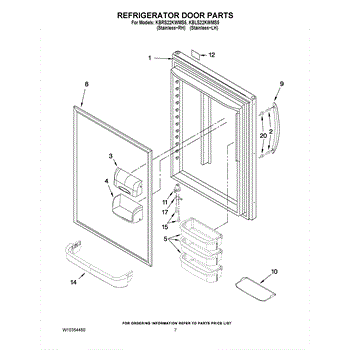

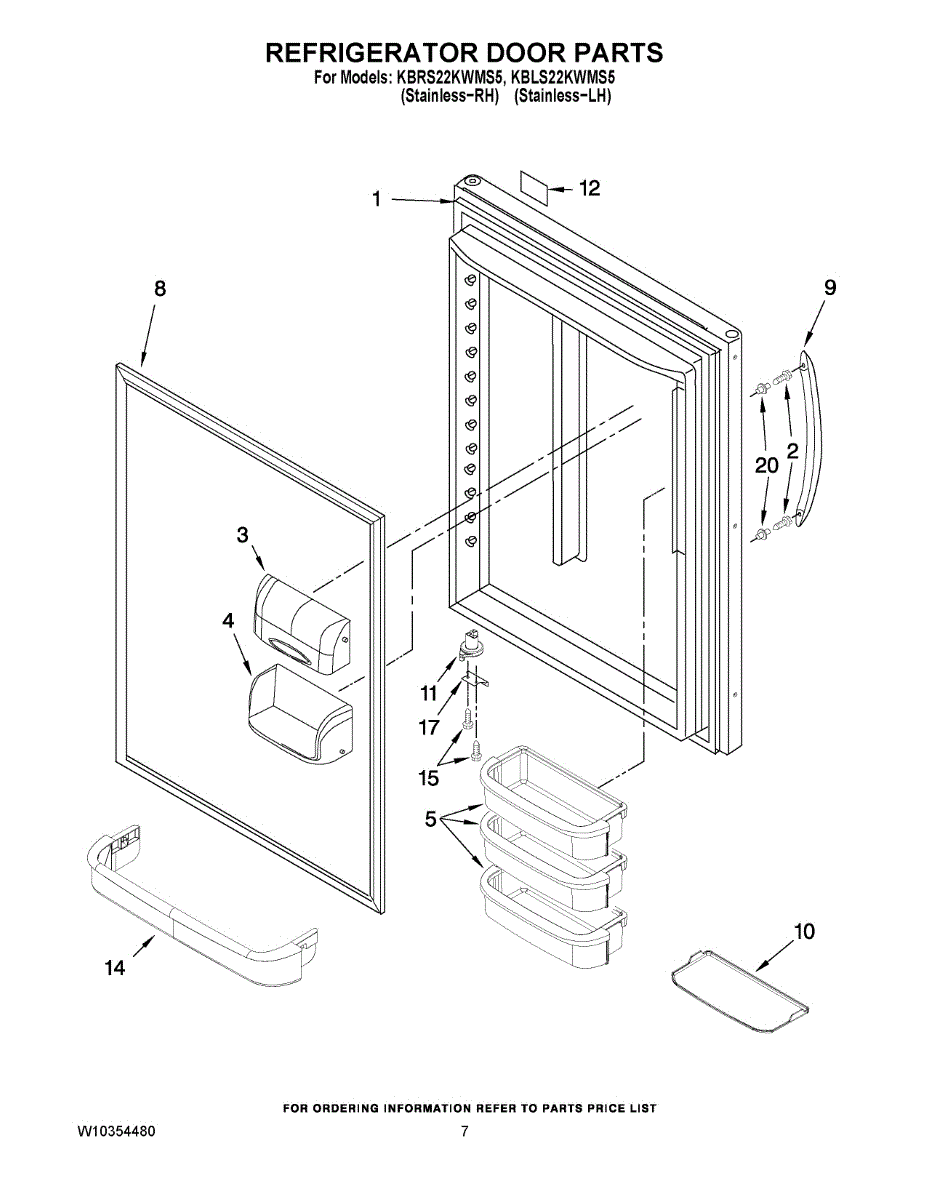

Parts for Kitchenaid KBRS22KWMS5: 05 - Refrigerator Door Parts

Color: clear. Measures about 11 inches wide by 7 inches high.

Replace a cracked or missing dairy tray on your refrigerator door. This door bin restores a dedicated spot for butter and small items so they stay organized and easy to reach while maintaining a secure fit on the door.

• Mounts on the refrigerator door as the dairy compartment tray
• Holds butter, cheese, and other small items securely
• Restores proper fit when the original tray is cracked, warped, or missing
• Common symptoms: broken tabs, tray falls off, loose/wobbly fit, items spilling when the door opens

• Open the door, lift the old tray straight up and out; align the new tray with the door slots and lower until fully seated
• Handle plastic parts gently and avoid forcing; allow parts to warm to room temperature to reduce risk of cracking
• Confirm both sides are fully engaged before loading items

The Bin-Cntlvr (Cantilever Bin) is an OEM part for Whirlpool refrigerators. This bin attaches to the refrigerator door and provides additional storage space for items like bottles, condiments, and other small containers. The cantilever design allows for easy adjustment and customization of shelf space within the refrigerator door.

Causes of a bad cantilever bin can include overloading the bin with heavy items, accidental impacts, or wear and tear from regular use.

Symptoms of a bad cantilever bin include:

• The bin not staying in place on the door
• Cracks or visible damage to the bin
• Difficulty adjusting or removing the bin
• Items falling out of the bin due to instability

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Gasket is an OEM part for Whirlpool refrigerators. It forms an insulating perimeter around the refrigerator door opening to maintain cool interior temperatures during use.

Causes relate to the breakdown of sealing materials from repeated compression cycles over many years. Cracks or loose areas compromise the barrier.

Symptoms of a defective door gasket can include:

• Warm air entering around the door edges
• Interior humidity increases causing frost or condensation
• Higher electric bills from lost cooling efficiency
• Inability to maintain set temperatures over long periods

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Color - Grey

This black replacement handle restores a solid, comfortable grip for opening and closing your appliance's door or drawer. Replace a cracked or loose handle to improve safety and refresh the look of the unit.

• Provides the handhold needed to open and close the door or drawer
• Direct replacement for cracked, broken, or wobbly handles
• Helps resolve difficulty opening caused by a missing or damaged handle
• Restores a clean, factory look

• Disconnect power before servicing
• Access the handle's mounting screws from the inside of the door/drawer; remove screws, swap the handle, and reinstall
• Support the door/drawer while loosening/tightening fasteners
• Do not overtighten; verify smooth operation after installation

This mat cushions and protects the appliance base to reduce vibration and help contain small drips or leaks during operation. It's a simple, durable replacement that restores the original fit and helps keep the floor and appliance stable. What it does:

• Dampens movement and vibration to reduce noise and shifting during cycles
• Helps catch minor drips or condensed water beneath the unit
• Restores original cushioning where a worn or missing mat allowed extra movement
• Simple passive part—no electrical or mechanical connections

• One replacement mat as shown

• Place mat under appliance base on a clean, level surface; verify orientation per base shape
• For safety, disconnect power (and water if applicable) before moving the appliance
• Use caution when sliding the appliance to avoid floor damage; get a second person for heavy units
• If ongoing vibration or leaks persist, inspect mounts, leveling legs, and seals for additional repair

The Door Closer is an OEM part for Whirlpool refrigerators. This component ensures that the refrigerator door closes smoothly and securely, maintaining the seal that keeps cold air inside and warm air out. The door closer helps to prevent the door from remaining ajar, which can lead to increased energy consumption and reduced cooling efficiency.

Causes of a bad door closer can include regular wear and tear, physical damage from repeated use, or misalignment. A malfunctioning door closer can result in the refrigerator door not closing properly, leading to cooling issues and higher energy bills.

Symptoms of a bad door closer include:

• The refrigerator door not closing or sealing properly
• The door not staying closed
• Warm air entering the refrigerator, causing the interior temperature to rise
• Increased energy consumption due to the door not sealing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Stainless

The Door Shelf Retainer Bar is an OEM replacement part for Whirlpool French door refrigerators. Positioned inside the door panels, this plastic retainer bar securely holds shelves in place allowing for flexible storage options.

Causes of a bad retainer bar include normal wear and tear over extended use, excessive weight loads weakening the plastic material, or damage from impact.

Symptoms of a bad retainer bar include:

• Shelves that no longer stay firmly in position and slide around inside the door
• Gaps between shelves causing an unorganized or crammed interior space
• Annoying rattling or clicking noises coming from the door storage area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This stop-door is a small replacement door stop that helps control how the appliance door closes and rests, restoring proper door movement and preventing over-travel or binding. What it does:

• Cushions and limits the door's travel to prevent slamming or over-rotation.
• Helps the door align and latch correctly when closing.
• Can reduce door sag or rubbing caused by a worn/missing stop.
• Addresses symptoms such as a door that closes too far, hangs unevenly, or doesn't sit flush.

• High-level, two-person recommended for larger doors; support the door before removing fasteners.
• Disconnect power (and water if applicable) and follow manufacturer safety guidance before servicing.
• Use appropriate hand tools; inspect adjacent hinges and fasteners and replace if damaged.

The Threaded Handle Anchor is an OEM part for Whirlpool refrigerators. This component is essential for securely attaching the refrigerator door handle to the door, ensuring that it remains firmly in place during regular use. The anchor fits into the door and provides a threaded connection point for the handle screws, offering stability and ease of use.

Common causes of a bad threaded handle anchor include wear and tear from frequent use, cross-threading during installation, or physical damage from excessive force or impact.

Symptoms of a bad threaded handle anchor include:

• The refrigerator door handle feeling loose or unstable
• Difficulty securing the handle to the door
• The handle detaching from the door
• Visible damage or stripping on the anchor threads

This OEM part is also compatible with some Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
