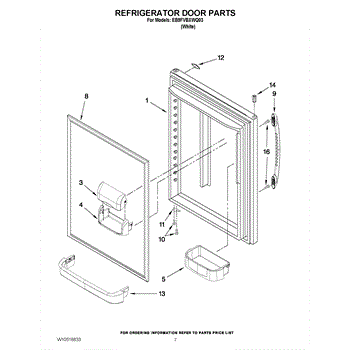

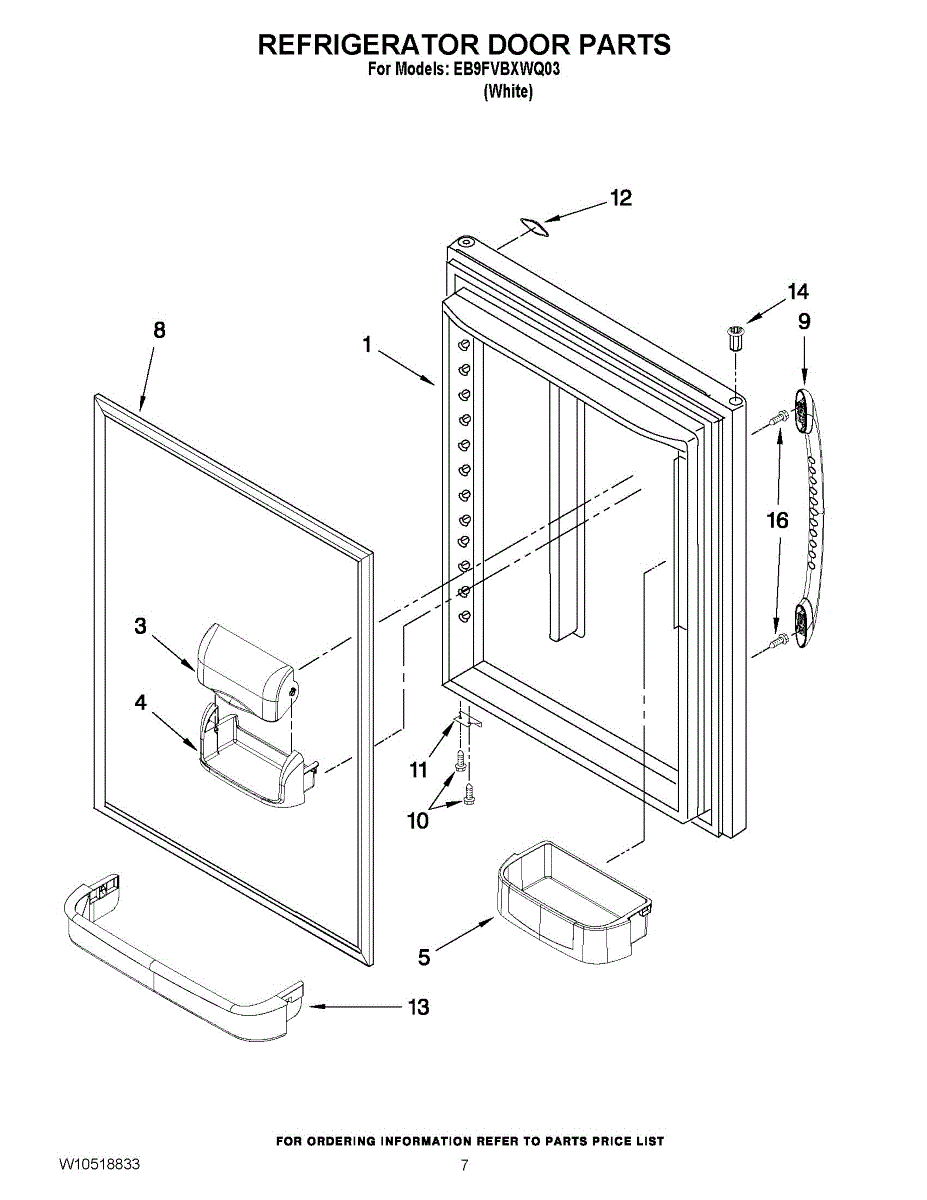

Parts for Whirlpool EB9FVBXWQ03: 05 - Refrigerator Door Parts

Color: clear. Measures about 11 inches wide by 7 inches high.

Replace a cracked or missing dairy tray on your refrigerator door. This door bin restores a dedicated spot for butter and small items so they stay organized and easy to reach while maintaining a secure fit on the door.

• Mounts on the refrigerator door as the dairy compartment tray
• Holds butter, cheese, and other small items securely
• Restores proper fit when the original tray is cracked, warped, or missing
• Common symptoms: broken tabs, tray falls off, loose/wobbly fit, items spilling when the door opens

• Open the door, lift the old tray straight up and out; align the new tray with the door slots and lower until fully seated
• Handle plastic parts gently and avoid forcing; allow parts to warm to room temperature to reduce risk of cracking
• Confirm both sides are fully engaged before loading items

This door gasket seals the dishwasher door opening to keep wash water and moisture inside the tub. A fresh, flexible seal helps prevent leaks and improves cleaning performance by maintaining proper pressure and heat.

• Creates a watertight seal between the tub and door perimeter
• Helps prevent leaks at the bottom and sides of the door
• Helps resolve symptoms like water on the floor, moisture around the door, long dry times, or visible tears/flattening of the old gasket
• Restores proper door compression and wash chamber containment

• Disconnect power and turn off water supply before service
• Remove the old gasket from the channel; clean the groove of debris and residue
• Press the new gasket evenly into the channel, centering at the top and working down both sides
• Close the door to help seat the gasket; a short run cycle may help it conform

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This white door stop limits how far the door swings open, helping protect hinges and nearby surfaces. Replace a worn or missing stop to restore the intended opening range and smooth, controlled door movement.

• Limits door swing to prevent overextension and impact
• Helps protect door hinges and surrounding cabinetry
• Restores proper opening range when the original stop is cracked or missing
• Common signs: door opens too wide, door hits adjacent surfaces, visible broken/missing stop

• Disconnect power and clear items from the door before service
• Support the door to prevent strain on the hinges
• Remove hinge cover and fasteners as needed, swap the stop, and reassemble
• Open and close the door to verify proper swing and gasket seal

This shelf trim is the molded edge piece for your refrigerator shelf. It snaps in place to restore a clean, secure lip that helps keep items in place and limits spills from reaching shelves below. What it does:

• Attaches to the edge of a refrigerator shelf to create a finished barrier
• Helps retain items and contain minor spills
• Restores stability when the original trim is cracked or missing
• Common symptoms: broken or loose trim, items sliding off the shelf, trim won't stay attached

• 1 shelf trim

• Disconnect power and remove food from the affected shelf before servicing
• Lift out the shelf or bin and place it on a flat, protected surface
• Release the old trim's tabs and slide or unsnap it from the shelf—avoid forcing or flexing
• Align the new trim and press until fully seated; reinstall the shelf or bin

This door hinge bushing restores smooth, stable movement at the refrigerator door pivot. It sleeves the hinge pin to reduce friction and wear, helping the door stay aligned so it closes cleanly and maintains a proper seal.

• Seats in the door hinge to guide the hinge pin and reduce friction
• Helps maintain door alignment and consistent gasket contact
• Replaces a worn, cracked, or missing bushing that can cause noise or binding
• Typical symptoms: squeaking or grinding at the hinge, door sagging/misalignment, door hard to open or close, or not closing flush

• Disconnect power; clear and support the door to prevent strain
• Remove hinge cover and fasteners; lift the door off the hinge pin as needed
• Remove the old bushing from the hinge area and press the new bushing fully into place, matching original orientation
• Reinstall hardware; adjust hinges/level as needed

This replacement screw fastens appliance panels, brackets, and internal components so everything stays aligned and rattle-free. Use it to replace stripped, corroded, or missing hardware and restore a solid, secure fit during repairs.

• Secures panels, brackets, covers, and assemblies in place
• Replaces damaged or missing hardware to maintain a firm hold
• Helps reduce vibration and rattling from loose fasteners
• Supports proper fit and alignment after service

• Disconnect power and shut off water/gas (as applicable) before servicing
• Match to the original fastener and replace one at a time to keep alignment
• Start threads by hand to avoid cross-threading; do not overtighten, especially into plastic
• Repair threads or use the manufacturer-specified hardware for that location
