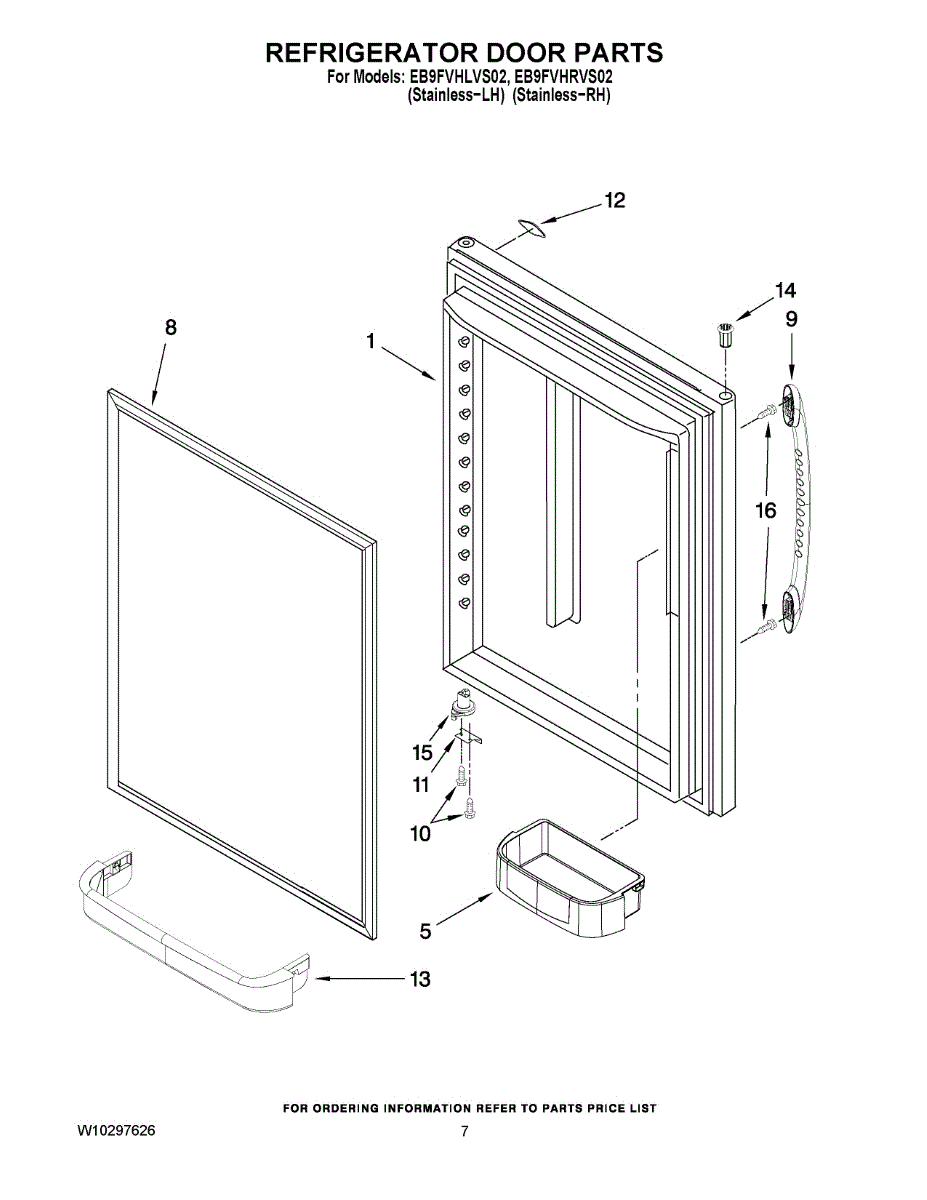

Parts for Whirlpool EB9FVHRVS02: 05 - Refrigerator Door Parts

This is the small refrigerator door bin that mounts on the inner door panel. It provides organized, accessible storage for smaller items and restores usable space when the original bin is cracked, loose, or missing.

• Holds and organizes items on the fresh food door
• Replaces bins that are cracked, broken, or won't stay seated
• Helps prevent items from tipping or falling when opening/closing the door
• Sized for the "small" position, not the full-width/gallon bin

• Unplug the appliance before servicing
• Remove contents, lift the old bin up and out of the door rails
• Align the new bin with the door slots and press down until fully seated
• Verify a snug fit before reloading items

This medium refrigerator door bin replaces a cracked or missing shelf on the fresh-food door, restoring secure, organized storage for bottles, jars, and condiments. It snaps into the door rails for a stable, factory fit.

• Holds and organizes items on the refrigerator door to maximize usable space
• Restores proper fit when the original bin is cracked, warped, or missing
• Helps prevent tipping and spills when opening/closing the door
• Common symptoms: broken or chipped plastic, loose fit, falls off door, missing bin

• Empty the old bin before removal
• Lift the front and pull up to release it from the door rails/tabs
• Align the new bin with the mounting tabs and press down until fully seated
• Ensure it sits level and avoid overloading; place in the position intended for the medium bin on your model

This refrigerator door gasket replaces a worn seal to restore a tight, even closure around the door. A proper seal keeps cold air in and moisture out, helping maintain temperature, reduce frost, and minimize run time. What it does:

• Forms a tight seal between the door and cabinet frame
• Helps maintain set temperatures and reduce moisture intrusion
• Resolves frost or condensation at the door and frequent compressor cycling
• Common signs: torn, cracked, or warped gasket; gaps; door not sealing smoothly

• Includes: 1 door gasket

• Disconnect power before servicing; remove or secure contents for safety
• On many models, loosen the inner-liner screws or pull the old gasket from the retainer/channel to remove
• Warm the new gasket (warm water or low heat from a hair dryer) to relax shipping folds
• Seat corners first, then press the rest into the retainer; verify seal with a paper-slip test and adjust as needed

Restore a secure, comfortable grip with this black replacement handle. It refreshes the look of your appliance and makes opening the door or drawer feel smooth and confident again when the original handle is cracked, loose, or missing.

• Provides a sturdy handhold to open and close the appliance door or drawer
• Common symptoms: cracked or broken handle, looseness, wobble, or missing handle
• Helps resolve difficulty opening the door due to a damaged or unstable grip
• Color-matched black finish to maintain a consistent appearance

• Disconnect power to the appliance before servicing
• Access the handle's mounting screws from the inner side of the door/drawer; some models require removing inner trim
• Support any glass/inner panel while removing and reinstalling the handle
• Reuse existing hardware where applicable; tighten screws evenly and check operation

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This door bushing fits on the refrigerator hinge/closer to provide a smooth pivot point and proper door alignment. Replacing a worn bushing reduces squeaks and binding and helps the door close and seal as designed.

• Provides a low-friction bearing surface between the hinge pin/closer cam and the door
• Helps maintain correct door height and alignment to the cabinet
• Promotes smooth door swing and reliable self-closing action
• Typical wear symptoms: squeaking or grinding, binding, door sag, or poor sealing

• Disconnect power and support the door before removing hinge hardware
• Note the order/orientation of hinge parts and any shims; lift off the door carefully
• Install the new bushing on the hinge pin or in the door as shown in your model's diagram
• Reinstall, level, and verify the gasket seals evenly all around

Color: Black

The Door Closure is an OEM replacement part for Whirlpool refrigerators. It is a small component that the door rides on that allows it to open and close properly.

Causes of impaired operation involve age-related spring coil fatigue, dislodged or cracked plastic housing pieces, or confined door alignment stripping closure grooves.

Symptoms of a faulty closure include:

• Cool air escaping around door edges driving up energy costs
• The fridge unable to maintain set interior temperatures
• Inability to securely latch doors closed

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Color: For white, black and bisque models.
