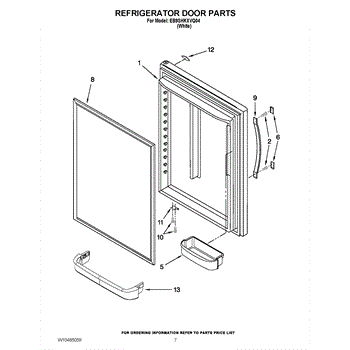

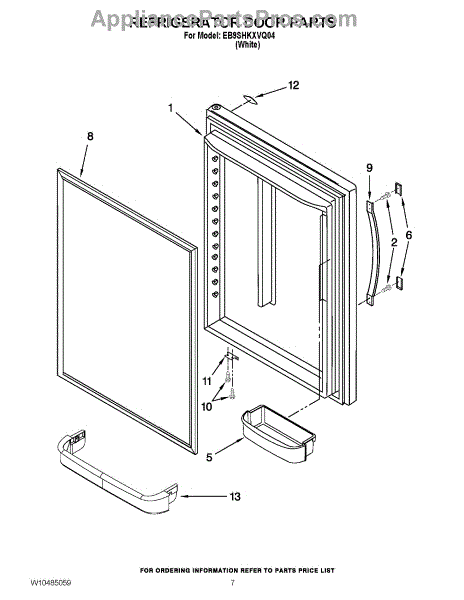

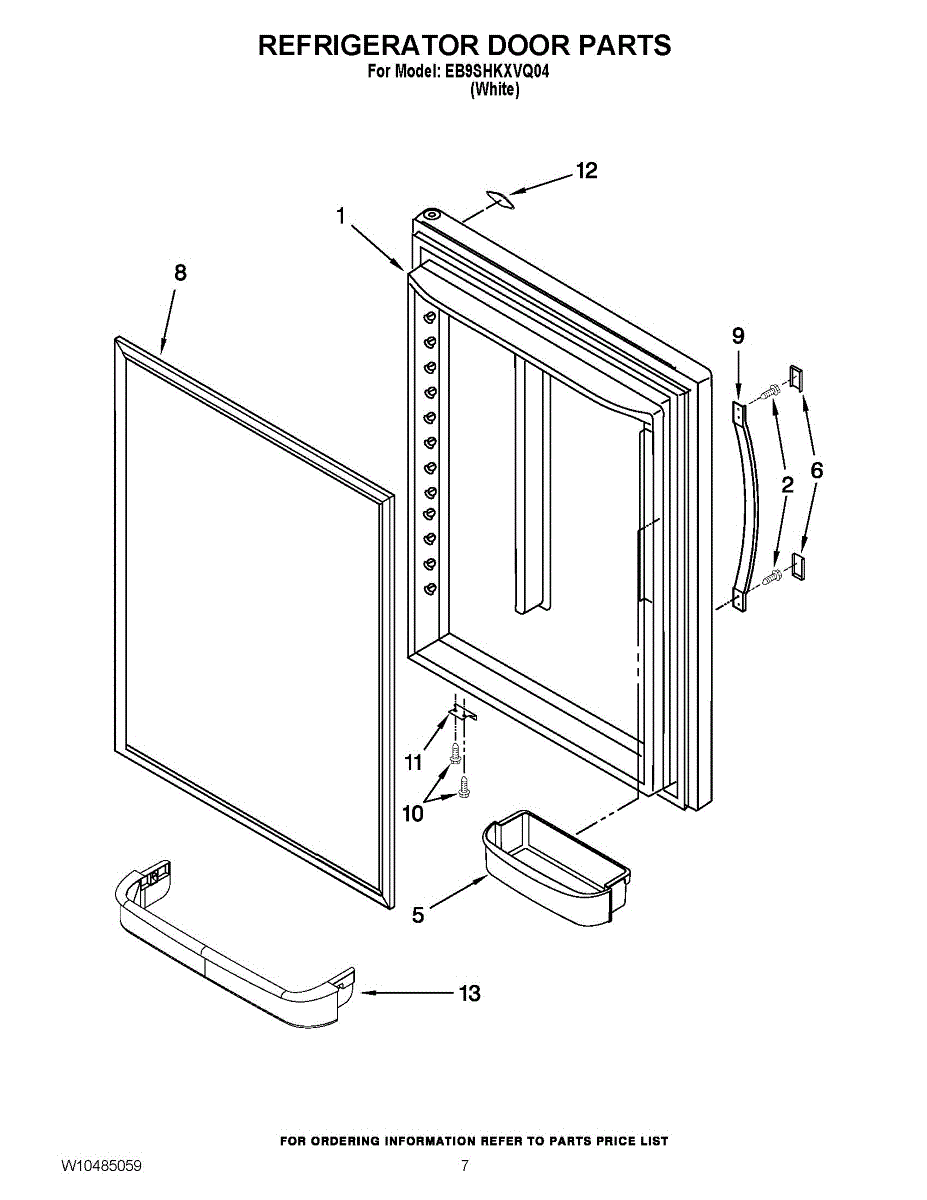

Parts for Whirlpool EB9SHKXVQ04: 04 - Refrigerator Door Parts

This replacement screw secures appliance components such as panels, brackets, and trim. Replacing a missing, stripped, or corroded fastener restores a snug, rattle-free fit and helps keep parts properly aligned during operation. What it does:

• Fastens panels, brackets, trim, and assemblies in place
• Maintains alignment and reduces vibration or rattling
• Replaces worn, corroded, or missing hardware to ensure safe attachment
• Typical symptoms: loose panel, rattling noises, misalignment, stripped head/threads

• 1 screw

• Disconnect power; shut off gas/water if applicable before servicing
• Match the replacement to the original screw (thread and length) for proper fit
• Start threads by hand to avoid cross-threading; use the correct driver
• Do not overtighten, especially into plastic or thin sheet metal

This door gasket seals the dishwasher door opening to keep wash water and moisture inside the tub. A fresh, flexible seal helps prevent leaks and improves cleaning performance by maintaining proper pressure and heat.

• Creates a watertight seal between the tub and door perimeter
• Helps prevent leaks at the bottom and sides of the door
• Helps resolve symptoms like water on the floor, moisture around the door, long dry times, or visible tears/flattening of the old gasket
• Restores proper door compression and wash chamber containment

• Disconnect power and turn off water supply before service
• Remove the old gasket from the channel; clean the groove of debris and residue
• Press the new gasket evenly into the channel, centering at the top and working down both sides
• Close the door to help seat the gasket; a short run cycle may help it conform

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This white door stop limits how far the door swings open, helping protect hinges and nearby surfaces. Replace a worn or missing stop to restore the intended opening range and smooth, controlled door movement.

• Limits door swing to prevent overextension and impact
• Helps protect door hinges and surrounding cabinetry
• Restores proper opening range when the original stop is cracked or missing
• Common signs: door opens too wide, door hits adjacent surfaces, visible broken/missing stop

• Disconnect power and clear items from the door before service
• Support the door to prevent strain on the hinges
• Remove hinge cover and fasteners as needed, swap the stop, and reassemble
• Open and close the door to verify proper swing and gasket seal

This shelf trim is the molded edge piece for your refrigerator shelf. It snaps in place to restore a clean, secure lip that helps keep items in place and limits spills from reaching shelves below. What it does:

• Attaches to the edge of a refrigerator shelf to create a finished barrier
• Helps retain items and contain minor spills
• Restores stability when the original trim is cracked or missing
• Common symptoms: broken or loose trim, items sliding off the shelf, trim won't stay attached

• 1 shelf trim

• Disconnect power and remove food from the affected shelf before servicing
• Lift out the shelf or bin and place it on a flat, protected surface
• Release the old trim's tabs and slide or unsnap it from the shelf—avoid forcing or flexing
• Align the new trim and press until fully seated; reinstall the shelf or bin
