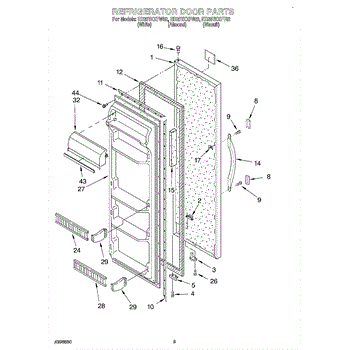

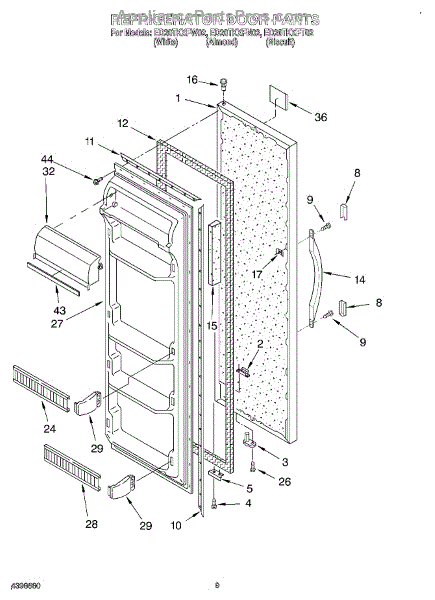

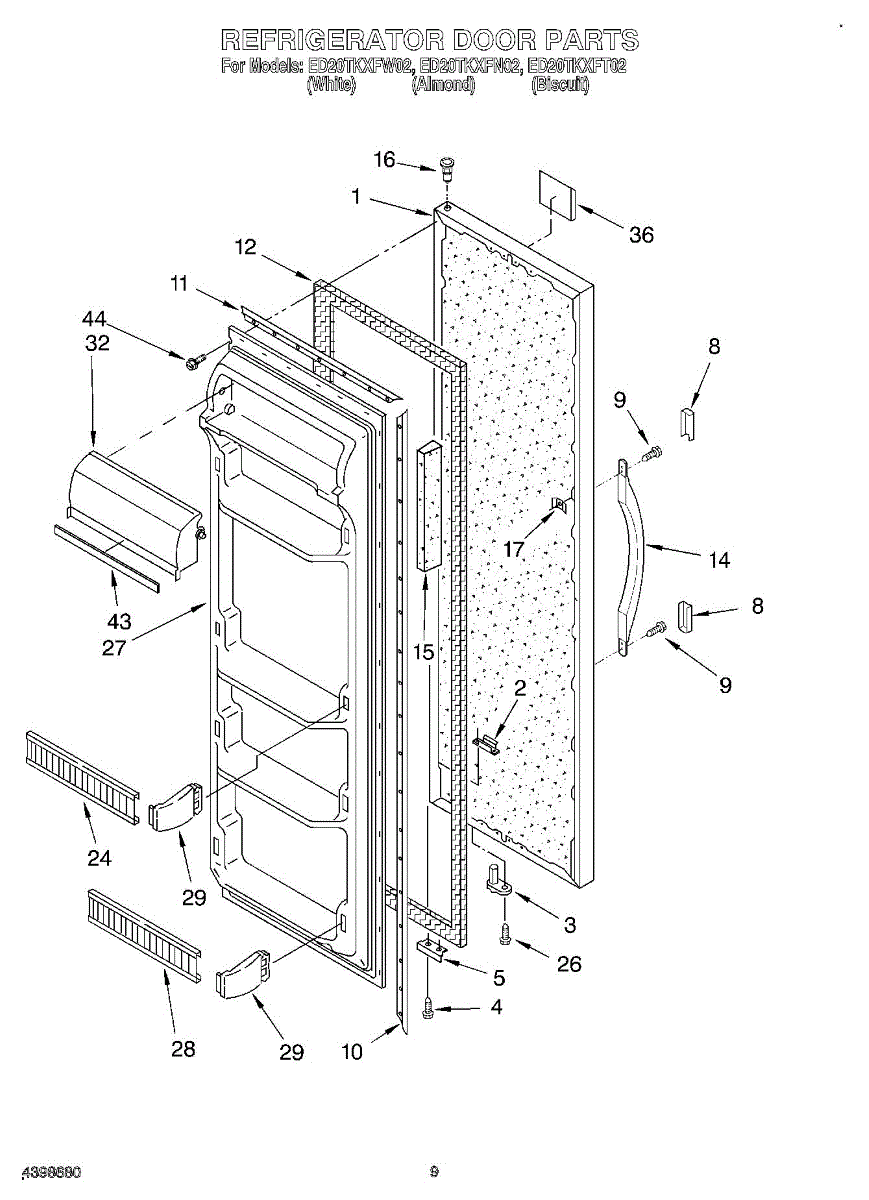

Parts for Whirlpool ED20TKXFT02: 06 - Refrigerator Door Parts

The Door Upper Closure Cam is an OEM part for Whirlpool refrigerators. It is designed to provide proper closure and alignment for the refrigerator door. The upper closure cam is located on the top hinge of the refrigerator door and works in conjunction with the lower closure cam to ensure a tight seal and prevent air leaks.

Causes of a bad upper closure cam can include regular use, accidental damage, or excessive force applied to the door.

Symptoms of a bad upper closure cam include:

• Difficulty in closing or opening the refrigerator door.
• The door not staying securely closed.
• Uneven gaps or misalignment between the door and the refrigerator cabinet.
• Excessive noise or squeaking when operating the door.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Chrome. No longer made in black.

Color: white. It measures about 1 inch wide by 2 inches high.

This replacement screw secures appliance panels, brackets, and components. Using the correct size restores a snug fit to reduce vibration, prevent loosening, and keep assemblies properly aligned during operation. What it does:

• Fastens sheet metal and component brackets in designated locations
• Replaces missing, stripped, or corroded hardware
• Helps eliminate rattling and vibration from loose panels
• Maintains proper alignment of covers and assemblies

• 1 screw

• Disconnect electrical power; shut off water or gas supplies if applicable
• Match length/thread to the original; replace one fastener at a time to preserve alignment
• Start by hand to avoid cross-threading; use the correct driver size
• Snug firmly but do not overtighten to prevent stripping

The Refrigerator Door Gasket is an OEM part for Whirlpool refrigerators. This gasket forms a seal around the refrigerator door, ensuring that cold air stays inside and warm air remains outside, maintaining the appliance's efficiency and keeping food fresh.

Causes of a bad door gasket can include regular wear and tear, mold or mildew buildup, and physical damage from repeated opening and closing of the door.

Symptoms of a bad refrigerator door gasket include:

• Warm air entering the refrigerator, causing it to run more frequently
• Condensation or frost buildup inside the refrigerator
• Difficulty keeping the door closed
• Visible cracks, tears, or deformation in the gasket

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Almond. For black order WP2186649B. For white order 2186649W.

White. For almond order 2186649N. For black order WP2186649B.

The Door Thimble, Top is an OEM part for Whirlpool refrigerators. This component is used to support and secure the door hinge, ensuring smooth and stable opening and closing of the refrigerator door.

You should replace the door thimble if it becomes damaged or worn out. Causes of a bad door thimble include wear and tear from frequent use, stress from heavy door loads, or damage from accidental impacts. A faulty thimble can lead to misalignment of the door, causing it to sag or not seal properly.

Symptoms of a bad Door Thimble, Top include:

• Difficulty in opening or closing the door
• The door not aligning correctly with the refrigerator frame
• Noticeable sagging or wobbling of the door
• Unusual noises when the door is moved

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This door shelf trim is the front retainer bar that snaps across a refrigerator door bin to keep items from sliding out. Replace a cracked or missing bar to restore secure storage on the door.

• Holds items in the door bin and prevents tipping or spills
• Common fix for a loose, sagging, or missing door shelf front
• May help when the door bin won't hold items securely
• Direct-fit trim that snaps into the end caps on the bin

• Unplug the refrigerator before servicing
• Remove the bin, then release the old trim from the end caps
• Align and snap the new trim into place; reinstall the bin
• Check that the bar is fully seated and secure before loading items

This replacement screw secures panels, brackets, and internal components in Whirlpool-built appliances. Use it to replace missing or stripped hardware to restore a snug fit, reduce rattling, and maintain proper alignment. What it does:

• Fastens components to the appliance cabinet or frame
• Helps maintain alignment and proper clearances
• Reduces vibration-related noises from loose or missing hardware
• Common replacement when a screw is lost, corroded, or threads are damaged

• 1 screw

• Disconnect power before service; for gas appliances, also shut off gas supply
• Start threading by hand to avoid cross-threading; use the correct driver bit
• Tighten snugly without overtightening to prevent stripping
• Inspect and replace any worn clip/nut or damaged threads

Right hand side. Color: White. It measures about 3 inches high by 4 inches deep. For left hand side order WP2196190. For kit with LH and RH end cap order 4388286.

Left hand side. Color: White. It measures about 3 inches high by 4 inches deep. For right hand side order WP2196189. For kit with LH and RH end cap order 4388286.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.
