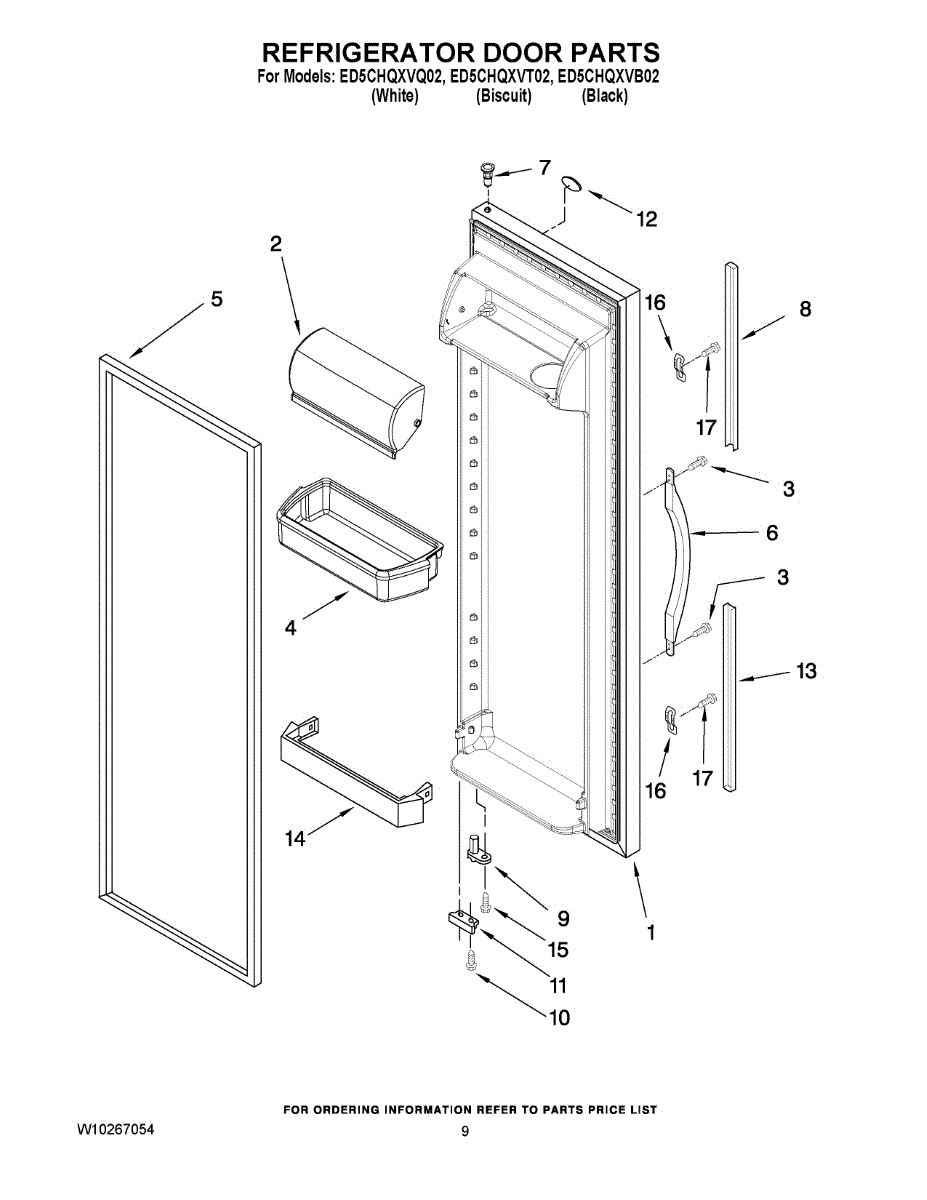

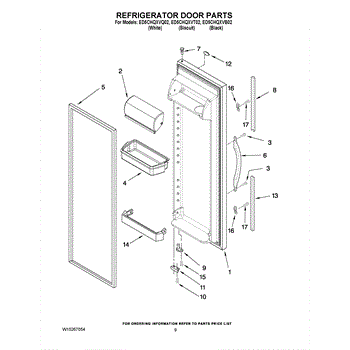

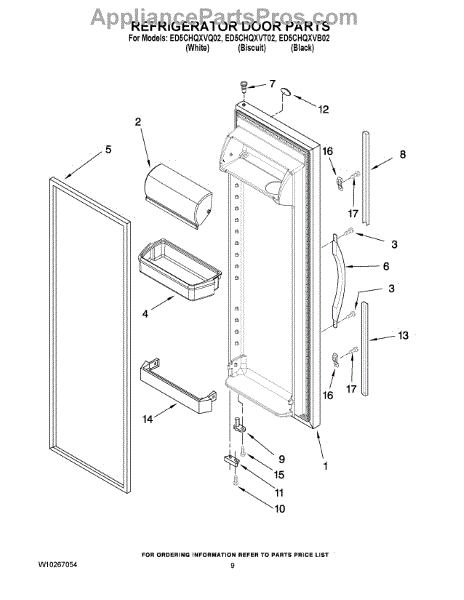

Parts for Whirlpool ED5CHQXVB02: 06 - Refrigerator Door Parts

The Compartment Door is an OEM component for Whirlpool and Kenmore built-in refrigerator models. It provides access to organized storage in the fridge's fresh food compartment. The compartment door measures approximately 15” long by 6” wide.

As a high-use access point, the door endures constant opening/closing stresses. Over extended periods, normal wear gradually reduces the quality and integrity of its cushioned sealed closure.

Symptoms include:

• Difficulty fully closing/latching the compartment door
• Loud squeaking or sticking during operation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement screw secures appliance panels, brackets, and components. Using the correct size restores a snug fit to reduce vibration, prevent loosening, and keep assemblies properly aligned during operation. What it does:

• Fastens sheet metal and component brackets in designated locations
• Replaces missing, stripped, or corroded hardware
• Helps eliminate rattling and vibration from loose panels
• Maintains proper alignment of covers and assemblies

• 1 screw

• Disconnect electrical power; shut off water or gas supplies if applicable
• Match length/thread to the original; replace one fastener at a time to preserve alignment
• Start by hand to avoid cross-threading; use the correct driver size
• Snug firmly but do not overtighten to prevent stripping

The Door Bin is an OEM part for Whirlpool refrigerators, designed to provide convenient and accessible storage for a variety of items within the refrigerator door. Made from durable plastic, it is designed to withstand the typical wear and tear of daily refrigerator use, providing a stable and easy-to-clean space for storing condiments, beverages, and other frequently accessed items.

The reason for replacing a Door Bin usually involves physical damage from accidents or overloading, as well as the natural aging process of plastic, which can lead to brittleness and cracking.

Symptoms for a replacement Door Bin include:

• Cracks or breaks in the bin that prevent it from holding items securely
• Warping or damage that affects the bin's ability to fit properly in the door
• Discoloration or aesthetic damage that detracts from the refrigerator's overall appearance

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Refrigerator Door Gasket (Beige) is an OEM replacement part specifically designed for Whirlpool-brand refrigerators. The gasket is responsible for preventing warm air and moisture from entering the refrigerator when doors close. The gasket measures approximately 19 ¼” wide x 62" tall.

Causes of a gasket issue can include cracking and degradation due to repeated compression over many years of use. Sections may lose elasticity and no longer seal tightly.

Symptoms of a bad gasket include:

• High energy costs as the system works to maintain proper cooling
• Warm, humid interior environment allowing food decay
• Visible air leaks around gasket edges when doors are shut

This part is also compatible with Maytag, KitchenAid, Jenn-Air, and other brands.

The Refrigerator Door Gasket (BLK) is an OEM part for Whirlpool refrigerators. This black gasket is designed to create a tight seal around the refrigerator door, preventing warm air from entering and cool air from escaping. The gasket is black in color and measures approximately 19 ¼” wide by 62" tall.

Causes of a bad door gasket can include wear and tear from regular use, damage from cleaning chemicals or sharp objects, or warping due to temperature fluctuations. Over time, the gasket may lose its flexibility and sealing ability.

Symptoms of a bad door gasket include:

• The refrigerator door not closing properly
• Visible cracks or tears in the gasket
• Condensation or frost buildup around the door seal
• Increased energy bills due to the refrigerator working harder to maintain temperature

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Thimble, Top is an OEM part for Whirlpool refrigerators. This component is used to support and secure the door hinge, ensuring smooth and stable opening and closing of the refrigerator door.

You should replace the door thimble if it becomes damaged or worn out. Causes of a bad door thimble include wear and tear from frequent use, stress from heavy door loads, or damage from accidental impacts. A faulty thimble can lead to misalignment of the door, causing it to sag or not seal properly.

Symptoms of a bad Door Thimble, Top include:

• Difficulty in opening or closing the door
• The door not aligning correctly with the refrigerator frame
• Noticeable sagging or wobbling of the door
• Unusual noises when the door is moved

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Upper Closure Cam is an OEM part for Whirlpool refrigerators. It is designed to provide proper closure and alignment for the refrigerator door. The upper closure cam is located on the top hinge of the refrigerator door and works in conjunction with the lower closure cam to ensure a tight seal and prevent air leaks.

Causes of a bad upper closure cam can include regular use, accidental damage, or excessive force applied to the door.

Symptoms of a bad upper closure cam include:

• Difficulty in closing or opening the refrigerator door.
• The door not staying securely closed.
• Uneven gaps or misalignment between the door and the refrigerator cabinet.
• Excessive noise or squeaking when operating the door.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

Color: Black

The Door Shelf Bar is an OEM part for Whirlpool refrigerators. It is designed to secure items on the door shelves, providing a barrier that prevents stored items from falling out when the door is opened or closed. This bar ensures that jars, bottles, and other items remain in place, maximizing storage efficiency. It measures about 17 inches wide by 2-1/2 inches high by 5 inches deep.

Causes of a bad door shelf bar can include wear and tear from regular use, damage due to overloading the shelf, or accidental impact that leads to cracks or breaks. Ensuring the door shelf bar is in good condition helps maintain the organization and functionality of the refrigerator door storage.

Symptoms of a bad door shelf bar include:

• Cracks or visible damage to the bar
• The bar not staying securely in place
• Items falling from the door shelves
• Difficulty in fitting the bar properly onto the door

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures panels, brackets, and internal components in Whirlpool-built appliances. Use it to replace missing or stripped hardware to restore a snug fit, reduce rattling, and maintain proper alignment. What it does:

• Fastens components to the appliance cabinet or frame
• Helps maintain alignment and proper clearances
• Reduces vibration-related noises from loose or missing hardware
• Common replacement when a screw is lost, corroded, or threads are damaged

• 1 screw

• Disconnect power before service; for gas appliances, also shut off gas supply
• Start threading by hand to avoid cross-threading; use the correct driver bit
• Tighten snugly without overtightening to prevent stripping
• Inspect and replace any worn clip/nut or damaged threads

This trim mounting clip secures appliance exterior trim pieces to the cabinet, restoring proper fit and preventing loose or rattling trim. Use it to replace a missing, bent, or broken clip so panels sit flush and stable. What it does:

• Holds appliance trim or decorative panels in place for a clean, finished appearance
• Prevents trim from shifting, vibrating, or creating gaps during operation
• Replaces a damaged or missing clip that can cause loose or uneven trim
• Works as a direct-fit fastener where a small stamped clip is required

• Designed for simple replacement—clip typically snaps into trim or cabinet slot; no special tools usually required
• Disconnect power to the appliance and follow OEM safety guidance before servicing nearby components
• Inspect surrounding trim and fasteners for damage and replace any additional broken clips for a uniform fit
