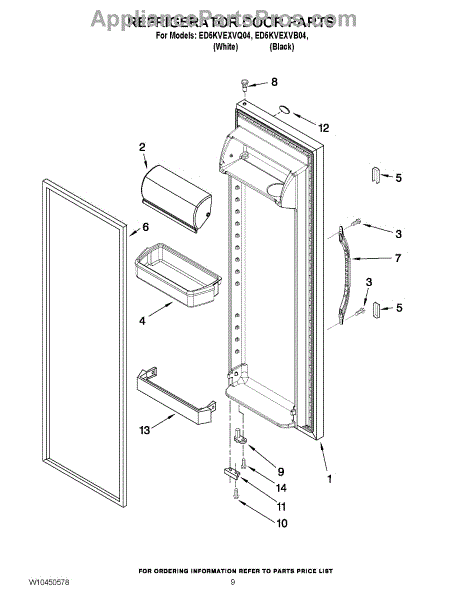

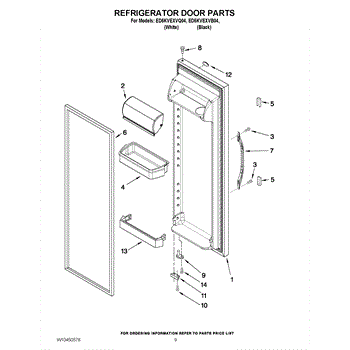

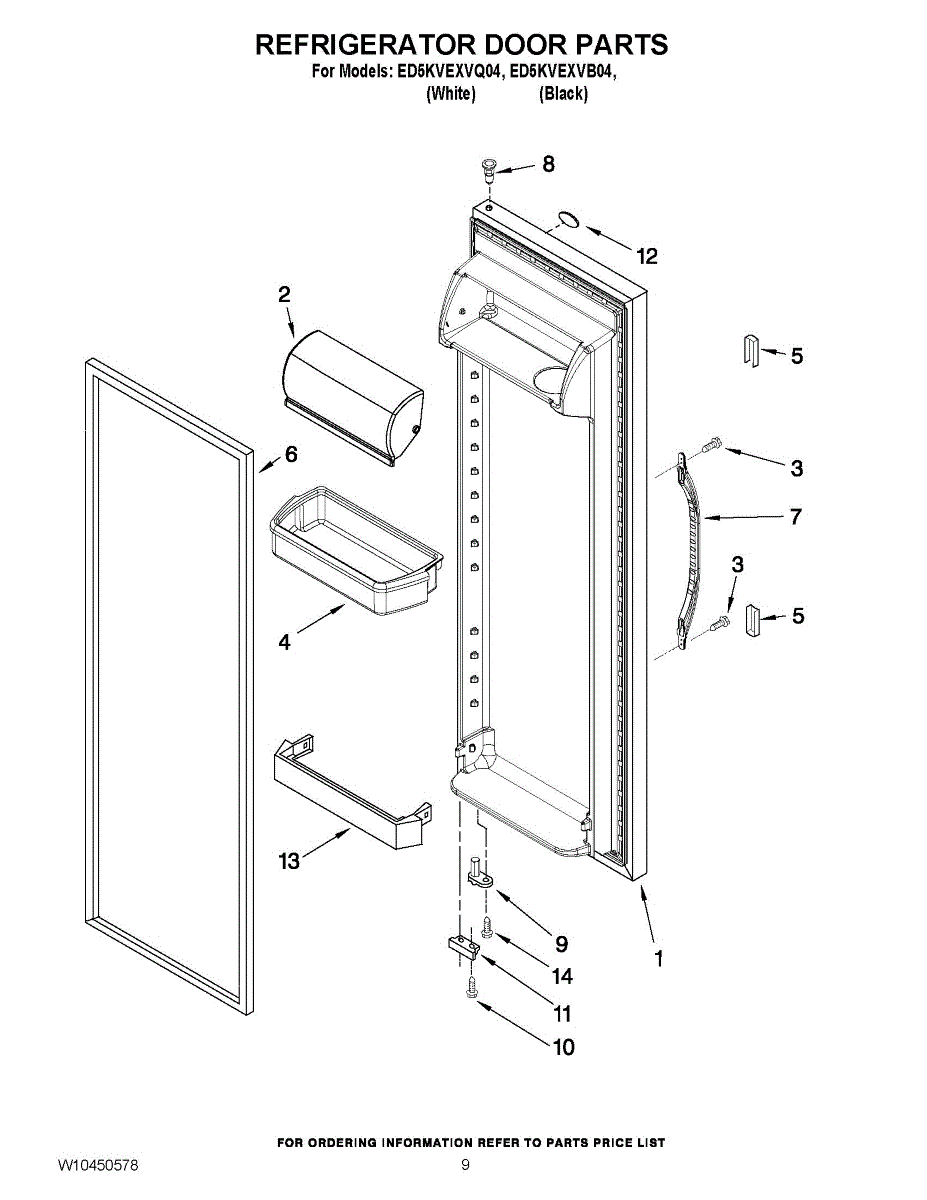

Parts for Whirlpool ED5KVEXVB04: 06 - Refrigerator Door Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

The Compartment Door is an OEM component for Whirlpool and Kenmore built-in refrigerator models. It provides access to organized storage in the fridge's fresh food compartment. The compartment door measures approximately 15” long by 6” wide.

As a high-use access point, the door endures constant opening/closing stresses. Over extended periods, normal wear gradually reduces the quality and integrity of its cushioned sealed closure.

Symptoms include:

• Difficulty fully closing/latching the compartment door
• Loud squeaking or sticking during operation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement screw secures appliance panels, brackets, and components. Using the correct size restores a snug fit to reduce vibration, prevent loosening, and keep assemblies properly aligned during operation. What it does:

• Fastens sheet metal and component brackets in designated locations
• Replaces missing, stripped, or corroded hardware
• Helps eliminate rattling and vibration from loose panels
• Maintains proper alignment of covers and assemblies

• 1 screw

• Disconnect electrical power; shut off water or gas supplies if applicable
• Match length/thread to the original; replace one fastener at a time to preserve alignment
• Start by hand to avoid cross-threading; use the correct driver size
• Snug firmly but do not overtighten to prevent stripping

The Door Shelf Bin is an OEM part for Whirlpool refrigerators. This bin attaches to the inside of the refrigerator door, offering convenient storage for condiments, bottles, and other small or frequently accessed items. By maximizing the usable space within the refrigerator, this door shelf bin helps keep your refrigerator organized and items within easy reach.

Common causes for these issues can stem from overloading the bin beyond its weight capacity, accidental damage from items being placed too forcefully, or the natural aging of plastic materials leading to brittleness and cracks.

Symptoms of a failing Door Shelf Bin include:

• Cracks or breaks in the plastic
• The bin becoming loose or failing to attach properly to the door
• Visible warping or deformation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This end cap fits on the end of an appliance handle to restore a finished appearance and protect exposed hardware. It replaces cracked, broken, or missing handle trim to help prevent snags and improve overall fit and finish. What it does:

• Covers and protects the exposed end of a handle for a clean, finished look.
• Helps secure handle trim and maintain proper alignment at the handle end.
• Addresses symptoms like visible cracks, missing trim, loose or wobbling handle ends, and snagging on clothing.
• Cosmetic replacement only — restores appearance and prevents further wear to the handle area.

• Disconnect power or unplug the appliance before attempting any repair.
• Basic hand tools are typically required; the cap usually snaps or fits over the handle end or is retained by the original fasteners.
• Reuse original screws/retainers when possible; do not overtighten replacement fasteners.

The Freezer Door Gasket is an OEM replacement part for Whirlpool refrigerators. It creates a tight insulating seal around the perimeter of the freezer door opening.
The gasket helps maintain consistent sub-freezing temperatures inside by preventing cold air loss.

Causes relate to natural compression fatigue over time, cracks developing with use, or accidental slicing/tears from sharp edges within the freezer.

Symptoms of a compromised gasket include:

• Frost or ice buildup near the door threshold from leaks
• Difficulty keeping foods frozen solid in compartments near the door
• The cold air felt escaping around door edges when closed

It is also compatible for use in Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Freezer Door Gasket is an OEM part for Whirlpool side-by-side and bottom-freezer refrigerators. As the seal that encloses cold air inside the freezer compartment, this gasket is critical for maintaining proper freezing temperatures.

Causes of a bad freezer door gasket can include cracking or deterioration from repeated compression and expansion during opening and closing of the freezer door over time. Food debris or moisture trapped against the gasket rim can also damage the sealing integrity.

Symptoms of a bad freezer door gasket include:

• Difficulty closing or sealing the freezer door properly
• Higher energy bills from the refrigerator running excessively
• Frost and ice buildup inside the freezer sections
• Loss of interior temperature regulation

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Thimble, Top is an OEM part for Whirlpool refrigerators. This component is used to support and secure the door hinge, ensuring smooth and stable opening and closing of the refrigerator door.

You should replace the door thimble if it becomes damaged or worn out. Causes of a bad door thimble include wear and tear from frequent use, stress from heavy door loads, or damage from accidental impacts. A faulty thimble can lead to misalignment of the door, causing it to sag or not seal properly.

Symptoms of a bad Door Thimble, Top include:

• Difficulty in opening or closing the door
• The door not aligning correctly with the refrigerator frame
• Noticeable sagging or wobbling of the door
• Unusual noises when the door is moved

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Upper Closure Cam is an OEM part for Whirlpool refrigerators. It is designed to provide proper closure and alignment for the refrigerator door. The upper closure cam is located on the top hinge of the refrigerator door and works in conjunction with the lower closure cam to ensure a tight seal and prevent air leaks.

Causes of a bad upper closure cam can include regular use, accidental damage, or excessive force applied to the door.

Symptoms of a bad upper closure cam include:

• Difficulty in closing or opening the refrigerator door.
• The door not staying securely closed.
• Uneven gaps or misalignment between the door and the refrigerator cabinet.
• Excessive noise or squeaking when operating the door.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Shelf is an OEM part for Whirlpool refrigerators. It provides additional storage space within the refrigerator door, allowing for the organization of smaller items like condiments, jars, and bottles.

Causes of a bad door shelf can include frequent loading and unloading, which can lead to wear and tear over time. Excessive weight or improper handling can cause the shelf to crack or break, making it unable to securely hold items.

Symptoms of a bad door shelf include:

• Cracks or breaks in the shelf
• The shelf not sitting securely in its designated slot
• Items falling or tipping over due to instability
• Difficulty in sliding or removing the shelf for cleaning

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures panels, brackets, and internal components in Whirlpool-built appliances. Use it to replace missing or stripped hardware to restore a snug fit, reduce rattling, and maintain proper alignment. What it does:

• Fastens components to the appliance cabinet or frame
• Helps maintain alignment and proper clearances
• Reduces vibration-related noises from loose or missing hardware
• Common replacement when a screw is lost, corroded, or threads are damaged

• 1 screw

• Disconnect power before service; for gas appliances, also shut off gas supply
• Start threading by hand to avoid cross-threading; use the correct driver bit
• Tighten snugly without overtightening to prevent stripping
• Inspect and replace any worn clip/nut or damaged threads
