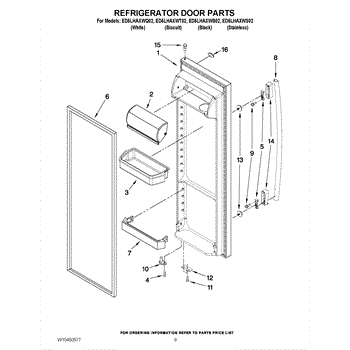

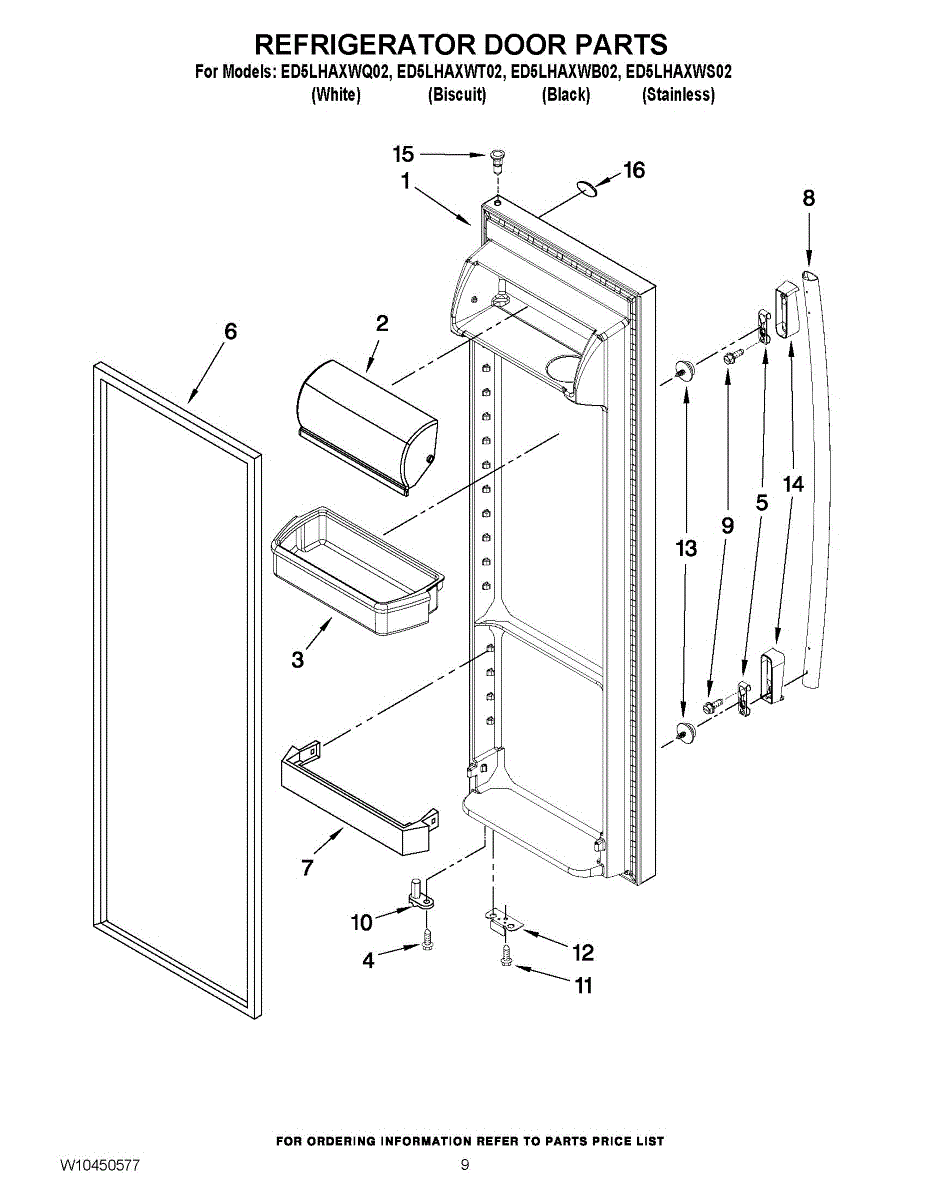

Parts for Whirlpool ED5LHAXWS02: 06 - Refrigerator Door Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

Color: Stainless

The Compartment Door is an OEM component for Whirlpool and Kenmore built-in refrigerator models. It provides access to organized storage in the fridge's fresh food compartment. The compartment door measures approximately 15” long by 6” wide.

As a high-use access point, the door endures constant opening/closing stresses. Over extended periods, normal wear gradually reduces the quality and integrity of its cushioned sealed closure.

Symptoms include:

• Difficulty fully closing/latching the compartment door
• Loud squeaking or sticking during operation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Door Shelf Bin is an OEM replacement part for Whirlpool refrigerators, designed to provide storage capacity and organization within the fridge. This bin attaches to the inside of the refrigerator door, offering a convenient place to store jars, bottles, and other condiments.

Symptoms of a bad Door Shelf Bin include:

• Cracks or breaks in the bin
• The bin detaching from the door
• Difficulty in sliding the bin in or out
• Noticeable sagging when loaded

Causes of these issues often stem from overloading the bin with too much weight, accidental damage from items being pushed in too forcefully, or simply the natural wear and tear that occurs over time.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement screw secures panels, brackets, and internal components in Whirlpool-built appliances. Use it to replace missing or stripped hardware to restore a snug fit, reduce rattling, and maintain proper alignment. What it does:

• Fastens components to the appliance cabinet or frame
• Helps maintain alignment and proper clearances
• Reduces vibration-related noises from loose or missing hardware
• Common replacement when a screw is lost, corroded, or threads are damaged

• 1 screw

• Disconnect power before service; for gas appliances, also shut off gas supply
• Start threading by hand to avoid cross-threading; use the correct driver bit
• Tighten snugly without overtightening to prevent stripping
• Inspect and replace any worn clip/nut or damaged threads

This replacement handle clip secures a cabinet or door handle to the appliance, restoring a firm fit and preventing a loose or sagging handle. Simple part that helps the handle stay aligned and usable. What it does:

• Secures the appliance handle to the door/frame so the handle stays fixed during normal use.
• Replaces a broken, cracked or missing clip that lets the handle wobble or detach.
• Stops symptoms like a loose, wobbly or slipping handle and restores proper handle alignment.
• Small plastic/metal retainer designed to snap into the handle or door bracket.

• Disconnect power or unplug the appliance before starting any repair to avoid injury.
• Remove the old clip by releasing the handle and prying the clip out with a flat screwdriver or needle-nose pliers.
• Press the new clip into the handle or bracket until it snaps into place; verify the handle is secure and aligned.

The Freezer Door Gasket is an OEM replacement part for Whirlpool refrigerators. It creates a tight insulating seal around the perimeter of the freezer door opening.
The gasket helps maintain consistent sub-freezing temperatures inside by preventing cold air loss.

Causes relate to natural compression fatigue over time, cracks developing with use, or accidental slicing/tears from sharp edges within the freezer.

Symptoms of a compromised gasket include:

• Frost or ice buildup near the door threshold from leaks
• Difficulty keeping foods frozen solid in compartments near the door
• The cold air felt escaping around door edges when closed

It is also compatible for use in Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Freezer Door Gasket is an OEM part for Whirlpool side-by-side and bottom-freezer refrigerators. As the seal that encloses cold air inside the freezer compartment, this gasket is critical for maintaining proper freezing temperatures.

Causes of a bad freezer door gasket can include cracking or deterioration from repeated compression and expansion during opening and closing of the freezer door over time. Food debris or moisture trapped against the gasket rim can also damage the sealing integrity.

Symptoms of a bad freezer door gasket include:

• Difficulty closing or sealing the freezer door properly
• Higher energy bills from the refrigerator running excessively
• Frost and ice buildup inside the freezer sections
• Loss of interior temperature regulation

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Shelf Bin is an OEM replacement part for Whirlpool refrigerators, designed to provide storage capacity and organization within the fridge. This bin attaches to the inside of the refrigerator door, offering a convenient place to store jars, bottles, and other condiments.

Symptoms of a bad Door Shelf Bin include:

• Cracks or breaks in the bin
• The bin detaching from the door
• Difficulty in sliding the bin in or out
• Noticeable sagging when loaded

Causes of these issues often stem from overloading the bin with too much weight, accidental damage from items being pushed in too forcefully, or simply the natural wear and tear that occurs over time.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Glass Shelf is an OEM replacement part for Whirlpool refrigerators. It is a sturdy and transparent shelf designed to provide ample storage space within the refrigerator compartment while allowing clear visibility of the items stored on it. Measuring approximately 17.32" x 18.10", this shelf offers ample space for organizing your food items. The shelf is a curved-front design with glass measuring approximately 13.74" x 14.88".

Causes of needing to replace a glass shelf can include physical damage from impact or excessive force, warping due to temperature fluctuations or moisture over time, or general wear and tear from repeated use.

Symptoms of a bad glass shelf include:

• Visible cracks or chips in the glass
• The shelf becoming loose or unstable, causing items to slide off
• Difficulty sliding the shelf in and out of its designated position

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note:

• If you need a "snack pan" shelf with a straight front, order WPW10276341.

This replacement screw secures appliance components and panels. Replacing worn or missing hardware restores a tight, rattle-free fit and helps keep assemblies properly aligned for reliable performance.

• Fastens panels, brackets, or covers to the appliance frame or mating parts
• Helps maintain proper alignment and reduces vibration and noise
• Replaces missing, stripped, or corroded screws
• Common signs to replace: loose or rattling panels, misaligned parts, damaged screw head or threads

• Disconnect power; also shut off water or gas to the appliance if applicable
• Compare to the original to ensure thread and length match before installing
• Start threads by hand to avoid cross-threading; tighten only until snug
• If the mating clip/insert is stripped, replace that hardware as well

The Door Upper Closure Cam is an OEM part for Whirlpool refrigerators. It is designed to provide proper closure and alignment for the refrigerator door. The upper closure cam is located on the top hinge of the refrigerator door and works in conjunction with the lower closure cam to ensure a tight seal and prevent air leaks.

Causes of a bad upper closure cam can include regular use, accidental damage, or excessive force applied to the door.

Symptoms of a bad upper closure cam include:

• Difficulty in closing or opening the refrigerator door.
• The door not staying securely closed.
• Uneven gaps or misalignment between the door and the refrigerator cabinet.
• Excessive noise or squeaking when operating the door.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw fastens appliance panels, brackets, and internal components so everything stays aligned and rattle-free. Use it to replace stripped, corroded, or missing hardware and restore a solid, secure fit during repairs.

• Secures panels, brackets, covers, and assemblies in place
• Replaces damaged or missing hardware to maintain a firm hold
• Helps reduce vibration and rattling from loose fasteners
• Supports proper fit and alignment after service

• Disconnect power and shut off water/gas (as applicable) before servicing
• Match to the original fastener and replace one at a time to keep alignment
• Start threads by hand to avoid cross-threading; do not overtighten, especially into plastic
• Repair threads or use the manufacturer-specified hardware for that location

The Door Thimble, Top is an OEM part for Whirlpool refrigerators. This component is used to support and secure the door hinge, ensuring smooth and stable opening and closing of the refrigerator door.

You should replace the door thimble if it becomes damaged or worn out. Causes of a bad door thimble include wear and tear from frequent use, stress from heavy door loads, or damage from accidental impacts. A faulty thimble can lead to misalignment of the door, causing it to sag or not seal properly.

Symptoms of a bad Door Thimble, Top include:

• Difficulty in opening or closing the door
• The door not aligning correctly with the refrigerator frame
• Noticeable sagging or wobbling of the door
• Unusual noises when the door is moved

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
