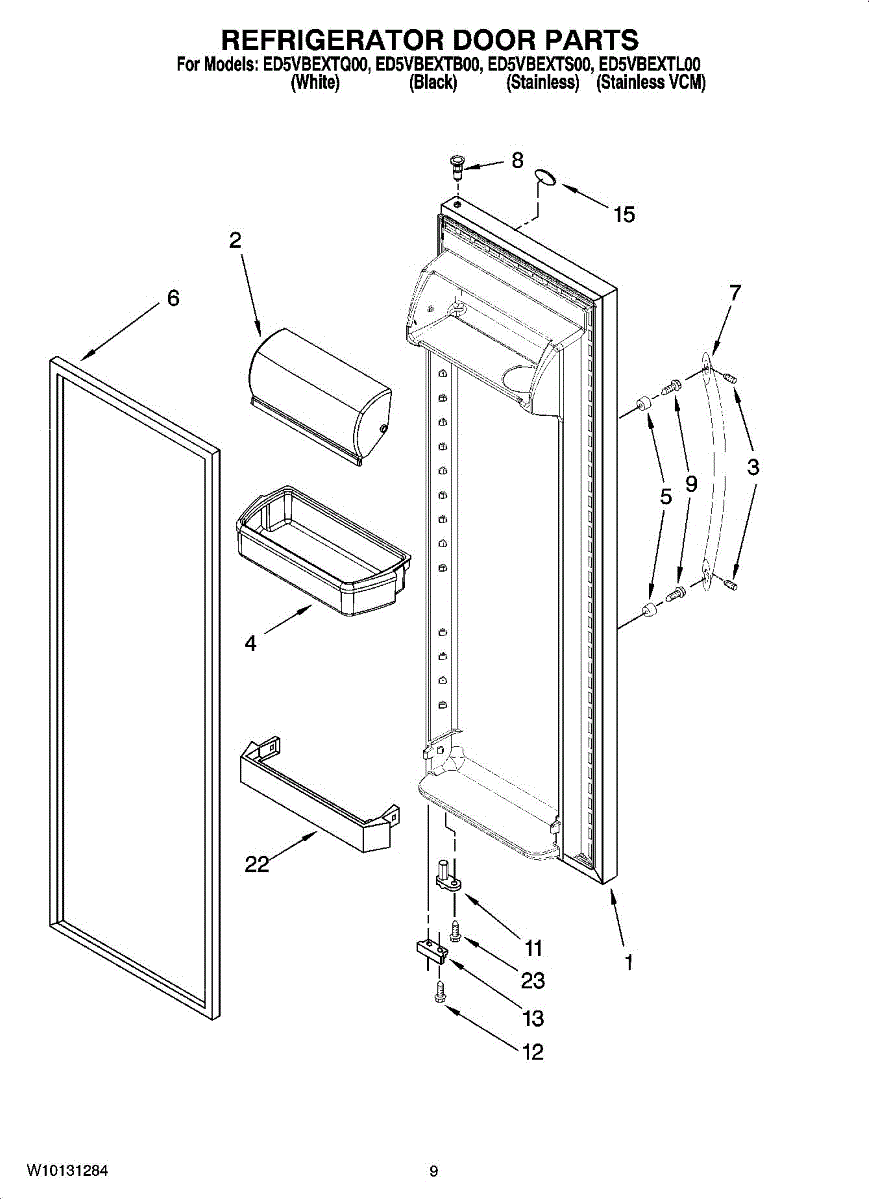

Parts for Whirlpool ED5VBEXTB00: 06 - Refrigerator Door Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

The Compartment Door is an OEM component for Whirlpool and Kenmore built-in refrigerator models. It provides access to organized storage in the fridge's fresh food compartment. The compartment door measures approximately 15” long by 6” wide.

As a high-use access point, the door endures constant opening/closing stresses. Over extended periods, normal wear gradually reduces the quality and integrity of its cushioned sealed closure.

Symptoms include:

• Difficulty fully closing/latching the compartment door
• Loud squeaking or sticking during operation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Handle Set Screw is an OEM part for Whirlpool refrigerators. As an internal component, the set screw is used to securely hold refrigerator door handles in place for easy opening and closing of access doors.

Symptoms of a bad handle set screw include:

• Handles that spin loose and no longer open doors properly
• Loss of attachment causing handles to fall off doors
• Potential for handles to fall on feet presenting a safety hazard
• Opening issues, like hands slipping off spinning handles

Causes involve wear from repeated use or accidental tightening damage stripping threads and allowing handle loosening, affecting usability.

This OEM Whirlpool part is also compatible with some Kenmore and KitchenAid models.

The Door Shelf Bin is an OEM replacement part for Whirlpool refrigerators, designed to provide storage capacity and organization within the fridge. This bin attaches to the inside of the refrigerator door, offering a convenient place to store jars, bottles, and other condiments.

Symptoms of a bad Door Shelf Bin include:

• Cracks or breaks in the bin
• The bin detaching from the door
• Difficulty in sliding the bin in or out
• Noticeable sagging when loaded

Causes of these issues often stem from overloading the bin with too much weight, accidental damage from items being pushed in too forcefully, or simply the natural wear and tear that occurs over time.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Screw (Shoulder Bolt) is an OEM part for Whirlpool refrigerators. This part secures the refrigerator handle to the door, ensuring it remains firmly attached and functions correctly. The shoulder design of the bolt allows for proper spacing and alignment of the handle, providing stability and ease of use.

Causes of a bad handle screw can include regular wear and tear, over-tightening, or accidental damage during use or maintenance.

Symptoms of a bad handle screw include:

• Loose or wobbly refrigerator handle
• Handle detaching from the door
• Difficulty opening or closing the refrigerator
• Visible damage or wear on the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Refrigerator Door Gasket (Beige) is an OEM replacement part specifically designed for Whirlpool-brand refrigerators. The gasket is responsible for preventing warm air and moisture from entering the refrigerator when doors close. The gasket measures approximately 19 ¼” wide x 62" tall.

Causes of a gasket issue can include cracking and degradation due to repeated compression over many years of use. Sections may lose elasticity and no longer seal tightly.

Symptoms of a bad gasket include:

• High energy costs as the system works to maintain proper cooling
• Warm, humid interior environment allowing food decay
• Visible air leaks around gasket edges when doors are shut

This part is also compatible with Maytag, KitchenAid, Jenn-Air, and other brands.

The Refrigerator Door Gasket (BLK) is an OEM part for Whirlpool refrigerators. This black gasket is designed to create a tight seal around the refrigerator door, preventing warm air from entering and cool air from escaping. The gasket is black in color and measures approximately 19 ¼” wide by 62" tall.

Causes of a bad door gasket can include wear and tear from regular use, damage from cleaning chemicals or sharp objects, or warping due to temperature fluctuations. Over time, the gasket may lose its flexibility and sealing ability.

Symptoms of a bad door gasket include:

• The refrigerator door not closing properly
• Visible cracks or tears in the gasket
• Condensation or frost buildup around the door seal
• Increased energy bills due to the refrigerator working harder to maintain temperature

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Thimble, Top is an OEM part for Whirlpool refrigerators. This component is used to support and secure the door hinge, ensuring smooth and stable opening and closing of the refrigerator door.

You should replace the door thimble if it becomes damaged or worn out. Causes of a bad door thimble include wear and tear from frequent use, stress from heavy door loads, or damage from accidental impacts. A faulty thimble can lead to misalignment of the door, causing it to sag or not seal properly.

Symptoms of a bad Door Thimble, Top include:

• Difficulty in opening or closing the door
• The door not aligning correctly with the refrigerator frame
• Noticeable sagging or wobbling of the door
• Unusual noises when the door is moved

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance

The Door Upper Closure Cam is an OEM part for Whirlpool refrigerators. It is designed to provide proper closure and alignment for the refrigerator door. The upper closure cam is located on the top hinge of the refrigerator door and works in conjunction with the lower closure cam to ensure a tight seal and prevent air leaks.

Causes of a bad upper closure cam can include regular use, accidental damage, or excessive force applied to the door.

Symptoms of a bad upper closure cam include:

• Difficulty in closing or opening the refrigerator door.
• The door not staying securely closed.
• Uneven gaps or misalignment between the door and the refrigerator cabinet.
• Excessive noise or squeaking when operating the door.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

Color: Black

The Door Shelf is an OEM part for Whirlpool refrigerators. It provides additional storage space within the refrigerator door, allowing for the organization of smaller items like condiments, jars, and bottles.

Causes of a bad door shelf can include frequent loading and unloading, which can lead to wear and tear over time. Excessive weight or improper handling can cause the shelf to crack or break, making it unable to securely hold items.

Symptoms of a bad door shelf include:

• Cracks or breaks in the shelf
• The shelf not sitting securely in its designated slot
• Items falling or tipping over due to instability
• Difficulty in sliding or removing the shelf for cleaning

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures panels, brackets, and internal components in Whirlpool-built appliances. Use it to replace missing or stripped hardware to restore a snug fit, reduce rattling, and maintain proper alignment. What it does:

• Fastens components to the appliance cabinet or frame
• Helps maintain alignment and proper clearances
• Reduces vibration-related noises from loose or missing hardware
• Common replacement when a screw is lost, corroded, or threads are damaged

• 1 screw

• Disconnect power before service; for gas appliances, also shut off gas supply
• Start threading by hand to avoid cross-threading; use the correct driver bit
• Tighten snugly without overtightening to prevent stripping
• Inspect and replace any worn clip/nut or damaged threads
