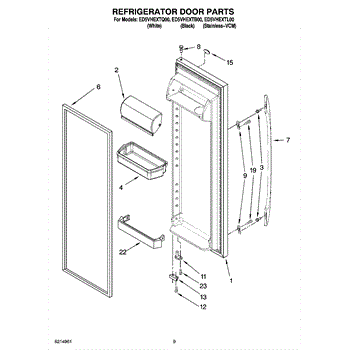

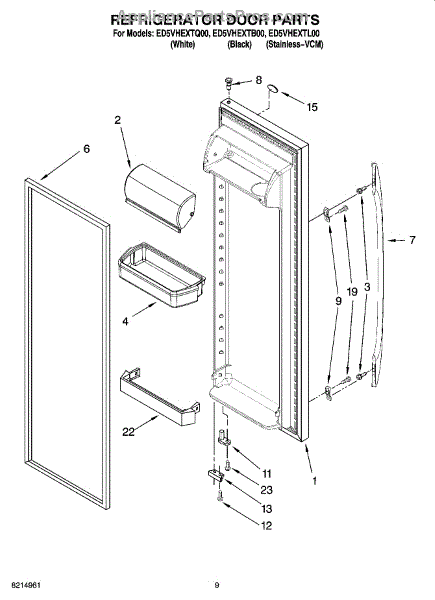

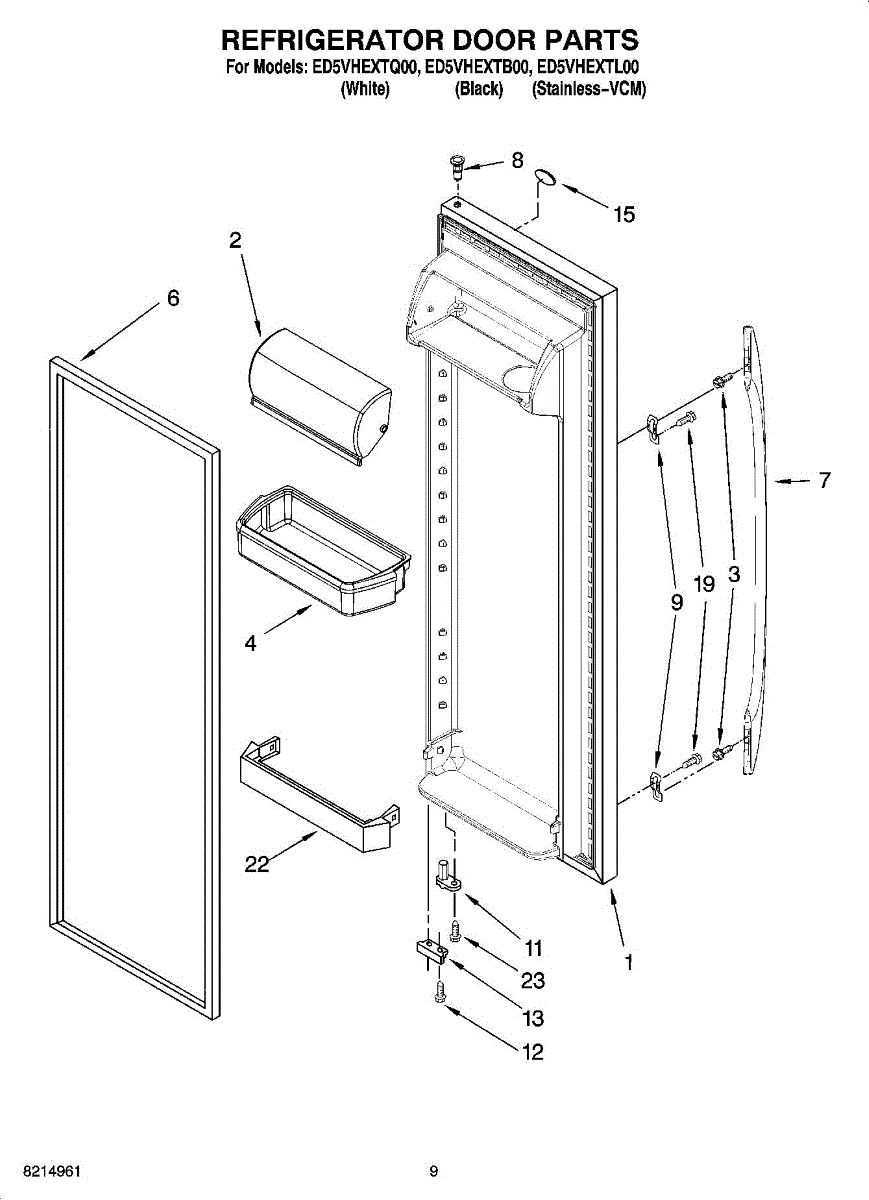

Parts for Whirlpool ED5VHEXTL00: 06 - Refrigerator Door Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

The Compartment Door is an OEM component for Whirlpool and Kenmore built-in refrigerator models. It provides access to organized storage in the fridge's fresh food compartment. The compartment door measures approximately 15” long by 6” wide.

As a high-use access point, the door endures constant opening/closing stresses. Over extended periods, normal wear gradually reduces the quality and integrity of its cushioned sealed closure.

Symptoms include:

• Difficulty fully closing/latching the compartment door
• Loud squeaking or sticking during operation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement screw fastens specified components in your appliance, restoring a secure fit. Replace stripped or missing hardware to stop vibration and keep panels, brackets, or handles properly aligned so the unit operates as intended.

• Secures panels, brackets, or assemblies to the frame or mounting points
• Helps maintain alignment and reduces rattling or vibration
• Replaces hardware with stripped threads or damaged heads
• Common signs it's needed: loose or missing screw, misaligned panel, rattling during operation

• Disconnect power; shut off water supply
• Use the correct driver/bit; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping or cracking
• Match the original screw's location and length per the parts diagram

The Door Bin is an OEM part for Whirlpool refrigerators, designed to provide convenient and accessible storage for a variety of items within the refrigerator door. Made from durable plastic, it is designed to withstand the typical wear and tear of daily refrigerator use, providing a stable and easy-to-clean space for storing condiments, beverages, and other frequently accessed items.

The reason for replacing a Door Bin usually involves physical damage from accidents or overloading, as well as the natural aging process of plastic, which can lead to brittleness and cracking.

Symptoms for a replacement Door Bin include:

• Cracks or breaks in the bin that prevent it from holding items securely
• Warping or damage that affects the bin's ability to fit properly in the door
• Discoloration or aesthetic damage that detracts from the refrigerator's overall appearance

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Refrigerator Door Gasket (Beige) is an OEM replacement part specifically designed for Whirlpool-brand refrigerators. The gasket is responsible for preventing warm air and moisture from entering the refrigerator when doors close. The gasket measures approximately 19 ¼” wide x 62" tall.

Causes of a gasket issue can include cracking and degradation due to repeated compression over many years of use. Sections may lose elasticity and no longer seal tightly.

Symptoms of a bad gasket include:

• High energy costs as the system works to maintain proper cooling
• Warm, humid interior environment allowing food decay
• Visible air leaks around gasket edges when doors are shut

This part is also compatible with Maytag, KitchenAid, Jenn-Air, and other brands.

The Refrigerator Door Gasket (BLK) is an OEM part for Whirlpool refrigerators. This black gasket is designed to create a tight seal around the refrigerator door, preventing warm air from entering and cool air from escaping. The gasket is black in color and measures approximately 19 ¼” wide by 62" tall.

Causes of a bad door gasket can include wear and tear from regular use, damage from cleaning chemicals or sharp objects, or warping due to temperature fluctuations. Over time, the gasket may lose its flexibility and sealing ability.

Symptoms of a bad door gasket include:

• The refrigerator door not closing properly
• Visible cracks or tears in the gasket
• Condensation or frost buildup around the door seal
• Increased energy bills due to the refrigerator working harder to maintain temperature

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This genuine replacement door handle restores a secure, easy-to-grip surface for opening and closing your refrigerator door. It replaces a cracked, broken or worn handle so the door can be operated safely and comfortably. What it does:

• Provides a solid grip for opening and closing the refrigerator door
• Replaces handles that are cracked, broken, loose or cosmetically damaged
• Helps prevent further damage to the door edge caused by using a damaged handle
• Restores original appearance and functionality

• One refrigerator door handle

• High-level, basic replacement — typically mounts with screws or fasteners hidden under a trim/cover; use appropriate hand tools
• Support the door during removal/installation to avoid stressing the hinges or other components
• Tighten fasteners until secure but avoid over-torquing to prevent cracking the handle
• Wear protective gloves and follow appliance safety guidance; disconnect power only if required by your appliance's service instructions

The Door Thimble, Top is an OEM part for Whirlpool refrigerators. This component is used to support and secure the door hinge, ensuring smooth and stable opening and closing of the refrigerator door.

You should replace the door thimble if it becomes damaged or worn out. Causes of a bad door thimble include wear and tear from frequent use, stress from heavy door loads, or damage from accidental impacts. A faulty thimble can lead to misalignment of the door, causing it to sag or not seal properly.

Symptoms of a bad Door Thimble, Top include:

• Difficulty in opening or closing the door
• The door not aligning correctly with the refrigerator frame
• Noticeable sagging or wobbling of the door
• Unusual noises when the door is moved

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement handle clip secures a cabinet or door handle to the appliance, restoring a firm fit and preventing a loose or sagging handle. Simple part that helps the handle stay aligned and usable. What it does:

• Secures the appliance handle to the door/frame so the handle stays fixed during normal use.
• Replaces a broken, cracked or missing clip that lets the handle wobble or detach.
• Stops symptoms like a loose, wobbly or slipping handle and restores proper handle alignment.
• Small plastic/metal retainer designed to snap into the handle or door bracket.

• Disconnect power or unplug the appliance before starting any repair to avoid injury.
• Remove the old clip by releasing the handle and prying the clip out with a flat screwdriver or needle-nose pliers.
• Press the new clip into the handle or bracket until it snaps into place; verify the handle is secure and aligned.

The Door Upper Closure Cam is an OEM part for Whirlpool refrigerators. It is designed to provide proper closure and alignment for the refrigerator door. The upper closure cam is located on the top hinge of the refrigerator door and works in conjunction with the lower closure cam to ensure a tight seal and prevent air leaks.

Causes of a bad upper closure cam can include regular use, accidental damage, or excessive force applied to the door.

Symptoms of a bad upper closure cam include:

• Difficulty in closing or opening the refrigerator door.
• The door not staying securely closed.
• Uneven gaps or misalignment between the door and the refrigerator cabinet.
• Excessive noise or squeaking when operating the door.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

Color: Black

This replacement screw secures appliance panels, brackets, and components. Using the correct size restores a snug fit to reduce vibration, prevent loosening, and keep assemblies properly aligned during operation. What it does:

• Fastens sheet metal and component brackets in designated locations
• Replaces missing, stripped, or corroded hardware
• Helps eliminate rattling and vibration from loose panels
• Maintains proper alignment of covers and assemblies

• 1 screw

• Disconnect electrical power; shut off water or gas supplies if applicable
• Match length/thread to the original; replace one fastener at a time to preserve alignment
• Start by hand to avoid cross-threading; use the correct driver size
• Snug firmly but do not overtighten to prevent stripping

The Door Shelf is an OEM part for Whirlpool refrigerators. It provides additional storage space within the refrigerator door, allowing for the organization of smaller items like condiments, jars, and bottles.

Causes of a bad door shelf can include frequent loading and unloading, which can lead to wear and tear over time. Excessive weight or improper handling can cause the shelf to crack or break, making it unable to securely hold items.

Symptoms of a bad door shelf include:

• Cracks or breaks in the shelf
• The shelf not sitting securely in its designated slot
• Items falling or tipping over due to instability
• Difficulty in sliding or removing the shelf for cleaning

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures panels, brackets, and internal components in Whirlpool-built appliances. Use it to replace missing or stripped hardware to restore a snug fit, reduce rattling, and maintain proper alignment. What it does:

• Fastens components to the appliance cabinet or frame
• Helps maintain alignment and proper clearances
• Reduces vibration-related noises from loose or missing hardware
• Common replacement when a screw is lost, corroded, or threads are damaged

• 1 screw

• Disconnect power before service; for gas appliances, also shut off gas supply
• Start threading by hand to avoid cross-threading; use the correct driver bit
• Tighten snugly without overtightening to prevent stripping
• Inspect and replace any worn clip/nut or damaged threads
