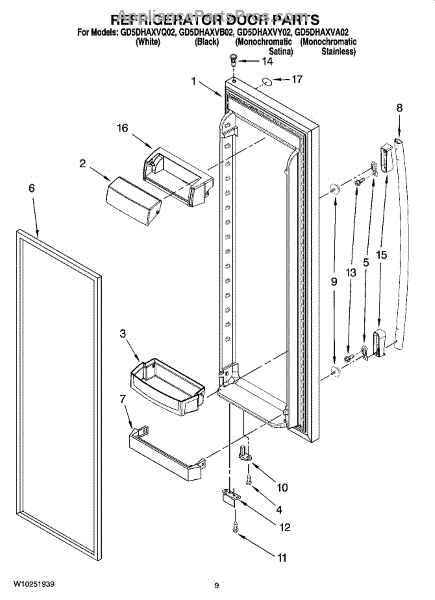

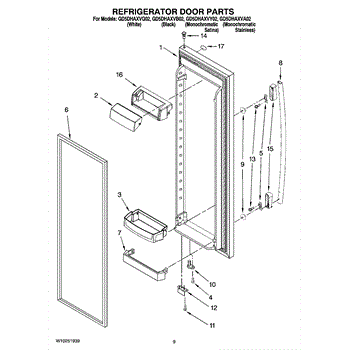

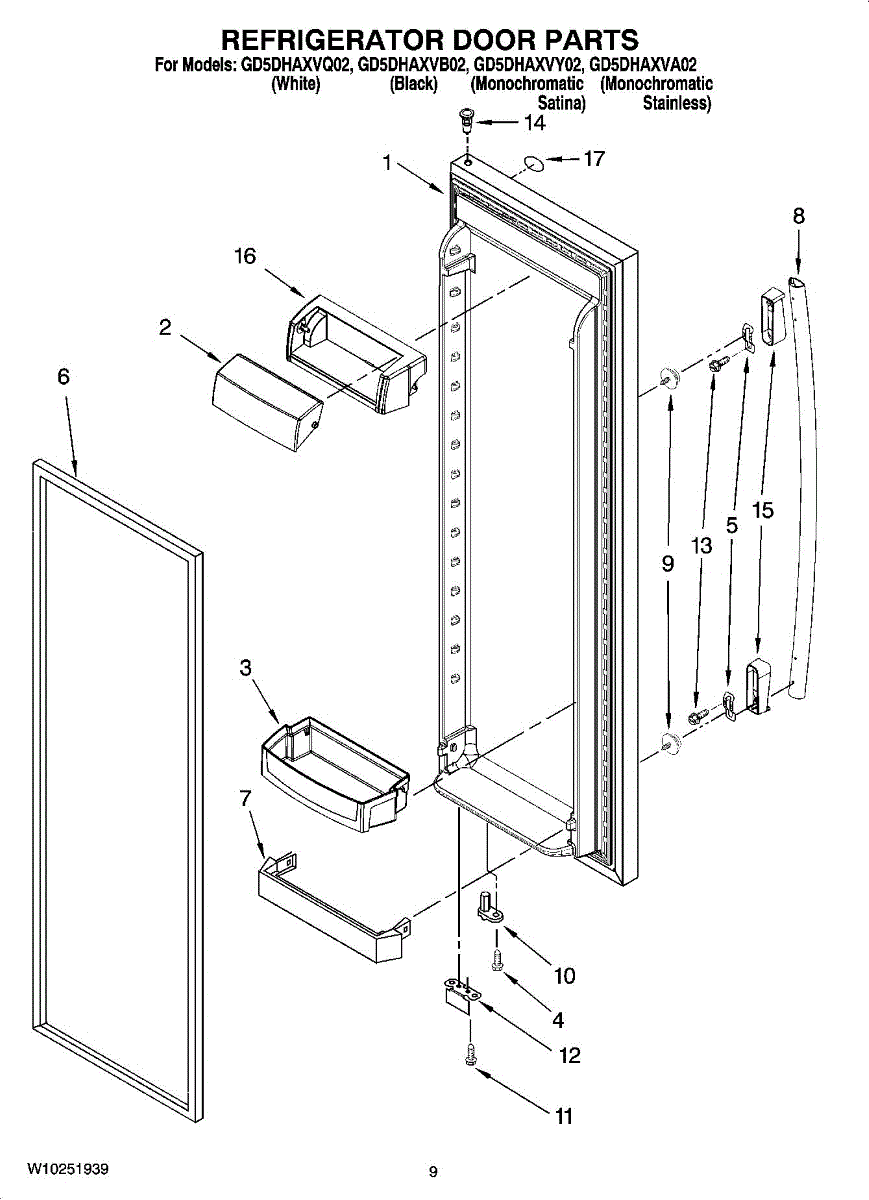

Parts for Whirlpool GD5DHAXVB02: 06 - Refrigerator Door Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

Color: clear. It measures about 14 inches wide by 6 inches high.

Color: clear. Measures about 18 inches wide by 5 inches high by 7 inches deep.

This replacement screw secures panels, brackets, and internal components in Whirlpool-built appliances. Use it to replace missing or stripped hardware to restore a snug fit, reduce rattling, and maintain proper alignment. What it does:

• Fastens components to the appliance cabinet or frame
• Helps maintain alignment and proper clearances
• Reduces vibration-related noises from loose or missing hardware
• Common replacement when a screw is lost, corroded, or threads are damaged

• 1 screw

• Disconnect power before service; for gas appliances, also shut off gas supply
• Start threading by hand to avoid cross-threading; use the correct driver bit
• Tighten snugly without overtightening to prevent stripping
• Inspect and replace any worn clip/nut or damaged threads

This replacement handle clip secures a cabinet or door handle to the appliance, restoring a firm fit and preventing a loose or sagging handle. Simple part that helps the handle stay aligned and usable. What it does:

• Secures the appliance handle to the door/frame so the handle stays fixed during normal use.
• Replaces a broken, cracked or missing clip that lets the handle wobble or detach.
• Stops symptoms like a loose, wobbly or slipping handle and restores proper handle alignment.
• Small plastic/metal retainer designed to snap into the handle or door bracket.

• Disconnect power or unplug the appliance before starting any repair to avoid injury.
• Remove the old clip by releasing the handle and prying the clip out with a flat screwdriver or needle-nose pliers.
• Press the new clip into the handle or bracket until it snaps into place; verify the handle is secure and aligned.

Color: Grey

The Refrigerator Door Gasket (Beige) is an OEM replacement part specifically designed for Whirlpool-brand refrigerators. The gasket is responsible for preventing warm air and moisture from entering the refrigerator when doors close. The gasket measures approximately 19 ¼” wide x 62" tall.

Causes of a gasket issue can include cracking and degradation due to repeated compression over many years of use. Sections may lose elasticity and no longer seal tightly.

Symptoms of a bad gasket include:

• High energy costs as the system works to maintain proper cooling
• Warm, humid interior environment allowing food decay
• Visible air leaks around gasket edges when doors are shut

This part is also compatible with Maytag, KitchenAid, Jenn-Air, and other brands.

The Refrigerator Door Gasket (BLK) is an OEM part for Whirlpool refrigerators. This black gasket is designed to create a tight seal around the refrigerator door, preventing warm air from entering and cool air from escaping. The gasket is black in color and measures approximately 19 ¼” wide by 62" tall.

Causes of a bad door gasket can include wear and tear from regular use, damage from cleaning chemicals or sharp objects, or warping due to temperature fluctuations. Over time, the gasket may lose its flexibility and sealing ability.

Symptoms of a bad door gasket include:

• The refrigerator door not closing properly
• Visible cracks or tears in the gasket
• Condensation or frost buildup around the door seal
• Increased energy bills due to the refrigerator working harder to maintain temperature

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Shelf is an OEM part for Whirlpool refrigerators. It provides additional storage space within the refrigerator door, allowing for the organization of smaller items like condiments, jars, and bottles.

Causes of a bad door shelf can include frequent loading and unloading, which can lead to wear and tear over time. Excessive weight or improper handling can cause the shelf to crack or break, making it unable to securely hold items.

Symptoms of a bad door shelf include:

• Cracks or breaks in the shelf
• The shelf not sitting securely in its designated slot
• Items falling or tipping over due to instability
• Difficulty in sliding or removing the shelf for cleaning

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement door handle designed to restore a secure grip and normal door operation while improving the appliance's appearance. It fits the original mounting points for a direct swap with the factory piece. What it does:

• Provides a stable grip for opening and closing the appliance door
• Replaces cracked, broken, or loose handles that interfere with door use
• Restores the original look and alignment of the door front
• Helps prevent damage from using makeshift grips or excessive force

• Disconnect power or unplug the appliance before starting any repair
• Remove any trim or fasteners covering the handle mounting screws to access hardware
• Use common hand tools (screwdriver, nut driver) and avoid overtightening fasteners

Replace a cracked or loose door handle and restore a secure, comfortable grip for opening and closing the appliance door. This direct replacement helps bring back smooth operation and a clean, factory look. What it does:

• Provides the gripping surface to open and close the door
• Restores safe handling when the original handle is cracked or loose
• Helps maintain proper door operation and appearance
• Common symptoms: broken or missing handle, wobbling/loose handle, difficulty opening the door, cosmetic damage

• 1 door handle

• Disconnect power to the appliance before servicing
• Access and remove the handle's mounting screws (often from the inner door panel or under trim)
• Transfer any spacers/end caps/screws from the old handle as required for your model
• Tighten mounting screws securely but do not overtighten; verify door alignment and operation

This mid-length handle replaces a damaged or missing pull on compatible Whirlpool-built units, restoring a secure, comfortable grip and the original look so your door or drawer opens smoothly and stays aligned with adjacent handles.

• Provides the handhold needed to open and close the appliance door or drawer
• Replaces broken, cracked, loose, or missing handles to restore function and appearance
• Helps correct wobble or misalignment caused by a fatigued handle
• Typical symptoms: difficulty opening, handle spins or falls off, visible cracks or scuffs

• Disconnect power and your model's parts diagram for the correct handle location and hardware layout
• Protect the finish with painter's tape; align the handle and start both fasteners before tightening
• Use the proper driver (Allen/hex or Torx as required) and hand-tighten—do not overtighten
• Transfer any reusable mounting hardware from the original handle per your model's instructions

This replacement screw fastens appliance panels, brackets, and internal components so everything stays aligned and rattle-free. Use it to replace stripped, corroded, or missing hardware and restore a solid, secure fit during repairs.

• Secures panels, brackets, covers, and assemblies in place
• Replaces damaged or missing hardware to maintain a firm hold
• Helps reduce vibration and rattling from loose fasteners
• Supports proper fit and alignment after service

• Disconnect power and shut off water/gas (as applicable) before servicing
• Match to the original fastener and replace one at a time to keep alignment
• Start threads by hand to avoid cross-threading; do not overtighten, especially into plastic
• Repair threads or use the manufacturer-specified hardware for that location

The Door Upper Closure Cam is an OEM part for Whirlpool refrigerators. It is designed to provide proper closure and alignment for the refrigerator door. The upper closure cam is located on the top hinge of the refrigerator door and works in conjunction with the lower closure cam to ensure a tight seal and prevent air leaks.

Causes of a bad upper closure cam can include regular use, accidental damage, or excessive force applied to the door.

Symptoms of a bad upper closure cam include:

• Difficulty in closing or opening the refrigerator door.
• The door not staying securely closed.
• Uneven gaps or misalignment between the door and the refrigerator cabinet.
• Excessive noise or squeaking when operating the door.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

Color: Black

The Door Thimble, Top is an OEM part for Whirlpool refrigerators. This component is used to support and secure the door hinge, ensuring smooth and stable opening and closing of the refrigerator door.

You should replace the door thimble if it becomes damaged or worn out. Causes of a bad door thimble include wear and tear from frequent use, stress from heavy door loads, or damage from accidental impacts. A faulty thimble can lead to misalignment of the door, causing it to sag or not seal properly.

Symptoms of a bad Door Thimble, Top include:

• Difficulty in opening or closing the door
• The door not aligning correctly with the refrigerator frame
• Noticeable sagging or wobbling of the door
• Unusual noises when the door is moved

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
