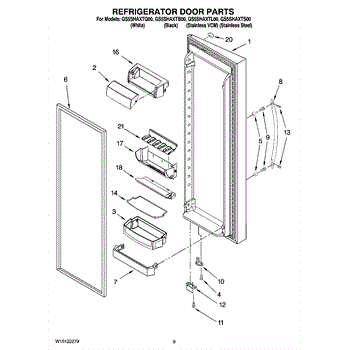

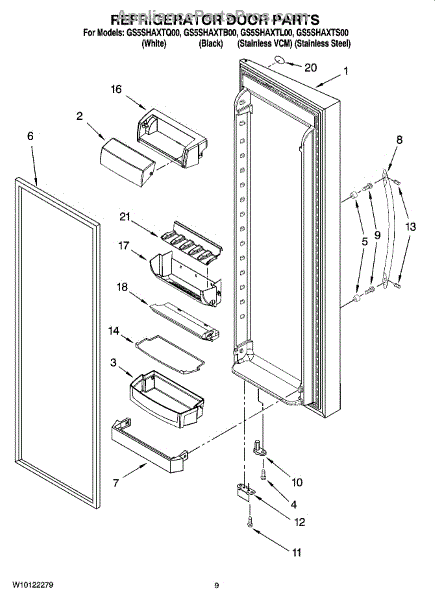

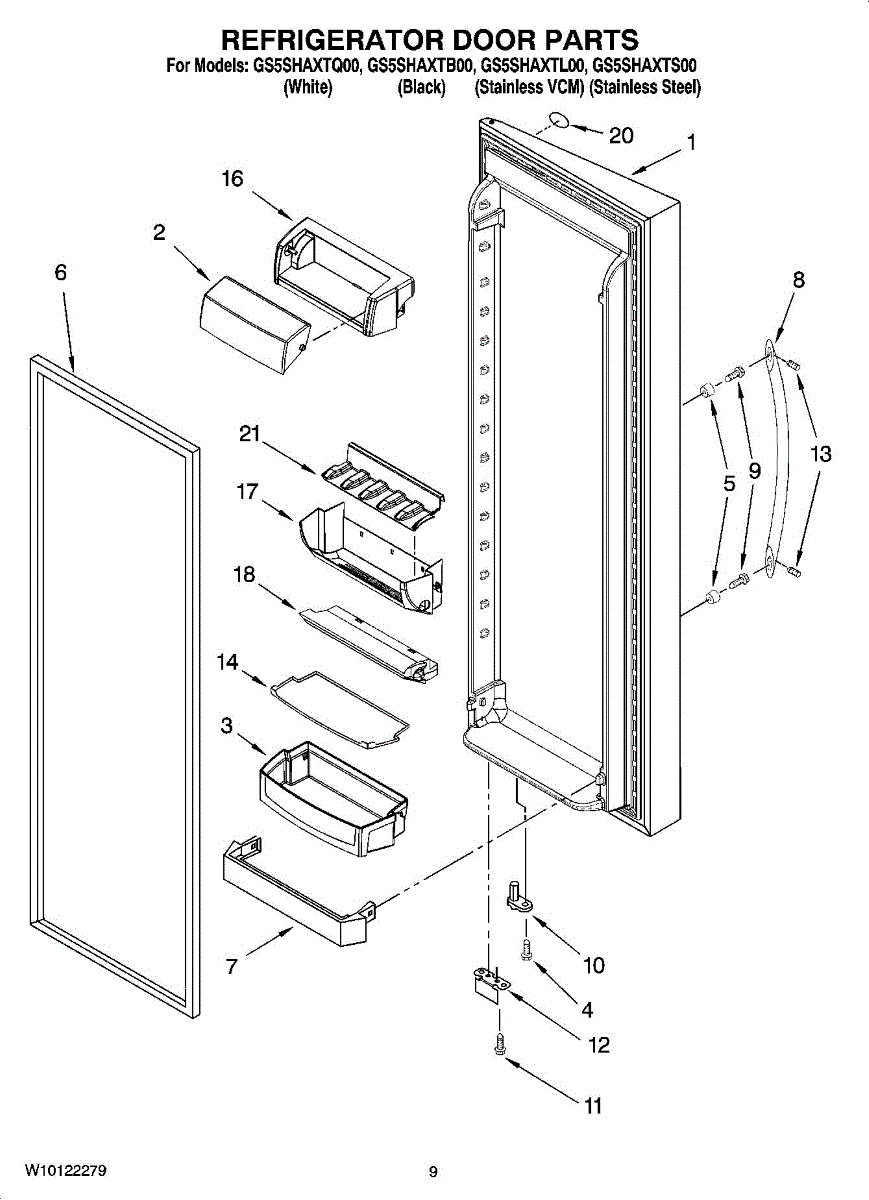

Parts for Whirlpool GS5SHAXTL00: 06 - Refrigerator Door Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

Color: clear. It measures about 14 inches wide by 6 inches high.

Color: clear. Measures about 18 inches wide by 5 inches high by 7 inches deep.

This replacement screw secures panels, brackets, and internal components in Whirlpool-built appliances. Use it to replace missing or stripped hardware to restore a snug fit, reduce rattling, and maintain proper alignment. What it does:

• Fastens components to the appliance cabinet or frame
• Helps maintain alignment and proper clearances
• Reduces vibration-related noises from loose or missing hardware
• Common replacement when a screw is lost, corroded, or threads are damaged

• 1 screw

• Disconnect power before service; for gas appliances, also shut off gas supply
• Start threading by hand to avoid cross-threading; use the correct driver bit
• Tighten snugly without overtightening to prevent stripping
• Inspect and replace any worn clip/nut or damaged threads

The Screw (Shoulder Bolt) is an OEM part for Whirlpool refrigerators. This part secures the refrigerator handle to the door, ensuring it remains firmly attached and functions correctly. The shoulder design of the bolt allows for proper spacing and alignment of the handle, providing stability and ease of use.

Causes of a bad handle screw can include regular wear and tear, over-tightening, or accidental damage during use or maintenance.

Symptoms of a bad handle screw include:

• Loose or wobbly refrigerator handle
• Handle detaching from the door
• Difficulty opening or closing the refrigerator
• Visible damage or wear on the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Refrigerator Door Gasket (Beige) is an OEM replacement part specifically designed for Whirlpool-brand refrigerators. The gasket is responsible for preventing warm air and moisture from entering the refrigerator when doors close. The gasket measures approximately 19 ¼” wide x 62" tall.

Causes of a gasket issue can include cracking and degradation due to repeated compression over many years of use. Sections may lose elasticity and no longer seal tightly.

Symptoms of a bad gasket include:

• High energy costs as the system works to maintain proper cooling
• Warm, humid interior environment allowing food decay
• Visible air leaks around gasket edges when doors are shut

This part is also compatible with Maytag, KitchenAid, Jenn-Air, and other brands.

The Refrigerator Door Gasket (BLK) is an OEM part for Whirlpool refrigerators. This black gasket is designed to create a tight seal around the refrigerator door, preventing warm air from entering and cool air from escaping. The gasket is black in color and measures approximately 19 ¼” wide by 62" tall.

Causes of a bad door gasket can include wear and tear from regular use, damage from cleaning chemicals or sharp objects, or warping due to temperature fluctuations. Over time, the gasket may lose its flexibility and sealing ability.

Symptoms of a bad door gasket include:

• The refrigerator door not closing properly
• Visible cracks or tears in the gasket
• Condensation or frost buildup around the door seal
• Increased energy bills due to the refrigerator working harder to maintain temperature

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This large refrigerator door shelf retainer bar secures items on the door shelf, keeping jars and bottles from sliding out during everyday use. Replace a broken or missing bar to restore safe, reliable door storage.

• Holds contents on the refrigerator door shelf; stabilizes items when the door opens or closes
• Replace when the bar is cracked, warped, or missing
• Common symptoms: items fall from the door shelf, bar won't stay attached, loose fit
• For the refrigerator compartment door in the large position

• Remove items from the affected shelf; allow cold plastic to warm to room temperature before handling
• Release the old bar from the endcaps or slots and inspect mounting points for damage
• Align and snap the new bar fully into both ends; verify a secure fit before reloading
• No power is typically required; wear gloves and avoid excessive force to prevent cracking

This face-mount handle assembly replaces a worn or broken appliance door handle and restores a solid, easy-to-grip surface for opening the door. It provides a direct-fit replacement designed to match the original mounting style and function. What it does:

• Replaces a cracked, bent, or broken face-mounted door handle
• Restores secure grip and normal door operation
• Prevents metal edges or sharp fragments from catching hands or clothing
• Helps eliminate wobble or looseness caused by damaged mounting points

• For safety, unplug the appliance or disconnect power before starting work
• Typically mounts with exposed screws or fasteners; use appropriate screwdriver or nut driver
• Align handle over mounting posts, then install and snug fasteners—do not overtighten
• Replace hardware before use

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance

The Door Upper Closure Cam is an OEM part for Whirlpool refrigerators. It is designed to provide proper closure and alignment for the refrigerator door. The upper closure cam is located on the top hinge of the refrigerator door and works in conjunction with the lower closure cam to ensure a tight seal and prevent air leaks.

Causes of a bad upper closure cam can include regular use, accidental damage, or excessive force applied to the door.

Symptoms of a bad upper closure cam include:

• Difficulty in closing or opening the refrigerator door.
• The door not staying securely closed.
• Uneven gaps or misalignment between the door and the refrigerator cabinet.
• Excessive noise or squeaking when operating the door.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Handle Set Screw is an OEM part for Whirlpool refrigerators. As an internal component, the set screw is used to securely hold refrigerator door handles in place for easy opening and closing of access doors.

Symptoms of a bad handle set screw include:

• Handles that spin loose and no longer open doors properly
• Loss of attachment causing handles to fall off doors
• Potential for handles to fall on feet presenting a safety hazard
• Opening issues, like hands slipping off spinning handles

Causes involve wear from repeated use or accidental tightening damage stripping threads and allowing handle loosening, affecting usability.

This OEM Whirlpool part is also compatible with some Kenmore and KitchenAid models.
