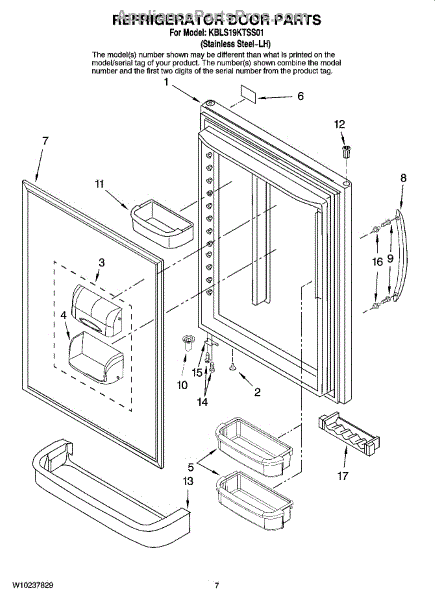

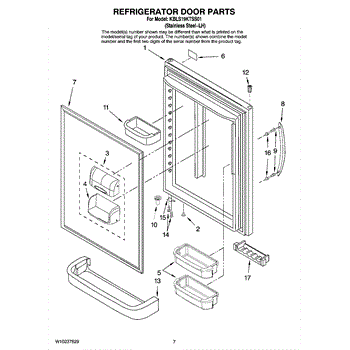

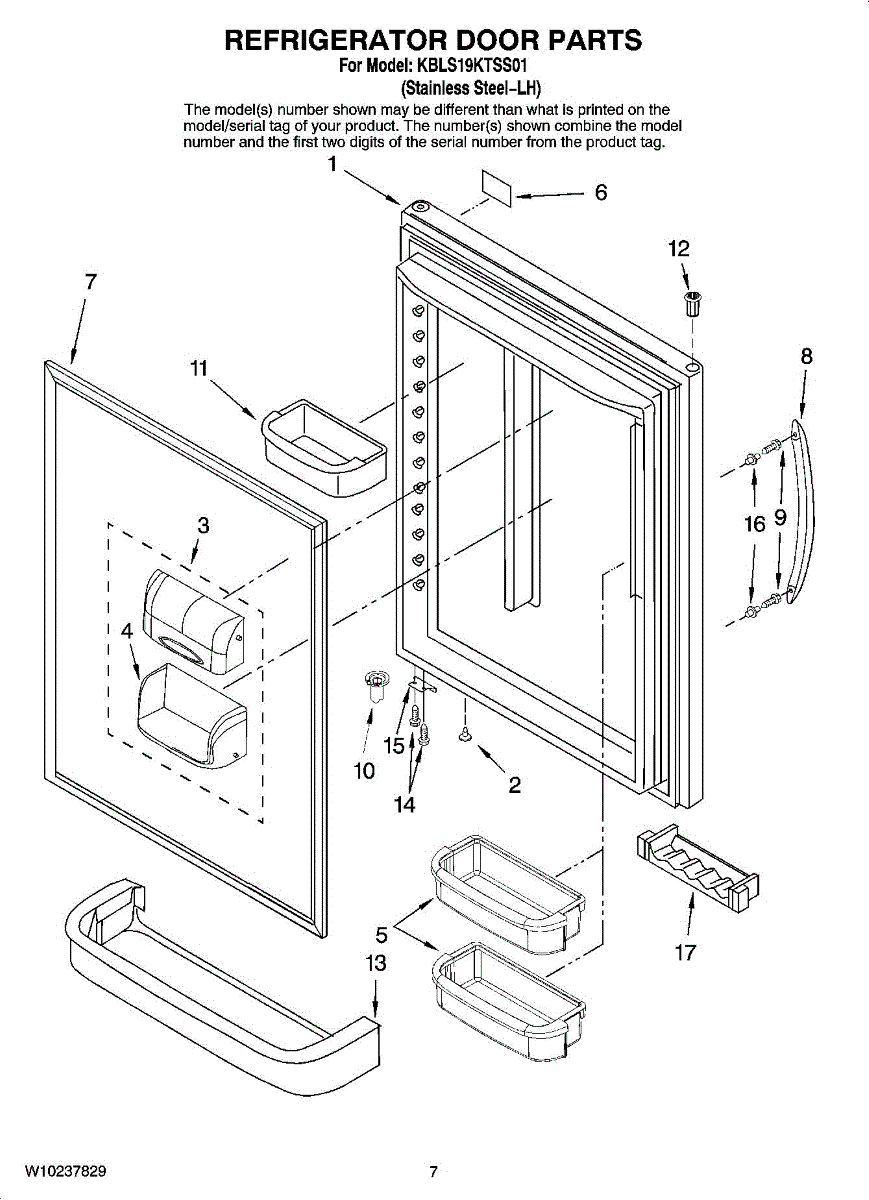

Parts for Kitchenaid KBLS19KTSS01: 04 - Refrigerator Door Parts

This vent plug seals an unused appliance vent opening to keep out debris and improve appearance. A simple OEM-fit replacement that restores a clean, finished look to the appliance exterior. What it does

• Covers and seals a vent opening to prevent dust, lint, and pests from entering the cabinet or vent cavity.
• Restores the appliance's finished appearance where a vent opening is exposed or a plug is missing.
• Helps maintain proper airflow paths by closing unused ports and reducing drafts.
• Fits the original mounting location for a secure, low-profile fit.

• One black vent plug.

• High-level push-in replacement; no special tools typically required.
• Disconnect power to the appliance before any service when accessing internal areas.
• Inspect surrounding trim or grille for clips or screws; remove carefully to access the vent opening.
• If plug does not seat fully, verify the correct OEM location and orientation before forcing.

This replacement dairy door restores the flip-up cover for the small butter/dairy bin on your refrigerator door. Replace a cracked or missing cover to keep contents contained and your door storage tidy.

• Covers the butter/dairy compartment on the fresh food door
• Flips up for access and down to help secure items
• Helps prevent small items from sliding out of the bin
• Replaces a cracked, broken, loose, or missing cover

• Remove the dairy bin for easier access and alignment
• Align hinge tabs with the bin pivots and press gently until it snaps in
• Avoid forcing cold plastic; let parts warm to room temperature
• If working near electrical components, disconnect power and wear cut-resistant gloves

Replace a cracked or missing dairy tray on your refrigerator door. This door bin restores a dedicated spot for butter and small items so they stay organized and easy to reach while maintaining a secure fit on the door.

• Mounts on the refrigerator door as the dairy compartment tray
• Holds butter, cheese, and other small items securely
• Restores proper fit when the original tray is cracked, warped, or missing
• Common symptoms: broken tabs, tray falls off, loose/wobbly fit, items spilling when the door opens

• Open the door, lift the old tray straight up and out; align the new tray with the door slots and lower until fully seated
• Handle plastic parts gently and avoid forcing; allow parts to warm to room temperature to reduce risk of cracking
• Confirm both sides are fully engaged before loading items

A replacement medium door shelf bin that restores usable storage space in your refrigerator door. Holds bottles, jars and small containers securely so items stay organized and easy to reach. What it does:

• Replaces a cracked, broken or missing door shelf bin to stop items from falling or shifting in the door.
• Provides a stable shelf for bottles, condiments and small containers.
• Restores original door storage layout and capacity.
• Helps maintain tidy, accessible refrigerator door organization.

• Remove all items from the door before replacing the bin.
• Align the bin with the door tracks or mounting tabs and snap into place using even pressure until it seats.
• If replacing a broken bin, wear gloves to protect against sharp edges.
• No major tools required for typical snap-in installations; refer to your refrigerator's user manual for model-specific details.

This refrigerator door gasket seals the door to the cabinet to keep cold air in and moisture out. Replacing a worn or deformed gasket restores a reliable seal, steadier temperatures, and more efficient performance.

• Creates an air-tight seal around the door perimeter
• Helps maintain correct temperatures and reduce frost or condensation
• Supports proper door closing and overall cooling efficiency
• Replace if the gasket is torn, cracked, warped, hardened, or leaves gaps; if the door pops open; or if you see moisture/frost along the door edge

• Disconnect power; remove items from the door bins for access
• Pull the old gasket from the retainer; transfer/loosen corner screws if applicable
• Warm the new gasket (hot water or low-heat hair dryer) to relax it; seat the lip evenly, corners first
• Close the door and check for uniform contact; adjust with gentle heat and by leveling/hinge alignment if needed; allow up to 24 hours for the gasket to fully conform

This black replacement handle restores a solid, comfortable grip for opening and closing your appliance's door or drawer. Replace a cracked or loose handle to improve safety and refresh the look of the unit.

• Provides the handhold needed to open and close the door or drawer
• Direct replacement for cracked, broken, or wobbly handles
• Helps resolve difficulty opening caused by a missing or damaged handle
• Restores a clean, factory look

• Disconnect power before servicing
• Access the handle's mounting screws from the inside of the door/drawer; remove screws, swap the handle, and reinstall
• Support the door/drawer while loosening/tightening fasteners
• Do not overtighten; verify smooth operation after installation

The Threaded Handle Anchor is an OEM part for Whirlpool refrigerators. This component is essential for securely attaching the refrigerator door handle to the door, ensuring that it remains firmly in place during regular use. The anchor fits into the door and provides a threaded connection point for the handle screws, offering stability and ease of use.

Common causes of a bad threaded handle anchor include wear and tear from frequent use, cross-threading during installation, or physical damage from excessive force or impact.

Symptoms of a bad threaded handle anchor include:

• The refrigerator door handle feeling loose or unstable
• Difficulty securing the handle to the door
• The handle detaching from the door
• Visible damage or stripping on the anchor threads

This OEM part is also compatible with some Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black

The Door Closure is an OEM replacement part for Whirlpool refrigerators. It is a small component that the door rides on that allows it to open and close properly.

Causes of impaired operation involve age-related spring coil fatigue, dislodged or cracked plastic housing pieces, or confined door alignment stripping closure grooves.

Symptoms of a faulty closure include:

• Cool air escaping around door edges driving up energy costs
• The fridge unable to maintain set interior temperatures
• Inability to securely latch doors closed

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This is the small refrigerator door bin that mounts on the inner door panel. It provides organized, accessible storage for smaller items and restores usable space when the original bin is cracked, loose, or missing.

• Holds and organizes items on the fresh food door
• Replaces bins that are cracked, broken, or won't stay seated
• Helps prevent items from tipping or falling when opening/closing the door
• Sized for the "small" position, not the full-width/gallon bin

• Unplug the appliance before servicing
• Remove contents, lift the old bin up and out of the door rails
• Align the new bin with the door slots and press down until fully seated
• Verify a snug fit before reloading items

This door bushing fits on the refrigerator hinge/closer to provide a smooth pivot point and proper door alignment. Replacing a worn bushing reduces squeaks and binding and helps the door close and seal as designed.

• Provides a low-friction bearing surface between the hinge pin/closer cam and the door
• Helps maintain correct door height and alignment to the cabinet
• Promotes smooth door swing and reliable self-closing action
• Typical wear symptoms: squeaking or grinding, binding, door sag, or poor sealing

• Disconnect power and support the door before removing hinge hardware
• Note the order/orientation of hinge parts and any shims; lift off the door carefully
• Install the new bushing on the hinge pin or in the door as shown in your model's diagram
• Reinstall, level, and verify the gasket seals evenly all around

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

The Threaded Handle Anchor is an OEM part for Whirlpool refrigerators. This component is essential for securely attaching the refrigerator door handle to the door, ensuring that it remains firmly in place during regular use. The anchor fits into the door and provides a threaded connection point for the handle screws, offering stability and ease of use.

Common causes of a bad threaded handle anchor include wear and tear from frequent use, cross-threading during installation, or physical damage from excessive force or impact.

Symptoms of a bad threaded handle anchor include:

• The refrigerator door handle feeling loose or unstable
• Difficulty securing the handle to the door
• The handle detaching from the door
• Visible damage or stripping on the anchor threads

This OEM part is also compatible with some Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This Caddy-Can replaces the appliance canister support that secures a removable can or canister in its compartment, restoring proper fit and preventing movement or rattling during operation. What it does:

• Holds and stabilizes the canister or removable can in its designated bay
• Prevents the can from shifting, rattling, or falling out during use
• Restores proper alignment so the canister engages with cabinet guides or latches
• Helps maintain normal operation by keeping the canister in place

• One Caddy-Can (single canister support)

• Disconnect power to the appliance before starting any repair
• Usually installs by aligning tabs or slots and snapping or fastening into place with basic hand tools
• Inspect surrounding clips and guides; replace if damaged to ensure secure fit
