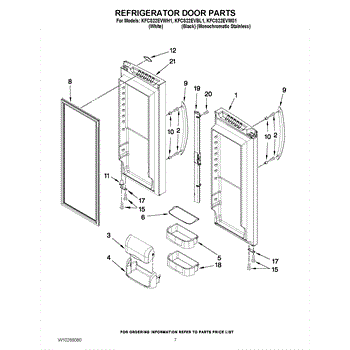

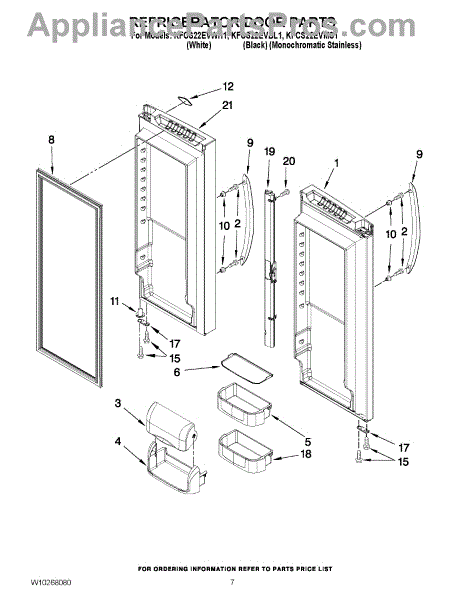

Parts for Kitchenaid KFCS22EVMS1: 04 - Refrigerator Door Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


Factory-style replacement screw for securing appliance components. Restores a tight, rattle-free fit for brackets, panels, trims, or covers when the original hardware is missing, stripped, or corroded, helping keep assemblies aligned and secure.

• Fastens components to keep panels, brackets, and trim firmly in place
• Replaces missing, stripped, or rusted hardware that can cause looseness or rattling
• Helps restore proper alignment of parts that won't stay secured
• Useful after service when original fasteners are damaged or lost

• Disconnect power before servicing; shut off water supply if applicable
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking adjoining parts

This replacement dairy door restores the flip-up cover for the small butter/dairy bin on your refrigerator door. Replace a cracked or missing cover to keep contents contained and your door storage tidy.

• Covers the butter/dairy compartment on the fresh food door
• Flips up for access and down to help secure items
• Helps prevent small items from sliding out of the bin
• Replaces a cracked, broken, loose, or missing cover

• Remove the dairy bin for easier access and alignment
• Align hinge tabs with the bin pivots and press gently until it snaps in
• Avoid forcing cold plastic; let parts warm to room temperature
• If working near electrical components, disconnect power and wear cut-resistant gloves

Replace a cracked or missing dairy tray on your refrigerator door. This door bin restores a dedicated spot for butter and small items so they stay organized and easy to reach while maintaining a secure fit on the door.

• Mounts on the refrigerator door as the dairy compartment tray
• Holds butter, cheese, and other small items securely
• Restores proper fit when the original tray is cracked, warped, or missing
• Common symptoms: broken tabs, tray falls off, loose/wobbly fit, items spilling when the door opens

• Open the door, lift the old tray straight up and out; align the new tray with the door slots and lower until fully seated
• Handle plastic parts gently and avoid forcing; allow parts to warm to room temperature to reduce risk of cracking
• Confirm both sides are fully engaged before loading items

This door bin control lever replaces a worn or broken lever that secures the refrigerator door shelf/bin. Restores proper bin engagement so shelves stay locked in place and open smoothly. What it does:

• Replaces the molded lever that holds the door shelf/bin in the closed position
• Allows the door shelf/bin to latch and release correctly when opening/closing the door
• Commonly used when the bin slips, won't stay seated, or the lever is cracked or broken
• Helps eliminate rattling or loose-feeling door bins caused by a damaged control lever

• One door bin control lever (single)

• Basic hand tools may be required; remove food and empty the door bin before starting
• Inspect mating tabs and bin edges for damage; replace bin or retainer if those parts are broken
• Do not force parts; alignment is required for proper engagement
• Disconnect power only if you must remove electrical components near the work area

This mat cushions and protects the appliance base to reduce vibration and help contain small drips or leaks during operation. It's a simple, durable replacement that restores the original fit and helps keep the floor and appliance stable. What it does:

• Dampens movement and vibration to reduce noise and shifting during cycles
• Helps catch minor drips or condensed water beneath the unit
• Restores original cushioning where a worn or missing mat allowed extra movement
• Simple passive part—no electrical or mechanical connections

• One replacement mat as shown

• Place mat under appliance base on a clean, level surface; verify orientation per base shape
• For safety, disconnect power (and water if applicable) before moving the appliance
• Use caution when sliding the appliance to avoid floor damage; get a second person for heavy units
• If ongoing vibration or leaks persist, inspect mounts, leveling legs, and seals for additional repair

This replacement mat is a simple protective liner that helps keep the appliance base area clean and cushions the surface beneath the unit. It preserves finishes and helps contain minor spills and debris for easier cleanup. What it does:

• Provides a washable surface that catches drips, crumbs, and loose debris
• Helps protect cabinet or floor finishes from spills and scuffs
• Reduces direct contact between appliance base and underlying surface
• Can make cleanup faster by containing messes in one removable piece

• Remove old mat and clean the area before installing the new mat
• Position the mat flat and centered under the appliance or in the designated compartment
• Do not place the mat over vents, heating elements, or controls
• Lift or slide gently to avoid shifting the mat; follow all appliance safety and disconnect procedures before servicing

Color: White

The Door Gasket is an OEM part for Whirlpool refrigerators. It creates an efficient seal between the refrigerator door and cabinet to maintain optimal interior cooling temperatures and humidity levels. Made of durable yet flexible material, the door gasket surrounds the perimeter of the door opening and prevents warm air and moisture from seeping inside.

Causes of a bad door gasket include normal wear over time exposing the gasket to constant opening and closing of the door.

Symptoms of a failing gasket are:

• Difficulty keeping the door properly closed
• Higher electric bills from the refrigerator running more often
• Items inside cooling improperly or becoming frozen on the edges
• Buildup of frost or condensation occurring inside

Color: White

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Kenmore models. Replace yours to restore effective insulation and energy efficiency.


Color: Black

Color: Grey

The Door Gasket is an OEM part for Whirlpool refrigerators. It is designed to form an airtight seal around the refrigerator or freezer door, preventing cold air from escaping and warm air from entering. This seal is crucial for maintaining the appliance's internal temperature, ensuring food is stored under optimal conditions to remain fresh and safe to consume.

Causes of a bad Door Gasket include normal wear and tear, accidental damage, and exposure to extreme temperatures or cleaning chemicals that can degrade the material.

Symptoms of a bad Door Gasket include:

• Noticeable gaps between the gasket and the refrigerator frame.
• Condensation or frost buildup inside the refrigerator or freezer
• An increase in the refrigerator's energy consumption as it works harder to maintain the set temperature.
• The door not closing as tightly as before or feeling easier to open.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This black replacement handle restores a solid, comfortable grip for opening and closing your appliance's door or drawer. Replace a cracked or loose handle to improve safety and refresh the look of the unit.

• Provides the handhold needed to open and close the door or drawer
• Direct replacement for cracked, broken, or wobbly handles
• Helps resolve difficulty opening caused by a missing or damaged handle
• Restores a clean, factory look

• Disconnect power before servicing
• Access the handle's mounting screws from the inside of the door/drawer; remove screws, swap the handle, and reinstall
• Support the door/drawer while loosening/tightening fasteners
• Do not overtighten; verify smooth operation after installation

The Threaded Handle Anchor is an OEM part for Whirlpool refrigerators. This component is essential for securely attaching the refrigerator door handle to the door, ensuring that it remains firmly in place during regular use. The anchor fits into the door and provides a threaded connection point for the handle screws, offering stability and ease of use.

Common causes of a bad threaded handle anchor include wear and tear from frequent use, cross-threading during installation, or physical damage from excessive force or impact.

Symptoms of a bad threaded handle anchor include:

• The refrigerator door handle feeling loose or unstable
• Difficulty securing the handle to the door
• The handle detaching from the door
• Visible damage or stripping on the anchor threads

This OEM part is also compatible with some Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black

The Door Closure is an OEM replacement part for Whirlpool refrigerators. It is a small component that the door rides on that allows it to open and close properly.

Causes of impaired operation involve age-related spring coil fatigue, dislodged or cracked plastic housing pieces, or confined door alignment stripping closure grooves.

Symptoms of a faulty closure include:

• Cool air escaping around door edges driving up energy costs
• The fridge unable to maintain set interior temperatures
• Inability to securely latch doors closed

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Door Closure is an OEM part for Whirlpool refrigerators. It is a critical component responsible for ensuring the proper sealing and closure of the refrigerator door, maintaining the desired temperature and preventing air leaks.

A faulty or worn door closure can lead to issues such as inadequate cooling, increased energy consumption, and potential food spoilage. Causes of a bad door closure may include normal wear and tear over time, physical damage from impact or mishandling, or compatibility issues with the specific refrigerator model.

Symptoms of a faulty Door Closure include:

• Air leaks around the door seal, causing cooling inefficiency
• Difficulty in opening or closing the refrigerator door
• The door not sealing tightly or feeling loose when closed
• Visible cracks, breaks, or damage to the door closure mechanism

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

The Door Closer is an OEM part for Whirlpool refrigerators. This component ensures that the refrigerator door closes smoothly and securely, maintaining the seal that keeps cold air inside and warm air out. The door closer helps to prevent the door from remaining ajar, which can lead to increased energy consumption and reduced cooling efficiency.

Causes of a bad door closer can include regular wear and tear, physical damage from repeated use, or misalignment. A malfunctioning door closer can result in the refrigerator door not closing properly, leading to cooling issues and higher energy bills.

Symptoms of a bad door closer include:

• The refrigerator door not closing or sealing properly
• The door not staying closed
• Warm air entering the refrigerator, causing the interior temperature to rise
• Increased energy consumption due to the door not sealing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White

Color: Black

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This stop-door replacement secures and limits the movement of the appliance door to help ensure smooth opening and closing and prevent over-travel that can damage the hinge or cabinet. It restores proper door alignment and operation. What it does:

• Cushions and limits door travel to prevent slamming or over-extension
• Helps the door latch/close smoothly and stay aligned
• Prevents excess wear on hinges and surrounding cabinet areas
• Commonly replaced when the door sticks, drops, or makes unusual noises during operation

• One stop-door

• Disconnect power (and gas if applicable) and remove any water supply before starting repairs
• Basic hand tools are typically required; access may require removing the front or trim panel
• Inspect surrounding hinge and mounting hardware; replace damaged fasteners as needed

A replacement door stop that cushions and limits an appliance door's movement to prevent over-travel and reduce slamming. Restores smoother door operation and helps protect the hinge and cabinet from damage. What it does

• Acts as a bumper and travel limit for the appliance door to prevent it from opening too far.
• Reduces loud bangs and impact wear when opening or closing the door.
• Helps the door stay aligned and lessens strain on the hinge assembly.
• Common symptom linkage: door slams, door over-rotates, door binding or noisy hinge movement.

• One door stop.

• Disconnect power (or unplug) and ensure the appliance is stable before servicing.
• Basic hand tools may be required; remove any trim or screws securing the old stop before replacing.
• Align and seat the new stop so the door contacts it evenly; test operation slowly after installation.

This cantilever door shelf bin restores secure, adjustable storage on your refrigerator door. It hooks into the door's cantilever rails and holds bottles and condiments, helping you organize items and keep frequently used essentials within easy reach.

• Provides adjustable on-door storage for beverages, jars, and condiments
• Hooks into the cantilever rails and locks in place when seated
• Replaces a cracked, broken, wobbly, or missing bin
• Addresses issues like broken tabs or a bin that won't stay mounted

• Remove contents, then lift the old bin straight up to disengage from the door rails
• Align the new bin's tabs with the rail slots and press down evenly until fully seated
• Handle plastic carefully to avoid stress cracks; do not force into place
• Match by part number and bin position—some doors use different bin sizes in different locations

Color: White

Color: Black

Color: Grey


The Mullion Rail is an OEM part for Whirlpool refrigerators. This rail is a vertical divider located between the refrigerator doors, ensuring a tight seal when the doors are closed. It helps to maintain the internal temperature of the refrigerator by preventing warm air from entering and cold air from escaping.

Causes of a bad mullion rail can include regular wear and tear, accidental impact, or damage to the hinges and seals over time. A faulty mullion rail can compromise the efficiency of the refrigerator, leading to increased energy consumption and reduced cooling performance.

Symptoms of a bad mullion rail include:

• Visible cracks or damage to the rail
• The refrigerator doors not sealing properly
• Increased frost or condensation inside the refrigerator
• Higher than normal energy bills due to inefficient cooling

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This replacement screw fastens appliance components securely in place. Use it to replace missing, stripped, or corroded hardware so panels, brackets, and covers stay aligned and rattle-free.

• Secures parts such as panels, brackets, covers, or internal assemblies
• Restores alignment and helps eliminate vibration or rattling from loose hardware
• Replaces lost, rusted, or damaged screws during service
• Maintains safe, stable operation by keeping components tight

• Disconnect power before service; if applicable, also shut off water and/or gas
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver bit to prevent stripping the head

Color: Stainless

Color: Black

Color: White
