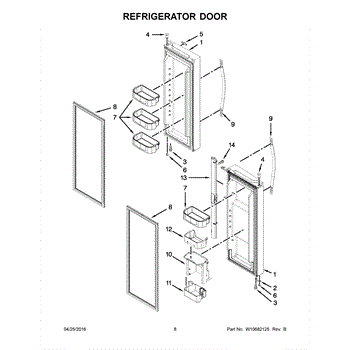

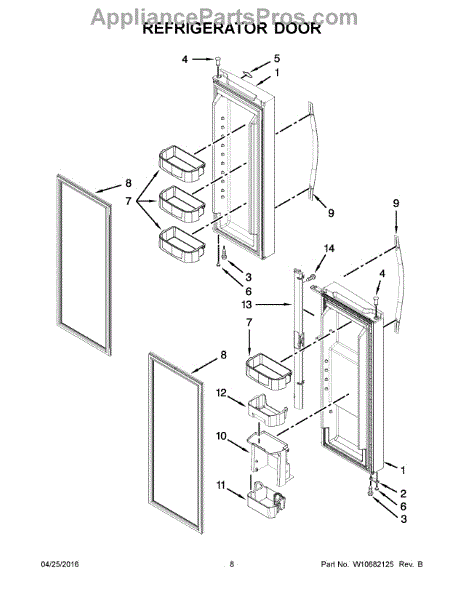

Parts for Whirlpool WRF560SEYB02: 05 - Refrigerator Door Parts

The Bracket-Door Stop is an OEM replacement part for Whirlpool appliances. This zinc-finished bracket is designed to prevent the appliance door from opening beyond its intended range, protecting both the door and surrounding components from potential damage. It ensures the door stays secure and functions smoothly during regular use.

Symptoms of a bad Bracket-Door Stop include:

• The door overextending when opened
• Difficulty in maintaining the door's position
• Visible bending, cracking, or damage to the bracket

Causes of a failing Bracket-Door Stop can include repeated stress from excessive force when opening the door, normal wear over time, or accidental impacts. A damaged bracket can compromise the door's alignment and overall functionality.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM part for Whirlpool refrigerators, designed to secure components of the ice maker assembly. This screw maintains the structural integrity of the ice maker, ensuring that all parts are tightly fastened to prevent malfunction or inefficiency in ice production.

Causes of failure can include stripping of the screw threads through over-tightening or corrosion, leading to a less secure fit.

Symptoms of a bad Screw include:

• Loose or dislodged components within the ice maker assembly.
• Inconsistent or halted ice production due to components shifting.
• Unusual noises emanating from the ice maker as a result of loose parts.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Whirlpool thimble is an OEM replacement part responsible for providing support and stability to the refrigerator door hinge. It is typically located on the bottom or top of the refrigerator or freezer door, where the hinge attaches to the door frame. The thimble acts as a protective sleeve that helps reduce friction and wear between the hinge and the door, ensuring smooth and effortless opening and closing of the door. It helps to distribute the weight of the door evenly, preventing it from sagging or misaligning over time.

Causes of a bad thimble can include regular wear and tear from the frequent opening and closing of the refrigerator door, or damage due to misalignment or impact. A faulty thimble can lead to difficulty in opening or closing the door and may cause improper sealing.

Symptoms of a bad fridge thimble include:

• Difficulty opening or closing the refrigerator door
• Squeaking or grinding noises when the door is moved
• The door not sealing properly
• Visible wear or damage on the thimble

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Grey

Color: Grey

The Door Cam is an OEM part for Whirlpool refrigerators. This small but essential component is part of the refrigerator's door hinge mechanism, facilitating the smooth and controlled opening and closing of the door. The door cam works by providing a slight lift when the door is opened and easing it into a closed position, ensuring a tight seal without requiring excessive force.

Over time, door cams can wear down or break due to the constant friction and weight they bear with each door movement.

Symptoms of a bad Door Cam include:

• The refrigerator door feels loose or sags
• Increased difficulty in opening or closing the door
• A noticeable clicking or scraping noise when the door is operated
• The door fails to stay closed or does not seal properly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The French Door Bin is an OEM part for Whirlpool refrigerators. This durable bin attaches to the inside of the refrigerator door, offering convenient access to frequently used items such as drinks, condiments, and snacks.

Causes of a bad French Door Bin can include overloading beyond its weight capacity, impact from items being moved in and out of the refrigerator, or degradation of the material over time due to the cold environment and frequent use.

Symptoms of a malfunctioning French Door Bin include:

• Cracks or breaks in the bin that prevent it from holding items securely
• Difficulty attaching or detaching the bin from the refrigerator door
• The bin sagging or not sitting flush against the door, indicating potential damage or wear

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

Color: Beige

Color: Grey

Color: Black

Color: White

Color: Stainless

The Door Handle is an OEM part for Whirlpool refrigerators. It is a component that facilitates easy access to the fresh food and freezer compartments. The handle interfaces directly with users to open and close refrigerator doors.

Causes of a bad door handle can include wear and tear over time from repeated use, or damage such as cracks, chips or breaks from accidental impact. Temperature fluctuations from frequent door openings can also cause handles to warp or fail prematurely.

Symptoms of a bad refrigerator door handle include:

• Difficulty opening or closing the refrigerator door
• The door not latching securely
• Internal components like springs or cables becoming loose or worn

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The lower part of this container is part number W11106787.

Replace a cracked or missing cantilever door bin and restore secure, adjustable storage on your refrigerator door. This bin helps keep condiments and small items organized so you can use door space efficiently. What it does:

• Mounts to the door rails as an adjustable, cantilever-style storage bin
• Restores lost door storage when a bin is broken or missing
• Helps keep items in place to reduce spills and clutter
• Addresses symptoms like broken tabs, cracked plastic, or a bin that won't stay seated

• 1 door shelf bin

• Remove contents, then lift the old bin up and out of the door rails/notches
• Align the new bin's hooks with the desired position and press down until fully seated
• Confirm the bin is secure and level before loading items
• Avoid forcing the bin to prevent damage to the hooks or door liner

This refrigerator door shelf bin is the shallow-style rack that mounts to the inner door liner to hold smaller items. Replace a cracked or missing bin to restore secure, organized storage and keep condiments and jars from tipping.

• Holds and organizes smaller items on the refrigerator door
• Replaces bins that are cracked, broken, loose, or fall off the door
• Helps reduce spills and tipping when opening/closing the door
• Designed for the shallow bin positions on applicable models

• Lift the old bin up and out; align the new bin's hooks with the door rails and press down until fully seated
• Do not force onto the wrong mounting rails—shallow and deep bins may mount in different positions
• Handle plastic carefully; avoid installing when very cold to reduce risk of cracking

This mullion rail is the trim piece that secures and finishes the gap between refrigerator doors, improving seal alignment and giving the cabinet a clean, finished look. It restores proper door fit and appearance. What it does:

• Holds the mullion/trim in place along the door opening for a consistent seal and appearance
• Helps keep door gaskets aligned to reduce drafts and improve cooling consistency
• Prevents the trim from flexing or separating when doors are opened and closed
• Addresses visible trim damage, loose or missing mullion pieces, and uneven door gaps

• One mullion rail trim piece

• Disconnect power to the appliance before starting work to avoid injury
• Remove any door liners or screws that cover the mullion before replacing the rail
• Handle trim and clips carefully to avoid cracking; small retaining clips or screws may be reused if undamaged

Color: Grey

Color: White

This factory screw secures appliance components so they stay aligned and firmly attached during everyday use. Replacing a missing or damaged screw helps stop rattles, looseness, and poor fit that can affect performance over time.

• Fastens panels, brackets, or hardware to keep assemblies tight
• Helps correct issues like loose handles, vibrating panels, or misaligned parts
• Restores proper fit after a screw is stripped, corroded, or lost
• Built to match the original thread and length for reliable engagement

• Disconnect power and, if applicable, shut off water before servicing
• Use the correct driver to avoid stripping the head or threads
• Start threads by hand to prevent cross-threading; tighten snugly without over-torquing
• Replace any companion fasteners that are worn or missing for even clamping
