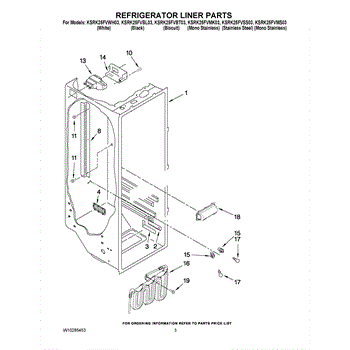

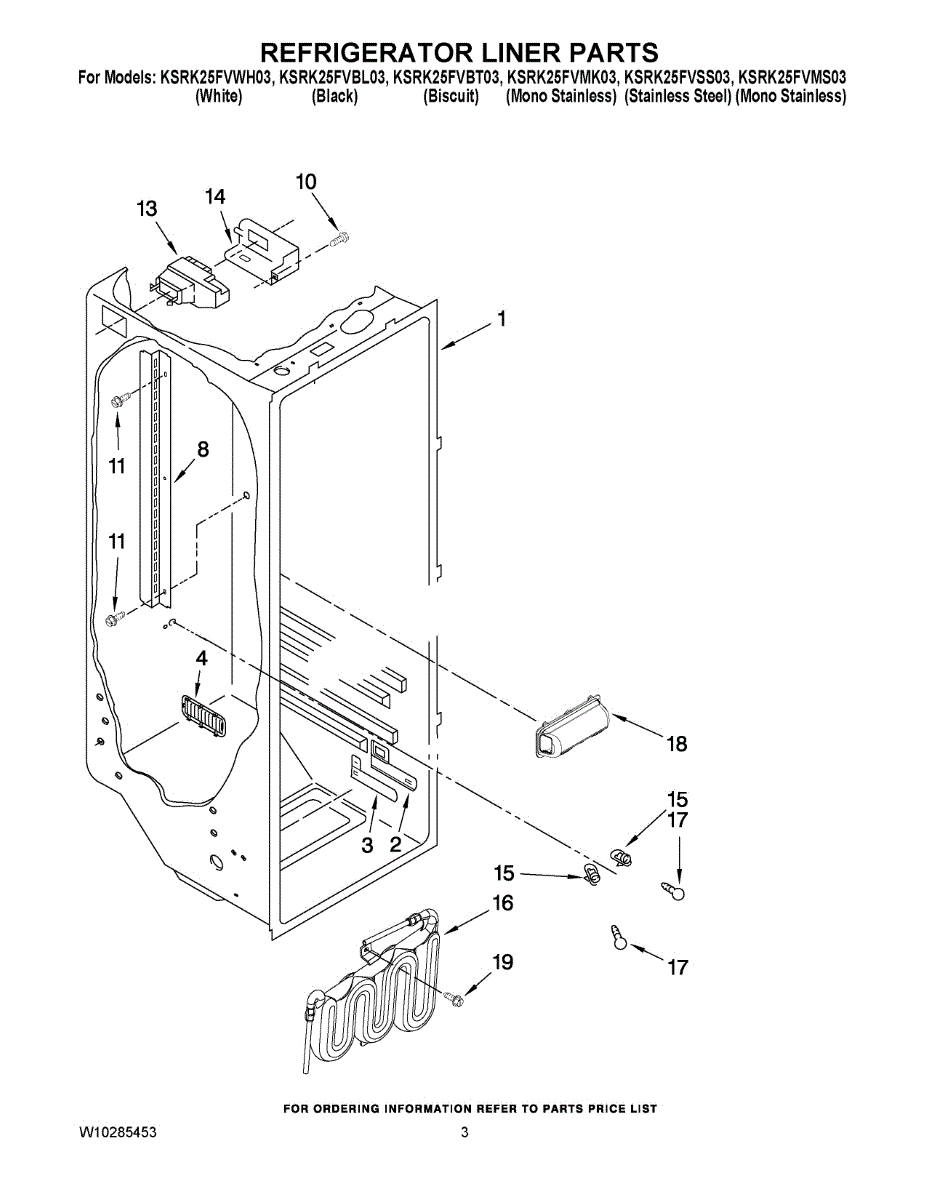

Parts for Kitchenaid KSRK25FVMS03: 02 - Refrigerator Liner Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

Size: 8 x 1/2 ab.

This diffuser—often called the refrigerator air damper—controls how much cold air flows from the freezer into the fresh food compartment. Replacing a worn diffuser helps restore even cooling and more stable temperatures throughout the refrigerator. What it does:

• Opens and closes to regulate airflow from the freezer to the refrigerator
• Helps maintain set temperatures and reduce warm spots or over-cooling
• Common symptoms: fresh food too warm while freezer is OK, food freezing on shelves, weak airflow from upper vents, or clicking/buzzing from the diffuser area
• Helps address frost or condensation near the diffuser outlet

• 1 diffuser

• Disconnect power before servicing
• Access from the refrigerator section; remove shelves/air duct covers as needed
• Note wiring and orientation; remove mounting screws/clips and transfer any seals/insulation if present
• After installation, restore power and allow up to 24 hours for temperatures to stabilize

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Reservoir Tubing is an OEM replacement part for Whirlpool refrigerators. It is a flexible plastic tubing that replaces the water reservoir and holds the water for the ice maker and dispenser.

Causes can include cracks from heat or cold exposure over time, punctures from sharp edges during installation, or deterioration of plastic tubing that impacts integrity.

Symptoms of bad water reservoir tubing include:

• Inaccurate or inconsistent ice production
• Leaks or water spills near the reservoir or ice maker
• Kinks or ruptures in the tubing that obstruct water flow
• Mineral buildup that clogs or restricts the line

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Note: As per manufacture this is no longer a tank. The tank style has been updated with coiled tubing.

The Whirlpool light bulb is an OEM replacement part responsible for providing illumination within the appliance, typically found in the interior of a refrigerator or oven. This incandescent bulb features a small screw-in base and clear glass. It operates at 120 volts and has a power rating of 25 watts. Its primary function is to emit light when the appliance's door or lid is opened, allowing users to see and access the contents inside.

Causes of a bad light bulb can include regular wear and tear from frequent use, electrical surges, or damage from handling. Over time, light bulbs naturally burn out and require replacement to maintain adequate lighting inside the refrigerator.

Symptoms of a bad light bulb include:

• The refrigerator or freezer compartment being dark when the door is opened
• Flickering or dim lighting
• A completely non-functional light bulb

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is the light lens that covers and protects the appliance's light source. Replacing a cracked, yellowed, or missing lens restores clear, even illumination while shielding the bulb/LED from grease, moisture, and impact.

• Diffuses light for more even, glare-free illumination
• Protects the bulb or LED module from debris, grease, and moisture
• Replace if the lens is cracked, warped, melted, discolored, or missing
• Also replace if the lens no longer stays seated or falls out

• Disconnect power to the appliance before servicing and allow the area to cool
• Remove any retaining screws or release tabs to take off the old lens
• Seat the new lens fully; reuse existing fasteners if applicable
• Do not overtighten fasteners; handle carefully to avoid damage

A genuine replacement screw used to secure appliance panels, brackets, and components so assemblies stay aligned and stable. Installs quickly with a screwdriver or driver bit to restore proper fit and reduce rattling. What it does:

• Secures panels, trim, brackets or internal components to keep parts properly aligned
• Prevents loose or vibrating panels that can cause noise or wear
• Holds mounting points that keep doors, seals, and assemblies operating correctly
• Replaces stripped, missing, or corroded fasteners that compromise fit

• Turn off and unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid overtightening which can strip threads or deform parts
• Keep removed hardware organized and replace like-for-like for best fit
