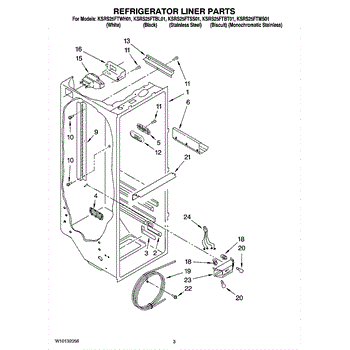

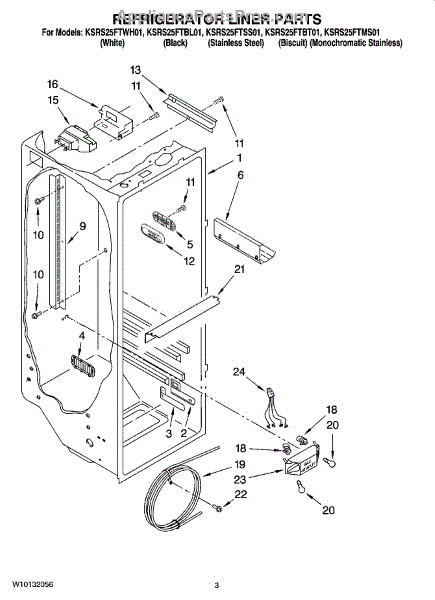

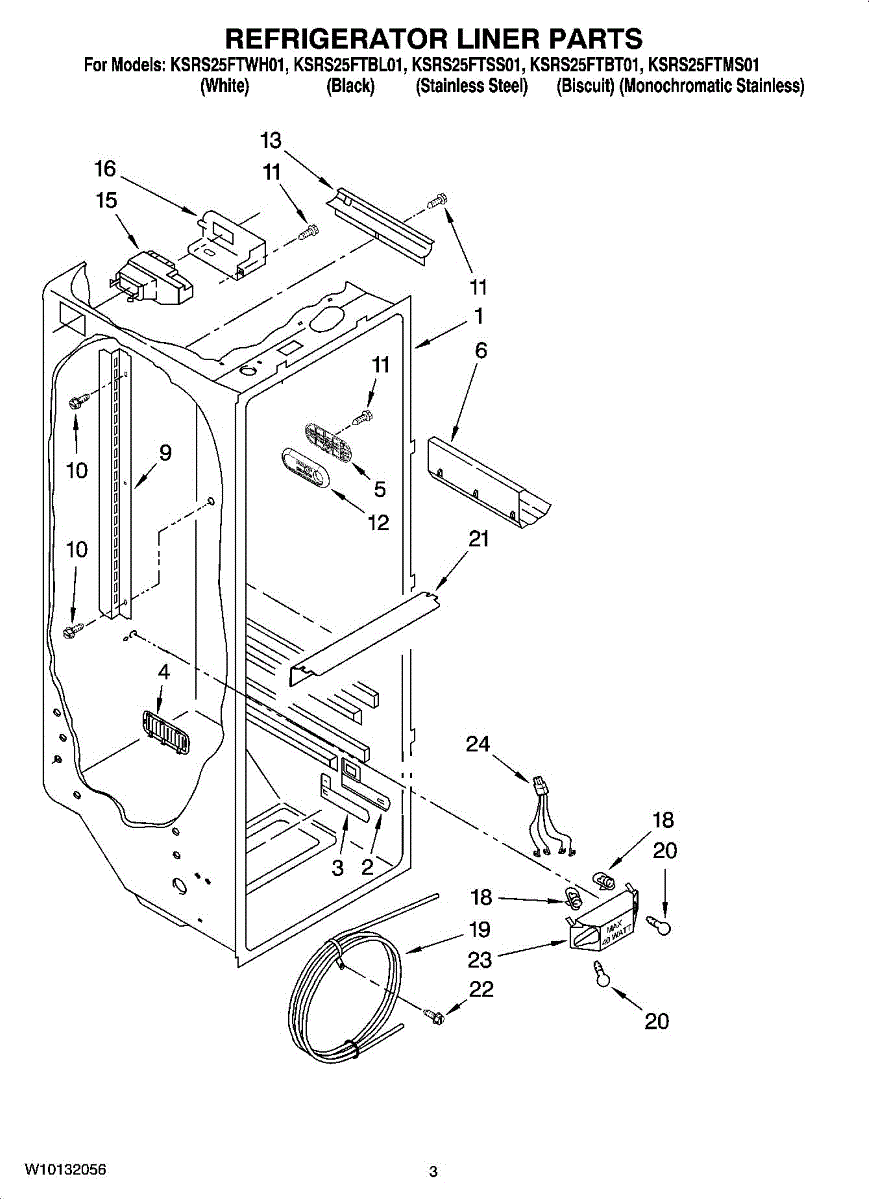

Parts for Kitchenaid KSRS25FTBL01: 02 - Refrigerator Liner Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This replacement wine rack restores secure bottle storage inside the refrigerator, keeping bottles organized and helping prevent rolling or breakage. It replaces worn, cracked or missing wine racks so your fridge stores bottles safely. What it does:

• Holds and secures standard wine bottles on a dedicated shelf area to prevent rolling
• Replaces damaged, bent or missing racks that no longer support bottles safely
• Restores organized bottle storage and helps maximize usable shelf space
• Designed to fit into the fridge's existing support grooves or shelf frame

• Slides into existing support grooves or shelf frame; no special tools typically required
• Remove surrounding shelves or contents for safer, easier access before installing
• Handle edges carefully during installation to avoid damage or scratches

Size: 8 x 1/2 ab.

The Air Diffuser is an OEM part for Whirlpool refrigerators. It regulates the flow of cold air from the freezer compartment to the refrigerator compartment, ensuring proper temperature control and even cooling throughout the fridge.

Over time, the diffuser can fail due to mechanical issues, obstruction by ice or debris, or wear on the moving parts. This can result in uneven cooling, leading to spoiled food and inefficient operation.

Symptoms of a bad air diffuser include:

• Inconsistent temperatures in the refrigerator
• Frost buildup in the freezer
• Warm spots in the refrigerator compartment
• The refrigerator running constantly or not cooling adequately

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Reservoir Tubing is an OEM replacement part for Whirlpool refrigerators. It is a flexible plastic tubing that replaces the water reservoir and holds the water for the ice maker and dispenser.

Causes can include cracks from heat or cold exposure over time, punctures from sharp edges during installation, or deterioration of plastic tubing that impacts integrity.

Symptoms of bad water reservoir tubing include:

• Inaccurate or inconsistent ice production
• Leaks or water spills near the reservoir or ice maker
• Kinks or ruptures in the tubing that obstruct water flow
• Mineral buildup that clogs or restricts the line

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Note: As per manufacture this is no longer a tank. The tank style has been updated with coiled tubing.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Color: white. It measures about 18 inches wide by 4 inches high.
