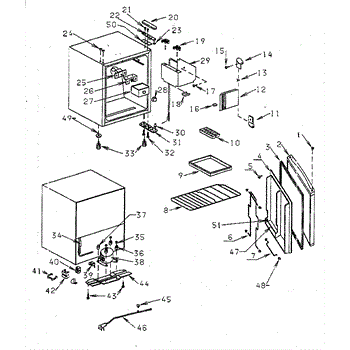

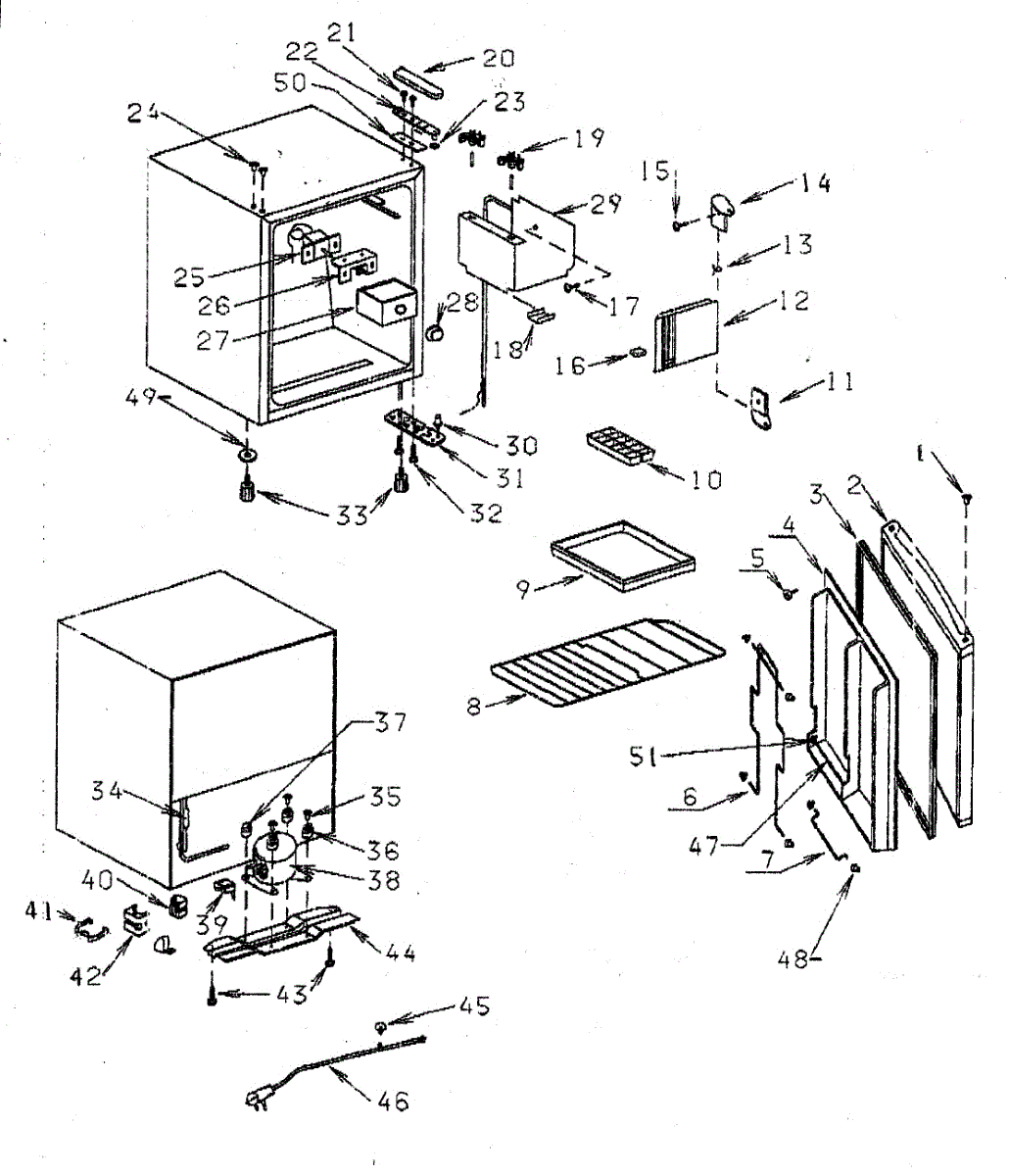

Parts for Kenmore 564.91179400 (56491179400, 564 91179400): Refrigerator Parts

This inlet base seal is a gasket that fits between the inlet base and its mating surface. Replacing a worn seal helps maintain proper airflow through the inlet path and keeps spills and debris out of internal components.

• Forms a tight, continuous seal at the inlet base-to-housing joint
• Helps preserve correct airflow through the inlet path
• Blocks liquids, grease, and crumbs from leaking into the appliance interior
• Replace if the seal is cracked, flattened, brittle, loose, or you see visible gaps

• Disconnect power to the appliance before servicing
• Remove grates/cartridges, filters, or trim as needed to access the inlet base
• Clean and dry mating surfaces; install the new seal in the same orientation without stretching or twisting
• Reassemble and verify the seal sits evenly with no gaps

This pump outlet seal sits on the discharge side of the dishwasher pump to keep the outlet connection watertight. Replacing a worn seal helps stop leaks and keeps wash water contained during the cycle. What it does:

• Seals the joint at the pump outlet to prevent water leakage
• Helps maintain proper circulation by keeping the pump discharge airtight/watertight
• Common symptoms of failure include water under the unit, drips near the pump area, or a flattened/cracked/hardened old seal

• 1 pump outlet seal

• Disconnect power and shut off the water supply before servicing
• Remove the toe-kick/lower access panel to reach the pump area; place a towel or pan to catch residual water
• Note seal orientation; clean mating surfaces before installing the new seal
• Seat the seal evenly; reassemble and run a short test to check for leaks
