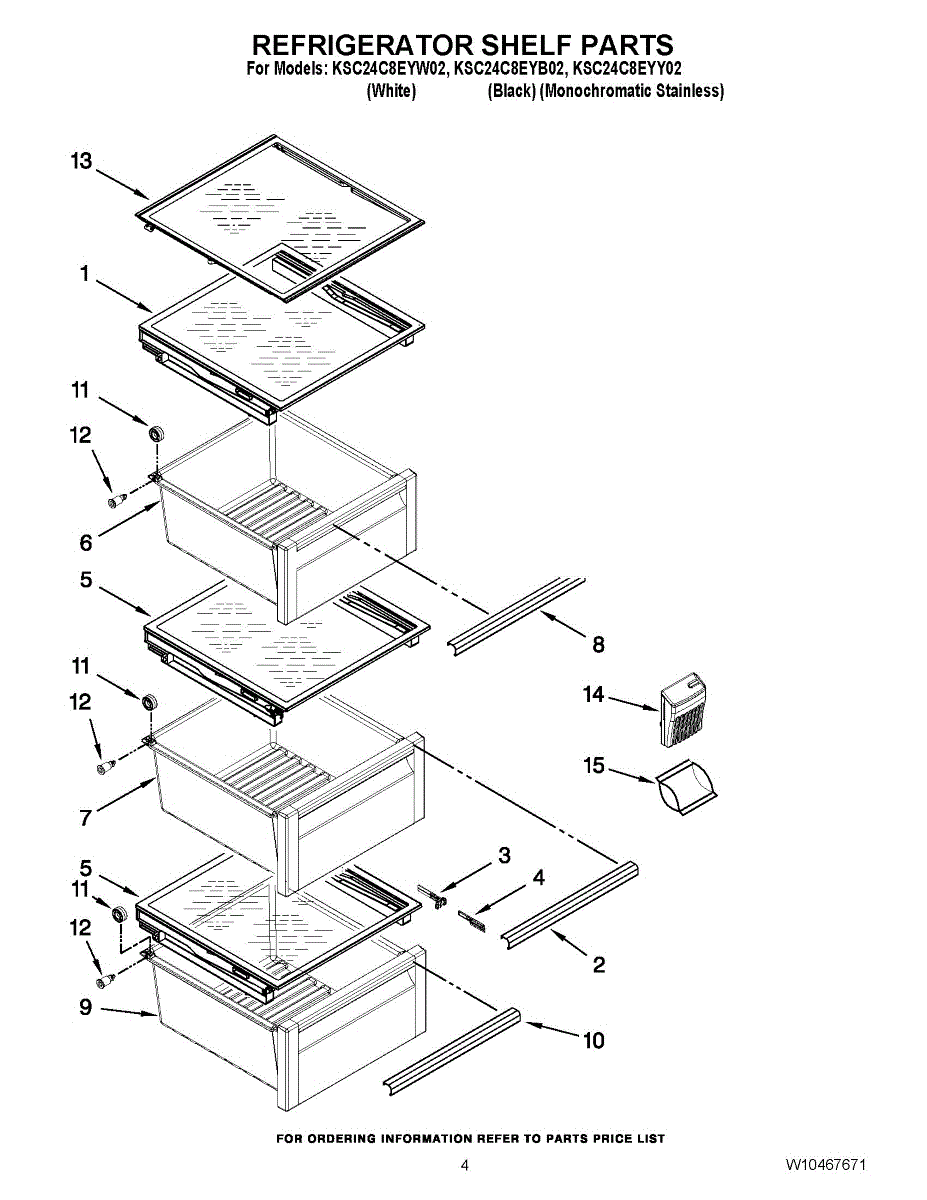

Parts for Kitchenaid KSC24C8EYB02: 03 - Refrigerator Shelf Parts

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

This cover assembly fits over the appliance pan to protect internal components and help contain water. It replaces a cracked or warped pan cover to restore proper protection and reduce the risk of moisture-related damage. What it does:

• Shields the pan area and internal components from debris and splashes
• Helps contain minor leaks and directs moisture away from sensitive parts
• Prevents rubbing or contact between moving parts and the pan
• Restores proper fit and appearance when the original cover is damaged

• Disconnect power to the appliance before starting any repair
• Use basic hand tools; follow OEM service manual steps for removal and reinstallation
• Inspect adjacent seals and fasteners and replace if worn to ensure a proper fit
• Do not overtighten fasteners; verify the cover sits flush and does not interfere with moving parts

This trim pan is an exterior trim panel that restores the finished appearance and helps protect internal components from dust and debris. It provides a clean edge and secures adjacent panels for a finished look. What it does:

• Covers and protects internal openings behind the appliance's trim area
• Secures adjacent trim pieces and maintains a flush, finished appearance
• Helps reduce rattling or gaps caused by damaged or missing trim
• Visible damage, bent edges, or loose fit are common signs it needs replacement

• One trim pan

• Disconnect power (and gas if applicable) before servicing
• Remove surrounding trim or panels as needed to access mounting fasteners
• Handle edges carefully — trim pieces can be sharp
• Reuse original mounting hardware only if undamaged; check alignment before tightening

This replacement slide restores smooth movement and stable support for a drawer or rack guide. It replaces a worn or damaged slide so the rack or drawer tracks properly and reduces sticking or noise during use. What it does:

• Guides and supports a rack or drawer so it moves in and out smoothly
• Helps prevent the rack or drawer from binding, catching, or sagging
• Reduces grinding or scraping noises caused by damaged or worn slides
• Restores proper alignment for secure loading and unloading

• One replacement slide

• Disconnect power to the appliance before beginning work; shut off water supply if the repair affects water connections
• Remove the affected rack/drawer per your model instructions to access the slide
• Compare the old slide to the new part to ensure correct orientation before installing
• Use appropriate hand tools; avoid forcing parts and wear gloves and eye protection

This body control is the electronic control board that manages the appliance's main functions and user interface so cycles and features run as commanded. It replaces a failed control board to restore normal control operation. What it does

• Receives input from buttons/knobs and directs cycle start/stop, timers, and feature selection
• Controls power distribution to motors, valves, heaters, and other subsystems through relays and signals
• Helps prevent or indicate errors when the control senses faults or unsafe conditions
• Faulty boards may cause the unit to not respond, fail to start cycles, show unresponsive buttons, or display error codes

• One body control electronic board

• Disconnect all power before accessing or replacing the control to avoid shock or damage
• Handle the board by its edges and avoid static discharge; use an ESD strap if available
• Verify connector orientation and secure all wiring harnesses before restoring power

This is the refrigerator pan cover assembly that sits above a storage drawer. It forms the shelf surface over the drawer and replaces a cracked or warped cover to restore proper support and dependable daily use. What it does

• Creates the shelf/cover above a refrigerator storage drawer
• Supports items placed on the shelf area
• Helps the drawer beneath seat and operate correctly
• Common failure signs include cracks, broken tabs, sagging, or shattered shelf glass

• One pan cover assembly

• Disconnect power to the refrigerator before servicing
• Remove food items; take out the drawer and any separate glass if present
• Lift out the damaged cover; transfer any reusable parts from the original
• Set the new cover level, then reinstall the drawer and contents

The Snack Pan is an OEM part for Whirlpool refrigerators. It is designed as a storage compartment that slides into the fridge, providing a convenient space to store snacks, deli items, or small food packages.

Causes of a bad Snack Pan can include cracking, warping due to overloading, or damage from impacts, which compromise the pan's functionality and aesthetic appeal.

Symptoms of a bad Snack Pan include:

• Difficulty sliding the pan in or out due to misalignment
• Cracks or breaks that can lead to spills or leaks in the refrigerator
• Warping that prevents the pan from sealing properly and maintaining temperature

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is the crisper drawer pan for the refrigerator compartment. It provides a dedicated space to store produce at optimal humidity, helping keep fruits and vegetables organized and fresh.

• Holds produce in the crisper area and slides in/out on existing rails
• A damaged, cracked, or missing pan can cause poor produce storage, sticking drawer movement, or items falling through
• Restores proper fit and function of the crisper section

• Unplug the refrigerator before service
• Open the refrigerator door fully; remove contents and the old drawer
• Inspect and clean the shelf rails before sliding the new pan into place
• Do not force; align with tracks to avoid damage

This trim handle replaces a worn or damaged door trim to restore a finished look and provide a comfortable grip when opening the appliance. It's a direct-fit exterior trim piece designed for cosmetic and functional repair. What it does:

• Covers the door edge and provides a finished appearance.
• Supplies a stable gripping surface to open and close the door.
• Replaces cracked, chipped, loose or missing trim that affects appearance or handling.
• Fits into the existing mounting points and secures to the door assembly.

• Disconnect power to the appliance before beginning work; for refrigerators, unplug the unit.
• Access the mounting area from the inner door panel or as directed by the OEM service manual.
• Use the OEM fasteners and align mounting tabs; do not overtighten screws to avoid cracking the trim.

This refrigerator meat pan is the clear deli drawer that slides inside the fresh food compartment to organize and contain meats, cheeses, and snacks. Replace a cracked, warped, or missing bin to restore smooth sliding and reliable storage capacity.

• Provides a dedicated storage bin in the refrigerator compartment for deli items
• Slides on existing rails for easy access and organization
• Helps contain small spills and prevents items from falling off the shelf
• Replaces a cracked, warped, or missing drawer that binds, falls, or won't stay on track

• Fully extend and lift the old drawer off the rails; remove the shelf above if needed.
• Transfer any reusable trim from the original pan if required.
• Align the new pan with the tracks and slide straight back until seated.
• Handle glass shelves carefully; avoid forcing the rails or overloading the bin.

This trim handle replaces a worn or damaged oven door handle trim to restore a clean, finished appearance and a secure grip when opening the oven. It matches OEM fit and finish for a factory look. What it does:

• Covers and finishes the outer edge of the oven door, protecting internal edges from debris and wear
• Provides a finished grip area for opening and closing the oven door
• Helps prevent rough edges or gaps that can collect food and grease
• Restores proper alignment and appearance after damage or corrosion

• One oven door trim handle

• Designed for direct replacement; verify part fits your model before installation
• Follow manufacturer's instructions and disconnect power to the appliance before starting work
• Use proper hand tools and avoid over-tightening fasteners to prevent cracking the trim

The Drawer Roller is an OEM part for Whirlpool refrigerators, specifically designed to facilitate the smooth and effortless sliding of drawers within the appliance. This small but crucial component ensures that the refrigerator's drawers open and close with ease, allowing for convenient access to fruits, vegetables, meats, and other items stored inside.

Causes of a bad Drawer Roller can stem from wear and tear over time, accumulation of debris or food particles in the roller mechanism, or damage from overloading the drawer beyond its capacity.

Symptoms of a bad Drawer Roller include:

• Drawers sticking or jamming when you try to open or close them
• A grinding or squeaking noise during drawer movement
• The drawer sagging or not aligning properly within the refrigerator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This pan roller axle fits refrigerator drawers. It's the small support pin that anchors the roller so the crisper or pantry pan glides smoothly. Replacing a damaged axle restores proper glide and keeps the drawer tracking correctly.

• Secures the drawer's roller to the bin or rail so the pan slides smoothly
• Helps keep the crisper/pantry drawer level and properly aligned
• Common symptoms: drawer hard to open/close, sags on one side, scraping/clicking sounds
• Visible damage or a missing axle/roller at the drawer corner

• Unplug the refrigerator, remove contents, and take out the affected drawer
• Locate the broken axle and gently pry/pull it out
• Seat the new axle fully in the mounting hole; ensure the roller spins freely
• Reinstall the drawer and check for smooth operation

The Glass Shelf is an OEM part for Whirlpool refrigerators. These durable shelves provide versatile storage and organization within the refrigerator and freezer compartments. The tempered glass shelves are resistant to chipping and cracking even under the weight of heavy items.

Causes of a bad shelf can include broken glass from heavy impacts, long-term wear and tear from repeated loading/unloading of items, or damage from accidental dropping of objects onto the shelf.

Symptoms of a bad shelf include:

• Visible cracks, chips, or holes in the glass surface
• Warping or bending of the frame/rails over time
• Inability to securely hold stored items without collapsing

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This sachet holder housing assembly secures single-use detergent or cleaning sachets inside the dispenser so they stay in place and release correctly during cycles. Replacing a cracked or broken holder restores reliable sachet positioning and dispensing. What it does:

• Holds detergent/cleaning sachets in the dispenser so they don't shift or drop into the tub.
• Ensures sachets stay aligned for proper release during the wash or cleaning cycle.
• Helps prevent sachets from rupturing or blocking the dispenser area.
• Common symptoms of a bad holder: sachets falling out, sachets not dispensing properly, or poor wash/cleaning results.

• Disconnect power (and water, if required) before servicing the dispenser area.
• Access the dispenser per the owner's manual; the holder typically snaps into place or secures with a small fastener.
• Handle plastic clips and tabs gently to avoid breakage; use a non-marring pry tool if needed.
