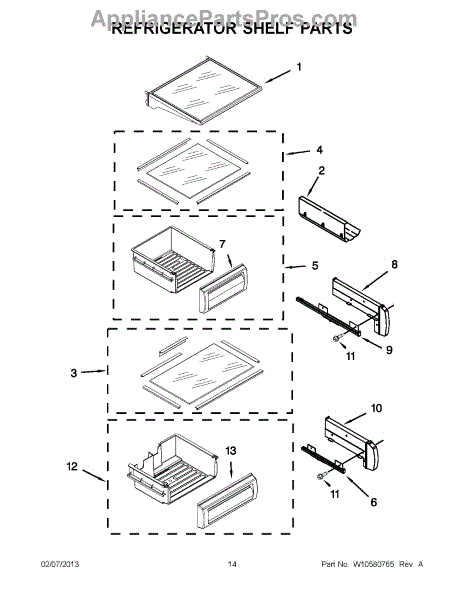

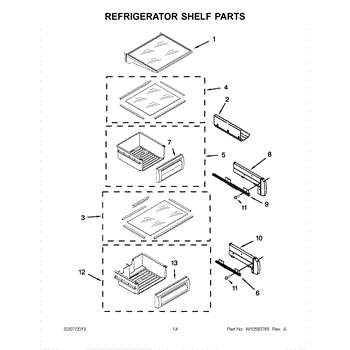

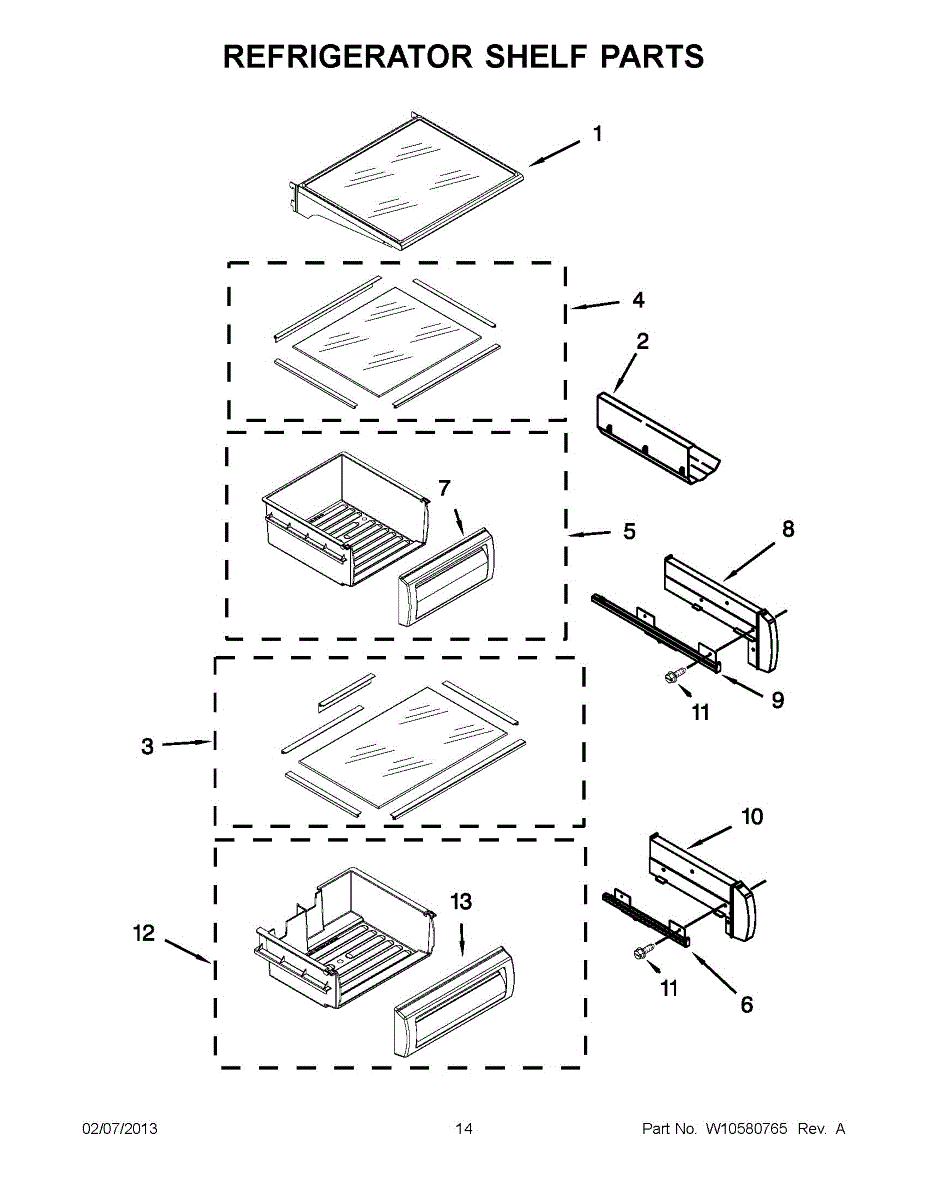

Parts for Kitchenaid KSSC48QVS05: 07 - Refrigerator Shelf Parts

A factory-style refrigerator shelf assembly that restores a stable, easy-to-clean storage surface for fresh-food compartments. Replaces broken, chipped or missing shelves so food sits level and spills are contained for faster cleanup. What it does

• Provides a sturdy, flat surface to hold food and containers in the refrigerator compartment
• Helps keep items organized and prevents tipping or uneven storage
• Contains spills and drips to the shelf for easier cleanup
• Restores proper shelving when the original shelf is cracked, chipped or missing

• Disconnect power or unplug refrigerator before servicing for safety
• Handle glass components carefully and wear gloves to avoid cuts
• Slide or lift into existing shelf supports/rails per your model's instructions; do not force into position
• Retain any original trim or clips; replace only if explicitly specified by the manufacturer

This replacement wine rack restores secure bottle storage inside the refrigerator, keeping bottles organized and helping prevent rolling or breakage. It replaces worn, cracked or missing wine racks so your fridge stores bottles safely. What it does:

• Holds and secures standard wine bottles on a dedicated shelf area to prevent rolling
• Replaces damaged, bent or missing racks that no longer support bottles safely
• Restores organized bottle storage and helps maximize usable shelf space
• Designed to fit into the fridge's existing support grooves or shelf frame

• Slides into existing support grooves or shelf frame; no special tools typically required
• Remove surrounding shelves or contents for safer, easier access before installing
• Handle edges carefully during installation to avoid damage or scratches

Right hand side

Left hand side

This pan assembly sits under the appliance tub or base to catch and direct water away from internal components, helping contain leaks and prevent water damage. It replaces a damaged, cracked or warped pan. What it does:

• Collects and channels leaking or overflowing water away from electronics and flooring
• Restores the appliance's original drip containment and sealing surface
• Helps stop visible water pooling beneath the appliance
• Supports proper routing to drain points when used with the factory drain path

• Disconnect power and water supply before starting any repair
• Remove access panels and any components blocking the pan
• Handle carefully; edges may be sharp and gaskets or clips can be brittle with age
• Secure any fasteners, hoses, or seals to prevent new leaks

Left hand side

Right hand side

Right hand side

Left hand side

Right hand side

Left hand side

Size: 8-18 x 1 1/4 inch.

This machine screw secures components in place to maintain proper alignment and stability during appliance operation. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, noise, or loosening parts.

• Provides a secure mechanical fasten for panels, brackets, or internal assemblies
• Helps correct rattling, vibration, or loose-fitting parts
• Useful when an original screw is stripped, corroded, or lost
• Sized to match 8-18 thread applications in compatible units

• Disconnect power and shut off water or gas before servicing
• Note original screw location and orientation for correct reassembly
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace any damaged clips or mounts the screw engages

This meat pan front assembly replaces the front panel of the refrigerator meat pan/deli drawer, restoring a proper seal and smooth drawer operation. It helps keep cold air in the drawer and protects stored meats. What it does:

• Replaces a cracked, warped, or missing meat pan front to restore drawer alignment and appearance
• Helps maintain proper cold storage in the deli/meat compartment by sealing the drawer edge
• Reduces rattling or sticking when opening and closing the meat/deli drawer
• Prevents food from contacting damaged trim and makes cleaning easier

• One meat pan front assembly

• High-level swap: remove drawer, detach old front, install replacement, and reinsert drawer
• Handle parts gently to avoid cracking the plastic during installation
• Unplug or disconnect power before working near electrical components as a safety precaution
• If clips or screws are damaged, replace them with OEM fasteners for a secure fit
