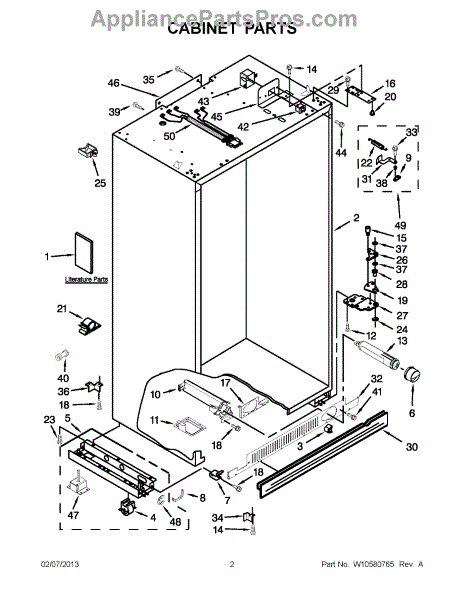

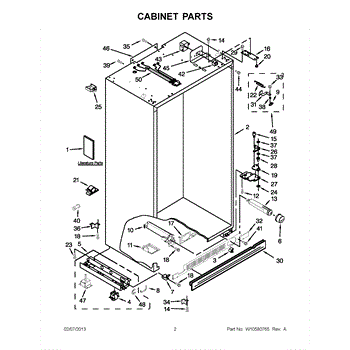

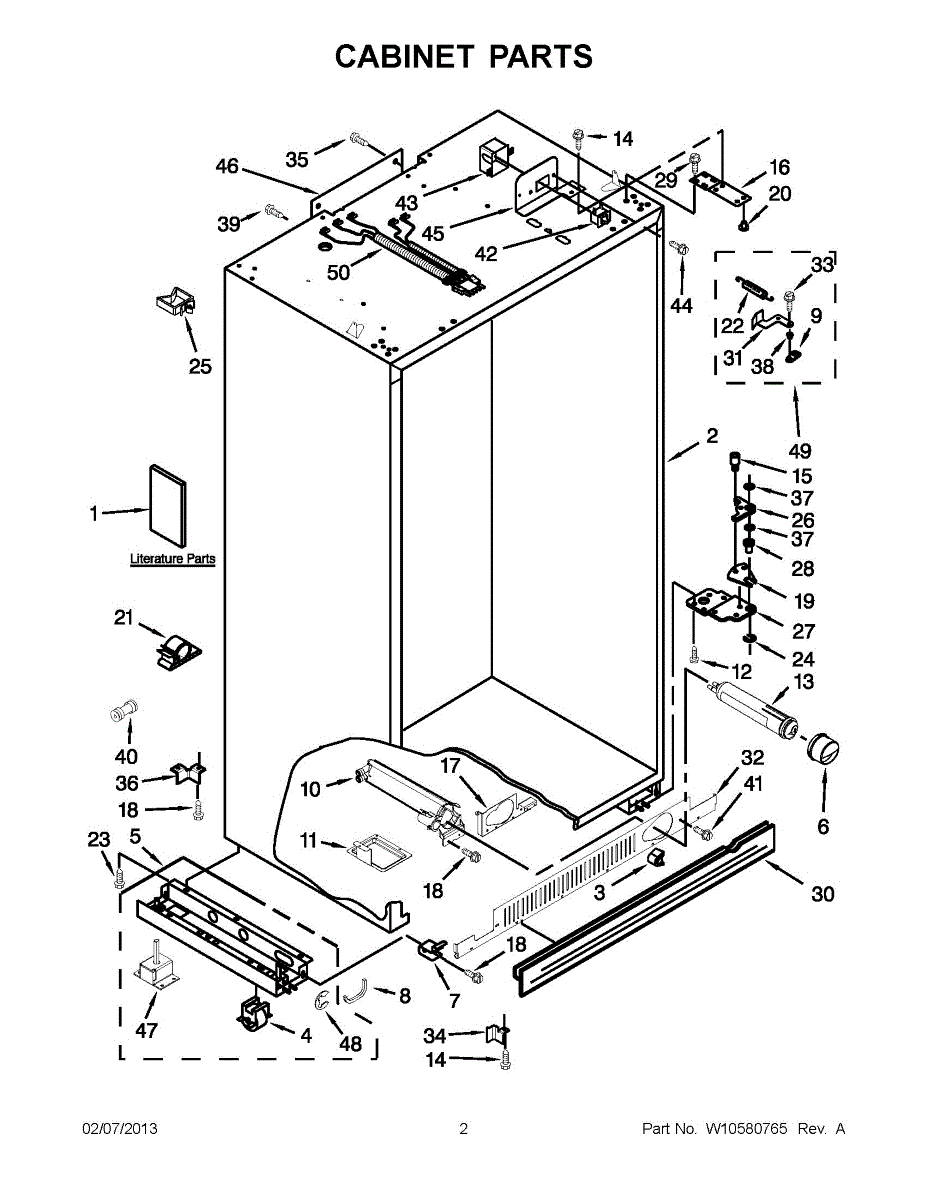

Parts for Kitchenaid KSSC48QVS05: 01 - Cabinet Parts

Color: Black

This replacement roller fits the front or rear position of a slide mechanism, restoring smooth, even movement and reducing noise when a wheel is worn or broken. It helps racks or drawers glide properly and stay aligned. What it does:

• Provides low-friction rolling support for the slide track
• Helps slide-out assemblies move freely without binding or scraping
• Worn or damaged rollers can cause sticking, squeaking, or uneven travel
• Restores proper alignment and smooth operation when replaced

• 1 roller assembly

• Disconnect power and allow the appliance to cool before servicing
• Remove the slide-out assembly; note roller orientation and hardware
• Transfer/reuse existing screws, clips, or retainers as required
• Do not lubricate unless the manufacturer specifies a lubricant

This Support (mounting bracket) secures internal components and stabilizes the appliance's assembly to help prevent sagging, misalignment and excess vibration. It's a small replacement that restores proper fit and reduces rattling. What it does:

• Provides a stable mounting point for panels or internal assemblies
• Keeps components aligned to prevent binding or wear
• Reduces noise caused by loose or sagging parts
• Helps stop intermittent contact or rubbing that can cause rattles

• Disconnect power (and water, if applicable) before servicing
• Access may require removing outer panels or trim; keep track of fasteners
• Support the assembly while replacing the bracket to avoid strain

This Support bracket holds internal components in place to restore proper alignment and reduce rattling or sagging. It's a simple replacement that helps stabilize the appliance's interior structure. What it does:

• Secures internal panels or assemblies to prevent movement and vibration
• Restores proper alignment when a factory support is damaged or missing
• Can reduce noise caused by loose components
• Helps maintain safe, stable operation of the affected area

• One Support bracket

• Disconnect power and unplug the appliance before beginning any repair
• Inspect surrounding fasteners and mounting points; replace any damaged hardware as needed
• Use appropriate hand tools; avoid over-tightening to prevent cracking plastic or stripping threads

The Water Filter Cap is an OEM part for Whirlpool refrigerators. This cap is designed to securely seal the water filter compartment in your refrigerator, ensuring that the filter remains in place and functions effectively to provide clean, fresh-tasting water and ice.

Symptoms of a failing water filter cap include:

• Water leakage around the filter area
• Difficulty in removing or securing the cap, which may indicate a poor fit
• Cracks or damage to the cap that can compromise the water filtration system's integrity

Causes of water filter cap issues typically involve regular wear and tear from replacing the water filter, accidental damage during filter changes, or manufacturing defects that could affect fit and function.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This cam door stop is a replacement door cam that helps control door travel and alignment, restoring secure closing and smooth operation. It prevents over-rotation and helps the latch engage correctly for reliable everyday use. What it does:

• Limits door rotation so the door closes and latches properly
• Keeps the door aligned to prevent rubbing, scraping, or uneven gaps
• Reduces slamming and helps maintain consistent latch engagement
• Common fix when a door drops, won't stay closed, or closes unevenly

• Disconnect power to the appliance before beginning any repair
• Inspect surrounding door components (hinge, latch) for wear during replacement
• Wear gloves and eye protection to avoid cuts from sharp edges

The Water Filter Housing is an OEM part for Whirlpool refrigerators. It encases the water filter, ensuring a secure fit and proper water flow through the filtration system to provide clean, safe drinking water.

Causes of a bad water filter housing can include cracks or wear and tear over time, improper installation, or damage from replacing the water filter.

Symptoms of a bad water filter housing include:

• Water leaks around the filter area
• Reduced water flow from the dispenser
• Odd tastes or odors in the water
• The water filter not fitting securely

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 8-32 x .312 inch.

This replacement screw is a small fastener used to secure appliance panels and components. It restores lost or damaged screws so parts stay mounted and appliances run quietly and safely. What it does:

• Secures panels, trim, brackets or housings to prevent rattling and movement
• Replaces missing or stripped screws that allow parts to come loose
• Helps maintain correct alignment of assemblies for safe operation
• Small hardware solution for common repair and reassembly needs

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or driver bit to avoid cam-out or damage
• Do not overtighten; snug until secure to avoid stripping threads or cracking plastic
• Keep small parts away from children and pets

This top door hinge secures the refrigerator door to the cabinet and lets the door pivot smoothly. Replace a worn hinge to restore proper door alignment and even sealing for better cooling performance. What it does

• Supports the top of the refrigerator door and provides the pivot point for opening and closing.
• Helps keep the door aligned so the gasket seals properly and cold air stays inside.
• Worn or damaged hinge can cause door sag, uneven gaps, rubbing, or noisy operation.
• Restoring the hinge can reduce stress on the door and other hinge components.

• One top door hinge.

• Basic hand tools are usually required; support the door while removing or installing hinges to prevent injury or door damage.
• Disconnect power only if working near electrical components; this hinge replacement typically does not require electrical disconnection.
• If the door was removed, recheck alignment and gasket contact after reinstalling; adjustments may be needed.
• Follow OEM instructions and use proper safety equipment.

This bracket is a small mounting/support part that secures and aligns appliance components to restore proper fit and reduce movement. It's a direct-fit replacement designed to return panels and assemblies to their correct position. What it does:

• Provides a stable mounting point to secure panels, trim, or internal assemblies
• Restores correct alignment to eliminate rattling, vibration, or loose fit
• Helps maintain proper clearances for smooth operation of moving parts
• Replaces worn, bent, or broken brackets that prevent components from seating correctly

• One bracket

• Disconnect power and water before starting any repair
• Use common hand tools; support panels during removal to avoid damage
• Align bracket and fasteners before tightening; do not overtighten screws

Replacement silverware basket with integral handle in dark gray. Holds forks, knives and spoons in the lower dishwasher rack to keep utensils upright for better cleaning and easier loading, removal and transport. What it does:

• Holds and separates flatware to reduce nesting and promote water flow during wash cycles.
• Integrated handle makes it easy to lift the basket in and out of the rack for loading or unloading.
• Keeps small items from falling through the rack and reduces rattling during operation.
• Replace the basket if it is cracked, broken, or if utensils no longer stay securely in place.

• Installs in the lower dishwasher rack by sliding or snapping into existing rack slots; typically requires no tools.
• Make sure the basket sits level and the handle moves freely before running the dishwasher.
• Inspect for cracks or sharp edges and replace if damaged to avoid utensil loss or interference with spray action.
• Disconnect power first; this part itself does not require electrical work.

A small replacement bushing that secures and centers the appliance's rotating plate or tray for smooth, stable rotation. Restores proper alignment and reduces noise or wobble caused by a worn or damaged bushing. What it does:

• Centers and locks the rotating plate/tray to the drive hub for steady rotation
• Prevents the plate from wobbling, slipping, or scraping during use
• Helps eliminate grinding, rattling, or uneven rotation symptoms
• Durable replacement for a worn, cracked, or deformed bushing

• One adjustable plate locking bushing

• Disconnect power before servicing and handle any glass plate or trim carefully
• Remove the plate/tray and access the bushing location according to the appliance service instructions
• Test rotation before use

The Top Hinge Bushing is an OEM part for Whirlpool refrigerators. It provides support and movement for the refrigerator door's top hinge.

A bad top hinge bushing can be caused by regular use, wear and tear, or accidental damage. If you notice excessive door movement, sagging, or difficulty in opening or closing the refrigerator door, it may indicate a problem with the hinge bushing.

Symptoms of a bad top hinge bushing include:

• Excessive door movement or sagging
• Difficulty in opening or closing the door
• Squeaking or grinding noises

Replace your faulty top hinge bushing with this genuine OEM part to restore your refrigerator door.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The door closure spring restores the tension that pulls the door closed and holds it securely. Replacing a fatigued spring brings back smooth, reliable closing action and helps prevent doors that drift open or feel loose.

• Provides return tension to assist door closing and latch engagement
• Replaces a stretched, broken, or missing spring
• Can help with symptoms like a door that won't stay shut, pops open, or closes weakly
• Restores a consistent, even feel to the door movement

• Disconnect power to the appliance before servicing; wear gloves and eye protection
• Support the door/drawer to relieve spring tension before removal
• Note the spring's routing and hook locations; take a photo for reference
• Use pliers to detach/attach the spring; keep hands clear of pinch points and avoid overstretching

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

A retainer ring that secures components in place to prevent axial movement and maintain proper alignment. Replacing a worn or damaged ring helps stop rattling and shifting, restoring quieter, more reliable operation. What it does:

• Holds shafts, bearings or seals in position to prevent side-to-side movement
• Keeps mating parts aligned so assemblies run smoothly
• Common symptom of failure: rattling, grinding, wobbling or loosened parts
• Small, inexpensive part that prevents larger component misalignment or wear

• Disconnect power and water before servicing the appliance
• Access the affected assembly by removing the appropriate panel(s)
• Installation may require snap-ring/retaining-ring pliers or small hand tools

The GAP-HINGE is an OEM component for Whirlpool brand refrigerators. It is designed to fill the space between the refrigerator door and cabinetry, creating a flush fit. The hinge allows the door to open and close smoothly while preventing air and moisture leaks around the door frame.

Symptoms of a bad gap hinge include:

• Gaps around the refrigerator door letting hot or humid air enter the refrigerator interior
• Increased energy costs from lack of insulation due to air gaps
• Buildup of moisture on internal surfaces from improper sealing
• Difficulty opening or closing the refrigerator door smoothly

Causes can include normal wear over time, or damage from repeated opening and closing of the door putting stress on the hinge.

This OEM Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore brands.

Bottom refrigerator hinge. For bottom freezer hinge use part number W10527053.

This adjustable bushing supports and centers a rotating shaft to reduce wobble and wear, helping the appliance run quieter and maintain smooth operation. It's a direct-fit service part used where a replaceable bearing surface is needed. What it does:

• Centers and supports a rotating shaft to maintain proper alignment
• Provides a replaceable bearing surface to reduce metal-on-metal wear
• Helps stop rubbing, scraping, or loud bearing-type noises from worn mounts
• Can restore smooth rotation when the original bushing is worn or damaged

• One adjustable bushing

• Disconnect power (and gas if applicable) before servicing
• Inspect adjoining components (shaft, housing, clips) and replace if worn
• Follow OEM torque and alignment guidance; avoid forcing parts into place
• Use only OEM-approved lubrication or none if OEM specifies dry install

Color: Black

Replacement extension that secures or supports a component on select Whirlpool appliances to restore proper fit and alignment. Helps reduce panel or drawer movement and improves smooth operation when a factory extension is damaged or missing. What it does:

• Secures and supports a panel, drawer, or internal component to maintain correct alignment.
• Restores smooth movement and prevents binding or sagging caused by a missing or broken extension.
• Reduces rattling and improves overall fit to help prevent further wear on adjacent parts.
• Works as a direct-fit replacement for the exact OEM extension designed for specific models.

• Disconnect power (and water, if applicable) before beginning any repair.
• Remove required trim or access panels to reach the mounting area; retain any factory fasteners unless replacement hardware is provided.
• Refer to the appliance's service manual or exploded parts diagram to fit and proper orientation before installing.

Color: Black

This screw secures panels and internal components to restore proper alignment and reduce vibration or rattling from loose or missing fasteners. Replace stripped or lost screws to keep assemblies stable and help maintain normal appliance operation. What it does:

• Fastens trim, panels, and internal parts to prevent movement and vibration
• Helps stop rattling or noise caused by loose or missing fasteners
• Restores proper fit and alignment of assemblies after repair
• Used wherever the appliance design calls for this specific screw to secure parts

• Disconnect power (unplug appliance or switch off circuit) before accessing internal components
• Use the correct screwdriver or bit to avoid stripping the head
• Install by hand first, then tighten snugly—do not overtighten to prevent thread or part damage
• Keep track of small fasteners and replace any that are damaged or corroded

Front left hand side

Front left hand side

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This door bearing fits the washer door assembly to restore smooth opening and closing and reduce noise, wobble, or binding. Replacing a worn bearing helps maintain proper door alignment for reliable operation. What it does:

• Supports the door hinge so the door pivots smoothly without sagging or sticking
• Reduces squeaks, grinding, or rough movement when opening or closing the door
• Helps keep the door aligned to reduce stress on the latch and door seal
• Addresses symptoms like door wobble, uneven closing, or noisy operation

• Disconnect power (and water if accessing near waterlines) before starting any repair
• Removing the door panel or inner door trim may be required; retain all fasteners and document their locations
• Inspect surrounding parts (hinge, seal, latch) and replace if damaged; improper alignment can cause premature wear

Color: Stainless steel

This replacement screw secures panels, brackets, and internal components within your appliance. Replacing a missing or damaged fastener restores a tight fit, reduces vibration and noise, and helps keep parts properly aligned during operation.

• Fastens panels, trim, brackets, or internal components to the chassis
• Maintains proper alignment and stability during normal use
• Replaces missing, rusted, or stripped hardware
• Common symptoms: loose or rattling panels, vibration, difficulty fastening, or a visibly missing screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Match length and thread to the original; replace one-for-one in the same location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving hole is stripped, repair threads or replace the clip/nut before installing

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

Left hand side

This leveler is the adjustable leg that helps stabilize and level your appliance, restoring balance and reducing vibration. It's a simple replacement to get a rocking or uneven washer or dryer sitting squarely again. What it does:

• Replaces a worn or damaged leveling leg to restore stable, level support under the appliance
• Allows height adjustment to compensate for uneven floors and reduce rocking or vibration
• Helps prevent door misalignment and uneven loads that can affect performance
• Commonly used when an appliance wobbles, shifts during cycles, or sits crooked

• Disconnect power to the appliance before attempting service; for washers, turn off water supply and drain hoses if needed
• Slide or tip the appliance as required to access the leveling legs; use caution and a helper for heavy units
• Adjust height by turning the leveler; verify stability with the appliance resting on all legs

This light cam assembly interfaces with a switch mechanism to turn the light on when actuated and off when released, restoring reliable lighting performance and preventing the light from staying on. What it does

• Engages the light switch as the mechanism moves to provide on/off control
• Restores consistent interior lighting function
• Helps prevent heat build-up from a light left on
• Typical symptoms: light stays on, won't turn on, intermittent operation, or a broken/missing cam near the switch

• 1 light cam assembly

• Disconnect power before servicing
• Access the switch/cam area; note the original cam's orientation
• Transfer any reusable clips/brackets from the old part if present; avoid forcing brittle plastics
• Restore power and test light operation before full reassembly
