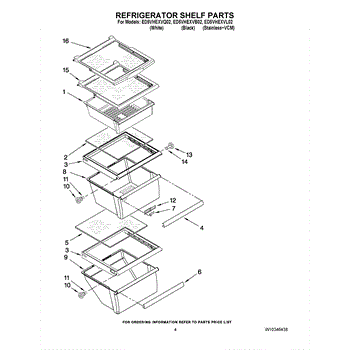

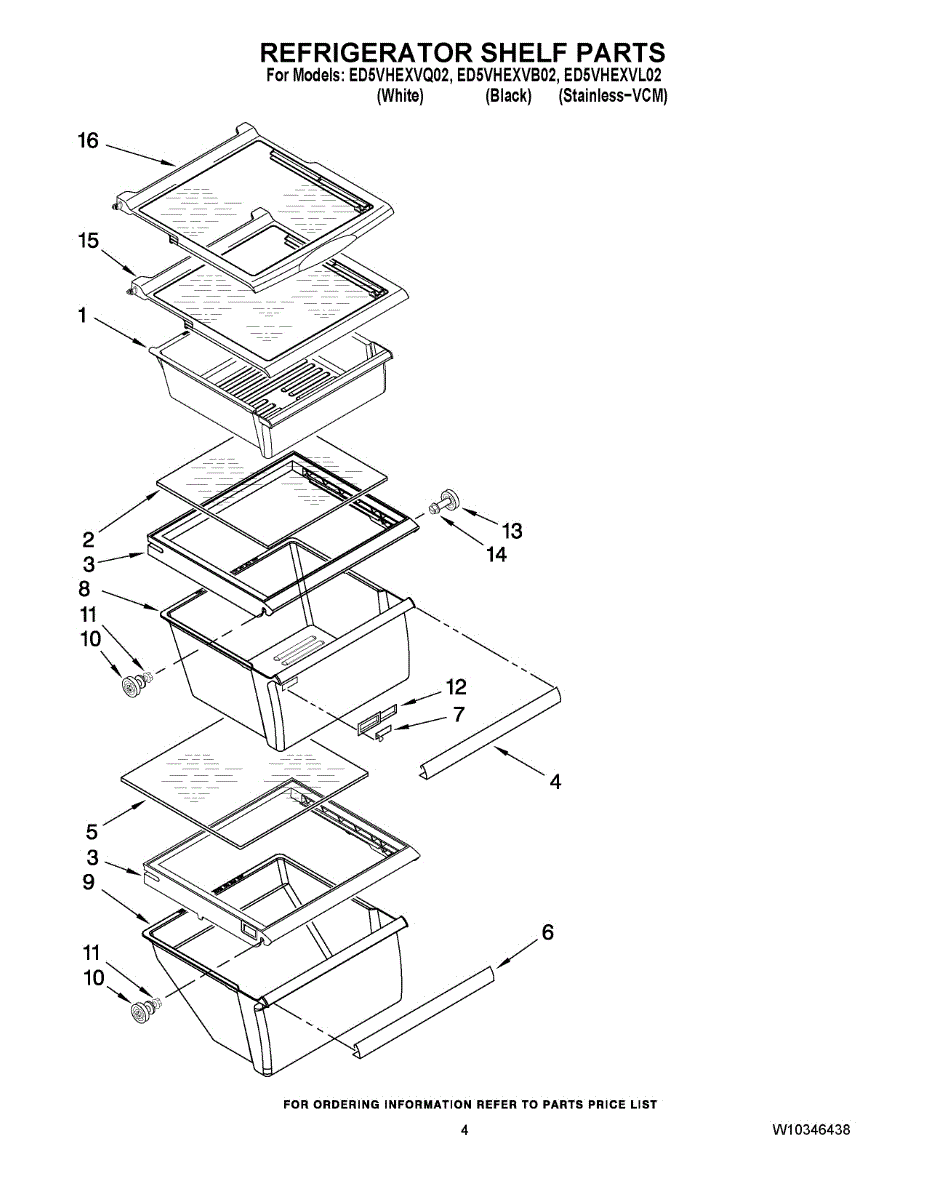

Parts for Whirlpool ED5VHEXVL02: 03 - Refrigerator Shelf Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

The Snack Pan is an OEM part for Whirlpool refrigerators, designed to offer a convenient storage solution for your perishable snacks and smaller food items. This specialized drawer helps maintain the optimal humidity and temperature for items like cheeses, cold cuts, and fruits, ensuring they stay fresh longer.

Causes of a bad Snack Pan can range from overloading the pan with too much weight, accidental damage during cleaning or use, to the natural wear and tear over time.

Symptoms of a bad Snack Pan include:

• Cracks or breaks in the pan, which can compromise its structural integrity and lead to leaks
• Difficulty sliding the pan in and out, indicating potential damage to the drawer slides or the pan itself
• Warping or discoloration, which can affect the aesthetic appeal of your refrigerator's interior

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Glass Shelf is an OEM part for Whirlpool refrigerators. It provides a sturdy and transparent surface within the refrigerator for storing food items, allowing for easy organization and visibility. The glass measures about 16.5 by 13 inches.

Common causes of a bad glass shelf include cracks or breaks due to heavy loads or accidental impacts, as well as edge chipping from repeated use.

Symptoms of a bad glass shelf include:

• Cracks or shattered glass
• Chipped or broken edges
• Unstable or wobbly placement within the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Glass Crisper Cover is an OEM part for Whirlpool refrigerators. It serves as the cover for the crisper drawers, providing a sturdy surface for storing items while helping to maintain the humidity levels inside the drawers to keep fruits and vegetables fresh. Measuring approximately 15 1/4" by 18", it ensures the drawer slides in and out smoothly.

Causes of a bad glass crisper cover can include accidental impacts that cause cracks or shattering, stress from heavy loads placed on top of the cover, or general wear and tear over time. Exposure to extreme temperatures or mishandling during cleaning can also lead to damage.

Symptoms of a bad glass crisper cover include:

• Cracks or breaks in the frame
• The cover not fitting securely over the crisper drawers
• Difficulty sliding the crisper drawers in and out
• Food items falling through due to gaps or damage

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This meat pan trim is the front handle piece for your refrigerator's deli/meat drawer. It restores a secure grip and clean, finished look so the drawer opens smoothly and stays attached to the pan.

• Attaches to the front edge of the meat/deli pan and serves as the drawer handle and trim
• Helps keep the pan properly seated for smooth in-and-out operation
• Replaces cracked, broken, loose, or missing trim/handle
• Can resolve issues like a hard-to-open drawer or a pan that won't stay in place

• Disconnect power; remove the meat pan and place it on a protected surface
• Remove the damaged trim and clean the pan's mating surfaces
• Align the new trim with the pan lip; press or slide it on until fully seated
• Reinstall the drawer and verify smooth operation before restoring power

The Glass Shelf is an OEM part for Whirlpool refrigerators. It provides a sturdy and transparent surface within the refrigerator for storing food items, allowing for easy organization and visibility. The glass measures about 16.5 by 13 inches.

Common causes of a bad glass shelf include cracks or breaks due to heavy loads or accidental impacts, as well as edge chipping from repeated use.

Symptoms of a bad glass shelf include:

• Cracks or shattered glass
• Chipped or broken edges
• Unstable or wobbly placement within the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This meat pan trim is the front handle piece for your refrigerator's deli/meat drawer. It restores a secure grip and clean, finished look so the drawer opens smoothly and stays attached to the pan.

• Attaches to the front edge of the meat/deli pan and serves as the drawer handle and trim
• Helps keep the pan properly seated for smooth in-and-out operation
• Replaces cracked, broken, loose, or missing trim/handle
• Can resolve issues like a hard-to-open drawer or a pan that won't stay in place

• Disconnect power; remove the meat pan and place it on a protected surface
• Remove the damaged trim and clean the pan's mating surfaces
• Align the new trim with the pan lip; press or slide it on until fully seated
• Reinstall the drawer and verify smooth operation before restoring power

This humidity control slide mounts in the crisper cover and moves the vent door to adjust airflow in the drawer. Replace a broken or missing slide to restore smooth adjustment and help manage moisture for better produce storage.

• Controls the crisper vent to increase or decrease humidity
• Provides the user-facing lever for Low/High humidity settings
• Helps reduce excess condensation, sogginess, or drying in the drawer
• Common symptoms: slide cracked or missing, hard to move, won't stay in position, humidity setting has no effect

• Unplug the refrigerator before servicing
• Remove the crisper drawer and lift off the cover/shelf as needed
• Release the old slide from its retainers (a small flat-blade screwdriver may help) and note the linkage to the vent
• Snap in the new slide, confirm smooth travel end to end, then reassemble

The Crisper Pan is an OEM part for Whirlpool refrigerators. It is designed to store fruits and vegetables at optimal humidity levels, helping to keep them fresh for longer periods. This drawer fits into the lower section of the refrigerator and is made from durable, clear plastic, allowing for easy visibility of its contents.

Over time, the pan can crack or break due to frequent use, overloading, or accidental impacts.

Symptoms of a bad Crisper Pan include:

• Cracks or breaks in the pan
• Difficulty sliding the pan in and out
• Reduced storage capacity
• Produce not staying fresh

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Meat Pan is an OEM part for Whirlpool refrigerators. This component provides a dedicated storage area within the refrigerator, designed to keep meats at an optimal temperature for freshness. The meat pan slides in and out for easy access and helps to organize and separate meat products from other items in the fridge. The pan measures approximately 14.96" long x 16.456" wide by 7.598" high

Common causes of a bad meat pan include damage from impact, wear and tear from frequent use, or warping due to temperature changes.

Symptoms of a bad meat pan include:

• Cracks or breaks in the pan
• Difficulty sliding the pan in and out
• The pan not fitting securely in its designated space
• Food not being kept at the correct temperature

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This shelf support stud anchors a refrigerator shelf to the cabinet liner so it stays level and secure. Replace a cracked or missing stud to restore proper support and prevent shelves from tilting, slipping, or dropping.

• Locks into the liner wall to provide a mounting point for the shelf frame or bracket
• Keeps the shelf aligned and at the correct height
• Common symptoms: broken/missing stud, shelf won't sit flat, shelf sags or falls on one side
• Helps prevent items from sliding due to an unstable shelf

• Disconnect power; remove the shelf and any items resting on it. Handle glass shelves carefully and consider wearing cut-resistant gloves.
• Remove the damaged stud (release the locking tab or twist out, depending on design).
• Insert the new stud into the existing hole until fully seated and locked.
• Reinstall the shelf and verify it sits level before reloading.

Pan-head screw used to secure panels, brackets and trim on Whirlpool appliances. Replacing a damaged or missing screw restores proper fastening to reduce vibration and keep assemblies aligned during operation. What it does:

• Secures panels, brackets and trim pieces to the appliance chassis.
• Stops loose panels from rattling, vibrating or shifting during use.
• Used when the original screw is stripped, corroded or missing.
• OEM replacement that restores the original fastening point.

• Unplug the appliance or shut off power before working on it.
• Use the correct screwdriver or bit to avoid stripping the head.
• Tighten until snug—do not overtighten or force in plastic parts.
• If the original hole or threads are damaged, inspect the surrounding area before reuse.

This humidity control body is the fixed housing for a refrigerator crisper vent. It mounts to the crisper cover or drawer and provides the track for the slider so you can open/close the vent and help manage drawer moisture. What it does:

• Serves as the stationary housing for the crisper's humidity control vent
• Guides and secures the humidity control slider so it moves smoothly
• Helps regulate airflow into the crisper to influence moisture levels
• Common signs of failure: broken/missing housing, loose slider, vent won't adjust or stays stuck

• One humidity control body

• Disconnect power and remove the crisper/bin or cover for access
• Note slider orientation and position before removal
• Transfer the slider to the new body and secure the body to existing mounting points
• Avoid overtightening to prevent cracking; verify smooth slider travel before reassembly

The Shelf Stud is an OEM part for Whirlpool refrigerators. It serves as a support peg that holds the refrigerator shelves in place, ensuring they remain stable and properly positioned.

Causes of a bad shelf stud can include wear and tear from regular use, accidental impact that causes the stud to break, or repeated removal and reinstallation of shelves leading to loosening or damage.

Symptoms of a bad shelf stud include:

• Shelves not staying securely in place
• Shelves tilting or collapsing
• Visible cracks or damage to the stud
• Difficulty in inserting or removing shelves

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a rear stud with a screw. For the front stud with screw use part number W11223328. For studs with no screw use kit part number 4388538.

This factory fastener secures panels, brackets, or internal components in your appliance. Replacing a missing or damaged screw restores a tight fit, reduces rattles, and keeps assemblies properly aligned for dependable operation.

• Fastens sheet-metal panels, braces, and trim to the cabinet/frame
• Helps maintain alignment and structural integrity of assemblies
• Can reduce vibration noises and looseness caused by missing/stripped hardware
• Replace if the head is rounded, threads are worn, or the screw is corroded

• Disconnect power; for gas or water appliances, also shut off the supply
• Match location and start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening

The Glass Shelf is an OEM replacement part for Whirlpool refrigerators. It is a sturdy and transparent shelf designed to provide ample storage space within the refrigerator compartment while allowing clear visibility of the items stored on it. Measuring approximately 17.32" x 18.10", this shelf offers ample space for organizing your food items. The shelf is a curved-front design with glass measuring approximately 13.74" x 14.88".

Causes of needing to replace a glass shelf can include physical damage from impact or excessive force, warping due to temperature fluctuations or moisture over time, or general wear and tear from repeated use.

Symptoms of a bad glass shelf include:

• Visible cracks or chips in the glass
• The shelf becoming loose or unstable, causing items to slide off
• Difficulty sliding the shelf in and out of its designated position

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note:

• If you need a "snack pan" shelf with a straight front, order WPW10276341.

The Snack Pan Shelf is an OEM part for Whirlpool refrigerators. It provides an additional level of storage space on the inside.

The shelf is designed to fit securely on the side walls of the fridge cavity measuring 18 inches wide by 18-1/2 inches deep. If you need a shelf with a curved front, order WPW10276348.

Symptoms of a bad snack pan shelf include:

• Cracks or breaks in the shelf material
• Inability to lock the shelf into the desired position
• Wobbling or instability
• Missing retainers that hold the shelf in place

Causes of a bad shelf can be normal wear and tear over time from repeated removal and washing. Accidental drops or impact damage may also affect structural integrity.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
