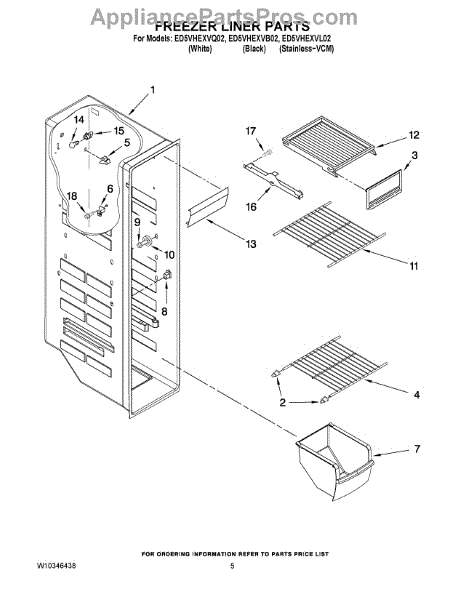

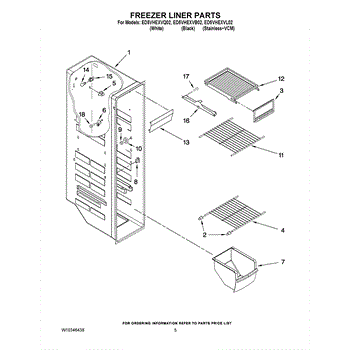

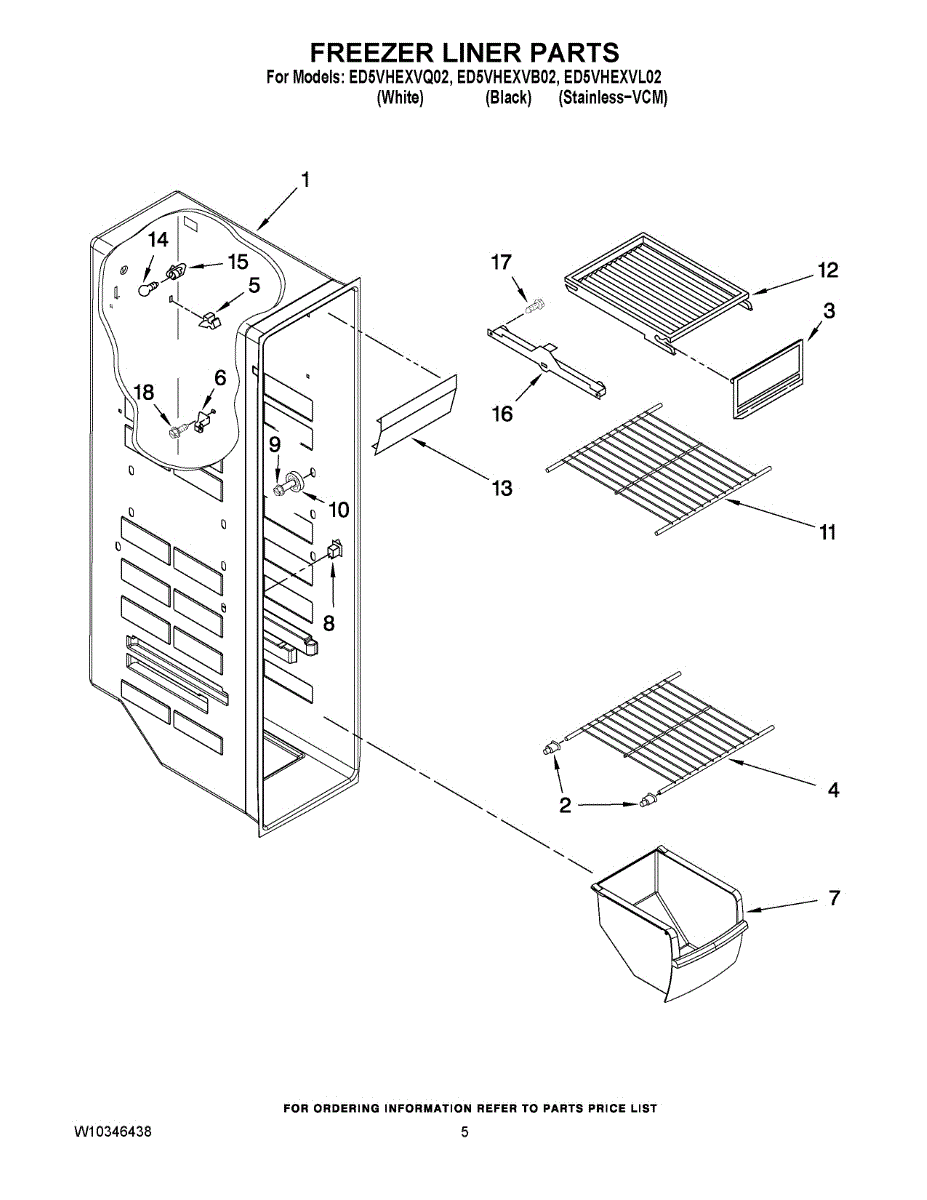

Parts for Whirlpool ED5VHEXVL02: 04 - Freezer Liner Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This shelf stud secures refrigerator shelves or glass shelves to the side liner, restoring proper support and alignment for safe storage. Replace a broken or missing stud to stop shelves from tilting or slipping. What it does:

• Supports and anchors refrigerator shelves to the cabinet liner
• Keeps glass or wire shelves level and prevents sagging
• Replaces damaged, cracked, or missing shelf studs that allow shelves to tilt
• Helps restore secure shelf placement after impact or wear

• One shelf stud

• Designed for straightforward replacement; remove the shelf before installing
• Align stud with the shelf bracket or notch and press or snap into place as the model requires
• Use care to avoid cracking adjacent trim; do not force excessive pressure
• Disconnect power only if accessing electrical components—this part replacement typically does not require it

This ice compartment door closes off the ice storage area inside the freezer, helping contain cold air and keep ice clean. Replace a cracked or warped door to restore a proper seal and easy access to the bin.

• Covers the ice compartment opening to help maintain temperature around the ice bin
• Hinged panel provides convenient access to the ice container
• Helps minimize frost and moisture at the compartment opening
• Common signs it's needed: cracked/missing door, broken hinge tabs, won't stay closed, frost buildup, or ice clumping near the opening

• Disconnect power to the refrigerator before servicing
• Remove screws, pins, or clips securing the old door; note hinge orientation
• Transfer any reusable hinge pins, latches, or trim from the original if required
• Install and align the new door; confirm smooth operation and a tight closure

The Wire Shelf is an OEM part for Whirlpool refrigerators. It is designed specifically for the freezer compartment of the refrigerator. It is constructed with wire material to support the weight of various frozen food items without bending or sagging.

Causes of a faulty freezer shelf can include wear and tear over time, damage from heavy or improperly placed items, or bending due to excessive weight.

Symptoms of a bad freezer shelf may include:

• Sagging or bending of the shelf surface
• Instability or wobbling when placing or accessing items on the shelf
• Reduced storage space or difficulty in organizing frozen food

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This air duct clip secures an appliance's air duct or vent to the housing, keeping airflow channels properly aligned and reducing air leaks. A simple replacement that restores correct duct positioning and minimizes airflow issues. What it does:

• Holds the air duct or vent in place to maintain proper airflow alignment
• Prevents the duct from slipping or separating from the housing
• Helps reduce air leaks that can affect performance or cause noise
• Fits where a small plastic/metal retainer is required to secure ducting

• One air duct clip/retainer

• Disconnect power before servicing the appliance to avoid shock or injury
• Use basic hand tools to remove the old clip and snap or screw the new clip into place
• Handle carefully to avoid breaking plastic tabs; the clip fully engages the duct and housing
• If the clip doesn't fit securely, re-check the duct orientation and mounting position

This shelf support stud secures a refrigerator shelf or rail to the liner wall, restoring proper support so shelves sit level and stay in place during everyday use.

• Provides a stable mounting point for the shelf/rail in the cabinet wall
• Helps correct a sagging, loose, or uneven shelf
• Replaces a broken, stripped, or missing stud
• Helps prevent shelves from slipping or falling when loaded

• Unplug refrigerator and wear cut-resistant gloves
• Remove the shelf/rail to access the mounting point
• Install the new stud fully seated and aligned before reinstalling the shelf
• Do not overtighten or force; replace any damaged mating parts for a secure fit

This freezer bin replaces a cracked, broken or missing storage bin to restore organized storage and keep frozen items contained. Durable replacement designed for direct-fit installation in compatible freezer compartments. What it does:

• Holds and organizes frozen food so items don't fall into lower compartments
• Replaces cracked, split or warped bins that can allow items to shift or block drawer movement
• Helps restore smooth sliding and proper storage space in the freezer compartment
• Fits into existing bin tracks or rails to maintain normal drawer operation

• Unplug the appliance or disconnect power before beginning any work
• Empty the freezer section and remove the old bin by sliding it out of its tracks
• Slide the replacement bin into the same tracks until it snaps or seats fully; some models may use simple clips or stops
• Your refrigerator's owner manual or parts diagram for model-specific removal and reassembly guidance

The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory fastener secures panels, brackets, or internal components in your appliance. Replacing a missing or damaged screw restores a tight fit, reduces rattles, and keeps assemblies properly aligned for dependable operation.

• Fastens sheet-metal panels, braces, and trim to the cabinet/frame
• Helps maintain alignment and structural integrity of assemblies
• Can reduce vibration noises and looseness caused by missing/stripped hardware
• Replace if the head is rounded, threads are worn, or the screw is corroded

• Disconnect power; for gas or water appliances, also shut off the supply
• Match location and start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening

The Shelf Stud is an OEM part for Whirlpool refrigerators. It serves as a support peg that holds the refrigerator shelves in place, ensuring they remain stable and properly positioned.

Causes of a bad shelf stud can include wear and tear from regular use, accidental impact that causes the stud to break, or repeated removal and reinstallation of shelves leading to loosening or damage.

Symptoms of a bad shelf stud include:

• Shelves not staying securely in place
• Shelves tilting or collapsing
• Visible cracks or damage to the stud
• Difficulty in inserting or removing shelves

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a rear stud with a screw. For the front stud with screw use part number W11223328. For studs with no screw use kit part number 4388538.

This lens covers the interior lamp in the refrigerator compartment, diffusing light and protecting the bulb. Replacing a cracked or missing lens restores even illumination and keeps the bulb safely shielded from bumps and splashes. What it does:

• Diffuses the compartment light for clearer, more even illumination
• Shields the bulb from accidental contact, debris, and moisture
• Common fix for broken tabs, a yellowed/warped or cracked lens, or a missing cover
• Helps reduce glare from an exposed bulb and improves visibility inside

• 1 lens

• Disconnect power and let the bulb cool before starting
• Release the retaining tabs or remove screws; support the lens as you take it off
• Align and fully seat the new lens; ensure clips engage or screws are snug—do not overtighten

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This track is the replacement rack guide that supports and guides a dishwasher or oven rack so it slides smoothly in and out. It restores proper rack alignment and prevents the rack from sticking or tipping. What it does:

• Provides a smooth sliding surface for a rack to roll or glide along
• Restores proper rack alignment to prevent tipping and rubbing
• Replaces worn, cracked, or broken guides that cause sticking or noisy operation
• Compatible with factory mounting points to maintain original movement

• Disconnect power and water (if applicable) before servicing the appliance
• Remove the affected rack and any retaining clips or screws to replace the track
• Tighten fasteners securely and test rack movement after installation

This track is the replacement support rail that guides and stabilizes a sliding component so it moves smoothly and stays aligned. Replacing a worn track restores proper slide action and reduces binding or scraping. What it does:

• Guides a drawer, rack or assembly along a straight path to prevent tipping or catching
• Keeps the sliding component aligned for smooth opening and closing
• Reduces noise and wear caused by a worn or damaged rail
• Common symptom: drawer or rack sticks, drops, or moves unevenly when operated

• Disconnect power (or unplug appliance) before starting repairs to reduce shock risk
• Keep track of all screws, clips and any retained fasteners during removal
• Use basic hand tools; support the sliding component while removing/installing the track
