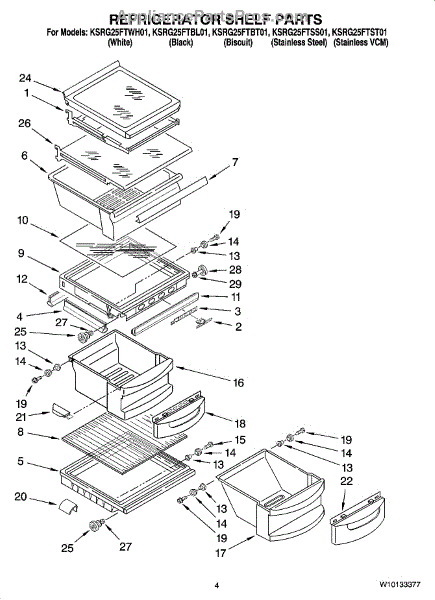

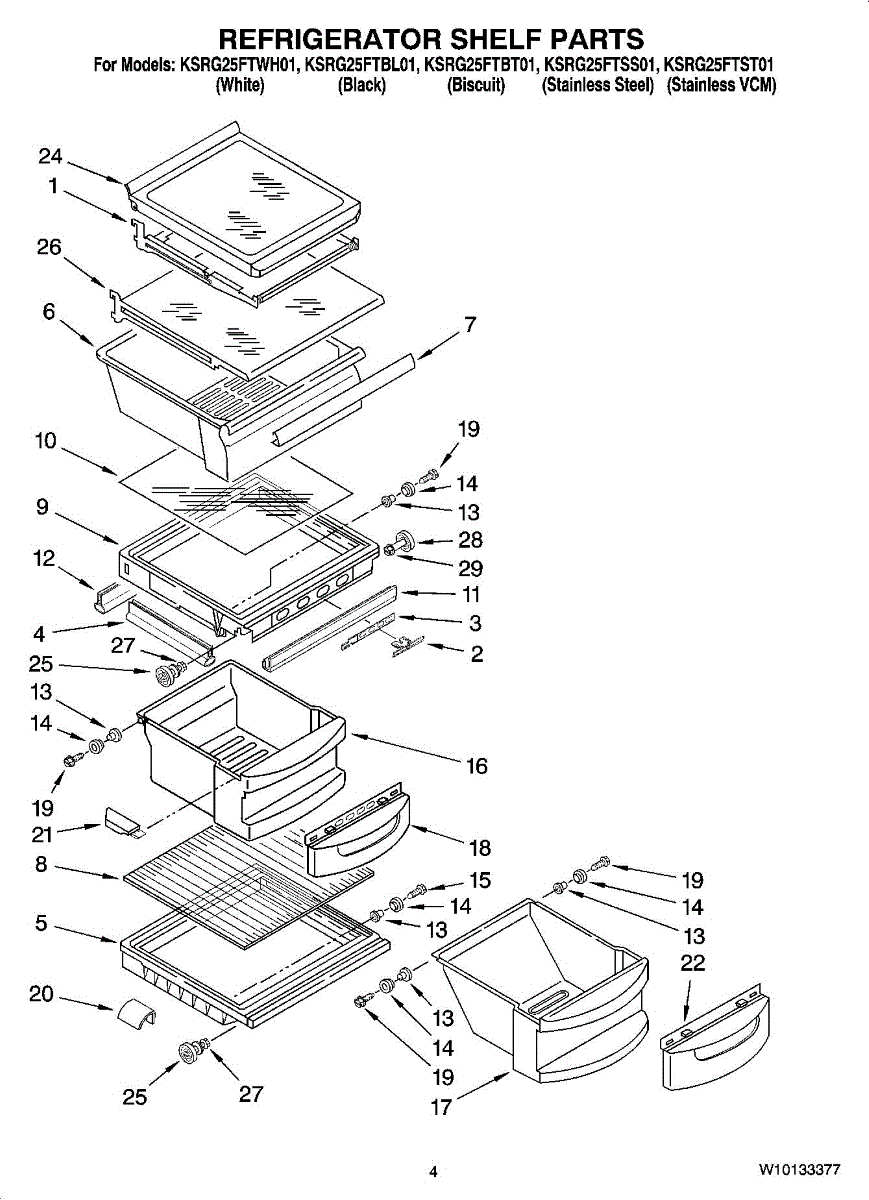

Parts for Kitchenaid KSRG25FTSS01: 03 - Refrigerator Shelf Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

The Meat Pan Cover is an OEM part specifically designed for Whirlpool side-by-side refrigerators. Located on the bottom shelf of the refrigerator compartment, the covered meat pan is designed to neatly store raw meats and catch any juices that may leak.

Symptoms of a bad meat pan cover include:

• Cracks or holes allowing juices to leak onto the shelf below
• Warping of the edges preventing a proper seal around the pan
• Stiff hinges making it difficult to lift or close fully

Causes of failure can be cracking of the material from temperature fluctuations when storing meats long-term, or general wear over repeated uses.

This OEM Whirlpool part is also compatible with Kenmore, Maytag, and select Jenn-Air and KitchenAid refrigerator models.

Handle trim replaces the decorative pan that surrounds a door handle to restore a clean, finished appearance and cover fasteners. Use when existing trim is cracked, chipped, faded, or missing to improve the appliance's look. What it does:

• Covers and protects the handle mounting area and hides screws for a seamless appearance
• Replaces cracked, chipped, faded, or missing trim that can collect dirt or show wear
• Restores the original finished look around the handle for improved aesthetics
• Matches the original part's placement and attachment points for straightforward replacement

• Disconnect power (unplug or switch off circuit) before starting any repair
• Follow the appliance service manual for handle/door removal steps; retain original mounting hardware unless replacements are specified
• Typically installs with existing screws—do not force or modify the part

Comes with two rollers and two eyelets

This 10-16 screw secures panels, brackets, and internal components in your appliance. Replacing a missing or stripped fastener restores a snug fit, reduces vibration and rattling, and keeps parts properly anchored for reliable operation.

• Provides 10-16-thread fastening for sheet metal, plastic, and bracket assemblies
• Direct replacement for a missing, worn, or stripped factory screw
• Helps address loose or rattling panels or covers that won't stay secured
• Supports proper alignment and retention of internal components

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original location and length; replace like-for-like
• Start threads by hand to avoid cross-threading; use the correct driver for the head style
• Tighten snugly; do not overtighten into plastic or thin sheet metal

This is a replacement 10-16-1 screw used to fasten appliance panels and components. It restores a secure fit for loose or rattling parts so panels and assemblies stay properly aligned during use. What it does:

• Secures panels, brackets, or small appliance components in place
• Helps stop rattling, vibration noise, or loose-fitting parts
• Restores proper alignment for doors, access panels, or internal assemblies
• Matches OEM thread and length for correct fit when replacing worn or missing screws

• Use the correct screwdriver or driver bit to avoid stripping the head
• Hand-start the screw to ensure proper thread engagement before tightening
• Do not overtighten; snug the screw until the part is secure to avoid damage
• Disconnect power to the appliance before accessing internal components

This deflector directs airflow and protects nearby components from heat and debris, helping the appliance maintain consistent performance. It's a small but important trim/air-guide part that keeps internal airflow routed correctly. What it does:

• Guides and redirects airflow inside the appliance to improve circulation
• Shields adjacent components from heat, lint, or debris
• Helps maintain even temperatures and consistent operation
• A worn or damaged deflector can contribute to uneven heating, reduced efficiency, or abnormal airflow noises

• One deflector part

• Disconnect power (and gas if applicable) before servicing
• Use basic hand tools; handle edges carefully—parts may have sharp edges
• Verify correct placement against the service diagram; fasten securely but avoid overtightening

Replacement left-side crisper pan cap that secures the refrigerator crisper drawer and helps keep the glass pan aligned. Restores a stable fit so drawers slide smoothly and produce sits level. What it does:

• Secures the left crisper pan to the refrigerator frame to prevent shifting and rattling.
• Helps keep the glass crisper pan aligned so the drawer opens and closes smoothly.
• Common symptom fixes: loose or uneven crisper drawer, rattling, or a pan that won't stay in place.
• Designed to match the original fit and function for the left-side crisper pan location.

• Always disconnect power or unplug the refrigerator before servicing.
• Remove the crisper pan to access the cap; follow your model's service manual for step-by-step instructions.
• Cap typically snaps or presses into position—if resistance is felt, stop and confirm alignment to avoid damage.
• Handle glass and sharp edges carefully; inspect surrounding rails/supports and replace additional damaged parts as needed.

This is the oven meat pan window — a replacement inner glass that restores visibility into the oven cavity so you can check food without opening the door. It fits the meat pan/oven door assembly and helps maintain proper oven operation. What it does:

• Replaces cracked, broken or fogged inner oven door window to restore a clear view of cooking contents
• Helps contain heat and allow safe monitoring of roast or meat pans without opening the door
• Prevents loose glass fragments from falling into the oven cavity when damaged
• Matches OEM form and mounting points for correct fit with the meat pan/door assembly

• One oven door meat pan inner window

• Installation typically requires removing the oven door and/or inner door panel; follow the oven's service manual for the correct disassembly order
• Wear cut-resistant gloves and eye protection when handling glass to avoid injury
• Inspect door seals and mounting hardware during replacement; replace any damaged fasteners or gaskets as needed

This shelf support stud anchors a refrigerator shelf to the cabinet liner so it stays level and secure. Replace a cracked or missing stud to restore proper support and prevent shelves from tilting, slipping, or dropping.

• Locks into the liner wall to provide a mounting point for the shelf frame or bracket
• Keeps the shelf aligned and at the correct height
• Common symptoms: broken/missing stud, shelf won't sit flat, shelf sags or falls on one side
• Helps prevent items from sliding due to an unstable shelf

• Disconnect power; remove the shelf and any items resting on it. Handle glass shelves carefully and consider wearing cut-resistant gloves.
• Remove the damaged stud (release the locking tab or twist out, depending on design).
• Insert the new stud into the existing hole until fully seated and locked.
• Reinstall the shelf and verify it sits level before reloading.

Pan-head screw used to secure panels, brackets and trim on Whirlpool appliances. Replacing a damaged or missing screw restores proper fastening to reduce vibration and keep assemblies aligned during operation. What it does:

• Secures panels, brackets and trim pieces to the appliance chassis.
• Stops loose panels from rattling, vibrating or shifting during use.
• Used when the original screw is stripped, corroded or missing.
• OEM replacement that restores the original fastening point.

• Unplug the appliance or shut off power before working on it.
• Use the correct screwdriver or bit to avoid stripping the head.
• Tighten until snug—do not overtighten or force in plastic parts.
• If the original hole or threads are damaged, inspect the surrounding area before reuse.

The Shelf Stud is an OEM part for Whirlpool refrigerators. It serves as a support peg that holds the refrigerator shelves in place, ensuring they remain stable and properly positioned.

Causes of a bad shelf stud can include wear and tear from regular use, accidental impact that causes the stud to break, or repeated removal and reinstallation of shelves leading to loosening or damage.

Symptoms of a bad shelf stud include:

• Shelves not staying securely in place
• Shelves tilting or collapsing
• Visible cracks or damage to the stud
• Difficulty in inserting or removing shelves

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a rear stud with a screw. For the front stud with screw use part number W11223328. For studs with no screw use kit part number 4388538.

This is a replacement #8-18 screw used to fasten components in compatible Whirlpool appliances. It restores worn or missing fasteners so panels and parts stay securely mounted and function safely. What it does

• Secures panels, brackets, and small appliance components to the frame or mounting points
• Restores proper fit where a stripped, missing, or corroded screw causes rattling or loose parts
• Provides the correct thread engagement to prevent backing out under normal use
• Small fastener intended for interior and light-duty exterior appliance applications

• One #8-18 screw

• Use the matching screwdriver or bit to avoid damaging the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic parts
• Replace any damaged mating clips or inserts for a secure repair
• Disconnect power and follow appliance safety instructions before accessing internal components
