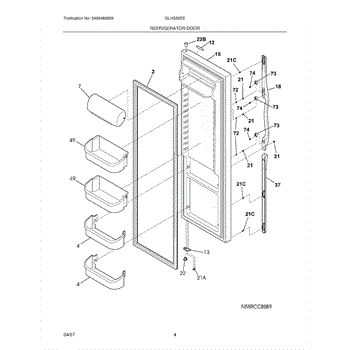

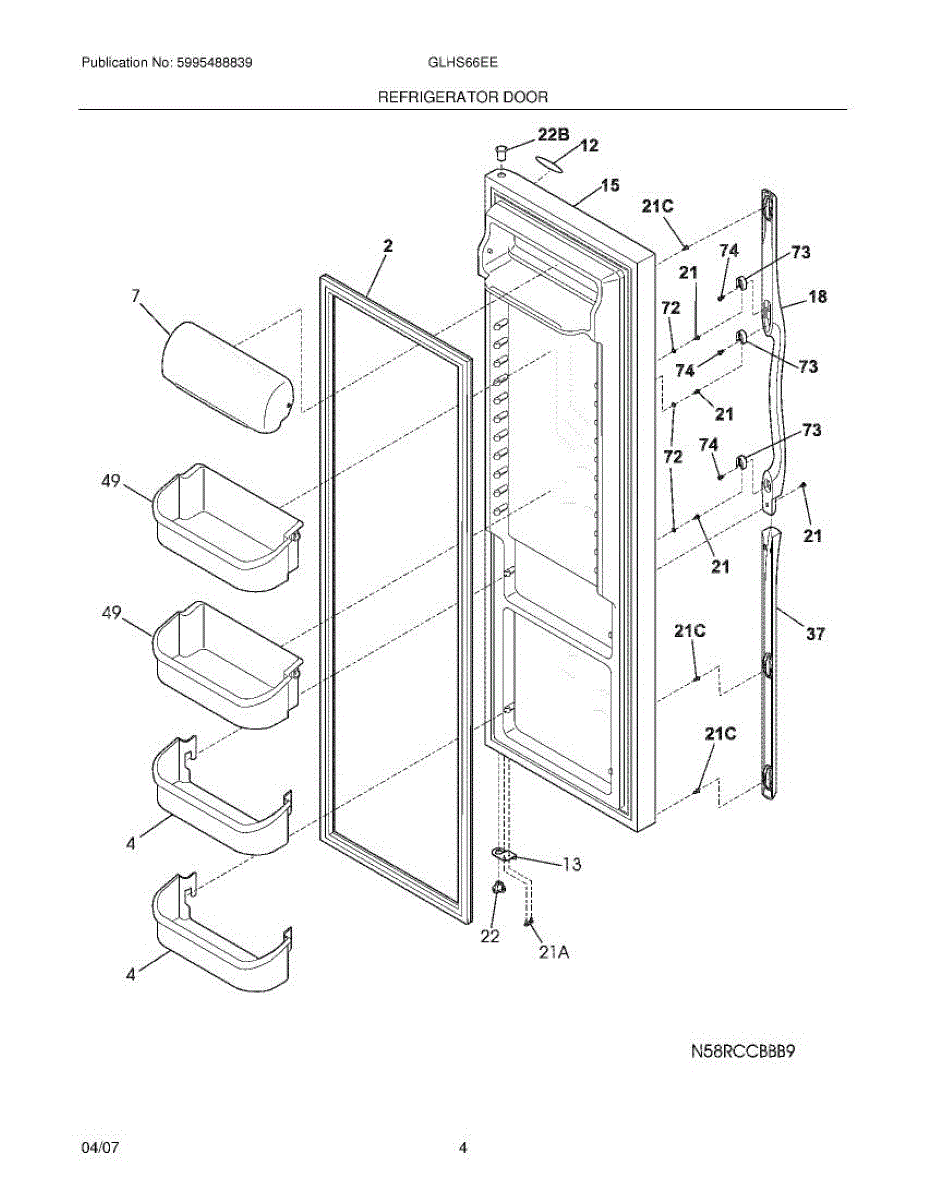

Parts for Frigidaire GLHS66EEWB: 05 - Refrigrator Door Parts

This Frigidaire Refrigerator Water Filter is an OEM replacement part for select Frigidaire brand refrigerators with a slide-out cartridge in the front compartment. Your refrigerator water filter reduces the chorine taste and odor from your water. It also effectively helps filter out sediment, including dirt, sand, and rust,

The filter is easy to install without the need for special tools and should be changed every 6 months. With an operating temperature range of 33-100°F and a pressure range of 30-100 PSI, this OEM part offers reliable performance. The filter measures approximately 6-3/4" x 5-1/4" x 2-1/4" and features a high-grade coconut carbon filter media.

For filter bypass order 242227702.

The Refrigerator Door Gasket is an OEM replacement part for Frigidaire refrigerators. This gasket forms a tight seal around the refrigerator door, keeping cold air inside and preventing warm air from entering. By maintaining an airtight seal, it helps ensure consistent cooling and energy efficiency, preserving food quality.

Over time, gaskets can wear out due to frequent use, temperature changes, or exposure to cleaning chemicals. A damaged or degraded gasket can lose its flexibility or develop cracks, leading to an improper seal that affects the refrigerator's performance.

Symptoms of a bad refrigerator door gasket include:

• Warm spots or uneven cooling inside the refrigerator
• Excess condensation or moisture around the door
• Difficulty in securely closing the refrigerator door
• Increased energy consumption as the appliance works harder to maintain temperatures

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Bottom Door Bin is an OEM replacement part for Frigidaire refrigerators. Measuring approximately 16 inches in length, 4 inches in height, and 5 inches in depth. This bottom door bin offers ample storage space for all your refrigerated items.

Symptoms of a bad bottom door bin can include:

• Scratches, cracks or deformities to the plastic material
• Difficulty sliding the bin in and out smoothly
• Failing retention clips or loose mounting hardware

Causes are usually normal wear from regular use over time. Improper handling may also cause damage.

This OEM replacement part is also compatible with models by Electrolux, Gibson, Kelvinator, and Kenmore.

The Dairy Door is an OEM part for Frigidaire side-by-side refrigerators. It provides a convenient sealed storage compartment at the refrigerator door to keep dairy and other perishables fresher longer. The dairy door protects items from temperature fluctuations due to frequent door openings. It measures about 14 inches wide by 6 inches high.

Causes of a bad dairy door can include cracks, punctures or other damage reducing insulation effectiveness. Warping or improper sealing due to age can also affect performance.

Symptoms of a bad dairy door include:

• Condensation or frost buildup inside the door
• Items inside spoiling more quickly than in the main refrigerator
• Difficulty closing or sealing the dairy door properly

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This door stop is the replacement part that limits a refrigerator door's swing to prevent over-extension and protect the hinge and cabinet. It restores proper door alignment and helps the door close reliably. What it does:

• Stops the door at the correct open position to prevent damage to hinges and adjacent cabinetry
• Helps maintain door alignment so the seal engages fully for consistent cooling
• Reduces slamming and uneven wear that can cause noisy or misaligned doors
• Works at the hinge area to control movement rather than as a latch or gasket

• One door stop

• Designed for straightforward replacement at the hinge; remove power only if working near electrical components
• Keep hardware from the original part; replace only the components shown in the manufacturer diagram
• Inspect hinge and surrounding parts for wear while replacing the stop; tighten loose hinge screws as needed

This factory screw fastens refrigerator components and panels. It replaces missing or damaged hardware so parts stay aligned and secure, reducing looseness and rattles caused by vibration. What it does:

• Secures panels, brackets, and trim per your model's design
• Helps maintain alignment and reduce vibration-related loosening or noise
• Replaces missing, stripped, or corroded hardware
• Restores a snug fit when threads or heads are worn

• One screw

• Disconnect power; turn off the water supply if working near ice or dispenser systems
• Use the correct driver; start threading by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking adjacent plastic
• Refer to your model's diagram to confirm location and quantity used

This replacement screw secures designated components in your appliance to maintain a tight, rattle-free fit. Replacing missing or stripped hardware restores proper attachment and helps keep panels and trim properly aligned.

• Fastens specified parts to the cabinet or frame
• Helps maintain alignment of panels and trim pieces
• Replaces missing, stripped, or corroded screws
• Common symptoms: loose or vibrating parts, panel/trim won't stay secured, visible missing hardware

• Disconnect power to the appliance before servicing
• Hand-start threads to avoid cross-threading; use the correct driver
• Do not overtighten, especially when threading into plastic
• If replacing multiple screws, replace one at a time to maintain alignment

This upper door hinge bearing serves as the low-friction bushing on the top hinge pin so the refrigerator door pivots smoothly. Replacing a worn bearing can stop squeaks and help restore level, easy-opening door operation.

• Provides a low-friction sleeve for the upper hinge pin to reduce wear
• Helps maintain door alignment with the cabinet for a consistent seal
• Common symptoms include squeaking or grinding, door rubbing or sagging, or the door not closing smoothly
• Physical signs include cracks, flattening, or oval-shaped wear in the bushing

• Unplug the refrigerator and remove items from the door
• Support the door; remove the top hinge cover and screws, then lift the door slightly
• Replace the worn upper hinge bearing on the hinge pin or bracket (design varies)
• Reinstall the hinge, align the door, and ensure proper gasket contact

The Door Hinge Bearing is an OEM part for Frigidaire refrigerators. It supports the refrigerator door, allowing it to open and close smoothly. This bearing ensures that the door remains properly aligned and operates without excessive friction, contributing to the overall longevity and functionality of the refrigerator.

Over time, door hinge bearings can wear out due to regular use, exposure to weight stress, or lack of lubrication. When the hinge bearing becomes faulty, the refrigerator door may become misaligned, difficult to open or close, or cause unusual noises.

Symptoms of a bad door hinge bearing include:

• The door sagging or becoming misaligned
• Difficulty opening or closing the door
• Unusual squeaking or grinding noises when the door moves
• The door not sealing properly, leading to temperature fluctuations inside the refrigerator

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Color: White. Approx size: 30.13"

The Frigidaire Door Shelf Bin is an OEM replacement part for Frigidaire refrigerator. This bin provides storage space for drinks and snacks, keeping them organized and easy to access.

Causes of a bad door shelf bin can include frequent use, overloading with heavy items, or accidental impacts that can lead to cracks, breaks, or warping. A damaged shelf bin can result in items not being securely held in place and can decrease the overall storage efficiency of the refrigerator.

Symptoms of a bad part may include-

• Items falling out of the bin
• Difficulty closing the door
• Bin not staying on the door

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Handle Mounting Block is an OEM part for Frigidaire refrigerators. This component anchors the refrigerator door handle assembly while also reinforcing the door structure.

Causes of a bad mounting block can include cracks developing from repeated opening/closing stresses, broken fasteners loosening its installation, or residual damage during door replacement or repair attempts.

Symptoms of a bad handle mounting block include:

• Loose, sagging or misaligned door handles
• Doors difficult to open or not staying securely closed/latched
• Noisy rattling coming from the door handle area
• Cracks or breaks visible in the mounting plastic

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.
