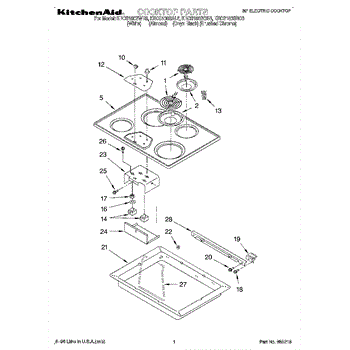

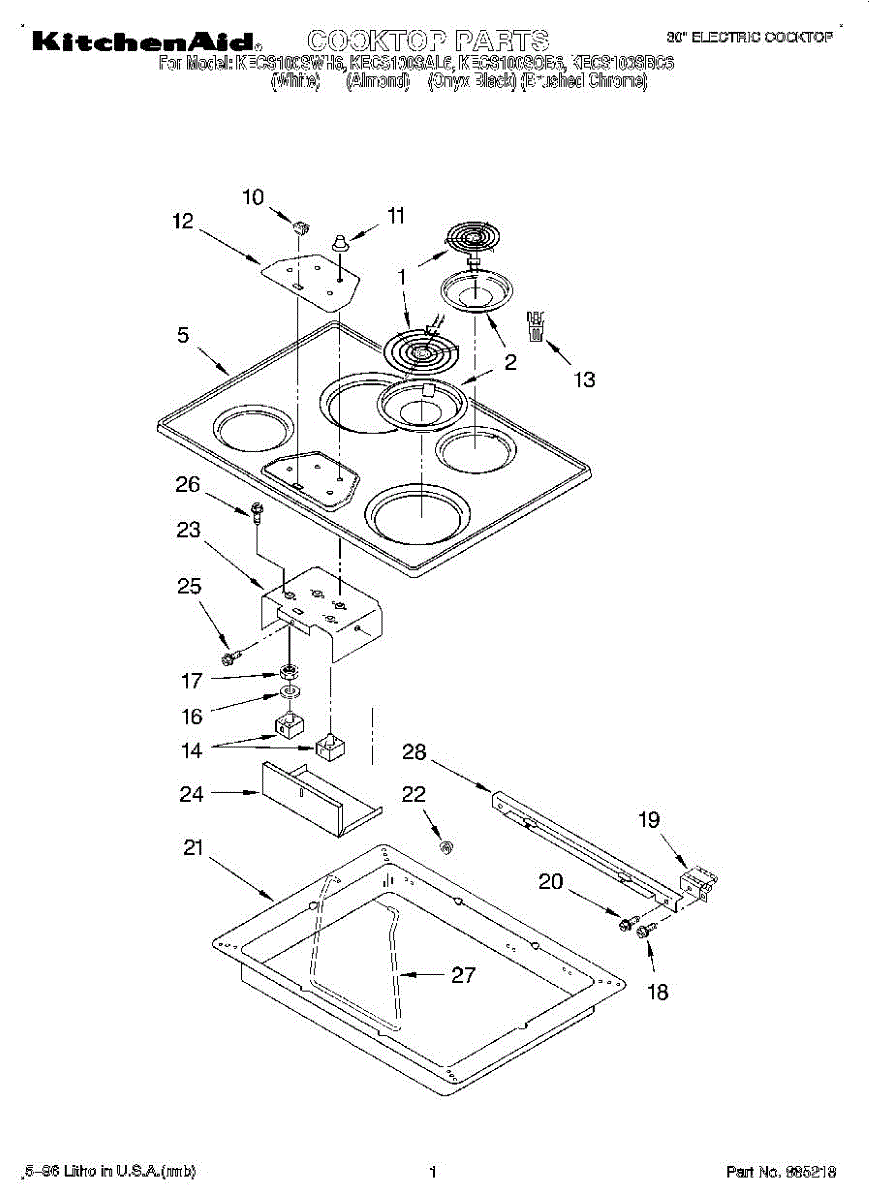

Parts for Kitchenaid KECS100SWH6: 01 - Section Parts

Replace a burner that won't heat or heats unevenly with this 6-inch surface element. Compatible with electric ranges and cooktops. DIY-friendly install.

Burner not heating or heating unevenly? This 8-inch surface element restores reliable cooktop performance. Simple plug-in installation in minutes.

This 8-inch surface coil element restores a burned-out or damaged heating element on an electric cooktop. It delivers consistent 2100W heat for everyday boiling, frying, and simmering, so your range burners perform like new.

• Provides direct, even heat for pots and pans on coil-top ranges
• Common symptoms: surface element won't heat, heats unevenly, or cycles off prematurely
• Visual signs can include blisters, breaks, or hot spots on the coil
• Helps resolve issues caused by a failed element rather than the switch or receptacle

• Unplug range or switch off circuit breaker before servicing
• Allow the old element to cool completely before handling
• Pull the element straight out from the receptacle; align and push the new one fully into place
• Inspect the element receptacle for heat damage and replace if needed for best results

This is an 8-inch drip pan that sits beneath the large burner element on an electric range cooktop. It catches spills, crumbs, and grease to keep them from reaching the wiring and components below the cooking surface. Replace this drip pan if it is heavily stained, corroded, warped, or pitted - a damaged pan reduces heat reflection and can create a fire hazard.

Shallow metal pan that sits below burner elements to catch grease and food spills. Replace when cracked, rusted, discolored, or warped for easier cleanup.

This part has been discontinued and is no longer available.

This part has been discontinued and is no longer available.

Size: 8-18 x 1/4 inch. Self tapping.

This part has been discontinued and is no longer available.

Burner not heating? This receptacle kit restores electrical connection to cooktop elements. Most DIYers complete this repair in under 30 minutes.

Size: 8-18 x 3/8 inch.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.
