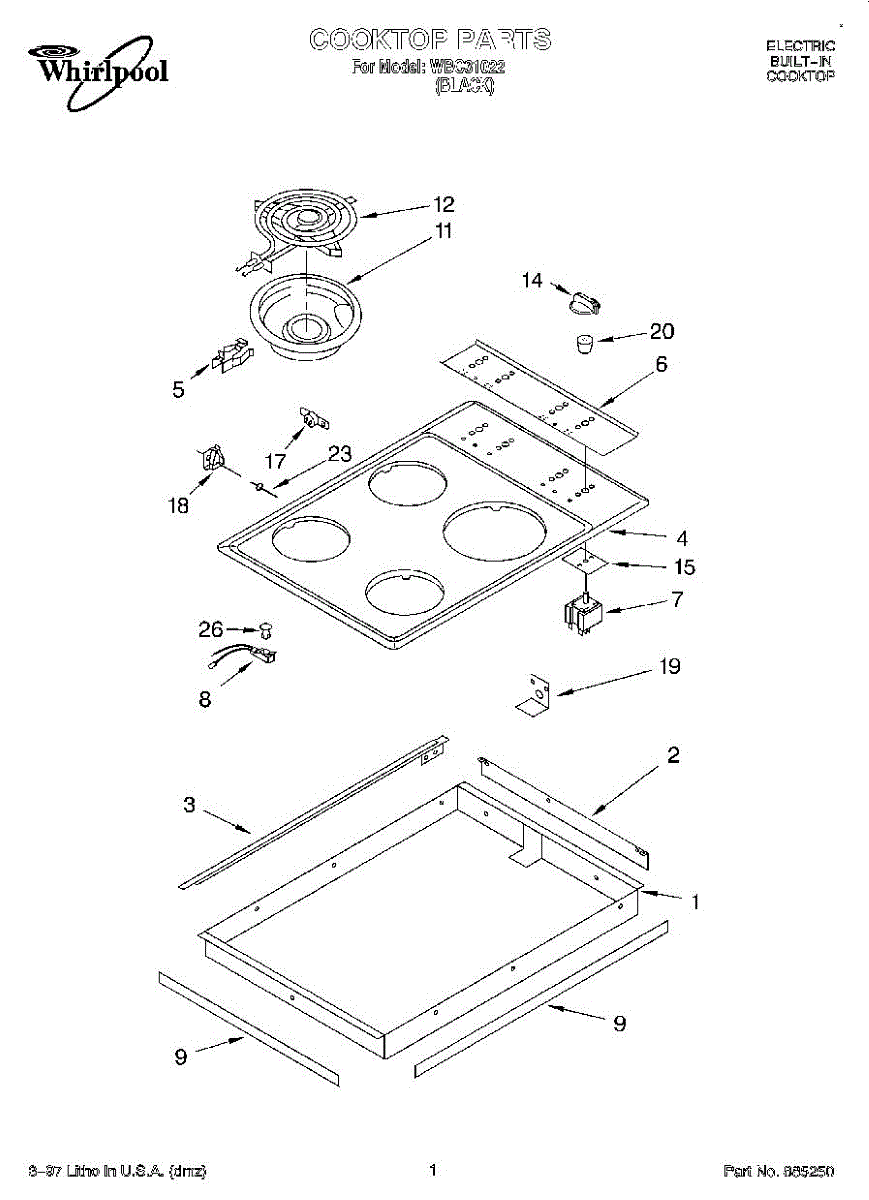

Parts for Whirlpool WBC31022: 01 - Section Parts

This is a metal bracket only, for receptacle kit, which includes this bracket, order 330031.

Used on the 8" element. Red Shaft

This latch knob screw secures the latch knob to its shaft on compatible appliances. Replace a missing, stripped, or rusted screw to restore a firm, reliable attachment and proper latch/knob operation. What it does:

• Attaches the latch knob securely to the latch mechanism/shaft
• Helps maintain proper door latch engagement and knob control
• Common fix for a loose, wobbly, or falling-off knob
• Replaces a lost, corroded, or cross-threaded screw

• 1 latch knob screw

• Disconnect power and allow the appliance to cool completely before servicing
• Align the knob on the shaft and start the screw by hand to avoid cross-threading
• Tighten with the correct screwdriver; do not overtighten to prevent damage
• The latch engages and releases smoothly after installation

The Drip Pan is an OEM part for Whirlpool ranges and ovens. It is a removable tray positioned at the bottom of the oven cavity, designed to catch any spills, drips, or food debris that may fall during cooking.

A faulty or damaged drip pan can lead to a buildup of spills and debris, which can cause smoke, odors, and even potential fire hazards if not addressed promptly. Causes of a bad drip pan include warping or discoloration from excessive heat exposure, cracks or holes that allow liquids to seep through, or simply wear and tear over time.

Symptoms that may indicate a need for replacement include:

• Visible cracks, holes, or warping in the drip pan
• Difficulty sliding the pan in or out of the oven cavity
• Persistent smoke or odors from burnt-on spills or debris
• Leaks or spillovers from a damaged or ill-fitting pan

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drip Pan, identified as an OEM part for Whirlpool ranges, is designed to fit beneath the burner elements to collect spills, drips, and crumbs during cooking. This accessory helps keep the stovetop clean and reduces the risk of burn-on residues that can be difficult to remove and may cause smoke or odors during future cooking sessions.

Symptoms of a bad drip pan include:

• Persistent stains and residues that are hard to clean
• Rust or corrosion affecting the integrity of the pan
• Misfit that allows spills to bypass the pan

Causes of drip pan degradation often include exposure to high temperatures, acidic spills that can corrode the material, and physical impacts from heavy cookware.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The 6 Inch Small Surface Element is an OEM part for Whirlpool electric ranges and cooktops. This component is essential for providing consistent, controlled heat to cookware on the stovetop.

Symptoms of a bad 6 Inch Small Surface Element include:

• Lack of heat production, with the element failing to warm up at all.
• Inconsistent heating, where the element may fluctuate in temperature or only partially heat.
• Visible damage such as blistering, bubbling, or cracks on the element's surface.
• A tripped circuit breaker when the element is turned on, indicating a short.

Causes of a bad surface element can include prolonged use leading to element burnout, electrical faults such as faulty wiring or internal failures, and physical damage from impact or heavy cookware being dropped on the element.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

8-inch element is part number WP660533.

The 8-inch large Surface Element is an OEM replacement part for Whirlpool induction ranges. It serves as an integral independent heating zone to boil, sauté or simmer large pots quickly.

Symptoms of a bad surface element include:

• Inability to power on or heat evenly across the surface
• Slow inconsistent heating or hot/cold zones developing
• Parts of the coil visibly cracked or disconnected
• Tripped circuit breakers upon heat-up that don't reset

Causes stem from normal thermal stress fatigue of coiled elements exceeding thousands of temperature cycles daily. Continuous high wattage energy may cause microscopic metal deterioration developing over a decade plus of use.

This genuine Whirlpool replacement part is compatible with Kenmore, Roper and Jenn-Air ranges.

For matching 6-inch element order WP660532.

Color: Black. Measures about 2 inches in diameter. Other colors: For white use WP9750372FW, for biscuit use WP9750372FC.

This switch bracket mounting seal replaces a worn or damaged seal that cushions and protects the door or control switch mounting area. It helps keep the switch assembly seated and reduces debris and moisture intrusion for reliable operation. What it does:

• Seals the switch bracket mounting area to protect the switch from lint, dust and moisture
• Helps keep the switch properly positioned for accurate door or control sensing
• Can prevent intermittent or failed switch contacts caused by contamination or misalignment
• Useful when replacing a brittle, torn or missing mounting seal during switch or door repairs

• Disconnect power to the appliance before starting any repair
• Remove the door or panel per service instructions to access the switch bracket area
• Fit the seal into the bracket groove or around the switch housing, ensuring full seating without stretching
• Inspect adjacent clips or screws and reuse or replace as needed; test the switch function after reassembly

This fixed thermostat monitors and limits temperature to protect the appliance's system and components. It's a simple, non-adjustable sensor/limit switch used where a set cutoff temperature is required for safe operation. What it does:

• Opens or cuts power when the monitored temperature reaches its fixed limit to prevent overheating
• Helps stop continuous heating cycles caused by a failed control or sensor
• Commonly used as a safety cutoff in temperature-control circuits
• Can resolve symptoms like persistent overheating, failure to stop heating, or temperature-related shutdowns

• One fixed thermostat (single unit)

• Disconnect power before inspecting or replacing the thermostat to avoid shock or damage
• Handle gently; avoid bending terminals or stressing sensing elements

This factory fastener is a rivet used to secure panels, brackets, and trim within your appliance. Replacing a worn or missing rivet restores a tight, rattle-free fit and keeps components aligned for reliable operation.

• Fastens two components where a durable, vibration-resistant connection is needed
• Replaces broken, loose, or missing rivets to restore proper attachment
• Helps eliminate rattles, vibration, and looseness
• Supports correct alignment of doors, panels, and brackets

• Disconnect power and shut off water/gas before servicing.
• Support the panel or part being fastened to prevent bending or cracking.
• Removing an old rivet typically involves drilling out the head with the correct bit; avoid enlarging the hole.
• Install the new rivet with the appropriate rivet tool per your service manual and holes are aligned.

This factory fastener is a rivet used to secure panels, brackets, and trim within your appliance. Replacing a worn or missing rivet restores a tight, rattle-free fit and keeps components aligned for reliable operation.

• Fastens two components where a durable, vibration-resistant connection is needed
• Replaces broken, loose, or missing rivets to restore proper attachment
• Helps eliminate rattles, vibration, and looseness
• Supports correct alignment of doors, panels, and brackets

• Disconnect power and shut off water/gas before servicing.
• Support the panel or part being fastened to prevent bending or cracking.
• Removing an old rivet typically involves drilling out the head with the correct bit; avoid enlarging the hole.
• Install the new rivet with the appropriate rivet tool per your service manual and holes are aligned.

Specs: 25ft, 14 Ga. 150 c Black

Specs: 25ft, 14 Ga. 150 c Blue

Specs: 25ft, 14 Ga. 150 c Brown

Specs: 25 ft, 14 Ga., 150 c Green

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Yellow 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 200~c)

Specs: 25ft,14 Ga., 200 c Brown

This is a fastener screw used to secure appliance panels and components where a 10-24 thread is required. It provides a reliable hold for reattaching parts during repairs and maintenance. What it does:

• Fastens panels, brackets, or components with a 10-24 threaded hole
• Restores original attachment points that have missing or damaged screws
• Helps reduce vibration and rattling when properly tightened
• Works with metal or reinforced plastic mating components designed for 10-24 hardware

• One screw (quantity: 1)

• Use the matching 10-24 driver/socket and turn until snug; avoid over-tightening
• Verify mating threads and alignment before driving to prevent cross-threading
• Disconnect power and follow appliance safety procedures before servicing
• Check for proper washer or spacer if originally present

This ground wire provides a safe chassis connection to restore proper grounding and reduce shock and electrical-fault risk. It replaces a frayed, corroded or missing ground lead to help keep the appliance electrically safe. What it does

• Connects the appliance chassis to the grounding system to prevent stray voltage on metal surfaces
• Restores a secure ground path if the original wire is broken, loose, or corroded
• Helps stop intermittent power faults or nuisance tripping caused by a compromised ground
• Addresses symptoms like visible wire damage, loose ground connection points, or grounding-related electrical issues

• One ground wire

• Always disconnect power (unplug or shut off the circuit breaker) before starting work
• Attach the ring/terminal ends to the designated chassis ground screw and the equipment ground point
• Route the wire away from moving parts, heating elements, and sharp edges; secure with existing clips or fasteners
• If terminal hardware is missing or damaged, replace with equivalent OEM-style fasteners and torque to specification
