Eric W Fallon , NV September 09, 2019 Appliance: Samsung Washer WF461ABP/XAA-0002 Worn bearings broken rear seal and balance ring. My wife had accidentally used too much detergent in the machine causing a "SUD" indication to appear. Less than a few months later, the machine started getting louder and louder to the point it was unbearable. I thought it was a problem with a broken flange assembly and ordered the parts from Appliance Parts Pros and followed their disassembly procedure. They were instrumental in helping me get the machine apart, although my version of the machine had a few different steps. I discovered that the assembly was fine, and soapy water had blown the rear seal and seeped into the bearings. Appliance Parts Pros advised that if the bearings were shot, the entire back drum would need to be replaced. I went on eBay and found some Japanese bearings (Nachi) that were shipped from Colorado that were very high quality upon arrival. I followed their instruction video and pounded out the old rusty bearings, cleaned out the housing and applied lithium grease, and then used a tap to seat the new ones. I also replaced the Rear Seal and Balance Ring from Appliance Parts Pros. The local appliance shop quoted me $950 for an all do 2 man teardown. It took me about 2 hours to take apart and 4 hours to put back together by myself, mainly because the video didn't address this version of the machine. Once it was back together, I learned that the vacuum line must be reconnect to the water level pressure switch or the machine will over fill and display NF codes. Once the machine was back together, it has ran so smooth and quiet! This repair cost me less than $200 and I know it will work for years to come! Although I had to go to another place to get the bearings, I owe Appliance Parts Pros for their expertise, part selection, and phenomenal support. If you run into any problems, an agent is a phone or chat away and will help you diagnose and walk you through almost anything! Read More... Do-It-Yourself Rating: Repair Time Estimate: 2+ hours Tools: Adjustable Wrench, Pliers, Screwdrivers, Socket Set

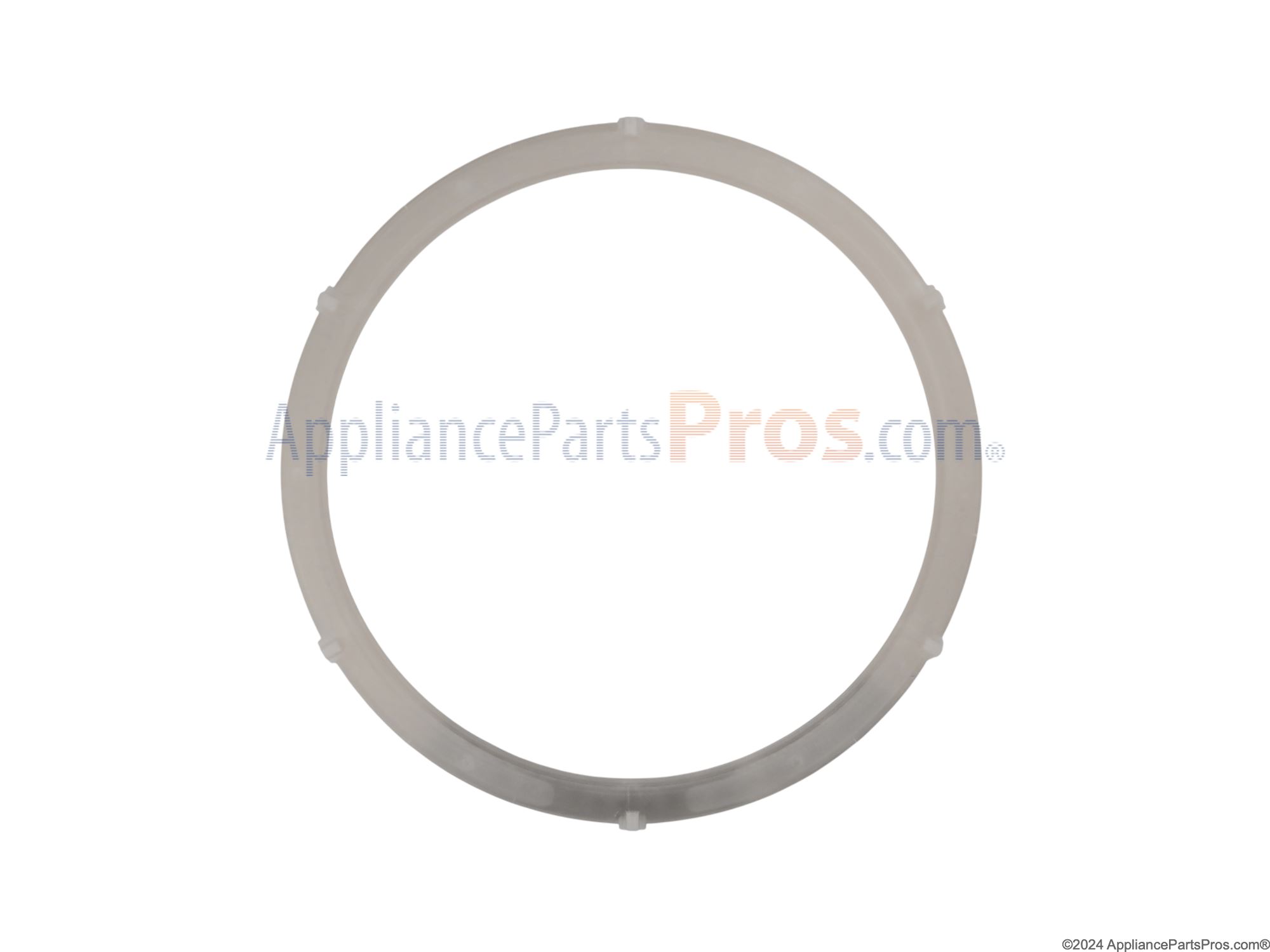

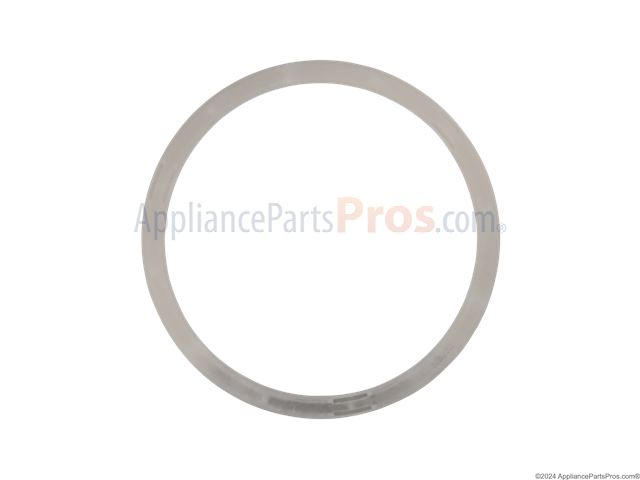

Jeffrey D Clive , IA December 04, 2017 Samsung front load washer would not spin due to unbalanced spin cycle even empty. With all the bouncing around the shocks appeared to be done in but that was not the issue. The key was the balance ring. It had leaked all the fluid out causing all the beads to clump. This caused the drum to wobble wildly and not spin at speed. Getting to the ring to replace it is not a trivial task and took me several hours. Would have been much easier with help as the drum is quite heavy. The on-line video's are very handy and should be watched before attempting this job to save you a lot of extra work. This job is a complete tear down of the entire machine. Once completed, it was most satisfying, to see it work right off the bat. While a lot of work, it was way cheaper than buying a new one or paying someone else to do the repair which would have been close to the cost of a new one. If your adventurous with a bit of mechanical aplitude, this is worth doing to save a ton of money. Cheers, Read More... 82 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 2+ hours Tools: Nut Drivers, Pliers, Screwdrivers, Socket Set
Ricky F Macclesfield , NC January 03, 2015 Appliance: Model WFD218XNA Broken spider flange I watched your online video. The machine was a different model, but the concept was the same. I also take pictures each time I take something down as a reference for later. Read More... 22 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 2+ hours Tools: Nut Drivers, Pliers, Screwdrivers, Socket Set, Wrench Set
Richard P La Mesa , CA July 25, 2015 Appliance: Samsung Washer WF350ANW/XAA Balancer assemybly frozen and flange shaft broken The how to video on the website was spot on. Although the video was made for a LG washer and mine was a Samsung, it was very easy to adapt. The step by step process enabled me to fix the machine and save over $700 in repair costs offered by Samsung. I painted the back of the tub and the Flange Shaft assy with epoxy based anti fouling paint to hopefully stop the corrosion that caused it to crack and corrode. Great video and prompt receipt of parts. Definitely will keep Appliance Parts.Com in my favorites list. Read More... 11 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 1-2 hours Tools: Pliers, Screwdrivers, Socket Set
Adam D Silver Spring , MD September 17, 2019 Appliance: Model WF330ANW/XAA 03 Our Samsung front load washer would not balance during the spin cycle After some research, I determined that I had either a bad balancing ring or more likely a bad drive spider. Out of an abundance of caution, I ordered the drive spider, balancing ring, tub seal, driveshaft seal and new screws for the spider assembly. After watching the excellent Appliance Parts Pro's video (which was 42min long) I did the repair pretty much in line with the video. My assumption was correct that the spider assembly had cracked and failed, it was heavily corroded. I was able to remove four of the six screws without issue but had two fail during their removal. I also replaced the driveshaft seal since it was packed in with gunk and gave me some concern. It was nearly a four-hour job all done, and I'm an experienced mechanic/technician. All parts were Samsung OE and were delivered in time in new condition. I did not need the balancing ring, four screws or the tub seal so I will return those items. Read More... 5 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 2+ hours Tools: Pliers, Screwdrivers, Socket Set
