Samsung DG44-01003A Range Energy Regulator OEM Part

Replaced DG44-01003A (AP4336838) Energy regulator. Fixed it with no problem. It was the the big burner on my Samsung range that had three settings for pot size.

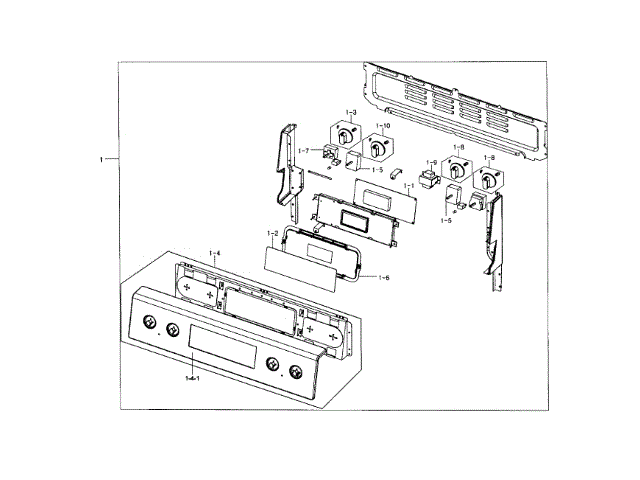

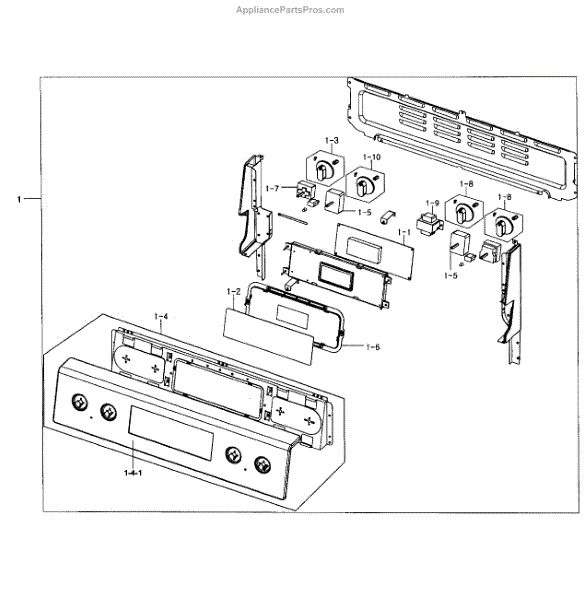

I ordered a regulator using the parts diagram and verified by matching the numbers from the part I removed with the picture on there web site. Used my camera to take a picture of the wiring to make sure I wired it correctly after removal. As always shutdown the power to the range before attempting to make the change. I ordered the part Tuesday around 3PM and received it the next morning around 9AM. It doesn't get any better than that.

Ordered the replacement part from AppiancePartsPros and it was installed / up and running within 10 mins. Just had to remove the back panel, disconnect the switch, twist out - then install the new one.

Hit the web to see if a similar problem was already diagnosed. It was. Started hitting the web for a new switch, Found Appliance Parts Pros, LOVED the diagnostic tools for determining parts, discovered my switch was really a "regulator-energy; -; 50". Ordered it with confidence. It arrived quickly. Took a photo for reference of the back of my stove's switch panel area. Released old switch from panel with two screws, started swapping out wire for wire. Was a simple process. Loved it. PLUS, I cleaned out the floor underneath and behind the stove and that was OK as well. Loved it when I plugged it back in, the "on" light was off accurately. Very satisfying.

I moved the oven out from the wall and unplugged it. I unscrewed the back top panel. I took a picture of the wire connections. I removed the dial at the front of the oven. I removed the 2 screws that hold the Regulator in place. I changed out the wiring one at a time to the new Regulator. Reinserted back into position and attached with the screws and replaced dial. Plugged back into outlet and tested.
