Samsung DC61-01215B Dryer Idler Tension Spring OEM Part

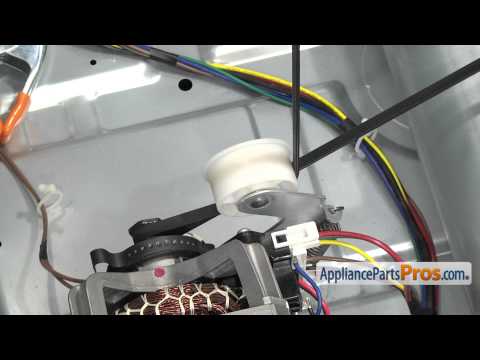

From watching the video I got the general idea, disassemble 50% of the dryer. Only had 2 differences in my dryer from the one used in the video, so the video was helpful. The one difference was the connections to the front side of the dryer were on the power distribution circuit board located on the left of the dryer under a sheet metal cover. These were harder to disconnect with my fat thumbs. The bigger issue was with removing the front control panel. In the video there doesn't appear to be any clips holding the lower edge of the panel in place, there were 2 plastic clips and 4 plastic tabs. By watching another video I found the only way to remove the panel was to pry & pull and expect the clips to break. I pulled and pried and the clips broke and in the process cracked the front control housing. The wife was not to happy. Once the panels were removed it was easy to remove the belt from the idler and motor pulley. I didn't use the belt to lift the drum, it 's not heavy just a little awkward. To remove the idler bracket I had to use a larger Phillips driver, this screw was locked down tighter than the others, but it works as the pivot for the bracket so you don't want it to back out. Before putting it all back together I used a shopvac to clean out the lint, also removed and cleaned the duct piece between the lint trap and the blower. I also checked the drum support wheels to see that they turned freely. I suggest that if anyone wants to take on this repair to buy the complete idler assembly and new belt. I also purchased a new spring but it's not necessary. I would how ever buy the screw that mounts the idler assembly, in removing the screw you could damage the head and make reinstalling it next to impossible.Also wear gloves the sheet metal pieces are sharp.

I knew something in the dryer was failing because the dryer had been louder than usual and making some squealing noises for about 6 months. The dryer still worked though, so it was added to the "to worry about eventually" list. I learned a lot about electric dryers during this repair. They're pretty simple on the inside. You can find a ton of YouTube videos on how to repair the Samsung machines. Anyway, when the drum stopped turning I assumed it was a broken belt. On my particular Samsung, you can get access to the idler pulley and can visually inspect the belt through a panel on the back of the machine. When I opened it up, I saw the Idler Pulley was broken (the plastic wheel had shredded to pieces). I purchased a new idler pulley, drum belt, and idler tension spring. I wanted all of the possible parts so I could knock this out at once. I replaced the idler pulley (you just need a screwdriver) and used the old belt. It was a bit worn and I'm sure I'll need to replace it eventually, but I didn't feel like opening up the entire dryer right now. I probably didn't need the idler tension spring. It was cheap enough that I'll keep it in my workbench just in case. Anyway, I replaced the idler pulley with nothing but a screwdriver, cleaned out the dust that had accumulated in the dryer and it runs once again. I should mention this appliance is only about 6.5 years old and spent about half of its life kid free. It's a bit disappointing that it failed so early, BUT Appliance Parts Pros website made it super easy to get the parts and fix it and save a ton of money. This is a repair that many people can probably do all on their own. Watch a few YouTube videos on how to determine the issue and repair. The hardest part was getting the belt back on the pulley. I rated it a 2 because the belt is a bit of a pain to get back on the pulley and whatnot. Oh and be sure to put a towel or something on the exposed sheet metal when you go in through the back. It's sharp!

I researched the issue on You tube and found out it could be either the "belt broke switch" or the Moisture sensor. A friend who was an appliance mechanic advised "since you have to take it all apart anyways, its best to replace the belt, spring, and Idler wheel" I bought the 5 item for $52. I watched the video on the AppliancePartsPros for changing out the belt and I replace all items on the list. Took 1 1/2 hrs and was fixed on restart!! * Wear gloves, the sheet metal is very sharp edges!*

Purchased a motor, belt and a new idler pulley. Didn't need a belt but the original was stretched a little and the idler pulley was a little stiff. I watched the video, took it apart and took about twenty minutes to take it apart and put it back together.

Replaced blown thermal fuse and while I had the dryer opened, I also replaced the thermistor & thermostat. I ordered the parts from appliancepartspro.com that were shipped within 24 hours. Dryer is now working again.
