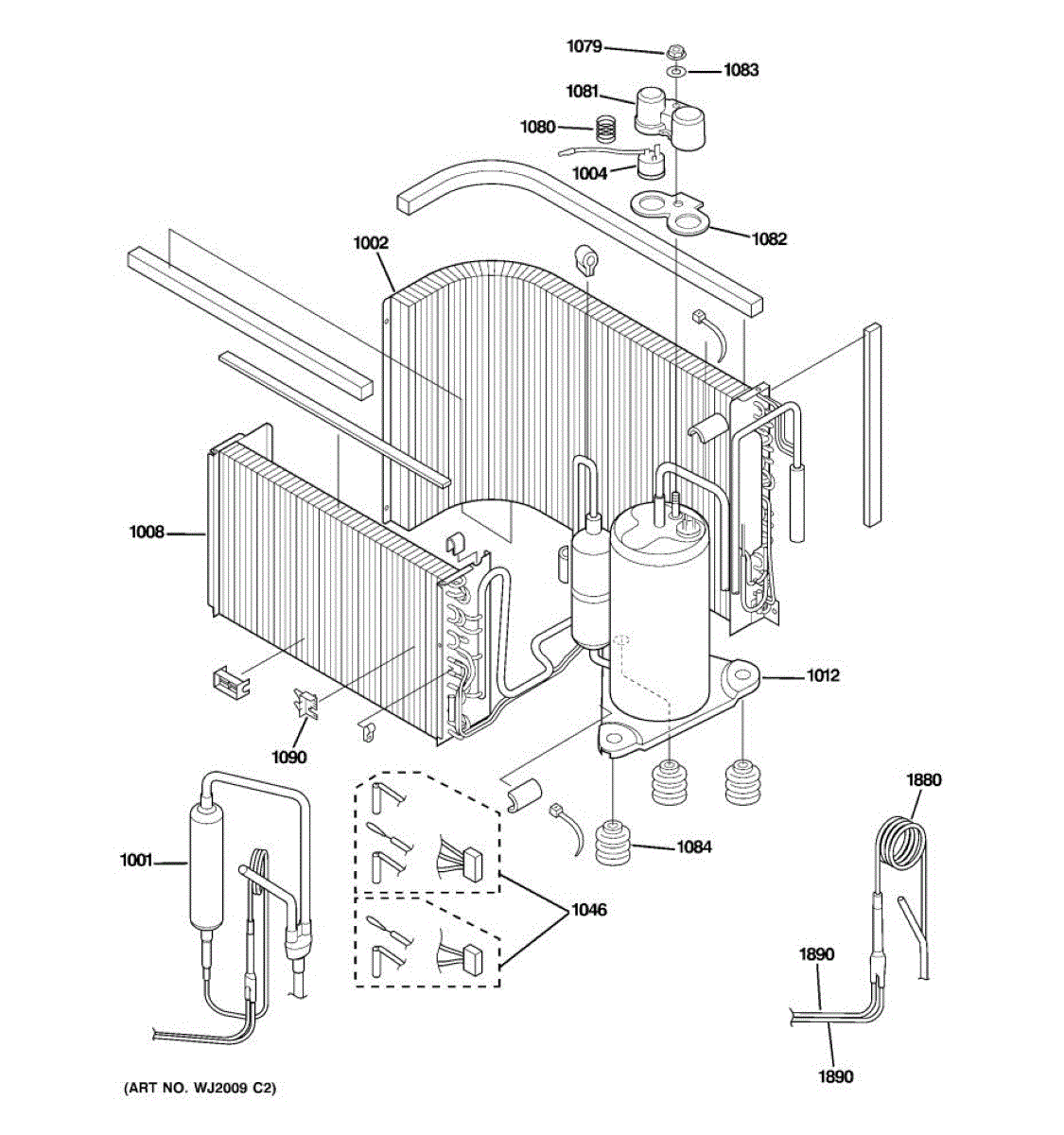

Parts for Ge AJEQ09DCDW1: 03 - Sealed System & Components Parts

This thermal overload protector safeguards the motor/compressor circuit by opening when temperature or current rises too high. Replacing a failed protector helps prevent damage and restore reliable operation when the unit won't stay running.

• Opens the circuit on over-temperature/over-current to protect windings
• Helps address symptoms like: hums then clicks off, won't start, or shuts down shortly after starting
• Often resets when cool; repeated tripping indicates a failing protector or a related issue
• Mounts against the component for accurate thermal sensing

• Disconnect power at the breaker before servicing; capacitors can retain a charge
• Note wire locations and transfer one at a time; terminals should fit snugly
• Seat/clip the protector firmly as designed for proper heat transfer
• If the old protector shows heat damage, also inspect the start relay/capacitor, wiring, and the motor/compressor

A rubber compressor cushion that isolates the compressor from the refrigerator chassis to reduce vibration and prevent metal-on-metal contact. Replaces worn or missing cushions to help minimize noise and vibration transfer. What it does:

• Cushions the compressor to dampen vibration and reduce rattling or buzzing noises.
• Keeps the compressor from directly contacting the cabinet, preventing wear and chafing.
• Helps maintain proper compressor positioning and reduces stress on mounting components.
• Common symptom: increased compressor noise or vibration, or visible worn/deteriorated cushion.

• One compressor cushion (rubber mount).

• Disconnect power to the appliance before starting any repair.
• Support the compressor or secure the unit when removing/replacing mounts to avoid strain.
• Remove the old cushion and press the new cushion into place; no refrigerant handling required.
• Use basic hand tools and wear gloves.
