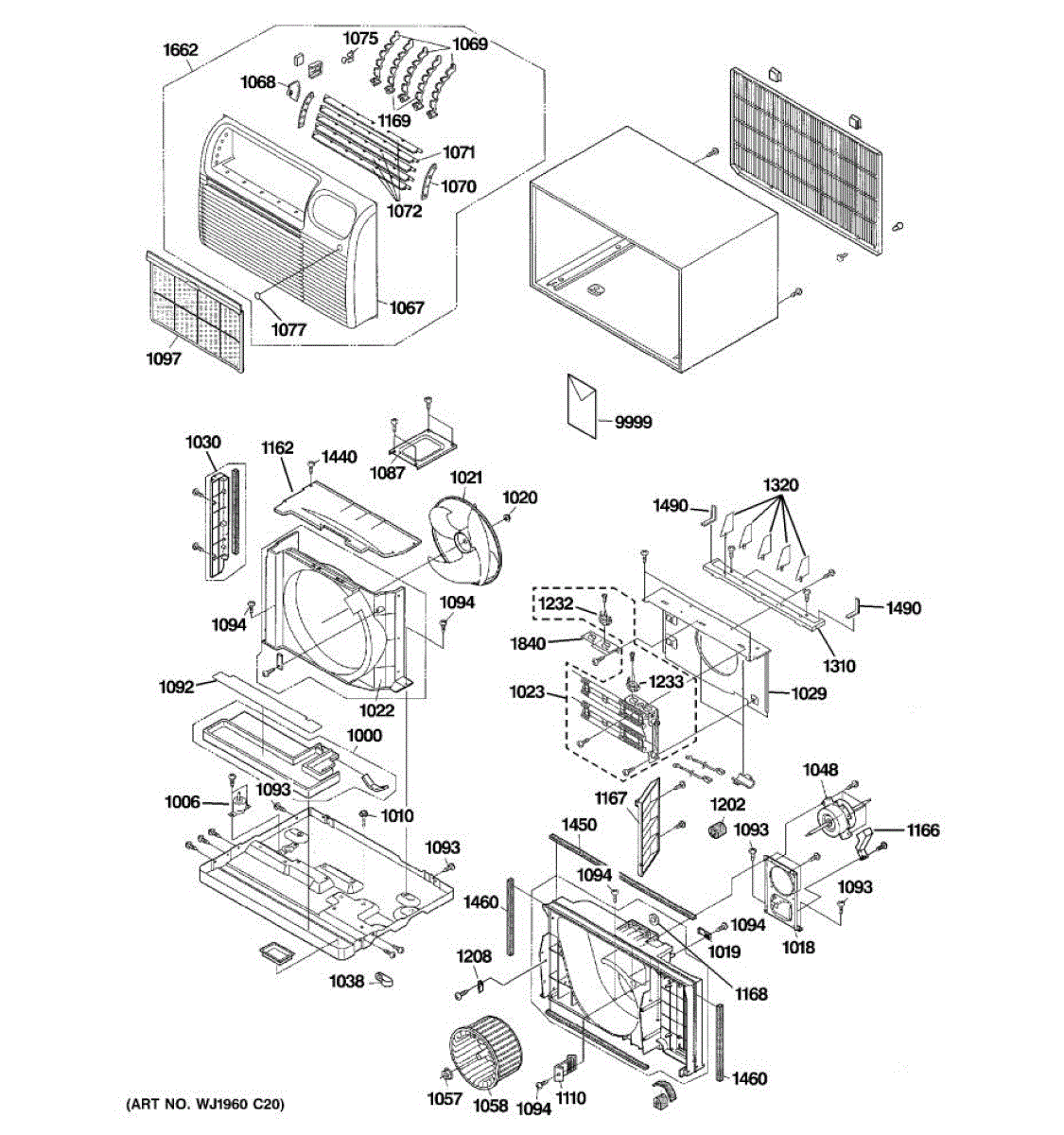

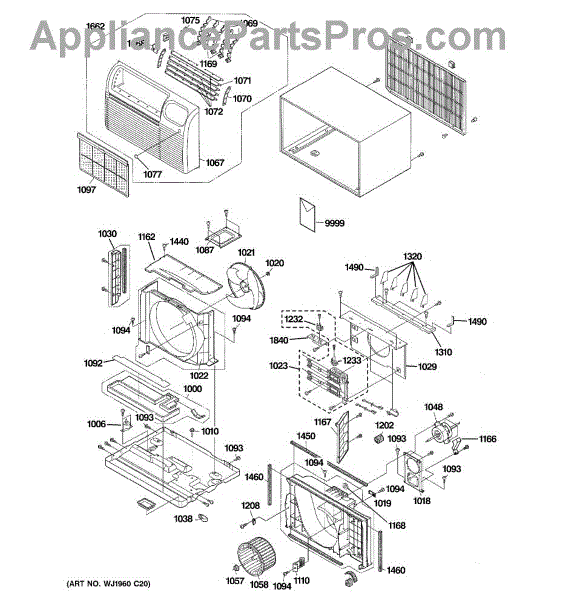

Parts for Ge AJEQ09DCDW1: 01 - Cabinet & Components Parts

The Air Filter is an OEM part for GE air conditioning units. It plays a role in filtering out airborne particles, dust, and other contaminants, ensuring clean and healthy air circulation within your home or workspace. The filter measures approximately 18.5 inches x 10 inches.

Symptoms of a dirty or clogged air filter:

• Reduced airflow from the vents
• Increased energy consumption and higher utility bills
• Unpleasant odors from the air conditioning unit
• Visible dirt buildup on the filter surface

Causes of a bad air filter can include normal wear and tear over time, exposure to excessive dust or pollutants, or inadequate maintenance and replacement schedules.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore air conditioning models.

A compressor protector that helps prevent compressor damage by interrupting power when the motor overheats or draws excessive current. Replaces a failed protector to restore proper compressor protection and help avoid costly compressor replacement. What it does:

• Senses excessive heat or current at the compressor and opens the circuit to stop the compressor from running.
• Helps prevent compressor burnout and wiring damage caused by overheating or locked-rotor conditions.
• Common symptom linkage: refrigerator runs but cooling is poor or compressor will not start and only hums intermittently.
• Works with the compressor start system to improve reliability when the protector is functioning correctly.

• Disconnect power to the appliance before starting any repair.
• Mount and connect the protector to the compressor terminals exactly as the original part was installed.
• Handle terminals carefully to avoid bending or damaging compressor leads.
• If the compressor or start components show other signs of failure, inspect the start relay, overload, and wiring; replace any damaged parts.

This protector heater is a small heating element used with the overload/thermal protector in the motor or compressor circuit. It provides calibrated warmth so the protector trips correctly under heavy load, helping prevent overheating and protecting the unit. What it does:

• Works with the overload/thermal protector to ensure proper trip timing
• Helps prevent overheating and potential damage to the motor/compressor
• Common signs include repeated clicking near the compressor area or frequent overload trips

• 1 protector heater

• Disconnect power and safely discharge the run capacitor before servicing
• Photograph or label wiring and component orientation for accurate reassembly
• Install in the same position/orientation as the original with secure, insulated connections and proper wire routing
• Inspect the overload, start device, and terminals; replace any burnt or loose connectors to prevent repeat failures

This louver is a molded air vent piece that restores proper airflow routing and a finished appearance to the appliance. It replaces a cracked, broken, or missing vent louver to help protect internal components and maintain cabinetry aesthetics. What it does:

• Directs and channels internal airflow for even circulation
• Covers a cabinet or grille opening to protect internal parts from debris
• Replaces cracked, warped, or missing louvers that can rattle or look damaged
• Helps restore proper fit and finish on the appliance exterior

• One replacement louver

• Disconnect power to the appliance before beginning any work
• Inspect mounting tabs and clips; replace only if the OEM clips are present or available
• Usually secures with snap-in tabs or a few screws—use appropriate hand tools and avoid over-tightening
