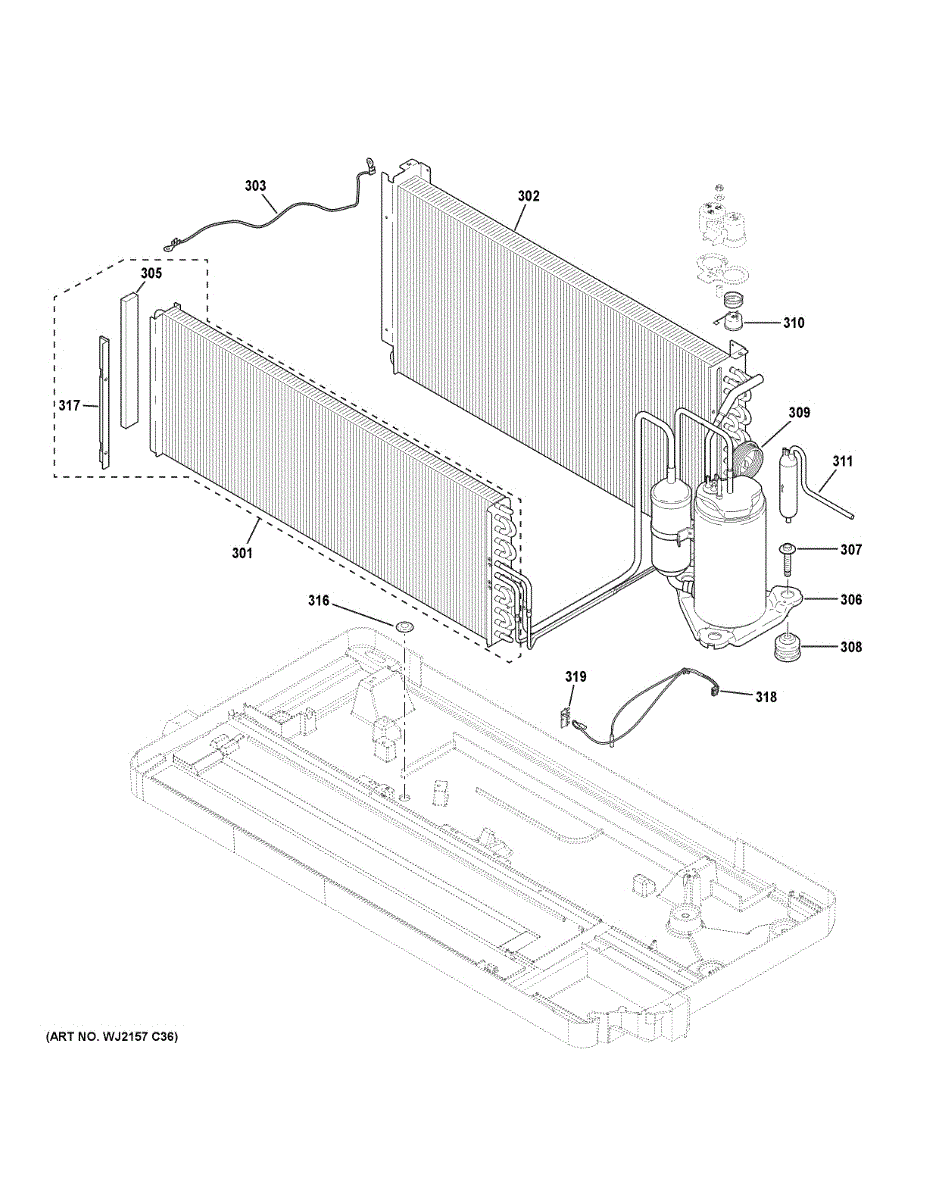

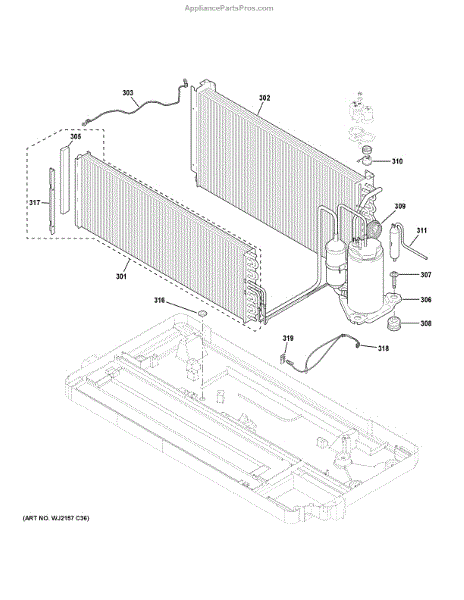

Parts for Ge AZ45E07DACW5: Sealed System Parts

This indoor evaporator coil with foam assembly circulates refrigerant and absorbs heat to keep the refrigerator/freezer compartment cold. Designed to restore normal cooling performance when the evaporator is damaged or failing. What it does:

• Evaporates refrigerant to remove heat from the cabinet and enable cooling
• Helps prevent excessive frost build-up when functioning properly
• Can address symptoms such as reduced cooling or warm compartments
• Works as part of the sealed refrigeration system; not a standalone cooling unit

• One indoor evaporator coil with foam assembly

• Disconnect power before beginning any service
• Replacement may require access behind interior panels and removal of shelving/trim
• Inspect surrounding insulation and mounting surfaces and replace damaged components as needed

This outdoor coil assembly replaces a worn or damaged condenser coil to help restore proper heat exchange and improve cooling performance. Designed as a direct-replacement assembly for easy swap-out on compatible units. What it does:

• Condenses refrigerant vapor back to liquid by releasing heat to outside air
• Supports overall cooling efficiency; a damaged coil can reduce cooling or cause longer run times
• Helps prevent refrigerant flow restrictions caused by bent or leaking coil tubes
• Works with the condenser fan and compressor as part of the outdoor refrigeration system

• One outdoor coil assembly

• Turn off power and follow lockout/tagout procedures before servicing
• Handle coil fins carefully to avoid bending; use proper tools for brazing or line connection
• Verify system leak-free and recharge to OEM refrigerant specifications after installation

This foam insulator fits on the coil side to cushion, seal and protect the evaporator area—helping reduce vibration, prevent rubbing, and maintain proper airflow around the coil for more consistent cooling performance. What it does

• Cushions the evaporator coil to prevent vibration and rattling noises
• Seals gaps around the coil to help direct airflow where needed
• Protects coil edges from abrasion against adjacent components
• Helps reduce moisture migration that can cause ice buildup in the coil area

• Disconnect power to the appliance before beginning any work
• Access may require removing the evaporator cover or interior panels
• Fit the foam to the coil edge and adjacent frame; replace if torn or compressed

A rubber compressor grommet that cushions the compressor and helps reduce vibration and noise for more stable, quieter operation. Fits over compressor mount studs to isolate the compressor from the cabinet frame. What it does:

• Absorbs and isolates compressor vibration to reduce rattling and noise
• Prevents metal-to-metal contact between compressor and mounting plate
• Helps protect mounting hardware and compressor casing from wear
• Commonly used when noise, vibration, or movement is noticed around the compressor area

• Disconnect power to the appliance before servicing to avoid shock hazard
• Access the compressor from the rear panel; support the compressor when removing mounts
• Replace any additional worn grommets or mounting hardware for best results

This plug base pan is the metal mounting pan that secures the appliance's power plug/terminal assembly and helps protect wiring from heat and debris. It restores a stable mounting surface for the power connection. What it does:

• Provides a secure mounting surface for the power plug/terminal assembly
• Helps protect wiring and connections from heat, grease, and debris
• Prevents the power plug from shifting or rubbing against other components
• Worn or damaged pans can expose wiring or cause poor electrical seating

• One plug base pan

• Disconnect all power at the breaker or unplug the appliance before beginning work
• Access typically requires removing the appliance back panel or console; keep track of fasteners
• Inspect wiring and terminal hardware while replacing the pan; replace any damaged connectors

Thermistor monitors internal appliance temperature and sends readings to the control board so the system can maintain proper cooling and cycle behavior reliably. What it does:

• Detects temperature and reports it to the control board so cooling, fans and cycles respond correctly.
• Helps the appliance maintain consistent temperatures and prevents overcooling or excessive runtime.
• A faulty thermistor can cause temperature fluctuations, an appliance that runs constantly or not long enough, or uneven cooling.
• Works as the temperature-sensing component used by the control system to regulate performance.

• Disconnect power before servicing to avoid shock or injury.
• Note connector orientation and wire routing before removal; handle the sensor leads gently to avoid damage.
• Seat the connector fully and secure any clips or mounting points so the sensor sits in the correct location.

This thermistor holder secures the refrigerator temperature sensor in the correct position so the control board reads accurate air/evaporator temperatures for consistent cooling performance. What it does:

• Holds the temperature sensor/thermistor in place near the evaporator or air duct so the control can monitor temperature.
• Helps ensure accurate temperature readings to prevent overcooling or insufficient cooling.
• Stabilizes sensor location to reduce intermittent or false temperature signals.
• Commonly associated with symptoms like erratic temperature display, long run cycles, or uneven cooling when the sensor is loose or damaged.

• One thermistor holder/mounting bracket.

• Disconnect power to the appliance before servicing to avoid shock.
• Handle the thermistor/sensor carefully; do not pull on wires or bend the sensing element.
• Ensure the sensor is fully seated in the holder and that the holder is secured in its mounting location.
