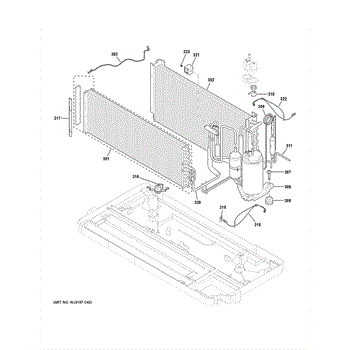

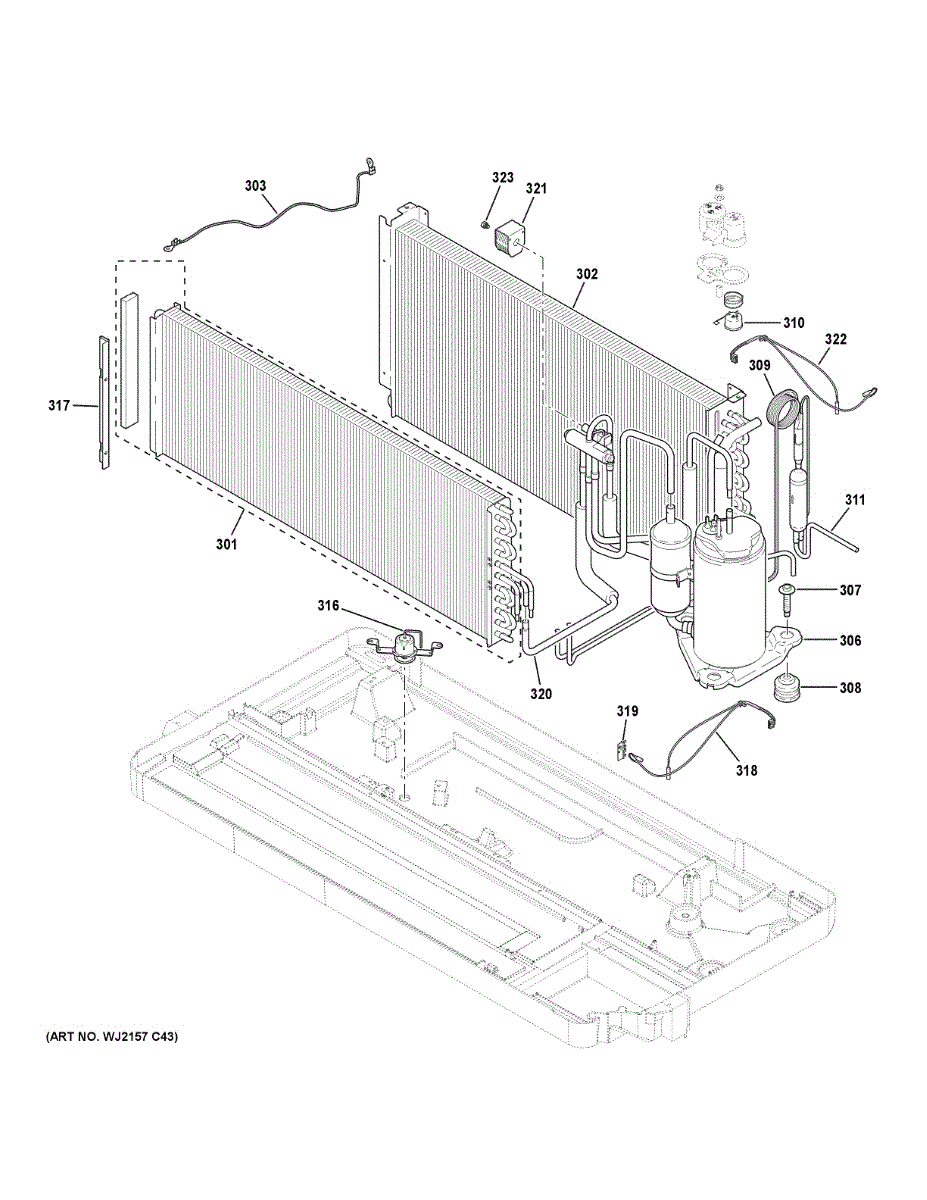

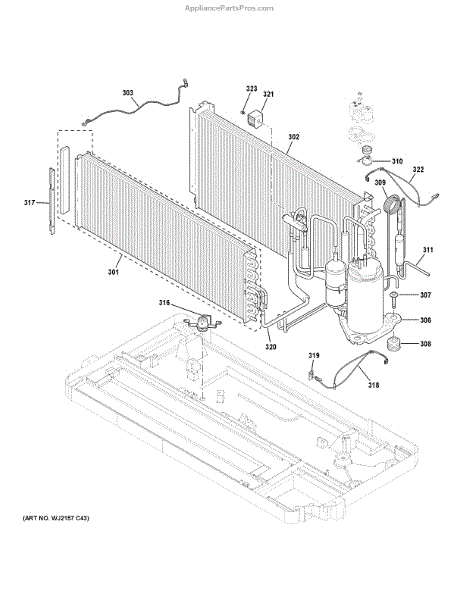

Parts for Ge AZ65H07DACW2: Sealed System Parts

This ground harness is a replacement wire assembly that restores a secure chassis ground connection, helping prevent electrical faults and ensuring safe operation of the appliance. Fits where a factory ground lead is damaged or missing. What it does:

• Provides a dedicated grounding path between the appliance chassis and ground point to reduce risk of shorts and electrical shock.
• Restores continuity when the original ground lead is corroded, cut, or has a loose terminal.
• Helps stop intermittent power issues or tripped breakers caused by poor grounding.
• Prevents arcing and overheating at compromised ground connections.

• Disconnect power to the appliance (unplug or shut off breaker) before starting work.
• Verify the harness routing and terminal locations match the appliance before fastening.
• Use proper-size terminals and secure all connections to clean, bare metal grounding points.
• Replace damaged or missing mounting hardware or terminals with OEM-specified parts.

A rubber compressor grommet that cushions the compressor and helps reduce vibration and noise for more stable, quieter operation. Fits over compressor mount studs to isolate the compressor from the cabinet frame. What it does:

• Absorbs and isolates compressor vibration to reduce rattling and noise
• Prevents metal-to-metal contact between compressor and mounting plate
• Helps protect mounting hardware and compressor casing from wear
• Commonly used when noise, vibration, or movement is noticed around the compressor area

• Disconnect power to the appliance before servicing to avoid shock hazard
• Access the compressor from the rear panel; support the compressor when removing mounts
• Replace any additional worn grommets or mounting hardware for best results

Thermistor monitors internal appliance temperature and sends readings to the control board so the system can maintain proper cooling and cycle behavior reliably. What it does:

• Detects temperature and reports it to the control board so cooling, fans and cycles respond correctly.
• Helps the appliance maintain consistent temperatures and prevents overcooling or excessive runtime.
• A faulty thermistor can cause temperature fluctuations, an appliance that runs constantly or not long enough, or uneven cooling.
• Works as the temperature-sensing component used by the control system to regulate performance.

• Disconnect power before servicing to avoid shock or injury.
• Note connector orientation and wire routing before removal; handle the sensor leads gently to avoid damage.
• Seat the connector fully and secure any clips or mounting points so the sensor sits in the correct location.

This thermistor holder secures the refrigerator temperature sensor in the correct position so the control board reads accurate air/evaporator temperatures for consistent cooling performance. What it does:

• Holds the temperature sensor/thermistor in place near the evaporator or air duct so the control can monitor temperature.
• Helps ensure accurate temperature readings to prevent overcooling or insufficient cooling.
• Stabilizes sensor location to reduce intermittent or false temperature signals.
• Commonly associated with symptoms like erratic temperature display, long run cycles, or uneven cooling when the sensor is loose or damaged.

• One thermistor holder/mounting bracket.

• Disconnect power to the appliance before servicing to avoid shock.
• Handle the thermistor/sensor carefully; do not pull on wires or bend the sensing element.
• Ensure the sensor is fully seated in the holder and that the holder is secured in its mounting location.
