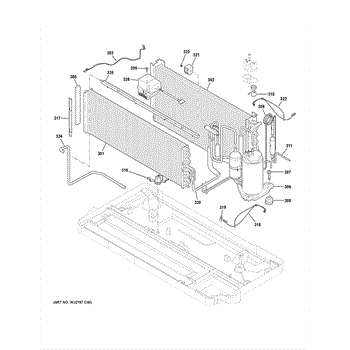

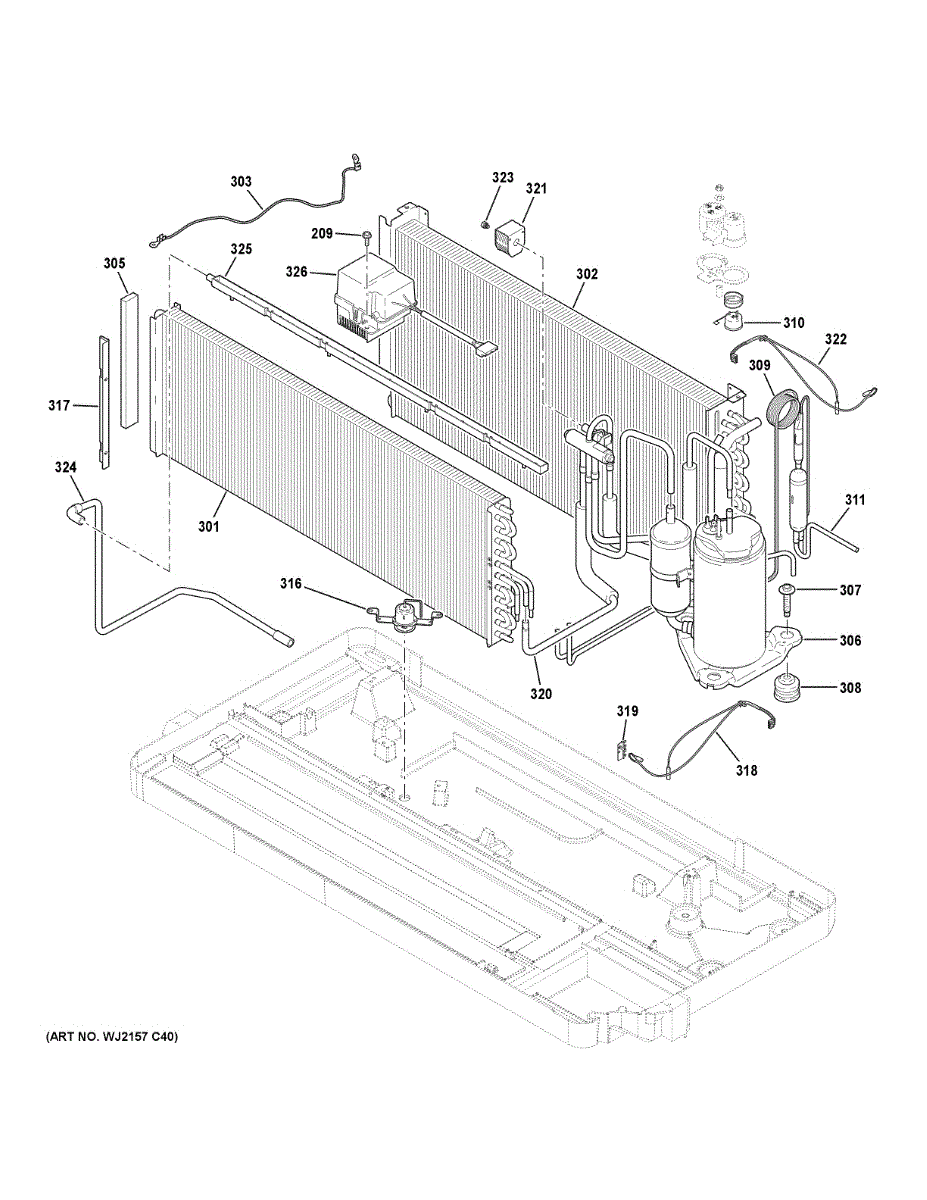

Parts for Ge AZ65H15DADW1: Sealed System Parts

This is a small mounting screw used in air conditioner assemblies. It secures internal components or panels in place to maintain structural integrity. Replace this screw if it is stripped, missing, or damaged during servicing, which can cause loose panels or rattling noises.

This ground harness is a replacement wire assembly that restores a secure chassis ground connection, helping prevent electrical faults and ensuring safe operation of the appliance. Fits where a factory ground lead is damaged or missing. What it does:

• Provides a dedicated grounding path between the appliance chassis and ground point to reduce risk of shorts and electrical shock.
• Restores continuity when the original ground lead is corroded, cut, or has a loose terminal.
• Helps stop intermittent power issues or tripped breakers caused by poor grounding.
• Prevents arcing and overheating at compromised ground connections.

• Disconnect power to the appliance (unplug or shut off breaker) before starting work.
• Verify the harness routing and terminal locations match the appliance before fastening.
• Use proper-size terminals and secure all connections to clean, bare metal grounding points.
• Replace damaged or missing mounting hardware or terminals with OEM-specified parts.

This foam insulator fits on the coil side to cushion, seal and protect the evaporator area—helping reduce vibration, prevent rubbing, and maintain proper airflow around the coil for more consistent cooling performance. What it does

• Cushions the evaporator coil to prevent vibration and rattling noises
• Seals gaps around the coil to help direct airflow where needed
• Protects coil edges from abrasion against adjacent components
• Helps reduce moisture migration that can cause ice buildup in the coil area

• Disconnect power to the appliance before beginning any work
• Access may require removing the evaporator cover or interior panels
• Fit the foam to the coil edge and adjacent frame; replace if torn or compressed

Fix an air conditioner that won't cool or runs constantly with this compressor kit. Includes components for a complete compressor replacement.

A rubber compressor grommet that cushions the compressor and helps reduce vibration and noise for more stable, quieter operation. Fits over compressor mount studs to isolate the compressor from the cabinet frame. What it does:

• Absorbs and isolates compressor vibration to reduce rattling and noise
• Prevents metal-to-metal contact between compressor and mounting plate
• Helps protect mounting hardware and compressor casing from wear
• Commonly used when noise, vibration, or movement is noticed around the compressor area

• Disconnect power to the appliance before servicing to avoid shock hazard
• Access the compressor from the rear panel; support the compressor when removing mounts
• Replace any additional worn grommets or mounting hardware for best results

Stops your air conditioner when the compressor overheats or draws excessive current. Protects the refrigeration system from electrical damage.

Fix water leaking from your air conditioner with a new thermostatic drain valve. Controls condensate drainage to prevent overflow and water damage.

Air conditioner not cooling properly or running constantly? The thermistor monitors temperature and signals the control board. Direct fit replacement part.

Fix inconsistent cooling or temperature swings by replacing the thermistor holder that secures your air conditioner's sensor in the proper position.

Fix an air conditioner that won't cool properly or cycles on and off frequently with this outdoor thermistor. Common repair for temperature sensing issues.
