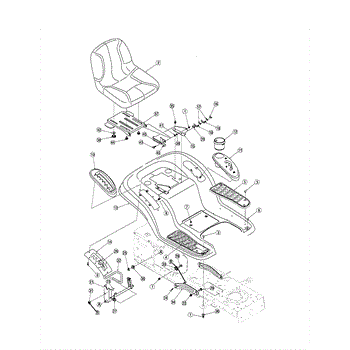

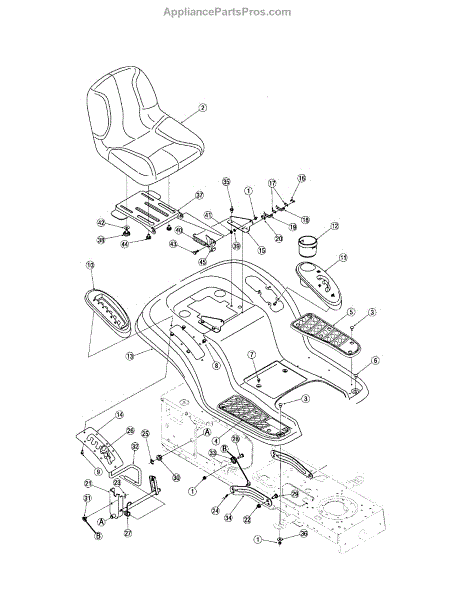

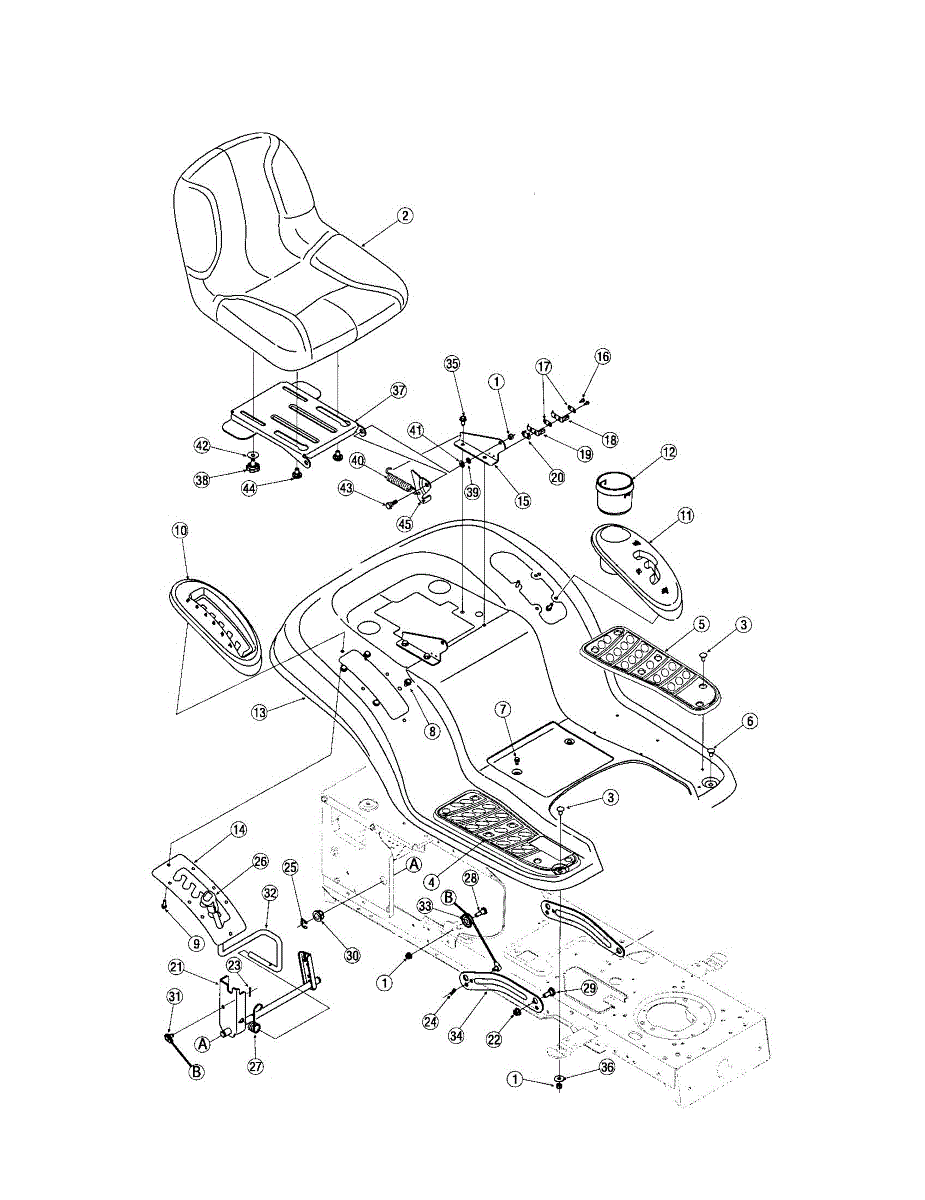

Parts for Troy-Bilt 13AJ609G766: Seat Assembly Parts

Flange lock nut secures components on mowers and outdoor power equipment. Replace if stripped, corroded, or missing to restore proper fastening.

Replacement seat for lawn tractors and riding mowers. Installs on the operator platform. Needed when original seat is cracked, torn, or broken.

Replacement seat for lawn tractors and riding mowers. Installs on the operator platform. Needed when original seat is cracked, torn, or broken.

Universal wiring harness assembly for lawn tractors and garden tractors. Replace damaged, frayed, or corroded wiring harnesses to restore connections.

Ratchet fastener for lawn mowers and tractors. Secures components in place. Replace if broken, stripped, or missing to properly fasten parts together.

This carriage bolt is a self-locking fastener made for use in round or square holes to attach metal to metal in outdoor equipment. These bolts provide an added safety feature because they can only be removed from one side. Carriage bolts can carry a large amount of weight, which makes them ideal for use in outdoor yard equipment. Carriage bolts may be used to attach a lawn mower's arm to the side support and other similar applications. If the bolt needs to be replaced, removal and installation are simple. Use a wrench to loosen the nut holding the washer and bolt in place. Once the nut is loose, the bolt can be unthreaded by hand and pulled out of the hole. To install, push the bolt back through the hole. If the fit is too tight to install by hand, use a hammer to tap it in place. Reinstall the washer and nut and tighten with a wrench.This carriage bolt is designed for use in lawnmowers, snowblowers, and lawn tractors manufactured by Craftsman, Bolens, Yard Machines, Yard-Man, and MTD. This is a genuine OEM product that comes directly from the manufacturer. Note: It does not come with a nut or washer.

Wheel rim for lawn tractors and walk-behind mowers. Mounts between tire and axle. Replace if cracked, bent, corroded, or missing for proper wheel assembly.

Hex screw fastener for securing lawn mower components. Replace if stripped, rusted, or missing to ensure proper assembly and equipment stability.

Fastening screw for lawn tractors and mowers. Secures components together. Replace if stripped, missing, or damaged during maintenance or repairs.

This is a versatile screw designed with flanged hex head and double-lead threads. It is a high-low self-tapping screw with one thread that is high and the other low for easier penetration. The twin threads also reduce the amount of material displaced when the screw is driven into the material. This type of screw also creates a firmer grip. This screw can also be used to secure a newly installed front cover or grill. This part is available as an individual replacement part. It is a genuine OEM part for use with specific models of snow throwers, lawn tractors, electric mowers, chippers, and log splitters from Bolens, Cub Cadet, Craftsman, Poulan, Ryobi, Toro, MTD, Troy-Bilt, Yard Machines, and Yard-Man.

Hex washer head screw for lawn equipment. Secures components and panels. Replace if stripped, missing, or corroded for proper assembly and fit.

Insulator plate for lawn tractors and riding mowers. Installs between components to reduce vibration and noise. Replace if cracked, worn, or missing.

Spring switch for lawn tractors and riding mowers. Mounts near the switch button. Replace if worn, broken, or damaged from regular use over time.

This actuator spring is a genuine MTD part, sold individually. This actuator spring can be used as a replacement part in a lawn mower. The purpose of the actuator spring, also known as a seat spring switch, in a lawn mower is to provide a plate upon which the seat switch can conduct its electrical current while being held stably in place.If the actuator spring slides out of place and cannot be reinstalled or if it is bent, broken, dented, or worn beyond repair, it should be removed and replaced by this genuine OEM replacement part.Sourced directly from the manufacturer, this component is a genuine replacement part that is sold individually. This actuator spring is compatible with the following outdoor appliance brands: MTD, Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard Man, Turf King, and MasterCut.

Insulator plate for lawn tractors and riding mowers. Mounts between engine components to provide heat insulation and proper spacing. Replace if cracked or worn.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

This replacement part is a cotter pin. It is a genuine replacement part made by MTD. Cotter pins are also sometimes known as clevis pins and are responsible for fastening two metals together. This allows the machine to work properly and operate smoothly. A new cotter pin might be needed if the current ones are damaged in any way or even missing. This part is small so it can be misplaced after years of normal wear and tear. It is possible that this part become stripped or lodged in place over time. The repair should be fairly easy and only require common tools. Be sure the engine is completely powered down before beginning this repair. This pin is sold individually. This is a genuine OEM replacement part sourced directly from the manufacturer to ensure a proper fit.

E-ring retaining clip for lawn tractors and riding mowers. Secures components on shafts and axles. Replace when missing, bent, or worn for proper fit.

Replace your cracked, worn, or missing lawn mower grip handle. This control handle installs on the handlebar to help you safely operate your machine.

Torsion spring for lawn tractors and riding mowers. Replaces broken, worn, or missing springs in deck assemblies and mechanical linkages.

Hex flange bearing supports rotating shafts in riding mowers and tractors. Replace when you notice grinding noise or rough rotation. Verify fit with your model.

Deck lift cable for lawn tractors and riding mowers. Connects lift lever to mowing deck. Replace if cable is frayed, connectors are worn, or damaged.

Idler pulley roller guides and tensions mower deck belts. Replace if worn, cracked, or causing belt slippage. Verify fit with your model number.

Deck lift arm for lawn tractors. Installs on the mower deck height adjustment mechanism. Replace if arm is bent, cracked, or broken for smooth operation.

Seat pivot bracket allows angle adjustment for operator comfort on riding mowers. Replace if cracked, broken, or worn. Installs between seat and frame.

Replacement seat adjustment knob for lawn tractors and riding mowers. Installs on the seat assembly to control position. Order if original is cracked or missing.

Extension spring for lawn tractors and riding mowers. Replace this spring if it's broken, stretched, worn, or missing to restore proper tension.
