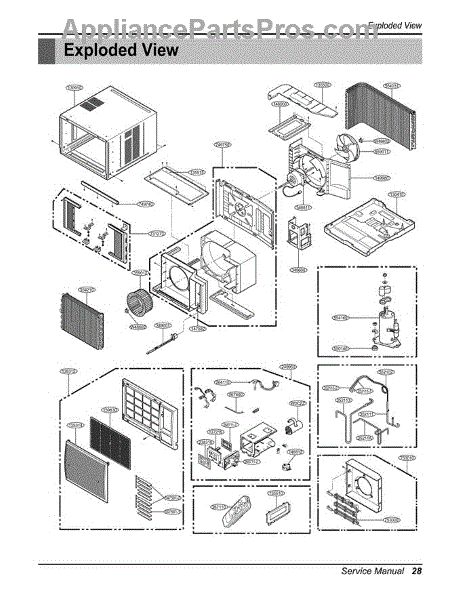

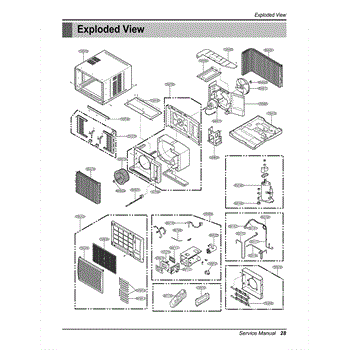

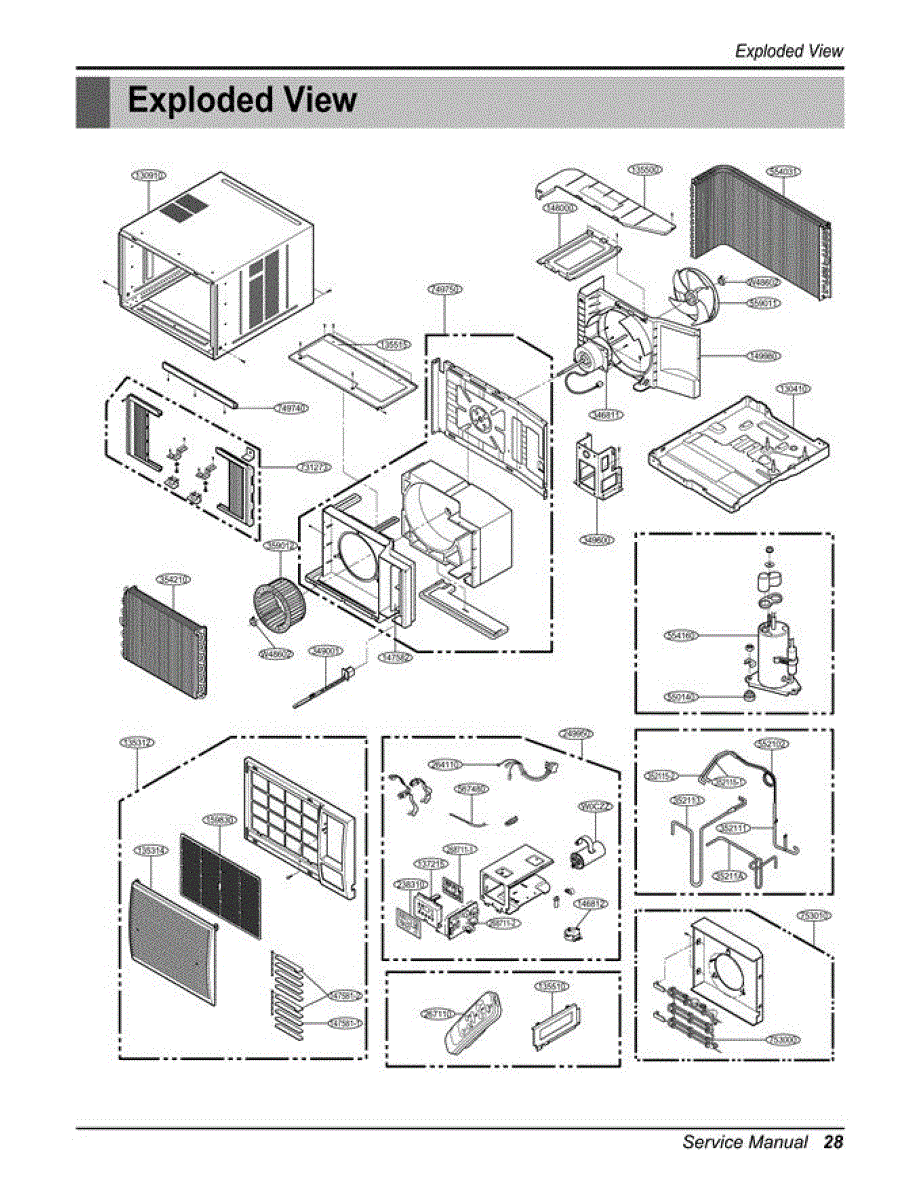

Parts for Lg LWHD2400HR / AWYAHDP: Section 1 Parts

This clamp secures a line or connection inside your appliance, maintaining a tight fit under vibration. Replacing a fatigued clamp helps prevent leaks or disconnections and keeps components anchored so the system operates reliably.

• Holds a line/fitting firmly to keep the joint sealed and secure
• Helps prevent leaks or disconnections at hose/tube connections
• Resists vibration that can loosen fittings during operation
• Replace if bent, weakened, or corroded, or if the connection repeatedly loosens

• Disconnect power and, if applicable, shut off water supply before service
• Note clamp orientation and routing; seat the clamp just behind the fitting bead/stop
• Use the correct tool for your clamp style to compress or tighten evenly
• After reassembly, restore utilities and test for leaks or movement

This AC motor is the electric drive component that powers the appliance's moving parts, restoring mechanical motion and normal operation when the original motor fails. Designed as a direct-fit replacement when the model's motor is worn or nonfunctional. What it does:

• Converts electrical input into rotational motion to drive the appliance's moving components
• Commonly used to restore operation when the appliance won't run, makes unusual noises, or stops turning
• Replaces a failed or intermittently working motor to eliminate grinding, humming, or no-spin symptoms
• Works with the appliance's existing mounts and electrical connector

• One AC motor assembly

• Disconnect power before servicing to avoid shock or injury
• Handle connectors and wiring carefully; secure wiring and mounts per original configuration

This air cleaner filter assembly replaces the refrigerator's air filtration module to help keep interior air fresher and reduce common food odors. It restores the filter housing and sealing surface so the filtration element works as intended. What it does:

• Holds and seals the refrigerator air filter cartridge to direct airflow through the filter media
• Helps capture food odors and airborne particulates inside the fresh food compartment
• Restores proper fit when a damaged or missing housing causes bypass or poor sealing
• Supports normal airflow for the fridge's air circulation system

• Unplug the appliance or disconnect power before servicing
• Locate the filter assembly per your owner's manual; remove the old assembly before installing the replacement
• Verify the filter cartridge seats fully and the housing gasket compresses for a proper seal

This power cord assembly delivers mains power to the appliance and restores a reliable electrical connection. Designed as a direct-replacement cord to replace a damaged or worn power lead and restore normal operation. What it does:

• Re-establishes the appliance's connection to household mains power.
• Replaces frayed, melted, or broken cord insulation and damaged plug ends.
• Helps stop intermittent power loss or overheating at the cord connection.
• Restores proper grounding where a grounded cord is required.

• Disconnect power at the outlet or breaker before servicing.
• Verify cord routing and strain relief match the original installation.
• Inspect connectors and cabinet entry for damage; replace strain relief or terminal block hardware if worn.

This remote controller assembly replaces a malfunctioning TV remote control PCB and housing to restore infrared/IR command transmission and on-unit button control. Ideal when the remote stops responding or buttons become unresponsive. What it does:

• Replaces the internal PCB and button assembly that sends IR signals to the TV.
• Restores remote control functions like power, volume, channel, and input selection.
• Helps resolve symptoms such as no response from the remote, intermittent commands, or stuck/non-working buttons.
• Works with the existing remote cover and batteries if those components are reused.

• Disconnect power to the TV and remove batteries from the remote before replacing the assembly.
• Use appropriate small screwdrivers and keep track of screws and clips; handle the PCB by its edges to avoid damage.
• Reassemble carefully, insert fresh batteries, and test all functions after installation.

This capillary tube assembly controls refrigerant flow in the sealed refrigeration system, helping maintain proper cooling performance. It's a small-diameter tubing assembly used where precise pressure drop is required inside the system. What it does

• Metering section for refrigerant to regulate pressure and flow into the evaporator
• Helps maintain stable evaporator coil temperatures for consistent cooling
• Faulty or damaged tube can contribute to poor cooling, frost irregularities, or system performance loss
• Used as part of the sealed refrigerant circuit; typically replaced when damaged or during matched component repair

• One capillary tube assembly

• Sealed-system work may require certified refrigerant handling and vacuum/recharge equipment
• Disconnect power before beginning any service and follow safety guidance for sealed-system repairs
• Inspect related fittings and valves for leaks; replace any damaged components to ensure a proper seal

The Blower Wheel Assembly is an OEM part for LG room air conditioners. It is responsible for circulating air throughout the room as part of the cooling process.

The multi-bladed wheel works by propelling air down and out of vents to promote air mixing and heat exchange. Over continuous summers of operation, the fan motor, housing, and plastic blades become susceptible to breakdown.

Symptoms of a bad blower wheel assembly include:

• Airflow reduction impacting the ability to cool a space
• Louder operation as bearings and blades deteriorate
• Vibration transferring to the overall unit structure

Causes can be poor blade alignment inhibiting balance, cracked housings exposing components to moisture, or weakened fan motor winding insulation.

This OEM LG replacement ensures optimized circulation for comfortable, efficient cooling. It is also compatible with some Sears/Kenmore and Kenmore-branded air conditioners.

The Thermistor Assembly is an OEM part for LG air conditioners. It is typically located near the evaporator coil or in the air intake area of the unit. It measures the ambient temperature and sends signals to the control board to adjust the cooling output accordingly.

Causes of a faulty or malfunctioning thermistor assembly can include normal wear and tear, exposure to extreme temperatures, or electrical issues. These factors can lead to inaccurate temperature readings, improper cooling performance, or erratic behavior of the air conditioner.

Symptoms of a bad thermistor assembly may include:

• Inconsistent cooling or insufficient cooling
• Inaccurate temperature display on the control panel
• Frequent cycling on and off of the compressor

This OEM LG part can also be used on Kenmore/Sears appliances.

This installation kit includes the manufacturer-specified hardware used to secure and align an appliance during setup. Use it to replace missing or damaged install hardware and restore a safe, stable, factory-correct fit in the opening. What it does:

• Provides required mounting hardware for proper installation
• Helps prevent shifting, rocking, or tipping when the appliance is used
• Aids in correct alignment and spacing within the cabinet/opening
• Replaces lost or damaged original install parts

• One installation kit

• Disconnect power (and gas/water, if applicable) before starting
• Follow your model's installation instructions for bracket locations and fasteners
• Use appropriate anchors for wall/floor material as specified by the manufacturer
• After installation, verify the unit is level and securely anchored

This Guide Assembly, Air is an OEM part designed specifically for LG air conditioning units. Its primary function is to facilitate proper airflow direction and distribution within the air conditioning system, ensuring optimal cooling or heating performance.

Over time, this part may encounter issues due to extended usage or physical damage, leading to potential misalignment or restriction of airflow. Moreover, the accumulation of dust, dirt, or debris within the assembly can impede its functionality, ultimately affecting the unit's overall efficiency.

Symptoms indicating a bad guide assembly, air include:

• Inadequate cooling or heating output
• Uneven air distribution across the room
• Unusual sounds emanating from the air conditioning unit during operation
• Visible signs of damage or misalignment in the guide assembly

This OEM LG part is also compatible with some Sears/Kenmore models.
