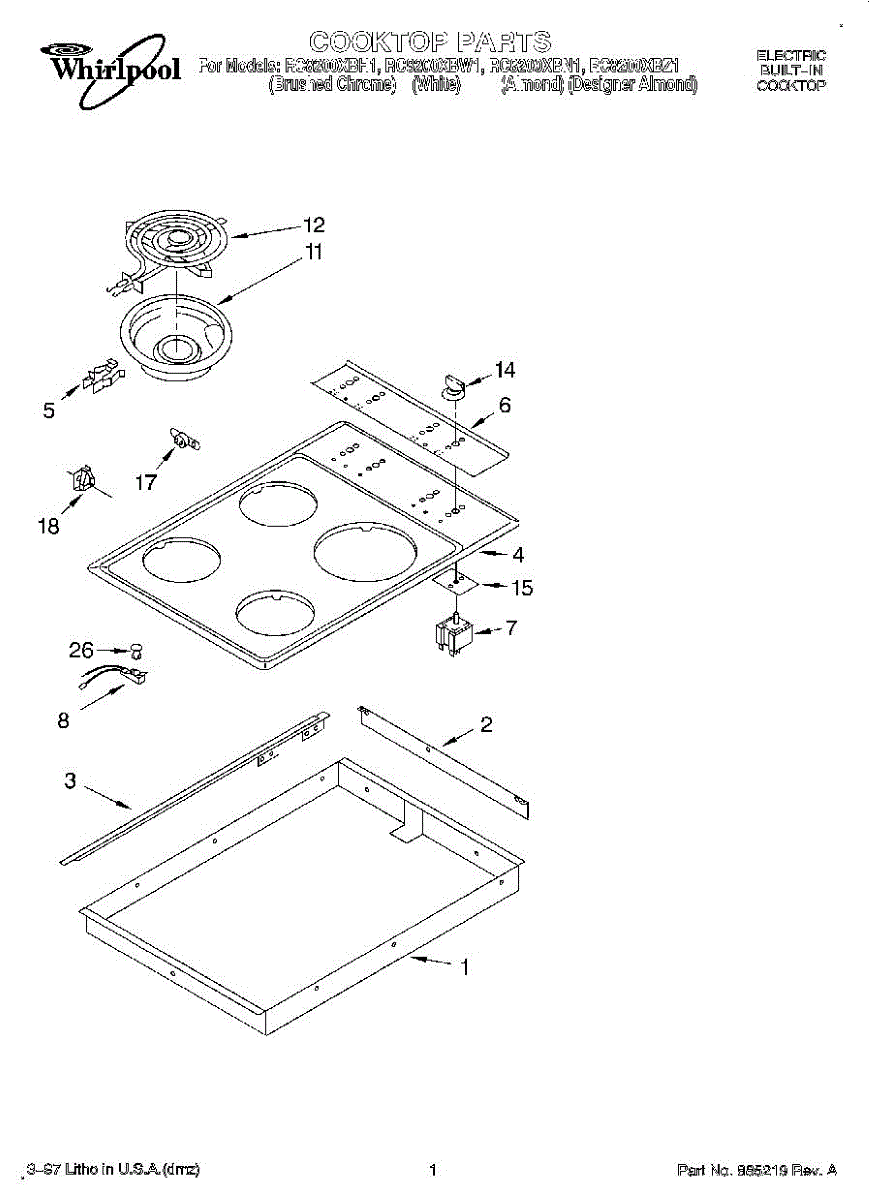

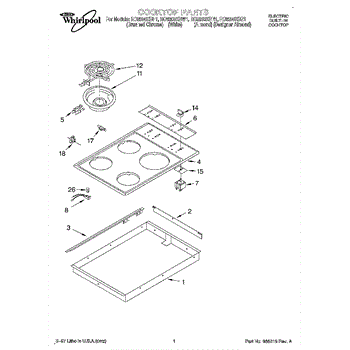

Parts for Whirlpool RC8200XBW1: 01 - Section Parts

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

Size: 6-32 x 9/32 inch.

Metal mounting bracket that secures the receptacle kit to your range. Replace this structural bracket if it's bent, broken, or missing during installation.

Used on the 6" element. Silver shaft

Loose or missing dishwasher door latch? This latch knob screw secures the knob to its shaft, restoring firm operation. Quick 5-minute fix.

The Drip Pan (LG) is an OEM replacement part for Whirlpool ranges and ovens. It is a durable metal tray designed to catch any spills, drips, or boil-overs that may occur during the cooking process, helping to keep the oven cavity clean and preventing potential messes or smoke from burnt-on spills.

Symptoms of needing to replace the drip pan include:

• Warping or discoloration from excessive heat exposure
• Cracks or breaks in the pan material
• Difficulty sliding the pan in and out of its designated position

Causes of a drip pan failure can include general wear and tear from repeated use and high temperatures, physical damage from impact or abrasion, or corrosion or deterioration due to exposure to acidic food spills or cleaning agents.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For 6-inch drip bowl order W10196406RW

Shallow metal pan that sits below burner elements to catch grease and food spills. Replace when cracked, rusted, discolored, or warped for easier cleanup.

Shallow metal drip pan installs below burner elements to catch grease and spills. Replace when discolored, rusted, warped, or damaged for a clean cooktop.

Burner won't heat or heats unevenly? This 6 inch surface element restores consistent cooking temperatures. Simple plug-in replacement takes minutes.

Surface element not heating or won't turn on? This 8-inch coil burner fits ranges and cooktops. Simple plug-in replacement takes under 5 minutes.

Seals and cushions the switch bracket mounting area on your cooktop. Replace if worn to prevent moisture and debris intrusion. Confirm fit with your model.

This fixed thermostat monitors and limits temperature to protect the appliance's system and components. It's a simple, non-adjustable sensor/limit switch used where a set cutoff temperature is required for safe operation. What it does:

• Opens or cuts power when the monitored temperature reaches its fixed limit to prevent overheating
• Helps stop continuous heating cycles caused by a failed control or sensor
• Commonly used as a safety cutoff in temperature-control circuits
• Can resolve symptoms like persistent overheating, failure to stop heating, or temperature-related shutdowns

• One fixed thermostat (single unit)

• Disconnect power before inspecting or replacing the thermostat to avoid shock or damage
• Handle gently; avoid bending terminals or stressing sensing elements

Factory rivet fastener secures panels, brackets, and trim on cooktops and ranges. Replace worn, missing, or drilled-out rivets to restore alignment.

Specs: 25ft, 14 Ga. 150 c Black

Specs: 25ft, 14 Ga. 150 c Blue

Specs: 25ft, 14 Ga. 150 c Brown

Specs: 25 ft, 14 Ga., 150 c Green

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Yellow 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 200~c)

Hardware kit for securing cooktop to countertop. Includes mounting brackets and fasteners. Replace if brackets are bent, screws stripped, or missing.

Specs: 25ft,14 Ga., 200 c Brown

10-24 x 1/2 inch mounting screw for securing appliance panels, handles, brackets, and internal components. Replace lost, stripped, or damaged screws.

This ground wire provides a safe chassis connection to restore proper grounding and reduce shock and electrical-fault risk. It replaces a frayed, corroded or missing ground lead to help keep the appliance electrically safe. What it does

• Connects the appliance chassis to the grounding system to prevent stray voltage on metal surfaces
• Restores a secure ground path if the original wire is broken, loose, or corroded
• Helps stop intermittent power faults or nuisance tripping caused by a compromised ground
• Addresses symptoms like visible wire damage, loose ground connection points, or grounding-related electrical issues

• One ground wire

• Always disconnect power (unplug or shut off the circuit breaker) before starting work
• Attach the ring/terminal ends to the designated chassis ground screw and the equipment ground point
• Route the wire away from moving parts, heating elements, and sharp edges; secure with existing clips or fasteners
• If terminal hardware is missing or damaged, replace with equivalent OEM-style fasteners and torque to specification

Size: 10-32 x 1/2 inch.
