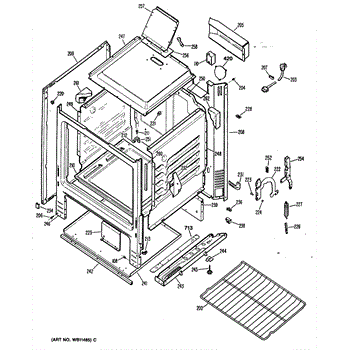

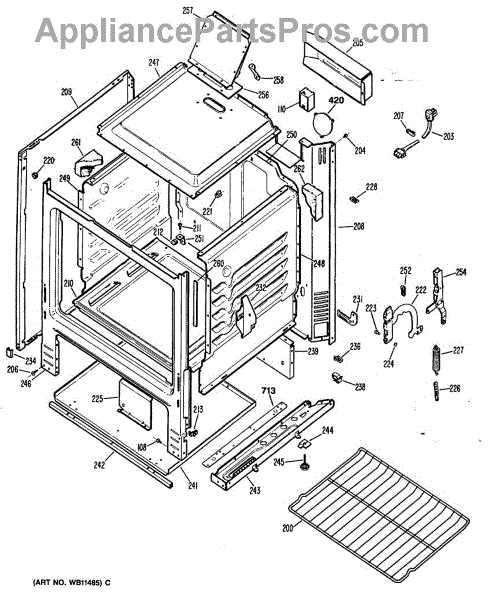

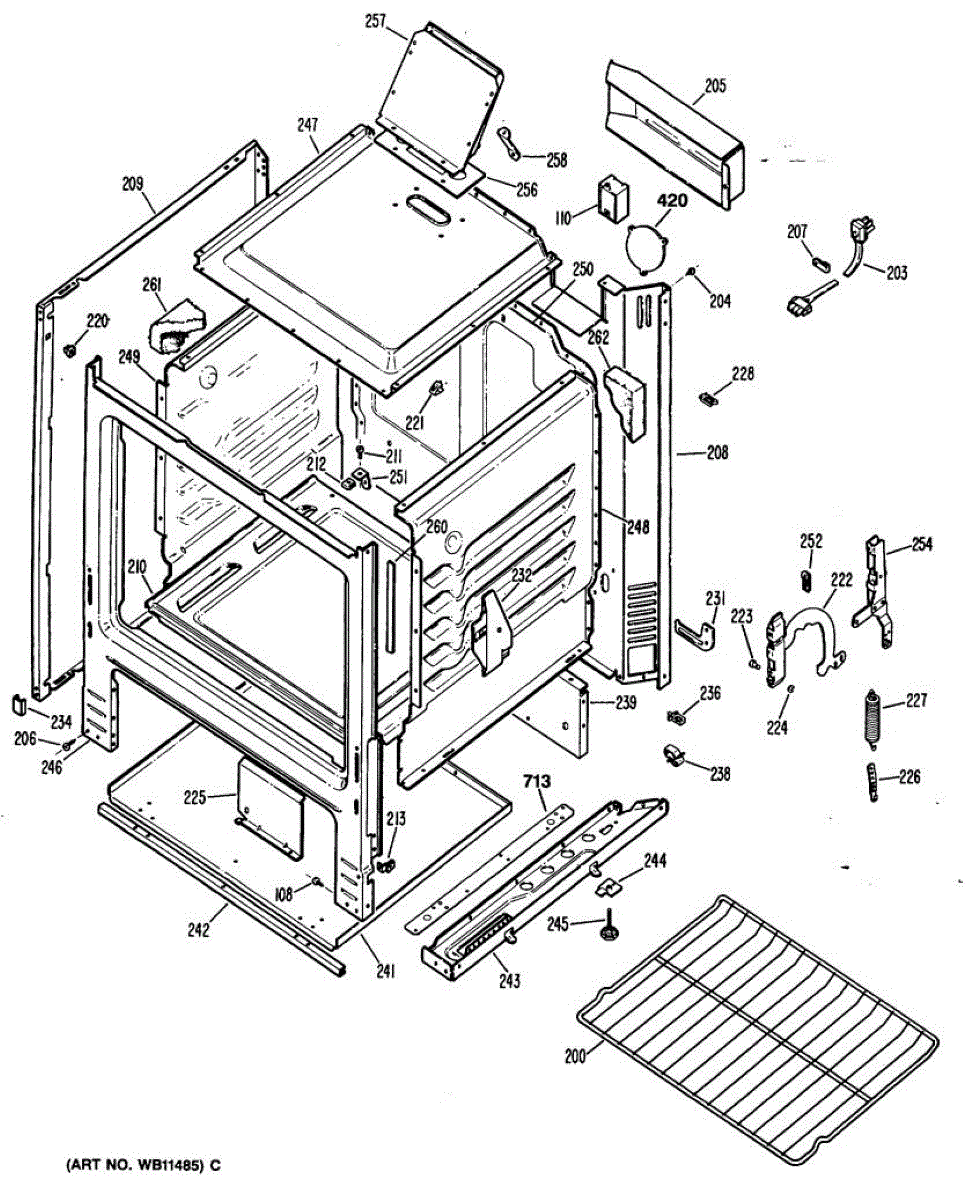

Parts for Ge JGBS02EN1: 02 - Section2 Parts

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

The Oven Rack is an OEM part for GE ranges, providing a sturdy and reliable platform for baking and roasting a variety of dishes. Its design allows for easy placement and removal from the oven, offering flexibility in cooking heights and accommodating different sizes of bakeware.

Causes of a bad Oven Rack can range from excessive weight being placed on the rack, exposure to high moisture levels leading to rust, or simply the age-related wear and tear that comes from regular use.

Symptoms of a bad Oven Rack include:

• Warping or bending, which can prevent the rack from sitting level in the oven and affect cooking performance.
• Rust or corrosion, which can weaken the rack's structure and potentially contaminate food.
• Difficulty sliding the rack in and out, which may indicate damage or misalignment.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Package of 12

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Size: 10-32 GXTT FLP.595 S

This cable clamp secures the appliance power cord where it enters the cabinet, protecting wiring from pull and chafe for safer, more reliable operation. Designed to hold the cord firmly in place and prevent accidental disconnection. What it does:

• Acts as a strain relief to prevent the power cord from pulling into or away from the appliance
• Protects wiring from abrasion and sharp edges at the entry point
• Helps maintain a secure electrical connection to reduce intermittent power issues
• Commonly used where the cord passes through a rear or bottom access panel

• Disconnect power before inspecting or replacing the clamp to avoid shock or injury
• Install at the cord entry so the clamp captures the cord jacket; tighten fastener securely but do not over-torque
• Verify the cord is correctly routed and not pinched when reassembling panels
• If any wiring or the cord jacket is damaged, replace the cord before restoring power

Size: 8-18 x 1/2 inch.

This capillary clip secures the oven thermostat's sensing bulb/capillary to the cavity wall so it stays correctly positioned for accurate temperature control. Replace a missing or damaged clip to prevent a sagging bulb and erratic oven performance.

• Holds the thermostat capillary tube/sensing bulb in place inside the oven
• Helps maintain consistent temperature regulation by keeping the bulb properly located
• Direct replacement for a broken, corroded, or missing clip
• Symptoms include a loose or dangling bulb, uneven baking, or temperature swings

• Disconnect power (and gas, if applicable) and allow the oven to cool completely
• Access the oven cavity; locate the thermostat sensing bulb and capillary along the wall or back panel
• Position the bulb/capillary and secure with the new clip; avoid kinking or crushing the tube
• Restore power, and test operation

This oven door hinge assembly controls the door's movement and keeps it sealed against the frame. Replacing a worn hinge restores smooth opening and a tight close, helping maintain temperature and consistent cooking performance.

• Provides spring-assisted pivot to support the oven door during opening and closing
• Maintains alignment and helps the door stay fully closed against the gasket
• Direct replacement for bent, weak, or broken hinges
• Common symptoms: door won't close fully, drops or slams open, sits uneven, squeaks, or allows heat to escape

• Disconnect power and allow the oven to cool completely before servicing
• Remove the door; engage hinge locks or insert hinge pins and support the door while lifting it off
• Springs are under tension—use caution and wear gloves/eye protection
• After replacement, check door alignment and gasket seal; many replace both hinges together for even operation

Clip for door hinge.

This anti-tip arm is a metal safety bracket that helps secure a freestanding range to the floor or wall to reduce the risk of the appliance tipping forward. It provides a simple, passive safeguard that improves kitchen safety. What it does:

• Anchors the range to help prevent forward tipping when a heavy load is placed on the open oven door
• Reduces rocking or shifting of the appliance during normal use
• Addresses the symptom of a range moving forward when the door is opened or when the cooktop is bumped
• Works as a passive restraint that engages when the range is tilted forward

• One anti-tip arm

• Follow the appliance manufacturer's instructions and local codes for proper attachment location and method
• Installation may require lifting or tilting the range; have a second person assist for safety
• Verify the mounting surface is suitable for secure fastening and use appropriate fasteners
• Disconnect power and ensure the appliance is stable and cool before positioning or fastening the bracket

This is the right side hinge guard. For left side use WB34K4.

This is the left side hinge guard. For right side use WB34K3.

Right hand side

This angle support is a small metal mounting bracket that stabilizes and secures components inside the appliance, helping keep shelves, panels, or assemblies aligned for reliable operation and safe use. What it does:

• Provides structural support for interior panels, shelves, or trim to prevent sagging or misalignment
• Holds assemblies in the correct position to reduce rattling and vibration during use
• Restores proper fit and clearance when a bent or broken bracket causes shifting
• Works with fasteners to anchor components where a right-angle connection is needed

• Inspect surrounding parts and fasteners; replace any damaged screws or clips as needed
• Use the correct size fastener and torque to avoid stripping or cracking adjacent parts
• Disconnect power and follow manufacturer safety guidelines before working near electrical components

Right hand side

This oven felt seal fits around the door perimeter to cushion the door and help reduce heat loss. It restores the intended door clearance and soft contact between the oven door and frame for safer, quieter operation. What it does:

• Cushions the oven door edge to prevent metal-on-metal contact and reduce rattling
• Helps limit heat and smoke from escaping the oven cavity when the door closes
• Restores proper door clearance to prevent scraping or uneven sealing
• Commonly replaced when felt is worn, compressed, torn, or missing

• One oven felt seal as shown

• High-level replacement; remove the oven door or open hinge per your service manual before replacing the seal
• Work with the oven powered off and fully cooled; disconnect power for safety
• Press the felt into the channel or adhesive area; ensure even fit around the full perimeter

The Insulation Oven Wrap is an OEM part for GE ovens. This wrap is designed to insulate the oven cavity, maintaining consistent internal temperatures and improving energy efficiency. It also helps protect surrounding cabinetry and components from heat damage.

Causes of a bad insulation oven wrap can include degradation over time due to high temperatures, physical damage during oven maintenance, or exposure to moisture. Compromised insulation can lead to heat loss and uneven cooking results.

Symptoms of a bad Insulation Oven Wrap include:

• Increased oven heat-up times
• Uneven cooking or baking results
• External oven surfaces becoming excessively hot
• Higher energy consumption

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
