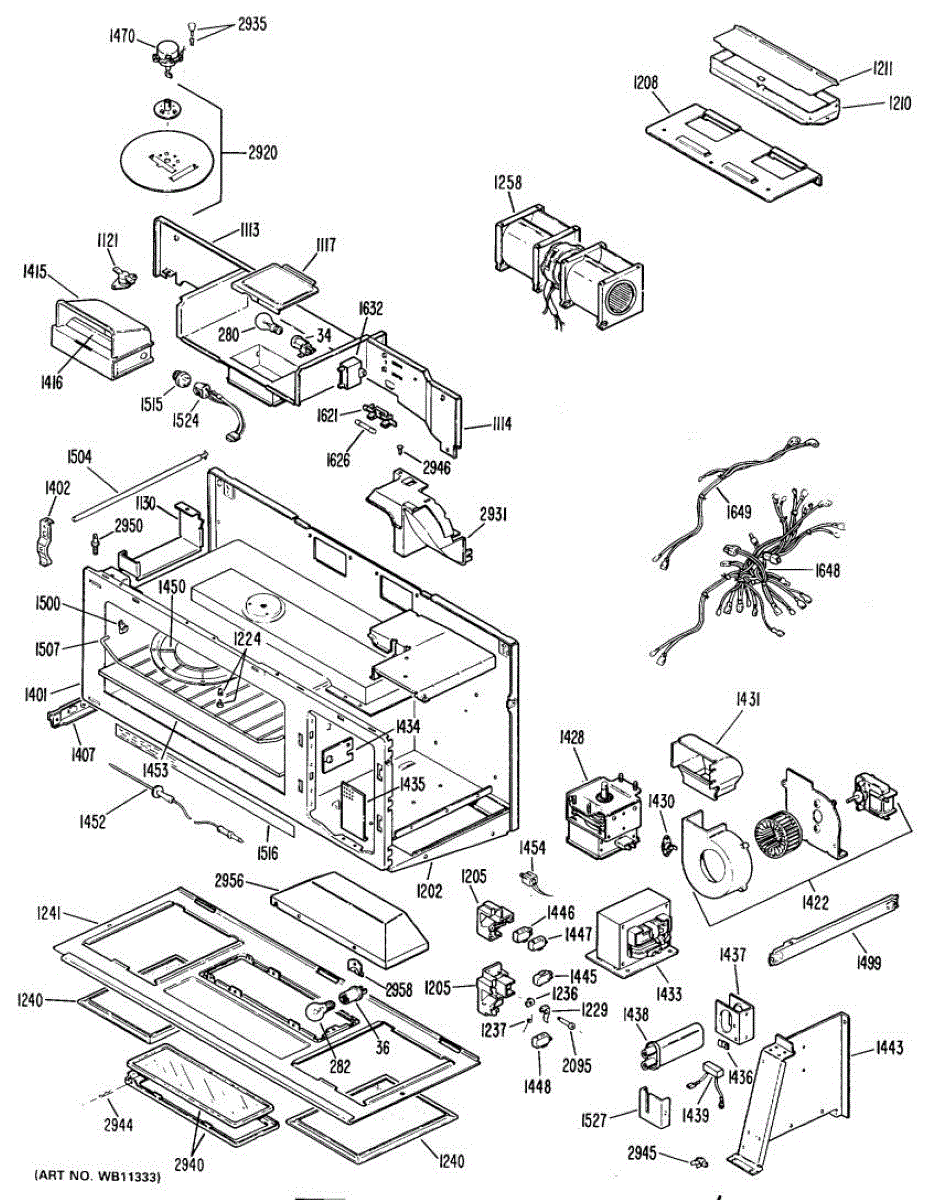

Parts for Ge JVM150H01: 02 - Section2 Parts

Illuminates your microwave interior for monitoring food during cooking. Replace when bulb burns out or dims. Verify fit with your model number before ordering.

Illuminates your microwave interior for monitoring food during cooking. Replace when bulb burns out or dims. Verify fit with your model number before ordering.

Color: metallic. Measures about 7 inches wide by 10 inches deep.

Shaft mounting guide bracket for microwaves. Installs inside the cabinet to support and align the motor shaft. Replace if bent, cracked, or missing.

Microwave not heating or heating unevenly? A failed magnetron is the likely cause. This high-voltage tube generates microwave energy to cook food.

Fix a microwave that won't heat or hums but doesn't start. This capacitor stores energy for the high-voltage circuit. Moderate DIY repair, 30-60 minutes.

Microwave not heating or humming loudly? The high-voltage diode converts AC to DC for the magnetron. Repair takes 30-45 minutes with basic tools.

Microwave won't stop running or starts when door closes? A faulty door switch is likely the cause. This safety switch is a 45-minute DIY fix.

Microwave won't stop running or starts when door closes? A faulty door switch is likely the cause. This safety switch is a 45-minute DIY fix.

This is the menu code label that mounts on the appliance control panel to identify oven/menu functions and guide operation. A clear, legible label helps you read and select the correct settings for normal use. What it does:

• Displays menu and function codes on the control panel so users can identify settings.
• Restores legibility when the original label is faded, worn, or missing.
• Helps reduce user errors by clearly marking control options.
• Passive part — no electrical or mechanical function.

• Power off the appliance and ensure the control panel surface is clean and dry before replacing the label.
• Peel and stick or align per original placement; press firmly to secure. Use gentle heat if adhesive is stiff.
• Do not attempt to operate the appliance if the control assembly is damaged; replace damaged components per manufacturer guidance.

Microwave won't power on or heat? A blown 15 amp fuse is often the cause. Requires removing unit from cabinet and outer cover to access and replace.

Fixes microwaves with motors that start slowly or make abnormal noise. This run capacitor stores electrical energy to help motors start and run smoothly.

This small terminal pin connects a wire to an appliance's electrical terminal, restoring a secure electrical connection so components receive reliable power and operation. Ideal for repairing loose or damaged wire terminations. What it does:

• Provides a secure metal contact point for a wire at a terminal or connector
• Restores proper electrical continuity when a terminal end is worn, bent, or broken
• Helps eliminate intermittent power, arcing, or component failures caused by poor connections
• Used wherever a single-pin wire termination is required on the appliance harness

• Disconnect power before servicing to avoid shock or injury
• Remove the damaged terminal and ensure the replacement pin matches shape and size
• Crimp or seat the pin per OEM guidance; ensure a snug, corrosion-free connection
• If wiring or harness insulation is damaged, replace the harness
