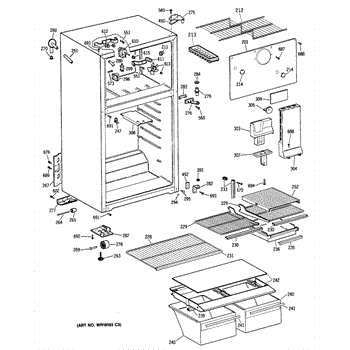

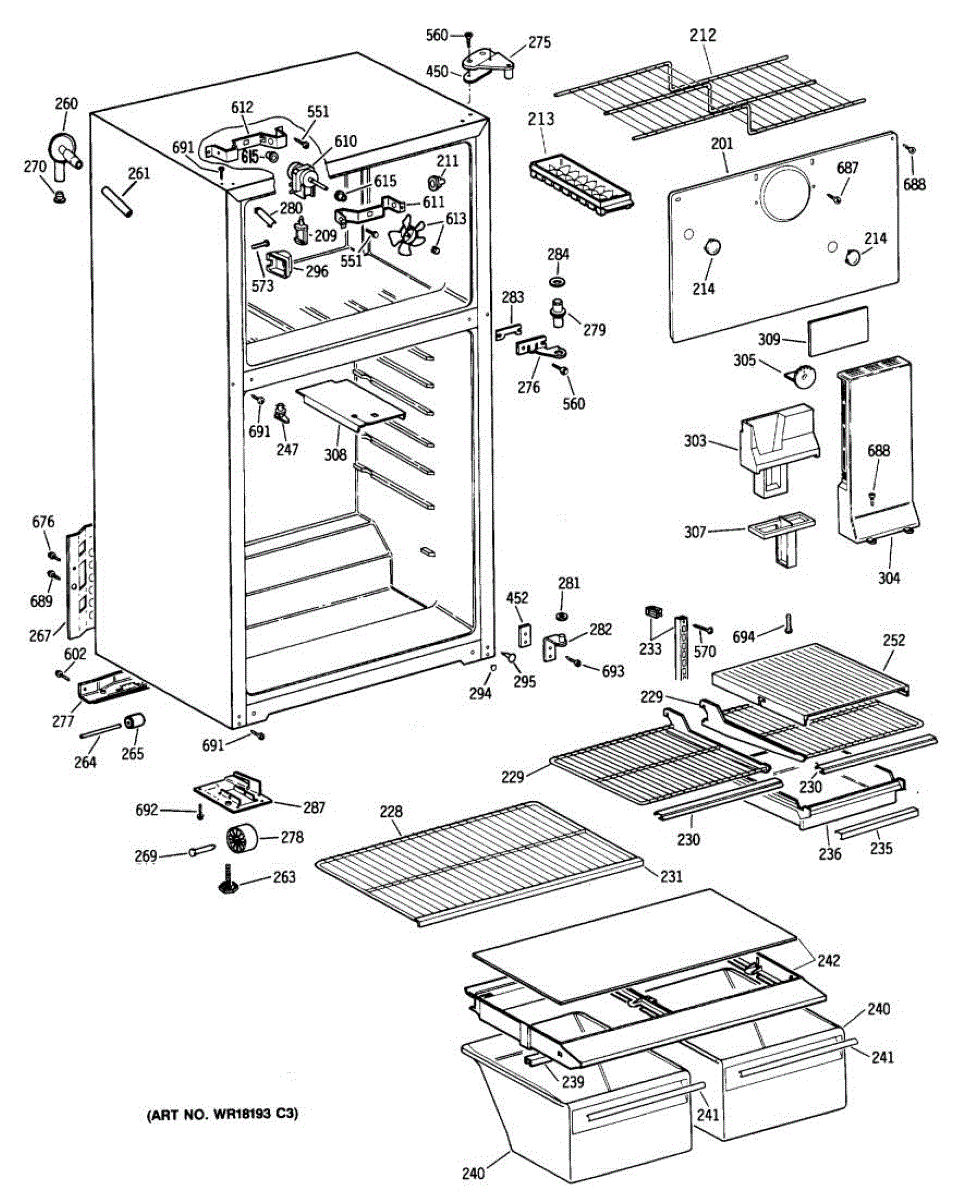

Parts for Ge TBE16DATJRAD: 02 - Section2 Parts

This OEM-style support secures internal components to restore proper alignment and stability. Use it to replace a cracked or worn support so shelves, drawers, and mounted parts stay in place and stop shifting or rattling. What it does:

• Stabilizes and supports internal appliance components to maintain proper alignment.
• Replaces cracked, broken, or worn supports that cause sagging, shifting, or rattling.
• Restores mounting points so shelves, drawers or panels sit and operate correctly.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Basic hand tools are typically required; you may need to remove adjacent trim or shelves for access.
• Inspect surrounding mounting points and clips; replace any additional damaged hardware.

The Freezer Shelf is an OEM replacement part for GE freezers. This shelf provides storage throughout the freezer compartment. It measures approximately. 25" x 12".

Causes of a bad freezer shelf can include cracked or broken steel from overloading, corrosion from moisture exposure over years of use, or damage from impact.

Symptoms of a faulty shelf include:

• Visible cracks, breaks, or fractures in the steel
• Shelves that cannot adequately bear the weight of frozen items
• Missing or detached shelf mounting fasteners
• Sharp edges or projections creating a safety concern

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Shelf is an OEM part for GE refrigerators. It provides a stable and durable surface for storing food and other items within the refrigerator. The shelf is designed to fit seamlessly into the refrigerator's interior, maximizing space and organization. It measures approximately 25 inches wide by 14 inches deep.

Over time, the shelf can become damaged due to heavy loads, accidental impacts, or regular wear and tear. If you notice cracks, chips, or instability in the shelf, it is important to replace it to ensure safe and effective storage.

Symptoms of a bad shelf include:

• Cracks or visible damage
• Difficulty in keeping items stable
• Reduced storage capacity due to instability

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This support rail VP cover replaces a worn or damaged trim piece on the refrigerator support rail, restoring a finished look and helping keep items properly seated. Fits where the support rail meets the cabinet trim. What it does

• Covers and protects the end of the support rail trim from chips and wear
• Helps keep shelves or bins aligned and from sliding past the rail
• Restores the original finished appearance of the rail area
• Commonly replaced when cracked, broken, or missing after impact

• One support rail VP cover

• Basic snap-on or screw-in installation; match orientation before securing
• Turn off and empty the affected shelf/bin area for safer access
• Inspect mating rail and fasteners for damage; replace any broken clips

The Lower Crisper Drawer is an OEM part for GE refrigerators. It is designed to provide a dedicated space for fruits and vegetables. This drawer helps in maintaining the right humidity levels to extend the freshness and life of your produce. With its clear design, it allows for easy visibility of its contents, enabling quick access without the need to open the drawer fully.

A malfunctioning or damaged crisper drawer can result from several factors, including overloading the drawer beyond its capacity, which can lead to cracks or breaks, or regular wear and tear over time. Additionally, mishandling during cleaning or storage adjustments can also cause damage.

Symptoms of a bad Lower Crisper Drawer include:

• Difficulty in sliding the drawer in or out
• Cracks or damage that can lead to improper sealing or difficulty in maintaining humidity levels
• Visible warping that affects the drawer's fit within the refrigerator

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This part has been discontinued and is no longer available.

Color: white. Measures about 26 inches wide by 20 inches deep.

This small donut-shaped gasket fits where specified in your refrigerator's parts diagram to create a tight seal between mating components. Replacing a worn gasket helps stop minor leaks and restore a secure fit.

• Forms a tight seal at the designated joint or fitting
• Helps prevent seepage or drips from a compromised connection
• Replaces a brittle, cracked, flattened, or missing original gasket
• Supports proper assembly alignment and a snug fit

• Unplug the refrigerator and, if servicing the water system, shut off the water supply
• Note the gasket's original placement and orientation before removal
• Clean mating surfaces; lightly moisten the new gasket to ease seating
• Reassemble without overtightening; restore power/water and check for leaks

The Grommet and Gasket Assembly is an OEM part for GE refrigerators. It is designed to create a secure seal around various refrigerator components, preventing air leaks and ensuring efficient operation. This assembly typically includes both the grommet and gasket, which work together to maintain the refrigerator's internal temperature and prevent moisture and contaminants from entering.

You should replace the grommet and gasket assembly if it becomes worn out or damaged. Causes of a bad grommet and gasket assembly can include regular wear and tear, exposure to temperature fluctuations, or physical damage that leads to cracks or deformities. A compromised seal can result in inefficient cooling and increased energy consumption.

Symptoms of a bad grommet and gasket assembly include:

• Air leaks around the refrigerator door or components
• Increased energy bills due to inefficient cooling
• Frost or condensation buildup inside the refrigerator
• Difficulty in maintaining the desired temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This leveling leg supports and stabilizes the refrigerator cabinet. Adjusting it keeps the unit level so doors align and seal correctly, helping reduce vibration and noise for smoother, more reliable performance.

• Threads into the base to support and level the appliance
• Allows height adjustment for proper door alignment and gasket contact
• Helps reduce rocking, vibration, and rattling noises
• Resolve issues like doors not closing fully, uneven gaps, or a wobbly cabinet

• Disconnect power and move the appliance carefully to access the leg
• Use a helper and protect flooring; tip the unit slightly and support it securely
• Unthread the old leg; hand-thread the new leg, then adjust as needed with a wrench
• Level front-to-back and side-to-side; avoid cross-threading or overtightening

This rear mobility wheel replaces a worn or broken wheel on the back of your refrigerator, restoring smooth rolling movement so you can pull the unit out safely for cleaning, servicing, or leveling without dragging or floor damage.

• Mounts to the rear base/roller bracket to support and roll the refrigerator for positioning or service
• Replace if the wheel is cracked, missing, flat-spotted, or seized
• Common symptoms: unit is hard to move, scrapes the floor, sits unevenly, or makes grinding noises when moved
• Helps maintain proper cabinet support during movement

• Disconnect power and turn off the water supply before servicing
• Protect flooring and use a helper—appliances are heavy and can tip
• Access the rear base area; remove the old wheel and install the new wheel using the existing hardware
• After re-positioning, re-level the refrigerator per the owner's manual

The GE access cover is an OEM replacement part responsible for covering the compressor area on a refrigerator. This panel is located on the rear or bottom of the refrigerator and provides easy access to the compressor and condenser coils and prevents dirt and debris from entering the compressor area. When this part becomes damaged, it can lead to issues such as poor cooling performance, excessive noise from the compressor area, or even compressor overheating.

Symptoms of a bad access cover include:

• Visible cracks, breaks, or deformation in the cover
• Difficulty in securing the cover properly in place
• Increased dust or debris buildup inside the refrigerator
• Exposed internal components

Causes of a bad access cover can include accidental impacts, wear and tear from frequent removal and reinstallation, and environmental factors like temperature fluctuations or moisture exposure.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 washers.

This Door Spacer positions the refrigerator door components with the correct clearance so the door swings smoothly and sits level. Replacing a worn spacer can restore alignment, reduce rubbing or squeaks, and help maintain proper gasket contact.

• Maintains proper spacing and alignment of the door assembly
• Helps the door open and close smoothly, reducing friction and wear
• Can address issues like door rubbing, squeaking, or not sitting level
• Supports consistent gasket contact for a reliable seal

• Unplug the refrigerator before servicing
• Support the door and remove the necessary hardware to access the spacer location
• Note spacer orientation; install the new spacer and reassemble
• Adjust hinges if needed

This pack contains twelve replacement screws used to fasten appliance panels, trim, and components. They restore secure mounting and help stop rattling, loose panels, and gaps for a safer, quieter appliance. What it does:

• Secures exterior and interior panels, brackets, and trim pieces
• Restores proper fit where missing or stripped screws cause movement or noise
• Helps maintain appliance alignment and prevents parts from vibrating loose
• Used for general-purpose repairs on compatible GE appliances

• Disconnect power or unplug the appliance before performing any internal repairs
• Use the correct screwdriver bit and avoid overtightening to prevent stripping threads
• Keep remaining screws in a labeled container for future service
• If a screw does not seat easily, stop and verify correct fit to avoid damage

The duct foam assembly insulates and seals the refrigerator's air duct to keep cold air moving efficiently between compartments. Replacing worn or missing foam helps restore airflow control, reduce moisture at the vent, and stabilize temperatures.

• Seals the air duct to prevent warm-air leaks and maintain proper airflow
• Insulates the duct to help keep fresh-food temperatures consistent
• Helps reduce condensation or frost forming around the vent area
• Typical indications include temperature swings, a warm fresh-food section, moisture/frost near the duct, or visibly damaged/missing foam

• Disconnect power to the refrigerator before servicing
• Remove interior shelves/panels as needed to access the air duct; note foam orientation before removal
• Clean the mounting surface; seat new foam fully and evenly to create a complete seal—do not obstruct a damper door or sensor if present
• Restore power and verify airflow and sealing around the vent

The Evaporator Motor is an OEM part for GE refrigerators. This air circulation is essential for maintaining the set temperature within the refrigerator and freezer compartments, ensuring your food stays fresh and frozen items remain solid.

Causes of a bad Evaporator Motor can range from wear and tear over time, which can degrade the motor's components, to electrical issues like short circuits or failed bearings, which can impede the motor's ability to function properly.

Symptoms of a malfunctioning Evaporator Motor include:

• The refrigerator or freezer not cooling adequately
• Unusual noises coming from the refrigerator, indicating the motor may be struggling or has failed
• Frost build-up on the evaporator coils due to insufficient air circulation

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Evaporator Fan Blade is an OEM component for GE freezers and bottom-mount refrigerator designs. Located inside the freezer compartment, this fan blade spins to circulate cold air evenly throughout the storage space.

Causes of a faulty evaporator fan blade include natural fatigue from running year-round. Freezers exposed to humid environments may experience faster corrosion.

Symptoms include:

• Abnormal sounds like knocking or clunking from inside the walls
• cold spots developing in certain freezer areas
• Higher power bills from inefficient temperature regulation
• Frost or ice patches forming on evaporator coils

This part is also compatible with some brands like Hotpoint, RCA, and Kenmore.

The Fan Blade Grommet is an OEM replacement part for GE brand refrigerators. Located behind the evaporator fan blade where its central shaft passes through, this rubber sealing piece creates a protective barrier isolating the fan assembly.

Causes of a potentially problematic fan blade grommet include cracks or deterioration that develop from continuous vibration and impacts over extended use. Exposure to temperature fluctuations can also cause the rubber to harden and lose elasticity.

Symptoms of a faulty fan blade grommet include:

• Airflow obstructions within the duct
• Noisy vibrations from the fan assembly
• Rubber debris collecting on components

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore model refrigerators.

Size: 10-16 ab.

This Hi-Lo truss-head screw secures plastic and sheet-metal components in your refrigerator. Replacing stripped or missing fasteners restores a tight, rattle-free fit and keeps brackets, trim, and covers properly aligned.

• Fastens brackets, panels, trim, covers, and other components to the cabinet or liner
• Hi-Lo thread design grips plastic or thin metal for a strong, reliable hold
• Helps address loose or vibrating parts, rattling noises, and misaligned covers
• Direct replacement for a missing, worn, or damaged mounting screw

• Disconnect power before servicing any appliance
• Support the part being secured to avoid stress or misalignment
• Start the screw by hand to prevent cross-threading; use the correct driver
• Snug firmly but do not overtighten, especially when threading into plastic

Replacement screw that secures panels, trim and internal brackets to keep appliance components stable and rattle-free. Use when originals are missing, stripped, or broken to restore proper fit and safe operation. What it does:

• Secures panels, control housings, trim and small brackets so parts stay aligned and stable.
• Replaces missing or damaged fasteners that cause rattling, vibration, or loose assemblies.
• Keeps electrical and mechanical components properly positioned for reliable operation.
• Intended as a direct replacement where the OEM screw specified for the application is required.

• Disconnect power and unplug the appliance before starting any repair.
• Use the correct screwdriver or bit and seat the screw squarely to avoid stripping the head or threads.
• Do not overtighten—stop when snug to prevent damage to panels or plastic components.
• Keep removed screws organized; replace only with the identical OEM screw for proper fit.

This pack contains twelve replacement screws used to fasten appliance panels, trim, and components. They restore secure mounting and help stop rattling, loose panels, and gaps for a safer, quieter appliance. What it does:

• Secures exterior and interior panels, brackets, and trim pieces
• Restores proper fit where missing or stripped screws cause movement or noise
• Helps maintain appliance alignment and prevents parts from vibrating loose
• Used for general-purpose repairs on compatible GE appliances

• Disconnect power or unplug the appliance before performing any internal repairs
• Use the correct screwdriver bit and avoid overtightening to prevent stripping threads
• Keep remaining screws in a labeled container for future service
• If a screw does not seat easily, stop and verify correct fit to avoid damage
