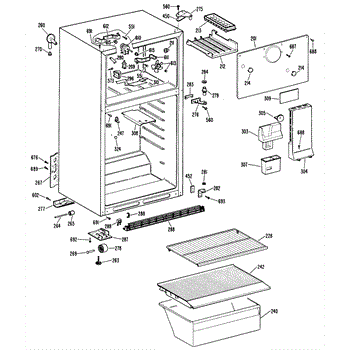

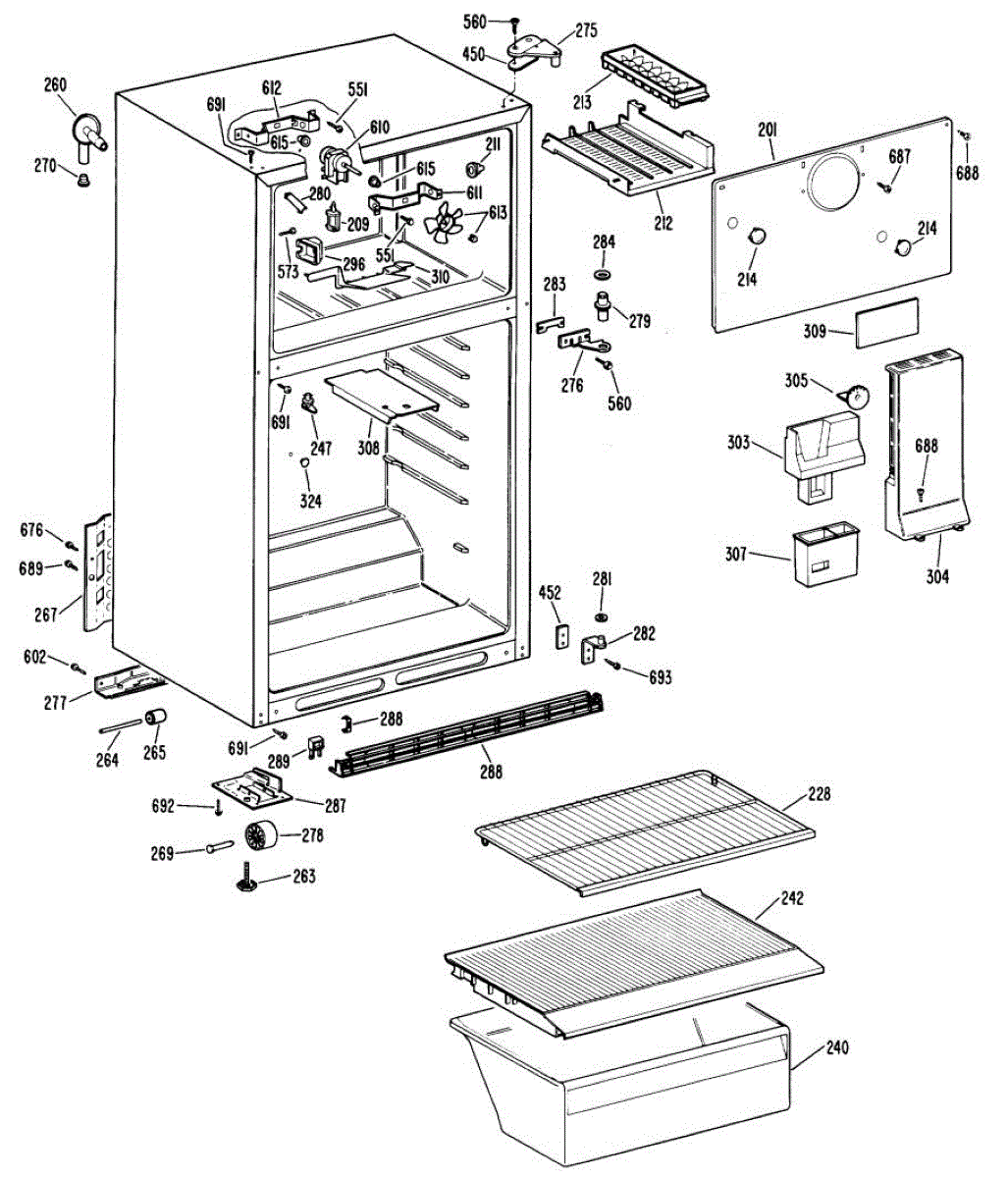

Parts for Ge TBXY14LMDRWH: 02 - Section2 Parts

Wire shelf for refrigerator fresh food section. Provides stable storage surface for organizing food items. Replace if cracked, broken, or missing.

White plastic vegetable crisper drawer pan for top-mount refrigerators. Replace cracked, broken, or missing pans. Stores fruits and vegetables.

Replace your cracked or broken refrigerator crisper drawer cover. This clear plastic shelf fits over vegetable pans to maintain proper humidity levels.

Leveling leg threads into the refrigerator base to support and stabilize the cabinet. Replace if cracked, broken, or worn to keep your unit level.

Rear mobility wheel mounts to the back base of your refrigerator. Replace if worn, cracked, or causing uneven rolling when moving the unit for cleaning.

The GE access cover is an OEM replacement part responsible for covering the compressor area on a refrigerator. This panel is located on the rear or bottom of the refrigerator and provides easy access to the compressor and condenser coils and prevents dirt and debris from entering the compressor area. When this part becomes damaged, it can lead to issues such as poor cooling performance, excessive noise from the compressor area, or even compressor overheating.

Symptoms of a bad access cover include:

• Visible cracks, breaks, or deformation in the cover
• Difficulty in securing the cover properly in place
• Increased dust or debris buildup inside the refrigerator
• Exposed internal components

Causes of a bad access cover can include accidental impacts, wear and tear from frequent removal and reinstallation, and environmental factors like temperature fluctuations or moisture exposure.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Refrigerator plug button that installs in the cabinet or liner. Replace this insert if the original is cracked, broken, missing, or worn from use.

Positions refrigerator door components with correct clearance for smooth swinging and level alignment. Replace if worn, cracked, or missing to restore fit.

Left-hand support gusset plate for top-mount refrigerators. Replaces cracked, broken, or missing structural brackets that secure internal components.

Foam duct that channels airflow between refrigerator compartments. Replace if torn, deformed, broken, or missing to restore proper air distribution.

Insulation foam that protects electrical components in your top-mount refrigerator. Replace if cracked, deteriorated, or missing to maintain proper coverage.

Plastic plug button insert for refrigerator shelves and interior panels. Replaces missing, cracked, or broken plug inserts that leave exposed holes.

Mounting screw for refrigerator interior components and panels. Replace if lost, stripped, or damaged during maintenance. Essential hardware for secure assembly.

The Evaporator Fan Motor Kit is an OEM part compatible with GE refrigerators. It is a critical component responsible for circulating air and maintaining proper airflow within the refrigerator's evaporator system, ensuring efficient cooling and temperature regulation. It features a shaft that measures 3/8 of an inch and two right-side terminals. Notably, the motor no longer comes with harness wires, which must be obtained separately for installation.

Symptoms of a faulty evaporator fan motor include:

• Inconsistent or inadequate cooling in the refrigerator or freezer compartments
• Warm spots or temperature fluctuations within the refrigerator
• Excessive frost buildup or ice accumulation in the freezer

Causes of a bad evaporator fan motor can include wear and tear over time, electrical issues or short circuits, or physical damage from foreign objects or improper maintenance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

Freezer not cooling or making buzzing noise? The evaporator fan blade circulates cold air. Easy DIY fix in under 5 minutes—simply pull off and press on.

The Fan Blade Grommet is an OEM replacement part for GE brand refrigerators. Located behind the evaporator fan blade where its central shaft passes through, this rubber sealing piece creates a protective barrier isolating the fan assembly.

Causes of a potentially problematic fan blade grommet include cracks or deterioration that develop from continuous vibration and impacts over extended use. Exposure to temperature fluctuations can also cause the rubber to harden and lose elasticity.

Symptoms of a faulty fan blade grommet include:

• Airflow obstructions within the duct
• Noisy vibrations from the fan assembly
• Rubber debris collecting on components

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore model refrigerators.

Size: 10-16 ab.

Secures brackets, panels, trim, and covers inside your refrigerator. Replace this screw if stripped, missing, or damaged to restore tight assembly.

Panel mounting screw for refrigerators. Secures access panels, trim pieces, and internal brackets. Replace lost, stripped, or corroded fasteners.

Replacement mounting screw for securing panels, trim, and internal brackets. Needed when original fasteners are missing, stripped, or damaged.

This pack contains twelve replacement screws used to fasten appliance panels, trim, and components. They restore secure mounting and help stop rattling, loose panels, and gaps for a safer, quieter appliance. What it does:

• Secures exterior and interior panels, brackets, and trim pieces
• Restores proper fit where missing or stripped screws cause movement or noise
• Helps maintain appliance alignment and prevents parts from vibrating loose
• Used for general-purpose repairs on compatible GE appliances

• Disconnect power or unplug the appliance before performing any internal repairs
• Use the correct screwdriver bit and avoid overtightening to prevent stripping threads
• Keep remaining screws in a labeled container for future service
• If a screw does not seat easily, stop and verify correct fit to avoid damage
