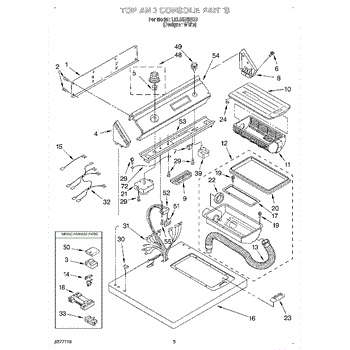

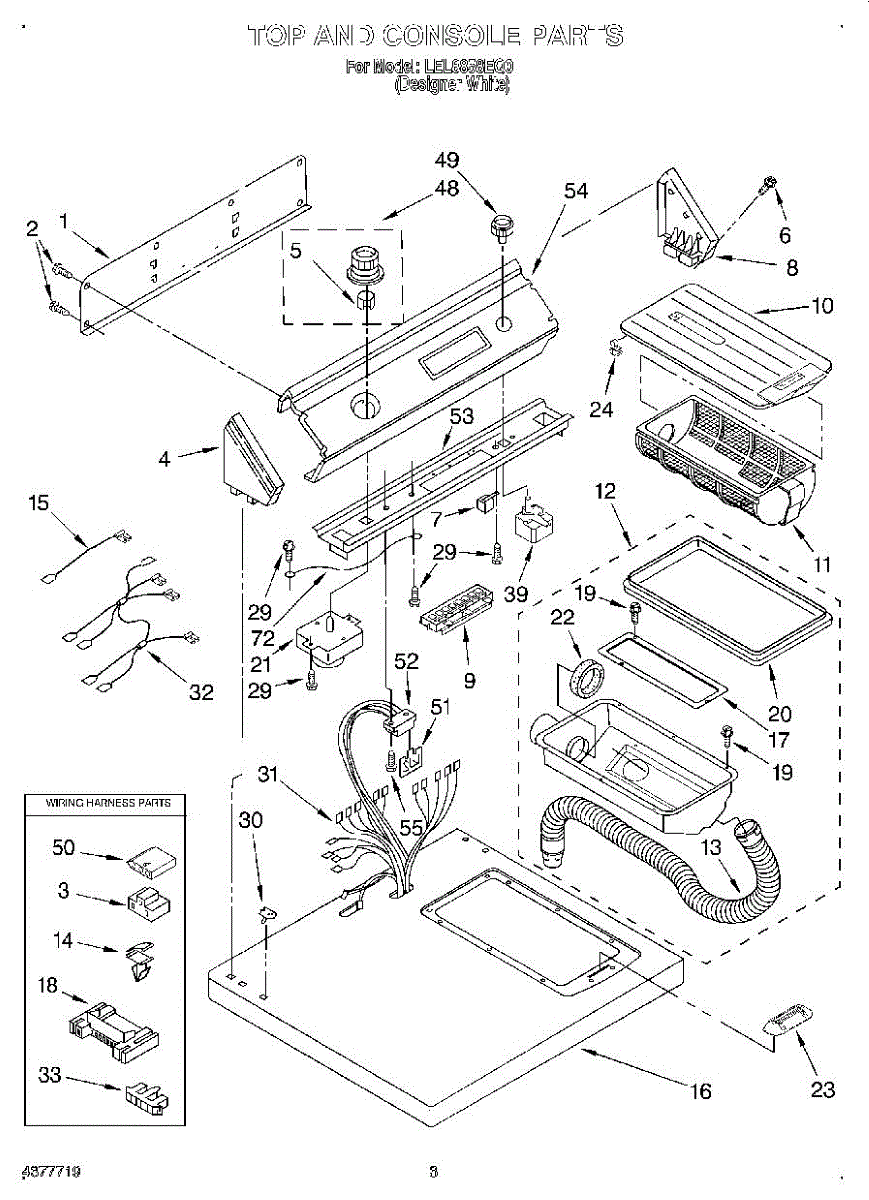

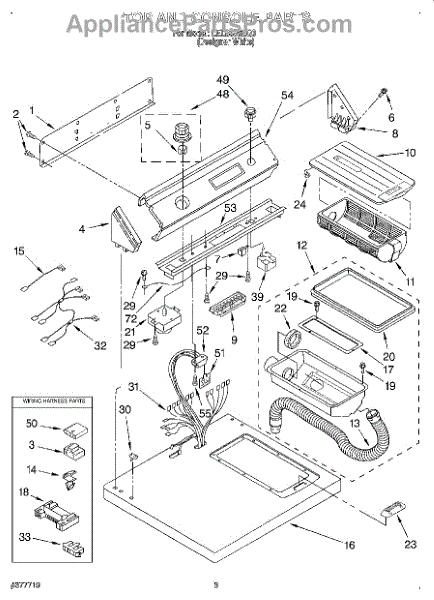

Parts for Whirlpool LEL8858EQ0: 02 - Section Parts

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This connector buzzer wire harness links the appliance control to the buzzer/alert so the unit can emit audible tones for cycle completion and error warnings. Replaces a damaged or corroded buzzer connector to restore alert sounds. What it does:

• Provides the electrical connection between the control board and the buzzer/alert assembly.
• Restores audible beeps or tones when the original connector is loose, broken, or corroded.
• Helps prevent intermittent or no-sound conditions caused by poor connector contact.
• Fits into the existing harness and plugs into the buzzer/board mating connector.

• One connector buzzer wire harness (1 piece).

• Disconnect power to the appliance before inspecting or replacing the connector.
• Unplug the old connector from the buzzer/control; note orientation and routing before removing.
• Plug the replacement connector into the matching buzzer/control socket until it snaps into place.

White. Includes both left and right hand side.

The Clip is an OEM part for Whirlpool dryers. This part secures the control knob to the dryer’s control panel, ensuring it remains firmly attached and functions correctly. The clip helps provide stability and precise control over the dryer settings.

Causes of a bad clip can include regular wear and tear, accidental damage during use, or stress from frequent adjustments.

Symptoms of a bad clip include:

• Knob becoming loose or falling off
• Difficulty turning the knob to adjust settings
• Knob not staying securely in place
• Knob wobbling or feeling unstable

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This console screw secures the control console to the appliance cabinet or top, keeping the panel tight and aligned. Replace a missing or damaged screw to stop panel wobble and rattling and maintain a snug, stable fit. What it does:

• Fastens the control console/control panel to the cabinet or top panel
• Helps maintain alignment and reduces vibration and rattling
• Replaces a missing, stripped, or rusty original screw
• Common fix for a loose or lifting console/panel

• 1 screw

• Disconnect power before service; if applicable, shut off gas/water
• Support the console to avoid straining wiring harnesses
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Use the correct driver style for your model's hardware

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling

White. Includes both left and right hand side.

This harness clip secures appliance wiring to the cabinet or components to prevent rubbing, pinching, and interference with moving parts. It keeps wiring routed neatly for reliable operation and reduced risk of abrasion-related failures. What it does:

• Holds wire harnesses in place to prevent chafing against sharp edges or moving parts
• Reduces vibration-related noise and intermittent connections caused by loose wiring
• Helps maintain proper wire routing around panels, motors, and heaters
• Supports safe operation by keeping wires away from heat sources and pinch points

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove panels or access covers as needed to reach the original clip location
• Install by snapping or seating the clip into the original mounting point and securing the harness in the retainer; replace any broken mounts
• Inspect surrounding wiring and replace damaged wires or insulation before completing repair

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

This 3-cycle timer controls the sequence and duration of each selected cycle. Replacing a worn timer restores dependable cycle advancement and proper shutoff so your machine runs the way it should.

• Controls cycle timing and advances through the selected cycle automatically
• Directs power to key functions at the correct time during operation
• Common symptoms: cycle won't advance or gets stuck; only certain settings work
• Also cause no start or failure to shut off at cycle end; knob turns but timer doesn't move

• Disconnect power to the appliance before servicing
• Access the timer in the control console; note wire locations
• Transfer wires one at a time to the new timer and secure the mounting
• Reinstall the dial/knob and run a short test cycle to advancement and shutoff

This is a replacement machine screw sized 8-18 x 3/8 that secures panels and components on compatible appliances. It restores proper fastening where a worn, stripped, or missing screw causes loose parts or rattling. What it does

• Fastens control panels, trim pieces, or brackets to the appliance chassis
• Replaces stripped, corroded, or missing screws that cause loose panels or vibrating noise
• Provides correct thread engagement for a secure hold in tapped holes
• Small hardware solution often used during door, console, or interior repairs

• One 8-18 x 3/8 machine screw (quantity: 1)

• Use the correct screw size and thread; do not force a different-size fastener into tapped holes
• Hand-start the screw to avoid cross-threading, then tighten with the appropriate screwdriver
• Disconnect power before accessing internal components or panels on electrical appliances
• If metal threads are damaged, repair with a helicoil or replace the damaged component rather than over-torquing

Push-in.

The Terminal Block is an OEM replacement part for Whirlpool dryers. It is responsible for distributing electricity to key components that control drying operations.

Symptoms of a bad terminal block include:

• The dryer not heating up properly or failing to achieve the desired temperature
• Components like lights or timers not functioning
• Strange buzzing or humming noises coming from the dryer

Causes of terminal block failure can be worn or damaged wiring terminals, loose connections due to normal vibration, or corrosion buildup over several years of use.

This terminal block is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore dryer models.

Please note: Please note that this part does not include the wires, screws, and nuts. They must be ordered separately. For the complete block assembly use 279320.

The Start Switch is an OEM part for Whirlpool dryers. This part initiates the drying cycle when you press the start button on the control panel. This switch sends a signal to the dryer to begin operation, ensuring your clothes drying process starts smoothly.

Causes of a bad start switch can include repeated use over time leading to wear and tear, electrical issues such as short circuits or power surges, and physical damage due to mishandling or impact.

Symptoms of a bad start switch include:

• The dryer not starting when the button is pressed
• The dryer stopping unexpectedly during a cycle
• No response or sound when pressing the start button
• Intermittent operation or the need to press the button multiple times

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement timer knob lets you set and turn the dryer's cycle timer smoothly and reliably, restoring easy selection of drying times and cycle settings. Designed as the correct white knob assembly for compatible Whirlpool dryers. What it does:

• Fits onto the dryer timer shaft so you can rotate and select drying cycles and times.
• Replaces a cracked, stripped, loose or missing timer knob that prevents proper control.
• Provides a secure, tactile grip for accurate setting changes.
• Matches the original White finish for a clean, factory look.

• Disconnect the dryer from power before servicing.
• Most knobs pull straight off the timer shaft; align splines and press the replacement fully into place.
• Inspect the shaft and any retained plastic insert; transfer insert if the replacement does not include it.
• If knob is difficult to remove, use steady, even force or a soft-padded puller to avoid damaging the control panel.

Color: White.

This part is a moisture sensor control board that is used on dryer units. This component monitors the moisture levels within the dryer and adjusts the dry time during the automatic drying cycle. A new moisture sensor control board will be needed if the time is not advancing in the automatic drying cycle, even if it does advance in the timed dry cycle. Another sign is if the dryer continues to run after the clothing inside is dry. Unplug the dryer from its power source prior to replacing this component. The person performing this task may wish to wear work gloves to protect their hands.The moisture sensor control board is compatible with dryers that are manufactured by Kenmore, KitchenAid, Kenmore Elite, Whirlpool, Amana, Crosley, Maytag, Inglis, Sears Canada, Roper, and Sears. This part is sold individually and it is a genuine OEM replacement part that comes straight from the manufacturer.

Specs: 10-16 x 1/2 inch.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

Color: Almond

Almond. Size: 13 oz. can. Acrylic appliance paint.

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
